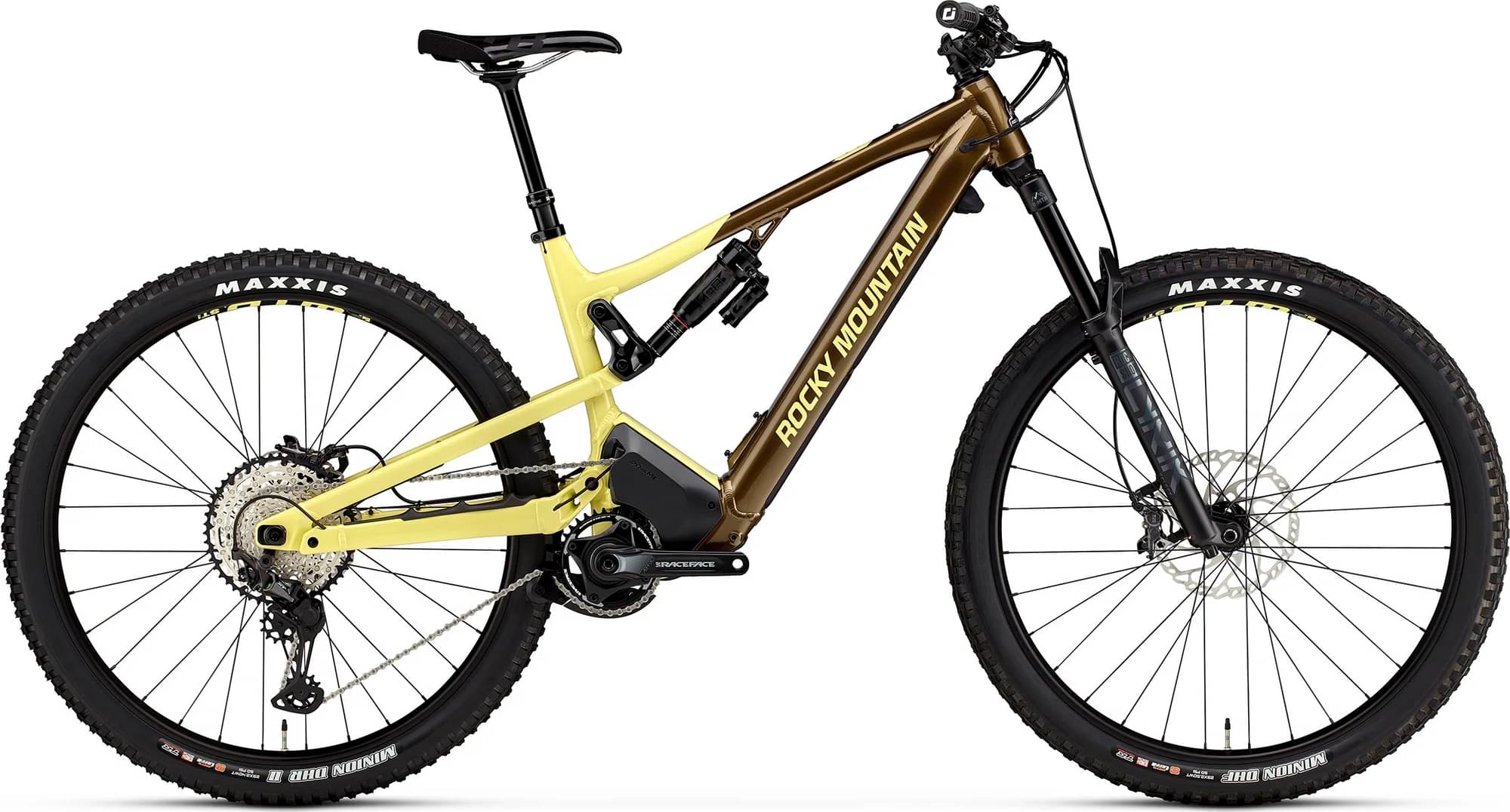

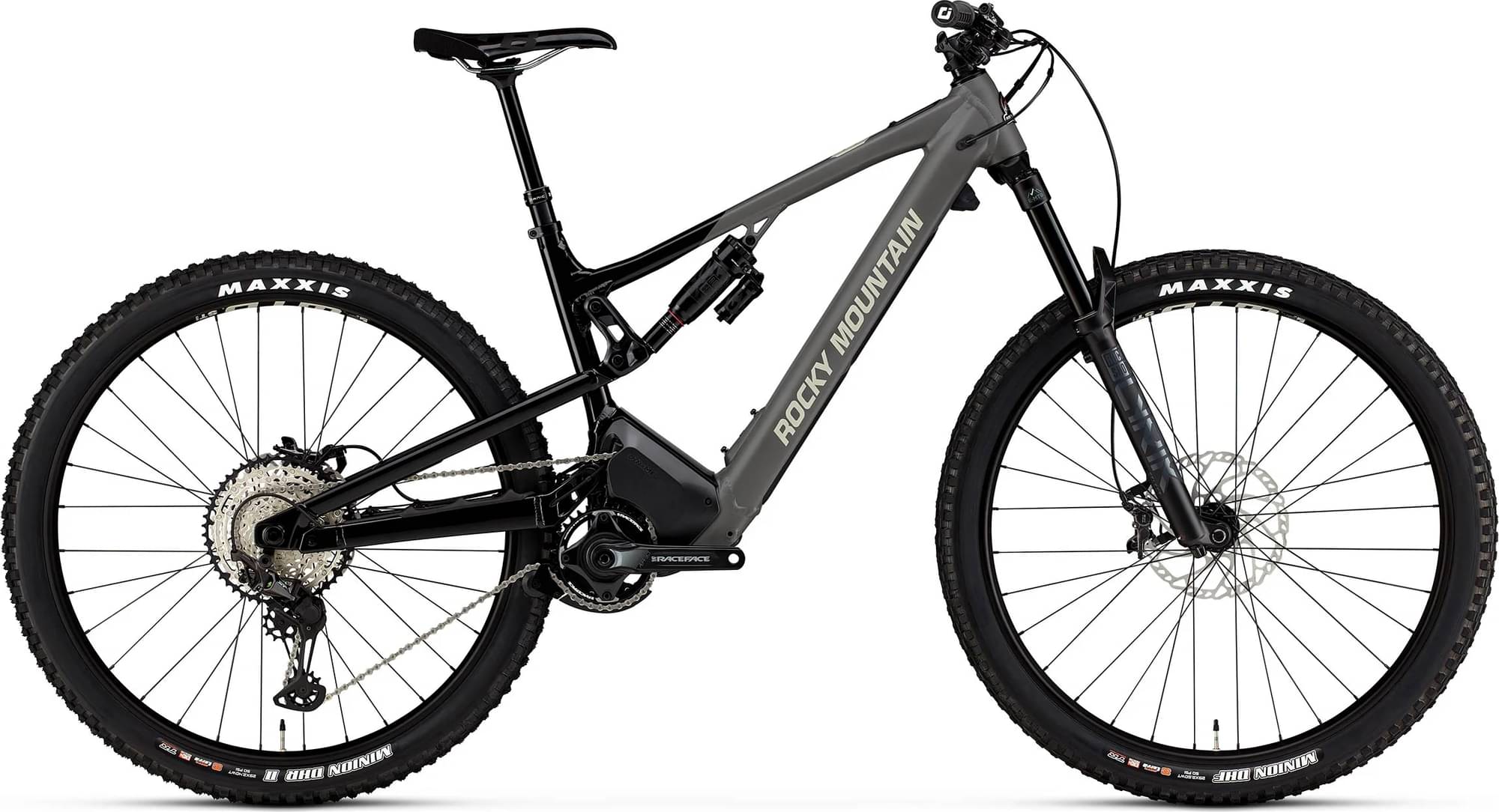

Rocky Mountain Instinct Powerplay A70 Shimano 2024
2024 E-bike
Estimate price |
7,999$
Weight | 24.41 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Lyrik Select
-
Groupset XT, Race Face -
Suspension Full -
Motor Dyname 700W 108Nm mid-drive -
Battery 720 Wh Removable Integrated Li-Ion | 100% Charged in 3:55 (4A) / 7:35 (2A) | 80% Charged in 2:55 (4A) / 6:05 (2A) -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FORM™ Alloy | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | RIDE-9™ Adjustable Geometry + Suspension Rate | 140mm Travel. FORM™ Alloy Rear Triangle
Suspension Fork
RockShox Lyrik Select 150mm | Charger RC Damper | 29 = 42mm Offset
Rear Shock
RockShox Super Deluxe Select+ | Sealed Bearing Eyelet | 20x8mm F Hardware | All Sizes = 210x55mm | Size-Specific tune in FAQ
Drivetrain
Rear Derailleur
Shimano XT
Shift Levers
Shimano XT
Cassette
Shimano SLX 10-51T
Crank
Race Face Aeffect Cinch 34T | 24mm Spindle | Crank Length: SM - MD = 165mm | LG - XL = 170mm
Bottom Bracket
Shimano SM-BBMT500
Chain
Shimano M7100
Wheels
Front Hub
Rocky Mountain SL Sealed Boost 15mm
Rear Hub
DT Swiss Hybrid 370 Boost 148mm | 18T Star-Ratchet
Rims
WTB ST i30 TCS 2.0 Tubeless | 32H / Tubeless Ready - Tape / Valves Incl
Spokes
F : DT Swiss Champion 2.0 | R : DT Swiss Alpine 2.3/2.0
Tires
F: Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready
Brakes
Brakes
Shimano XT Trail 4 Piston | Metal Pads
Cockpit
Stem
Rocky Mountain 35 AM | 5° Rise | All Sizes = 40mm
Handlebar
Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp
Grips
ODI Elite Pro Lock On
Headset
FSA Orbit NO.57E ZS44|56 | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Seat
Saddle
WTB Volt Race 142
Seatpost
X Fusion Manic Alloy 30.9mm | Shimano MT500 Remote | SM = 125mm | MD = 150mm | LG = 170mm | XL = 200mm
Motor & Battery
Motor
Dyname 4.0 Mountain Bike Drive | 700W Max Power | 250W Nominal Power | 108Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada
Battery
720 Wh Removable Integrated Li-Ion | 100% Charged in 3:55 (4A) / 7:35 (2A) | 80% Charged in 2:55 (4A) / 6:05 (2A)
Remote
Rocky Mountain Micro Remote
Charger
Rocky Mountain Powerplay FAST Charger V1 | 4A | 48V | Higo Deep Socket Connector | Overtimepack Compatible (Dyname 4)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM Steep | SM Slack | MD Steep | MD Slack | LG Steep | LG Slack | XL Steep | XL Slack |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.401 mm | 1.444 mm | 1.326 mm | 1.365 mm | 1.275 mm | 1.311 mm | 1.229 mm | 1.262 mm |
| Bottom Bracket Height | 342 mm | 332 mm | 342 mm | 332 mm | 342 mm | 332 mm | 342 mm | 332 mm |
| Front Center | 765 mm | 765 mm | 790 mm | 790 mm | 819 mm | 820 mm | 856 mm | 856 mm |
| Rake | 45 mm | 46 mm | 45 mm | 46 mm | 45 mm | 47 mm | 47 mm | 46 mm |
| Trail | 125 mm | 130 mm | 125 mm | 130 mm | 125 mm | 129 mm | 123 mm | 130 mm |
| Stack | 618 mm | 624 mm | 618 mm | 624 mm | 626 mm | 632 mm | 639 mm | 646 mm |
| Reach | 441 mm | 432 mm | 466 mm | 457 mm | 491 mm | 482 mm | 520 mm | 512 mm |
| Top Tube Length | 583 mm | 585 mm | 608 mm | 610 mm | 636 mm | 638 mm | 669 mm | 671 mm |
| Seat Tube Angle | 76.95 ° | 76.2 ° | 76.95 ° | 76.2 ° | 76.95 ° | 76.2 ° | 76.95 ° | 76.2 ° |
| Seat Tube Length | 380 mm | 380 mm | 420 mm | 420 mm | 445 mm | 445 mm | 480 mm | 480 mm |
| Head Tube Angle | 64.95 ° | 64.2 ° | 64.95 ° | 64.2 ° | 64.95 ° | 64.2 ° | 64.95 ° | 64.2 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 110 mm | 110 mm | 125 mm | 125 mm |
| Chainstay Length | 436 mm | 439 mm | 436 mm | 439 mm | 436 mm | 439 mm | 436 mm | 439 mm |
| Wheelbase | 1199 mm | 1201 mm | 1224 mm | 1226 mm | 1253 mm | 1256 mm | 1290 mm | 1292 mm |
| Bottom Bracket Drop | 32 mm | 42 mm | 32 mm | 42 mm | 32 mm | 42 mm | 32 mm | 42 mm |
| Standover Height | 823 mm | 819 mm | 823 mm | 818 mm | 823 mm | 817 mm | 823 mm | 818 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
