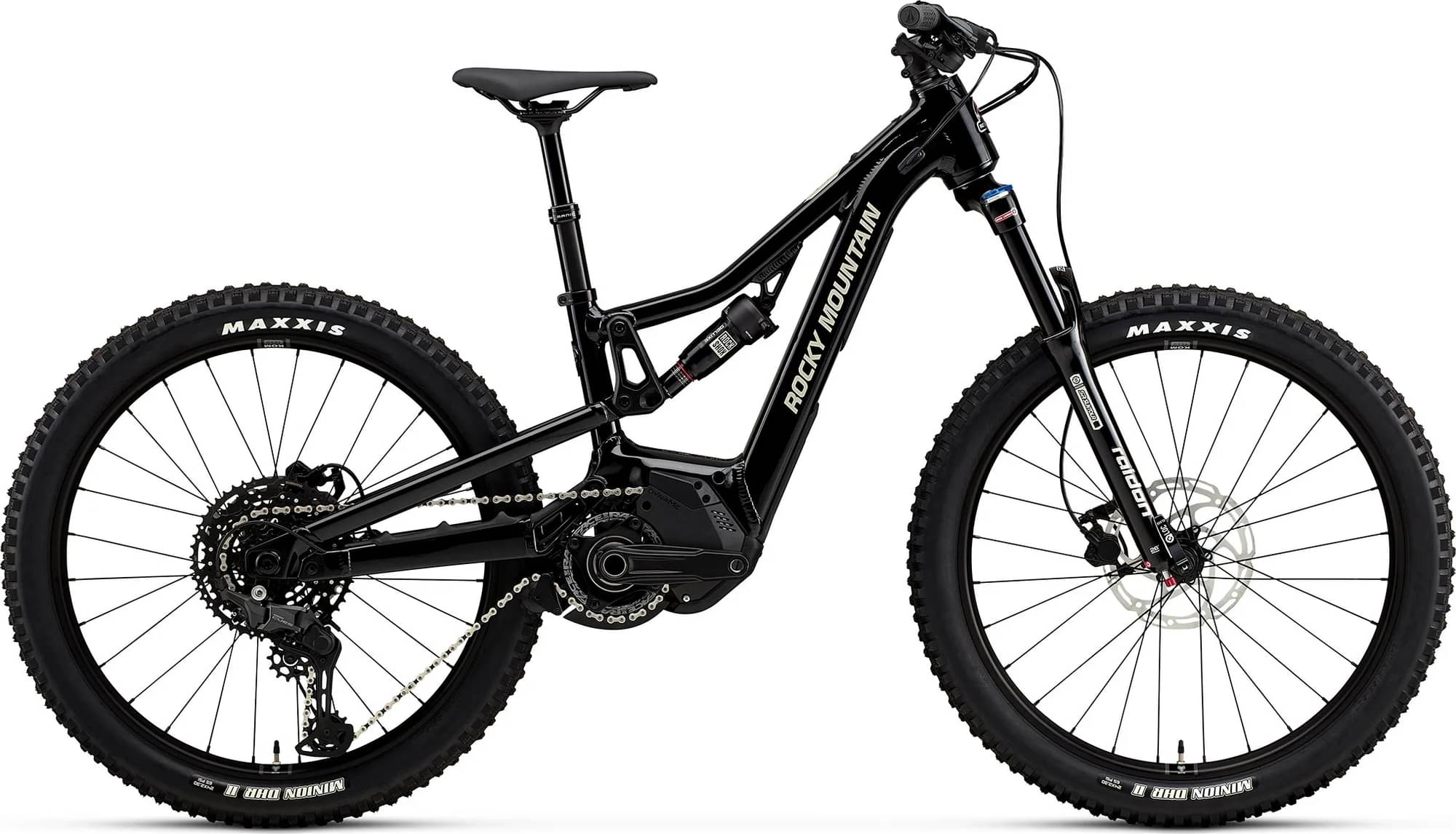

Rocky Mountain Reaper Powerplay 24 2025
2025 E-bike
Estimate price |
5,817$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Travel Rear 130mm -
Fork RockShox Reba
-
Groupset CUES -
Suspension Full -
Motor Dyname 300W 40Nm mid-drive -
Battery 240 Wh Fully Integrated Li-Ion -
Drivetrain 1 × 10 -
Brakes Tektro Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FORM™ Alloy | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | RIDE-2™ Adjustable Geometry | 130mm Travel. FORM™ Alloy Rear Triangle
Suspension Fork
RockShox Reba R 120mm | 40m Offset
Rear Shock
RockShox Deluxe Select | Sealed Bearing Eyelet | 20x8mm F Hardware | 170x35mm
Drivetrain
Rear Derailleur
Shimano CUES 10spd
Shift Levers
Shimano CUES 10spd
Cassette
Shimano CUES 11-48T 10spd
Crank
Rocky Mountain Microdrive 2PC | 30T | SRAM Direct Mount | 24mm Spindle | Crank Length: 140mm
Bottom Bracket
Rocky Mountain Sealed - Shimano Compatible
Chain
KMC X11-1
Wheels
Front Hub
Shimano TC500 | 15x100m | 28H
Rear Hub
Shimano TC500 Boost 148mm | 28H
Rims
WTB ST Light i27 TCS 2.0 Tubeless | 28H /
Spokes
2.0 Stainless
Tires
F: Maxxis Minion DHR II 2.3 // R: Maxxis Minion DHR II 2.3 //
Brakes
Brakes
Tektro HD-J285 | Short Reach Lever | Shimano Pad Compatible
Cockpit
Stem
Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40mm
Handlebar
Rocky Montain Jr | 640mm Width |25mm rise | 9° Backsweep |5° Upsweep | 31.8 | For 19mm Grips
Grips
SGD Slater JR Lock On
Headset
FSA ZS56|66 Reach Adjust| 5mm Cups Installed | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Seat
Saddle
Rocky Mountain Kids
Seatpost
X Fusion Manic Composite 30.9mm | 80mm
Motor & Battery
Motor
Dyname S4 Mini Mountain Bike Drive | 300W Max Power | 250W Nominal Power | 40Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada
Battery
240 Wh Fully Integrated Li-Ion
Remote
Rocky Mountain Micro Remote
Charger
Rocky Mountain Powerplay Charger V2 | 2A | 48V | Higo Deep Socket Connector | Overtimepack Compatible (Dyname 4)
Fit data
