Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox
-
Groupset Alivio, Acera -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rocky Mountain 6061 Series Custom Hydroformed Alloy Frame Threaded BB ZeroStack 1-1/8\" Headtube Rack and Fender Mounts
Suspension Fork
RockShox XC28 TK 29
Drivetrain
Rear Derailleur
Shimano Alivio 9spd
Front Derailleur
Shimano Acera 9spd 31.8mm
Shift Levers
Shimano Acera Rapid Fire 9spd
Cassette
Shimano HG20 11-34 9spd
Crank
Shimano M391 170-175mm 42/32/22T
Bottom Bracket
Shimano UN-26
Chain
KMC X9 9spd
Wheels
Front Hub
Shimano RM35 Disc
Rear Hub
Shimano RM35 Disc
Rims
Wheeltech SX17 By WTB
Spokes
Stainless
Tires
Geax AKA 29\" x 2.2\"
Brakes
Brakes
Shimano BR-M395 Hydraulic Disc 160mm
Brake Levers
Shimano BL-M395
Cockpit
Stem
Rocky Mountain XC7 7° x 60-90mm
Handlebar
Rocky Mountain Zero6 Flat Ø31.8mm x 670mm x 6° Sweep
Grips
Rocky Mountain XC Kraton
Headset
Cane Creek Five Series: ZS44mm
Seat
Saddle
Rocky Mountain XC
Seatpost
Rocky Mountain XC 27.2mm x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 318 mm | 318 mm | 318 mm | 318 mm |
| Front Center | 630 mm | 652 mm | 676 mm | 699 mm |
| Top Tube Length | 564 mm | 586 mm | 609 mm | 632 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 432 mm | 470 mm | 508 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1065 mm | 1087 mm | 1111 mm | 1134 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 56 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

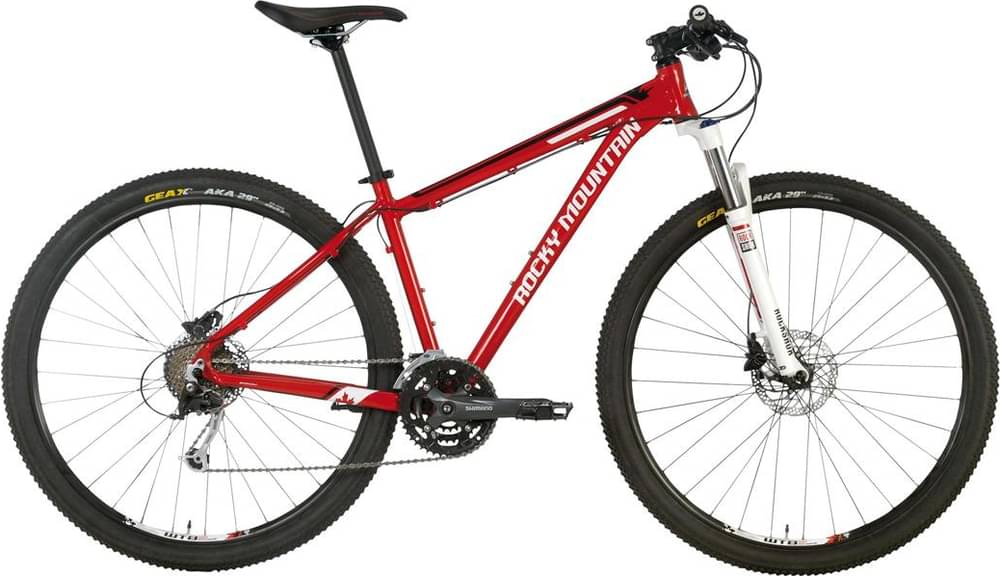

Soul 29 is a Rockymountain Soul model. Rocky Mountain launched 39 bikes of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Soul 29 components
Fork
The fork installed on this bike is the RockShox model. The travel on this model is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The Soul 29 2013 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Rocky Mountain Soul 29 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
