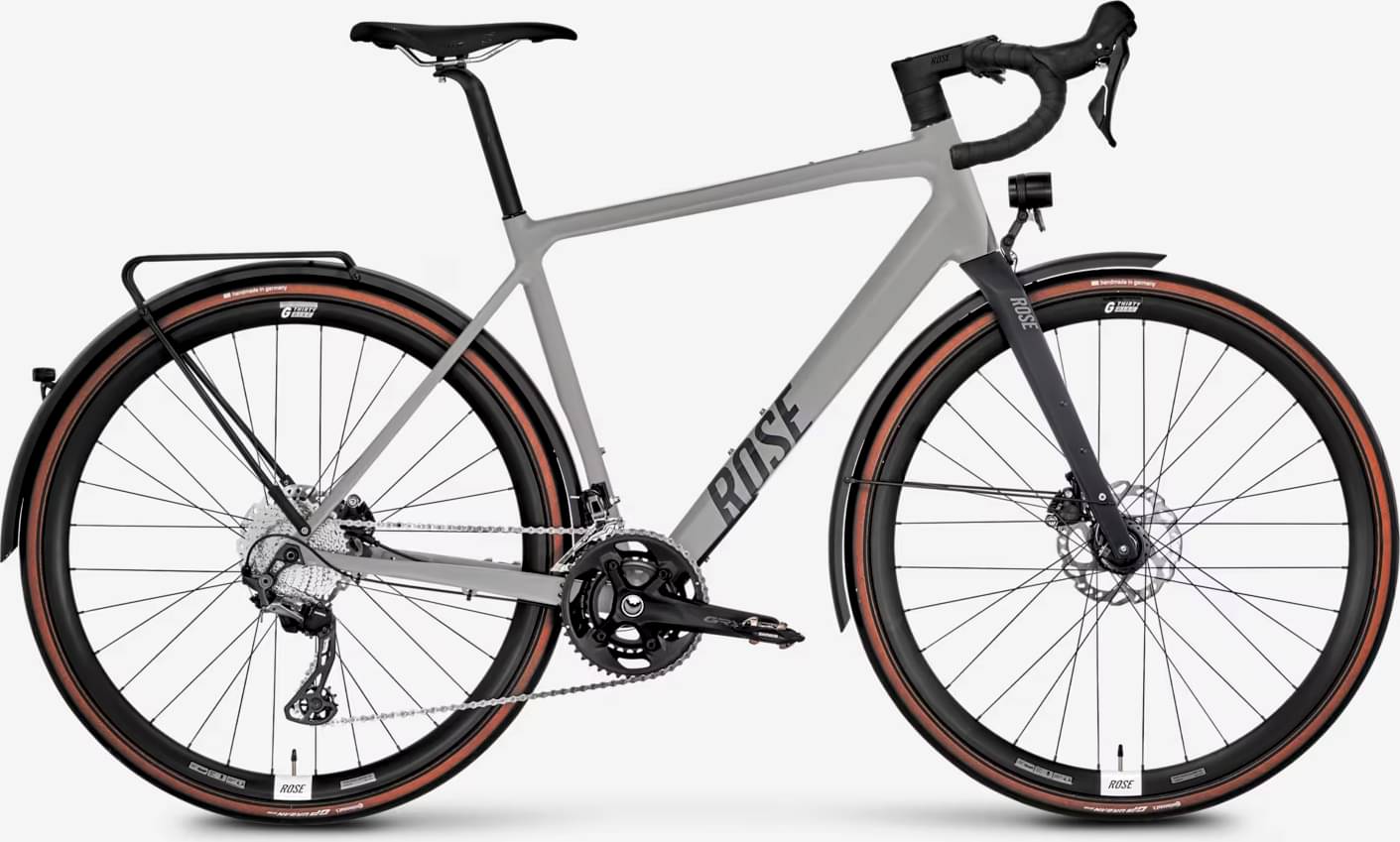

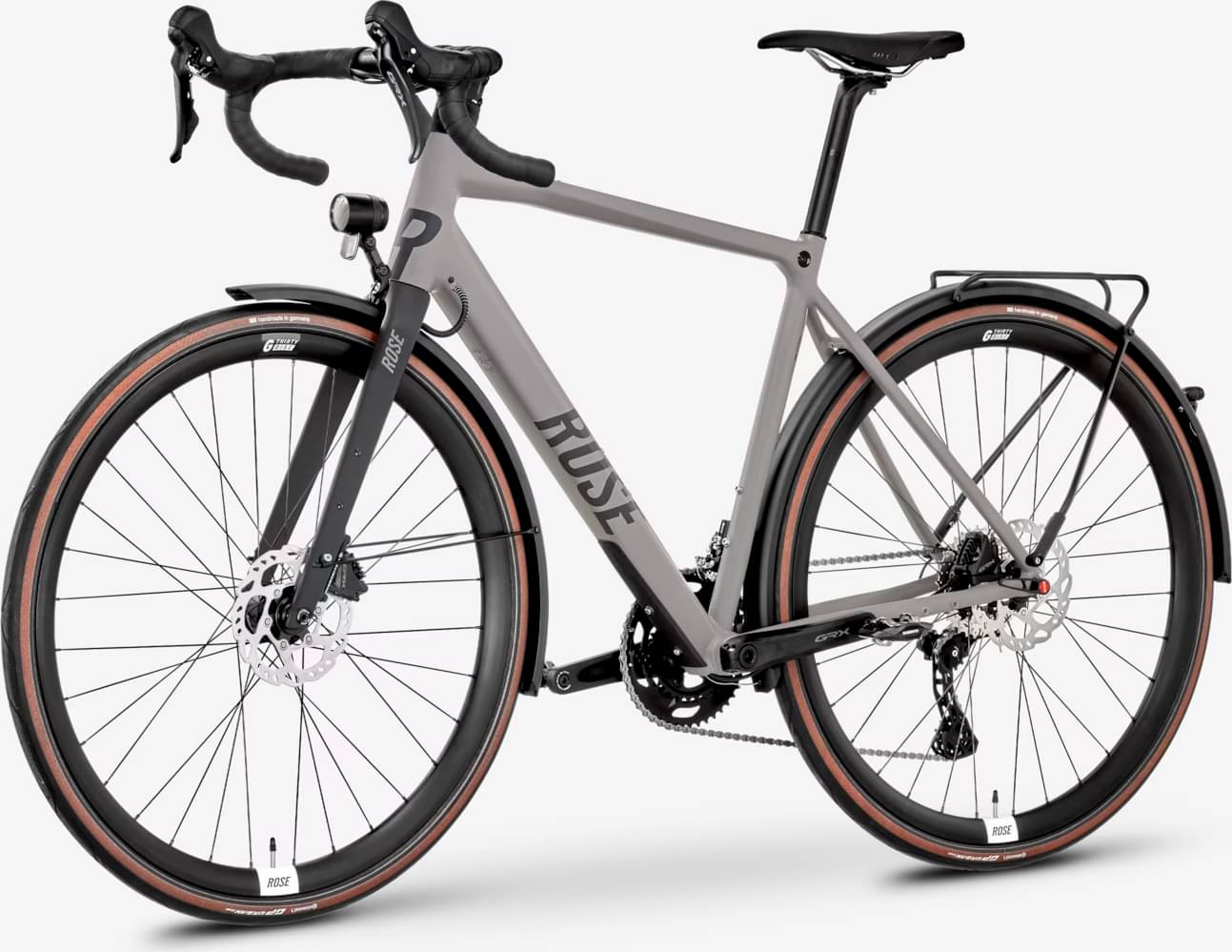

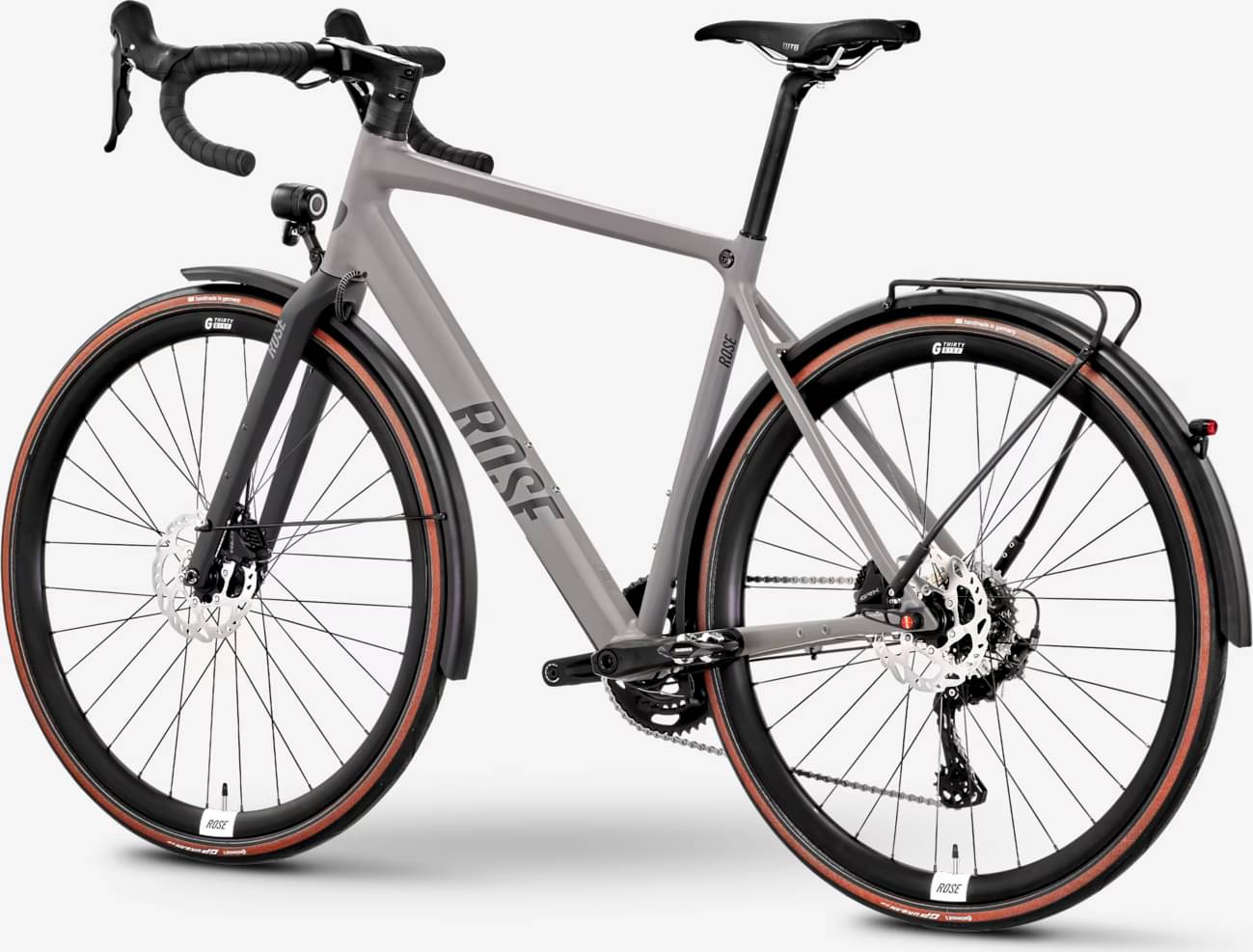

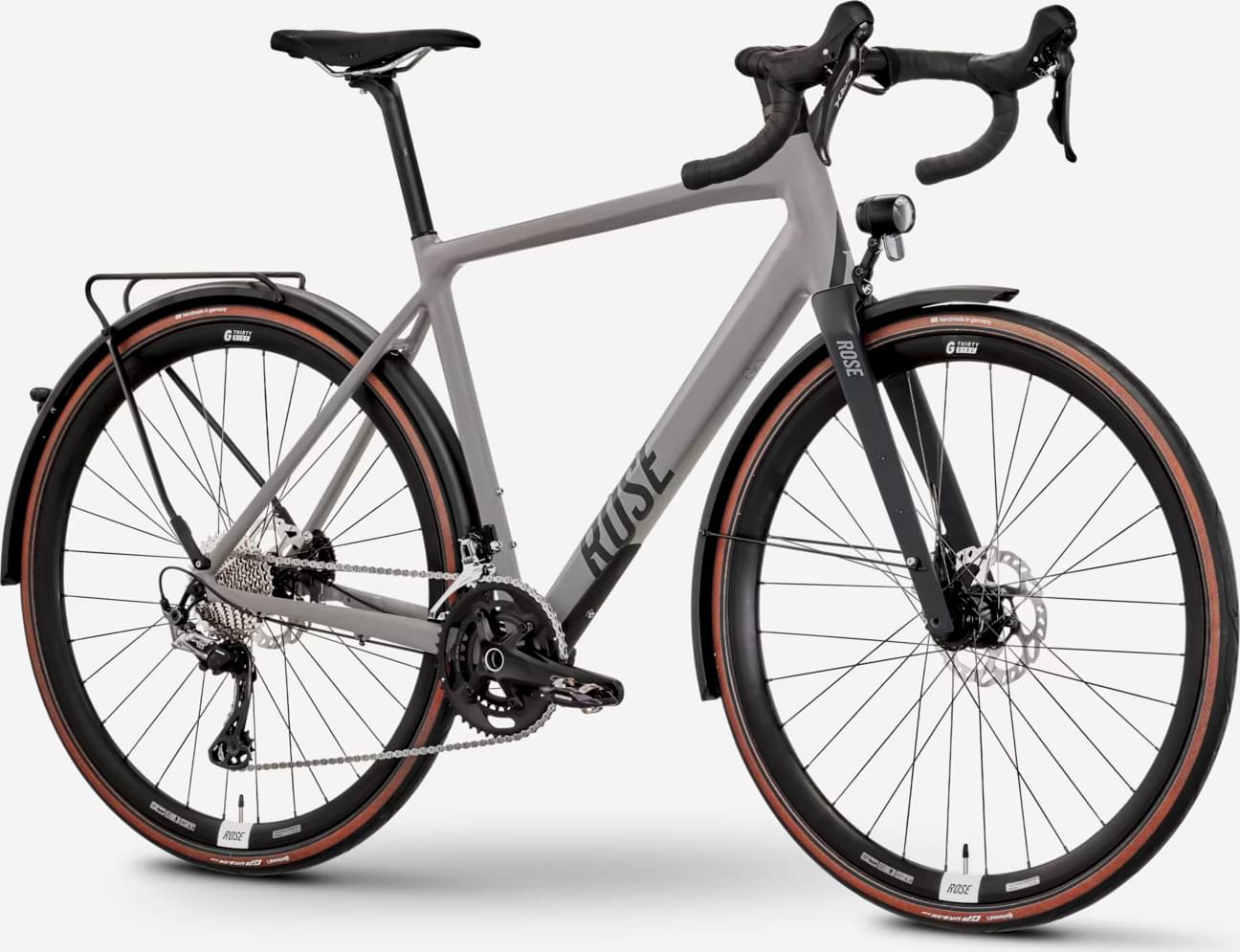

Rose Backroad AL EQ 2024
2024 Road
Estimate price |
2,907$
Weight | 11.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ROSE Backroad AL, 12x142, frame weight for frame height 55 approx. 1800 g, max. tyre width 27.5": 50 / 28": 45c, Pressfit BB86, aluminium fog grey 51cm-28
Suspension Fork
ROSE-Cross Backroad, Carbon, 28", max. tyre width 27.5": 50 / 28": 45c, 12x100TA, fork weight 425 g matt black/fog grey
Drivetrain
Rear Derailleur
Shimano GRX, RD-RX810, GRX, 11-speed, Top normal, shadow plus
Front Derailleur
Shimano GRX, FD-RX810
Cassette
Shimano CS-HG700, 11-speed, 11-34
Crank
Shimano GRX, FC-RX600, 11-speed, double, 46/30T. 170mm
Bottom Bracket
BB86/BB92, press-fit
Chain
Shimano CN-HG601 118 links
Pedals
delivered without pedals Standard
Wheels
Rims
ROSE G Thirty Disc 32 hole, black, black 28"
Tires
Continental Grand Prix Urban, black/coffee 700x35C
Brakes
Brakes
Shimano GRX, ST-RX600 / BR-RX400 black 1700mm, Shimano GRX, ST-RX600 / BR-RX400, 160mm black 1000mm
Cockpit
Stem
ROSE Square, anodized black 80mm
Handlebar
Ritchey Butano Comp, 40cm
Seat
Saddle
WTB Silverado Medium, black
Seatpost
ROSE Race Attack SP-63 XL, 350mm, black/matt 27,2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 53cm | 55cm | 57cm | 59cm | 61cm | 64cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.502 mm | 1.54 mm | 1.56 mm | 1.572 mm | 1.552 mm | 1.556 mm | 1.569 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 284 mm | 284 mm | 284 mm |
| Front Center | 592 mm | 598 mm | 608.5 mm | 618 mm | 627 mm | 638 mm | 650 |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 78 mm | 75 mm | 74 mm | 73 mm | 69 mm | 67 mm | 64 mm |
| Stack | 547.5 mm | 567.5 mm | 582.5 mm | 600.5 mm | 606 mm | 621 mm | 642.5 mm |
| Reach | 364.5 mm | 368.5 mm | 373.5 mm | 382 mm | 390.5 mm | 399 mm | 409.5 mm |
| Top Tube Length | 519 mm | 531 mm | 543 mm | 560 mm | 570 mm | 586 mm | 606 mm |
| Seat Tube Angle | 74.25 ° | 74 ° | 73.75 ° | 73.5 ° | 73.5 ° | 73.25 ° | 73 ° |
| Seat Tube Length | 475 mm | 490 mm | 500 mm | 510 mm | 530 mm | 555 mm | 605 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 70.5 ° | 71 ° | 71.25 ° | 71.5 ° | 72 ° |
| Head Tube Length | 128 mm | 142 mm | 158 mm | 175 mm | 190 mm | 205 mm | 228 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1011 mm | 1017 mm | 1029 mm | 1037 mm | 1049 mm | 1060 mm | 1072 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
