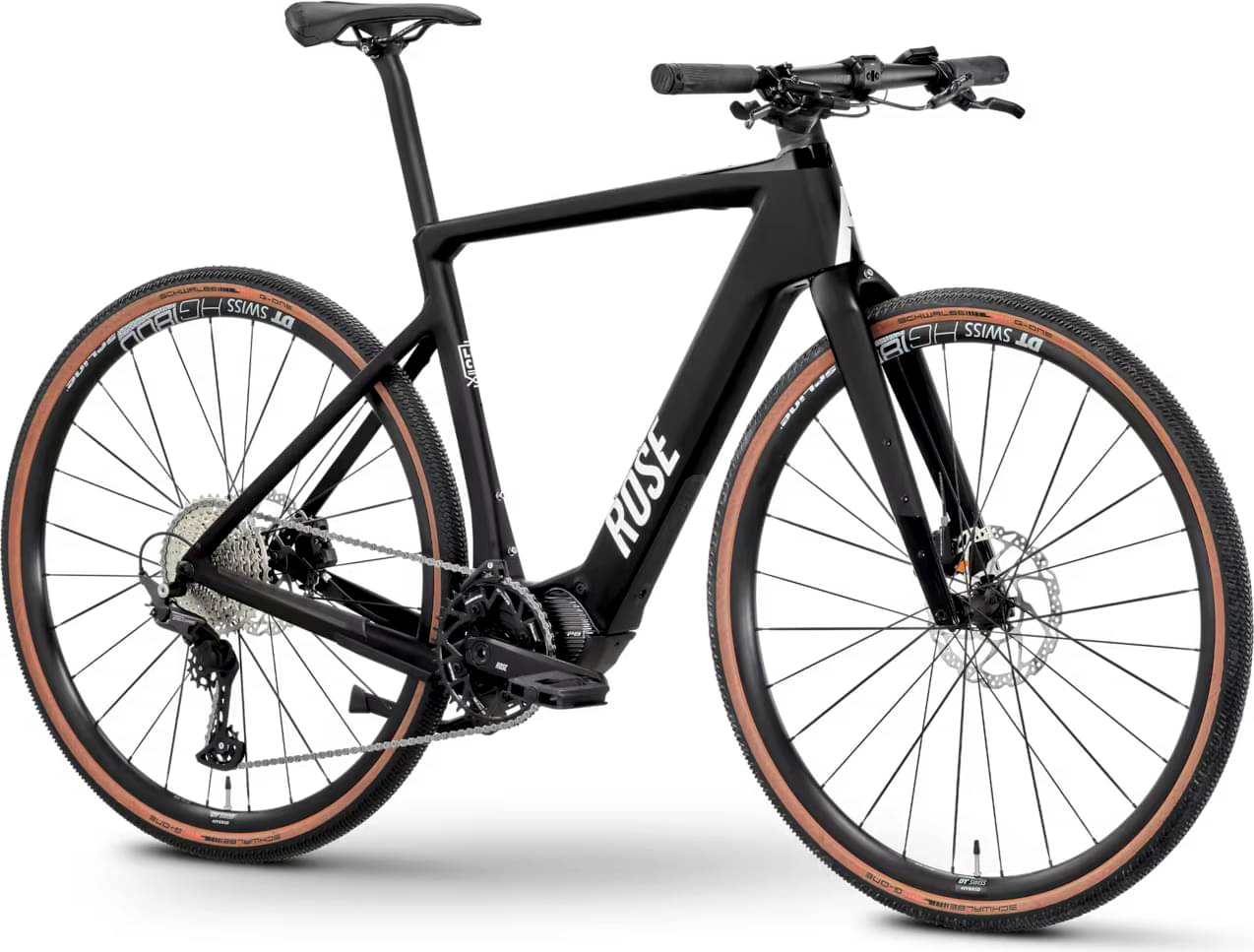

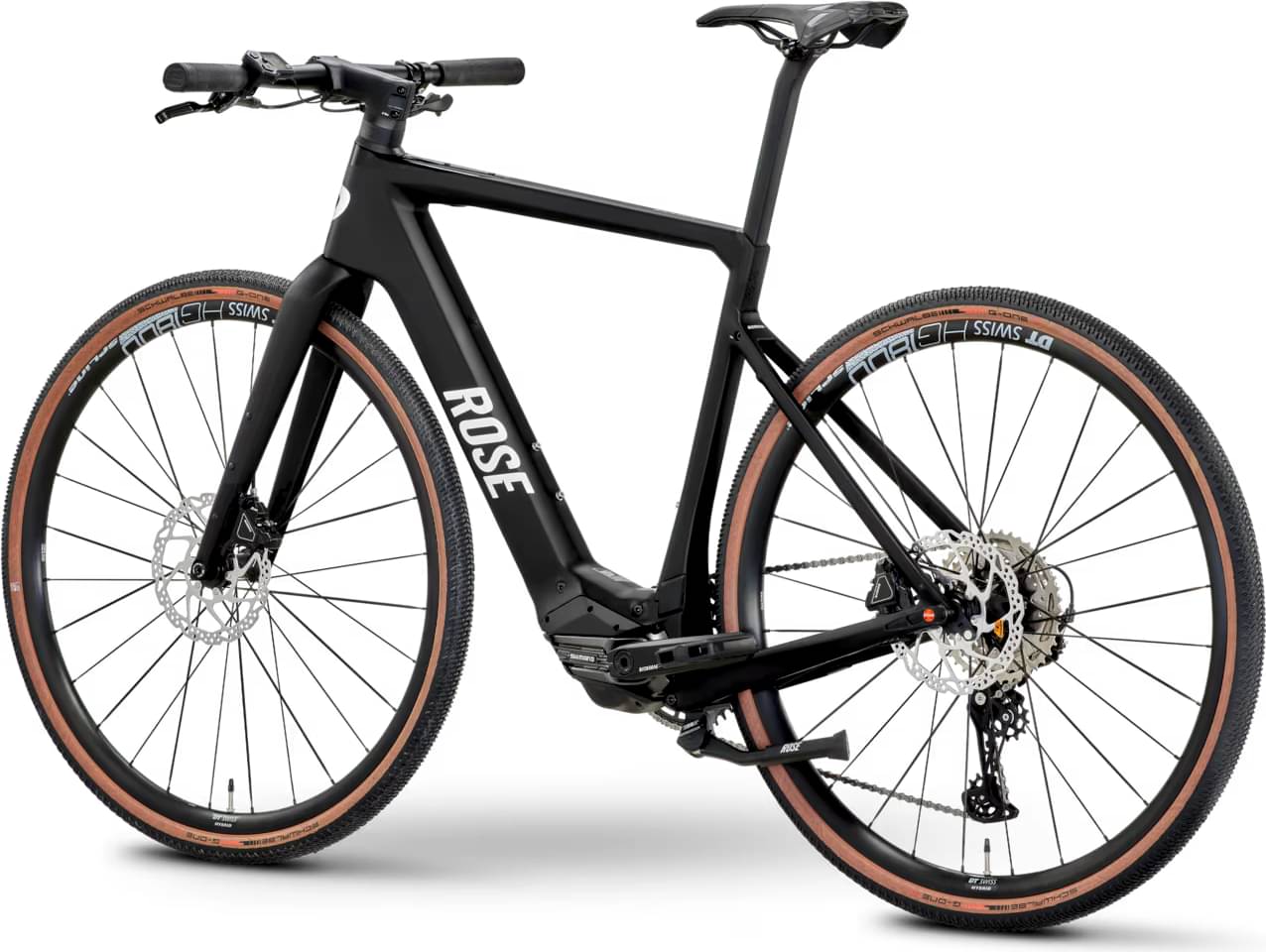

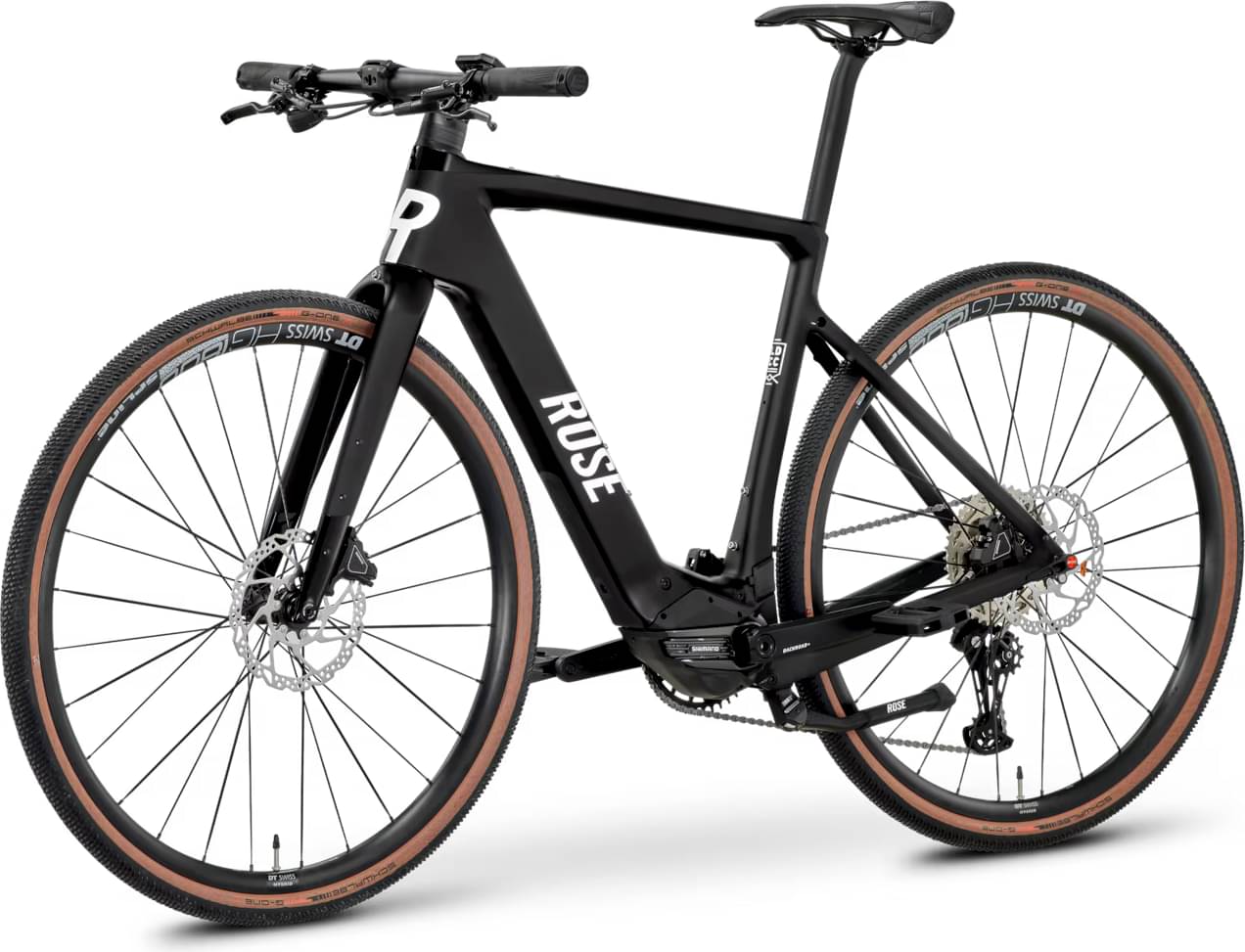

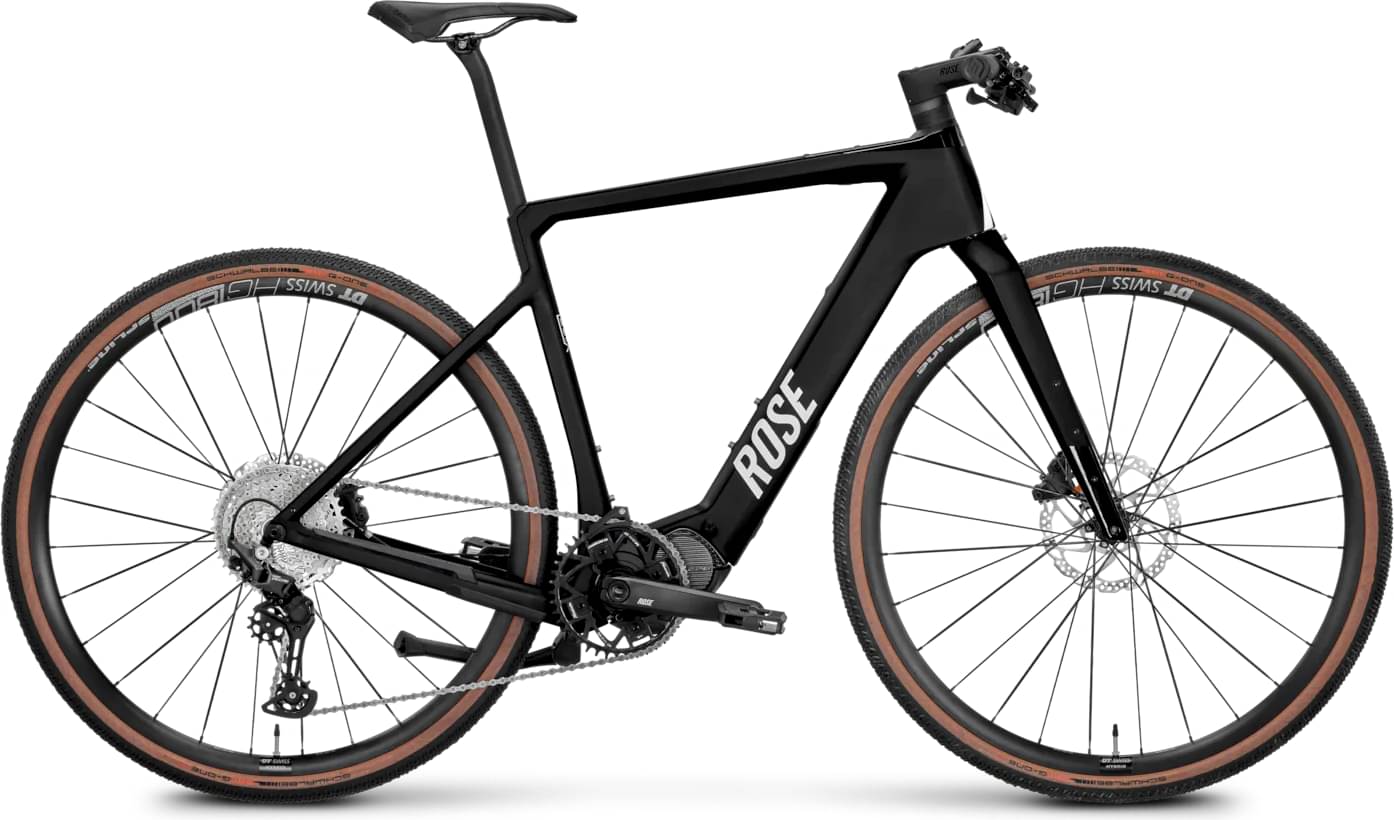

Rose Backroad Plus Flatbar 2025
2025 E-bike
Estimate price |
4,923$
Weight | 15.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Deore -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon
Suspension Fork
Rose BACKROAD+, Carbon, 12x100TA, Gabelgewicht ca. 470 g matt-black/piano-black/pure-white
Drivetrain
Rear Derailleur
Shimano Deore RD-M5100 SGS, 11-fach,
Shift Levers
Shimano Deore, SL-M5100-IR, 11-fach
Cassette
Shimano Deore CS-M5100-11, 11-42
Crank
Miranda Delta für Shimano EP8, 170mm, Miranda Chainflow 3D, Boost Spider, 42 Zähne 42 Z.
Chain
Shimano CN-HG601-11, 120gl.
Pedals
ROSE VP-836, schwarz
Brakes
Brakes
VR: Shimano BL-MT200 / BR-UR300, schwarz 1000mm, HR: Shimano BL-MT200 / BR-UR300, schwarz 1700mm
Cockpit
Stem
ROSE Square, anodized black 80mm
Handlebar
Level Nine, anodized black 31,8mm
Grips
Ergotec Griffe Performance black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.422 mm | 1.436 mm | 1.47 mm | 1.488 mm |
| Stack | 549 mm | 573 mm | 604 mm | 634 mm |
| Reach | 386 mm | 399 mm | 411 mm | 426 mm |
| Top Tube Length | 518 mm | 553 mm | 590 mm | 620 mm |
| Head Tube Angle | 69.5 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 170 mm | 200 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1042 mm | 1047 mm | 1067 mm | 1087 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
