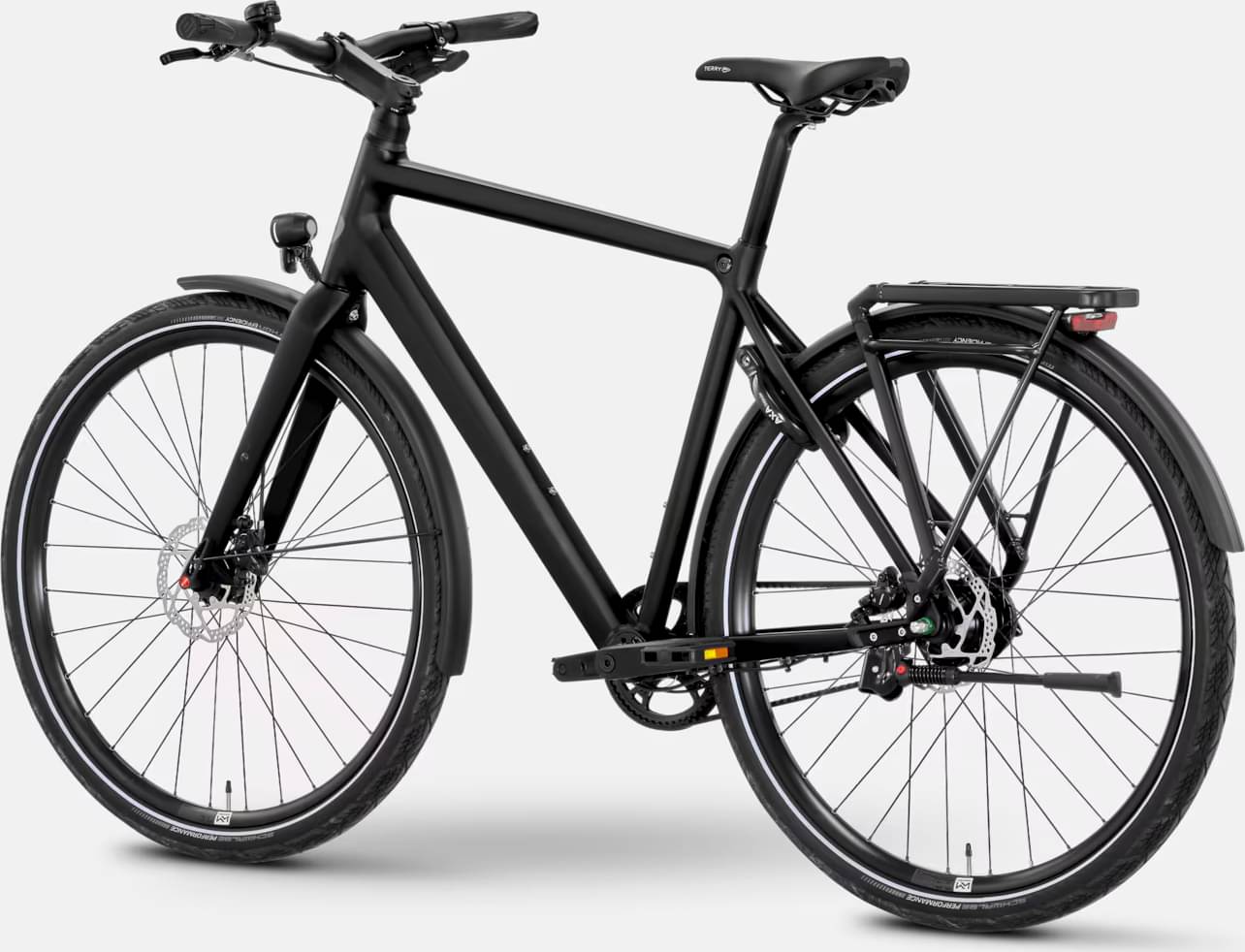

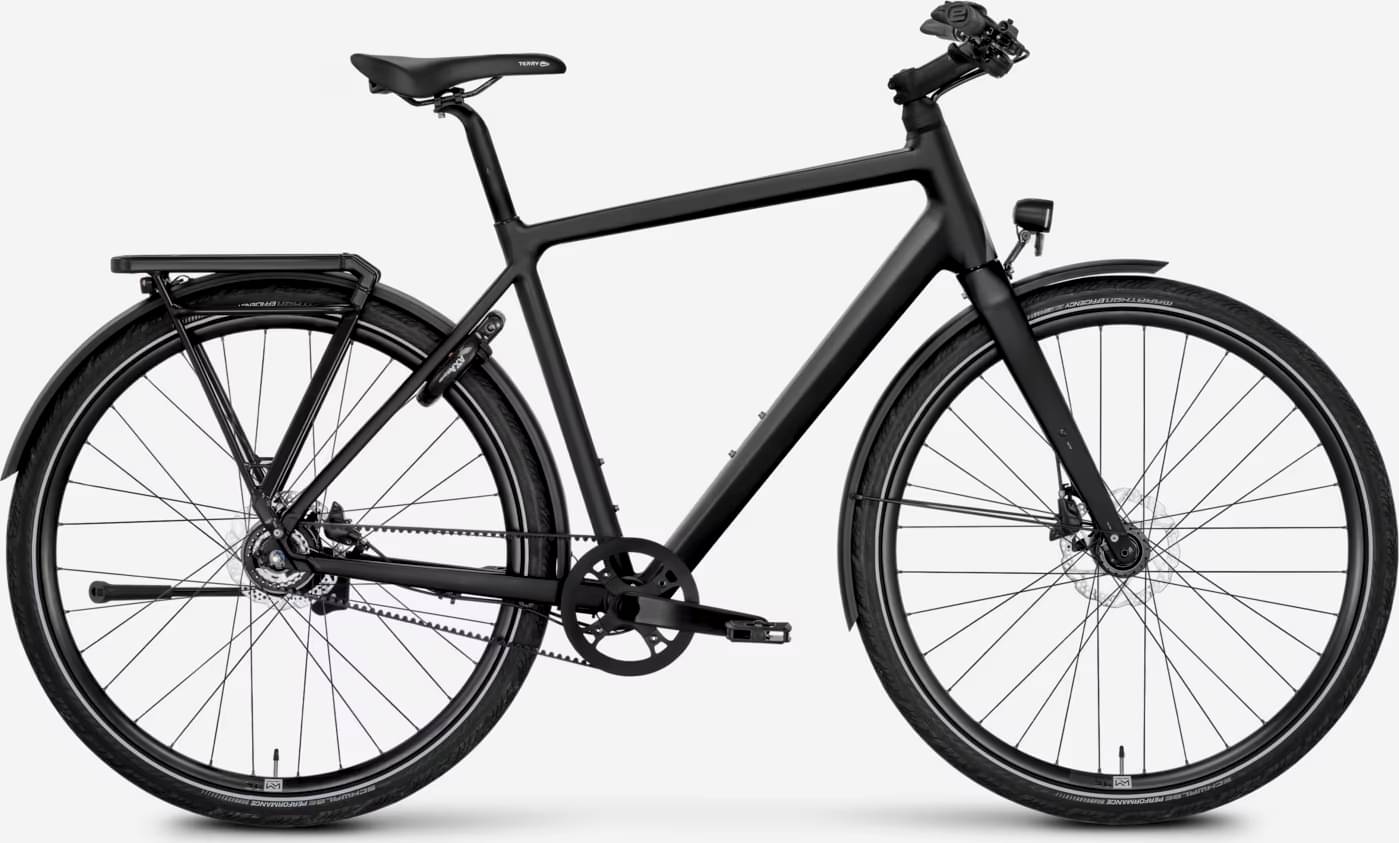

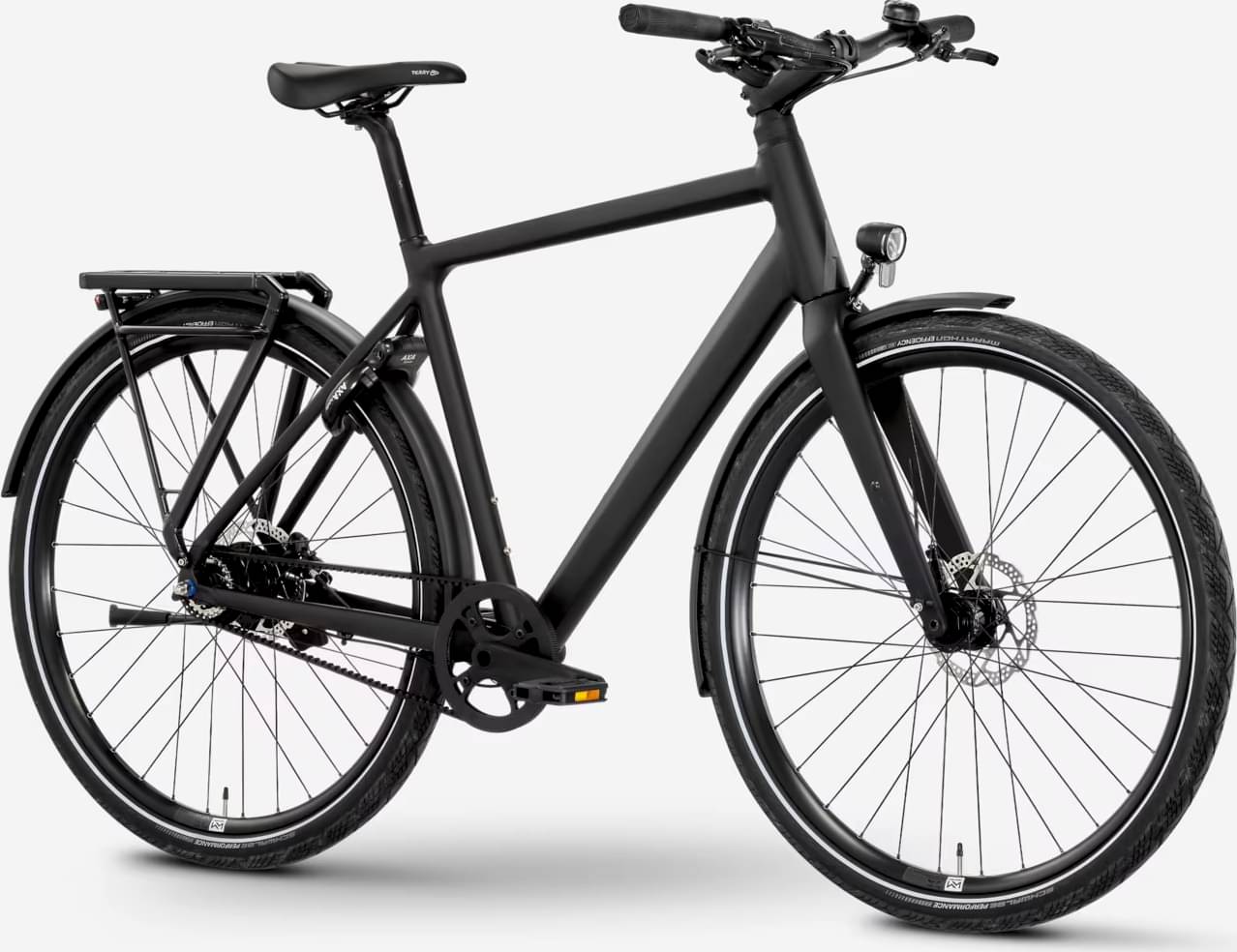

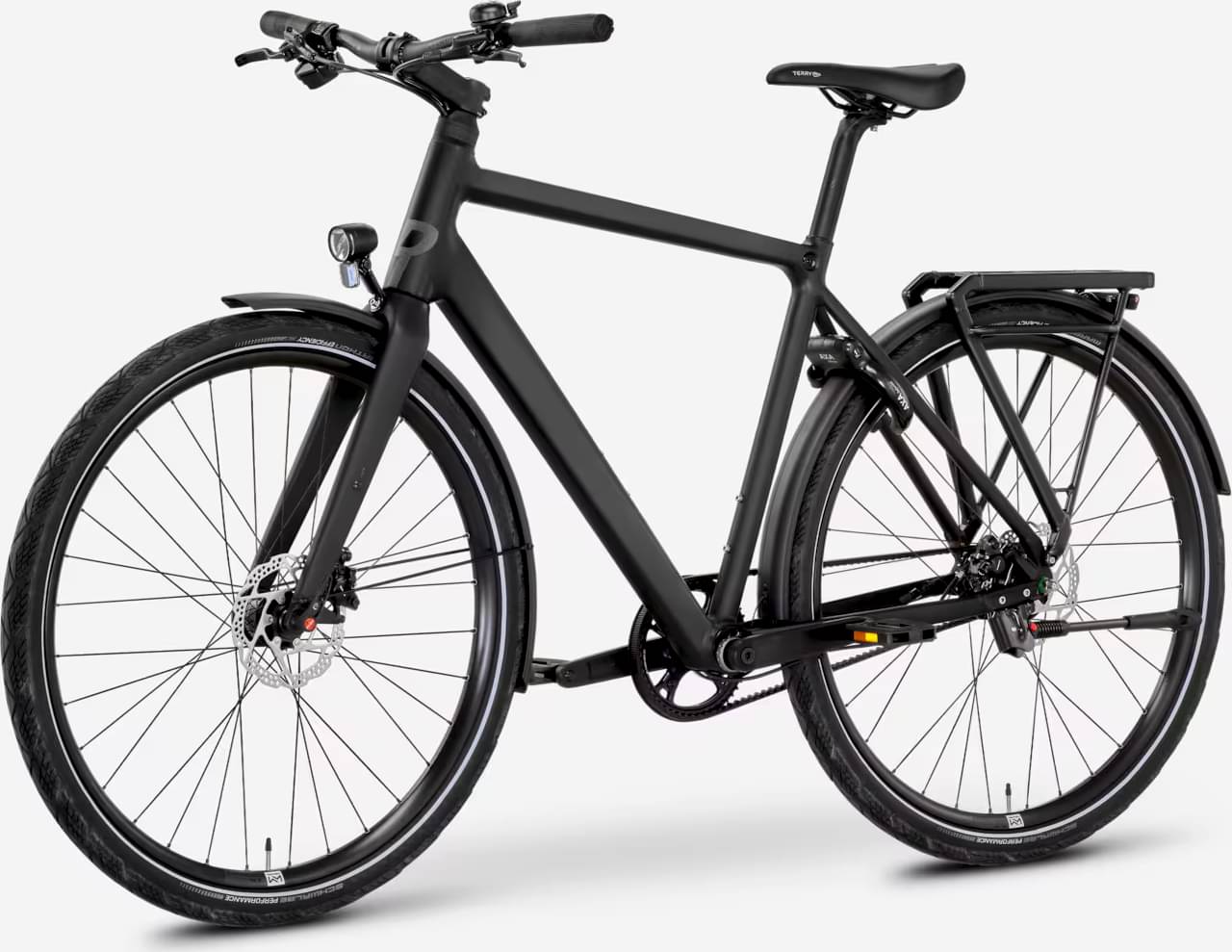

Rose Black Lava 2 2024
2024 Urban
Estimate price |
2,791$
Weight | 14.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Alfine -
Suspension Rigid -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ROSE BLACK LAVA Trekking, aluminium, internal cable routing, Excenter, BSA68, matt black YS 728 / reflective decal 19"
Suspension Fork
ROSE BLACK LAVA Trekking, full carbon, tapered, 12x100 TA, internal cable routing matt black YS 728 / reflective decal
Drivetrain
Shift Levers
Shimano Alfine SLS700
Cassette
Gates Carbon Drive, 24T
Crank
Miranda Delta 50T, black 170mm
Bottom Bracket
BSA, 68mm, threaded
Chain
Gates Carbonriemen, black 122T
Pedals
ROSE VP-836 black
Wheels
Rims
Newmen Performance 25, 29"
Tires
Schwalbe Marathon Efficiency Perf, black 50-622
Brakes
Brakes
Shimano BL-MT201 / BR-MT200 black 250 x 350 x 50, Shimano BR-MT200 black 800mm
Cockpit
Stem
ROSE Race Attack UR-100 +-7° black 100mm
Handlebar
ergotec Low Riser Bar, black sand Ø31,8mm
Grips
ergotec Active Flex, black 130mm
Seat
Saddle
Terry Figura Men
Seatpost
ROSE Race Attack SP-63 XL 350mm, black/matt 30,9 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 19" | 21" | 23" | 25" |
|---|---|---|---|---|
| Front Center | 646.5 mm | 651.5 mm | 656.5 mm | 661.5 mm |
| Top Tube Length | 580 mm | 590 mm | 600 mm | 610 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 483 mm | 533 mm | 584 mm | 635 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° | 71 ° |
| Head Tube Length | 175 mm | 185 mm | 195 mm | 210 mm |
| Chainstay Length | 459 mm | 459 mm | 459 mm | 459 mm |
| Wheelbase | 1099 mm | 1104 mm | 1109 mm | 1113 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 |
