Rose Bonero Plus 3 2025
2025 E-bike
Estimate price |
6,868$
Weight | 16.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 140mm -
Fork RockShox Lyrik Select
-
Groupset Eagle AXS, GX Eagle Transmission -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

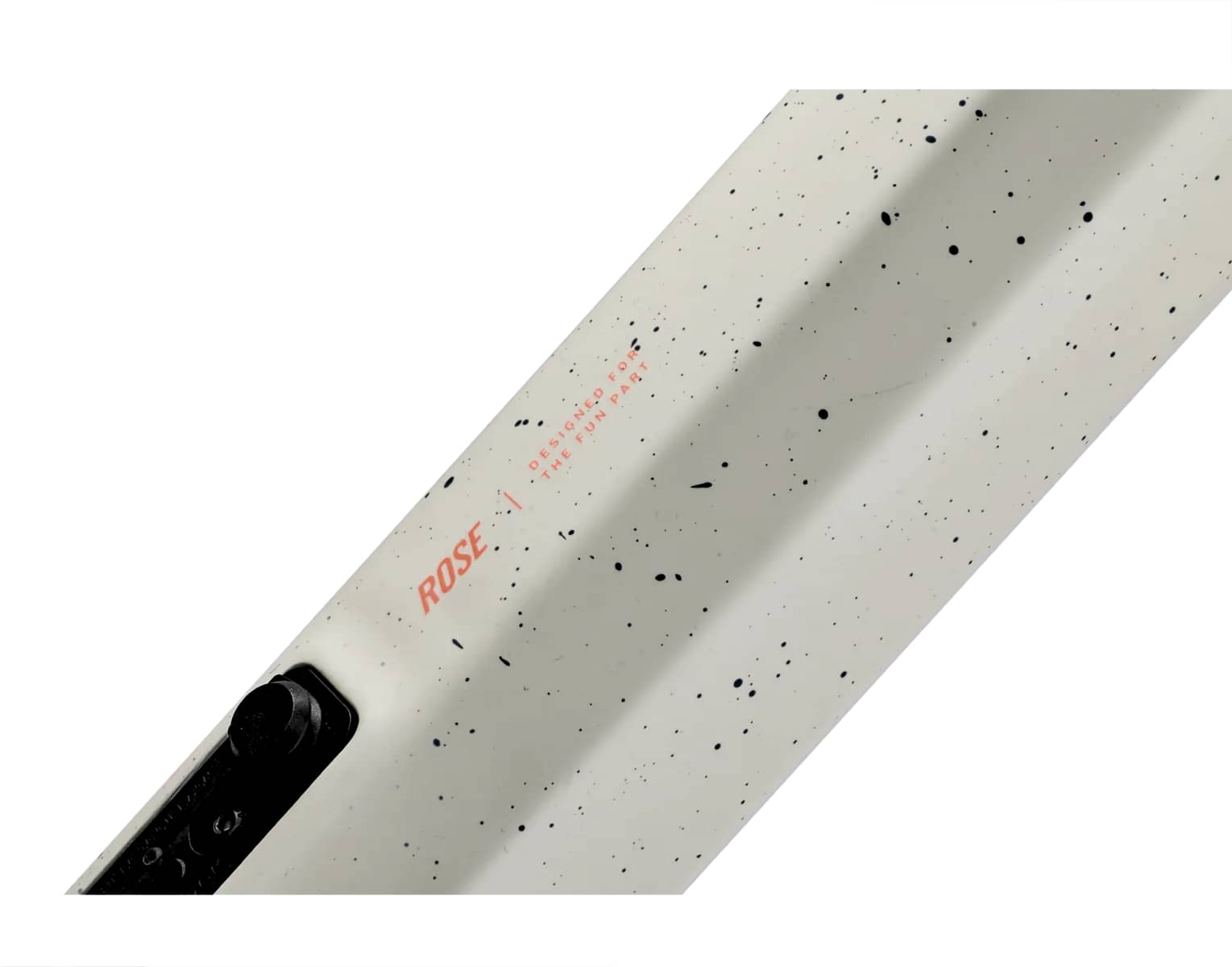

ROSE Bonero Plus + Carbon, Splatter Grey S
Suspension Fork
Rock Shox Lyrik Select Plus, schwarz 29" Boost, 140mm, 44mm Offset
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS, Eagle Transmission
Shift Levers
SRAM Controller AXS POD RIGHT BRIDGE black
Cassette
SRAM GX, XS1275 T-Type, Eagle Transmission, 10-52 10-52
Crank
SRAM GX Eagle ISIS, grau 165mm, SRAM Eagle Transmission 104BCD 34T. schwarz
Chain
SRAM GX Transmission Flattop, 118 L
Chain Guide
e*thirteen top guide, black
Wheels
Tires
Schwalbe NOBBY NIC Evo, Super Trail soft schwarz 29''x2,4, Schwalbe WICKED WILL Evo Super Trail SpeedGrip schwarz 29''x2,4
Brakes
Brakes
SRAM Code Bronze, 4-Kolben, VR 800mm, anodized black, SRAM Code Bronze, 4-Kolben, HR 1700mm, anodized black
Cockpit
Handlebar
E13 Plus 800mm, 35mm Rise, 9mm black 800x35mm
Grips
Ergon GE10 Evo, schwarz
Seat
Saddle
Rose Edition by Selle Italia, schwarz
Seatpost
e*thirteen Vario Infinite Dropper Post, stealth black, Aluminium 31,6mm/430-460mm/120-150mm Hub (150mm voreingestellt)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.487 mm | 1.391 mm | 1.332 mm | 1.289 mm |
| Bottom Bracket Height | 318 mm | 318 mm | 318 mm | 318 mm |
| Front Center | 746 mm | 775 mm | 812 mm | 850 mm |
| Rake | 45 mm | 44 mm | 46 mm | 45 mm |
| Trail | 125 mm | 126 mm | 124 mm | 125 mm |
| Stack | 632 mm | 633 mm | 646 mm | 664 mm |
| Reach | 425 mm | 455 mm | 485 mm | 515 mm |
| Top Tube Length | 582 mm | 611 mm | 644 mm | 678 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 100 mm | 115 mm | 135 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1186 mm | 1215 mm | 1253 mm | 1291 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 56 mm |
| Standover Height | 762 mm | 766 mm | 798 mm | 817 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
