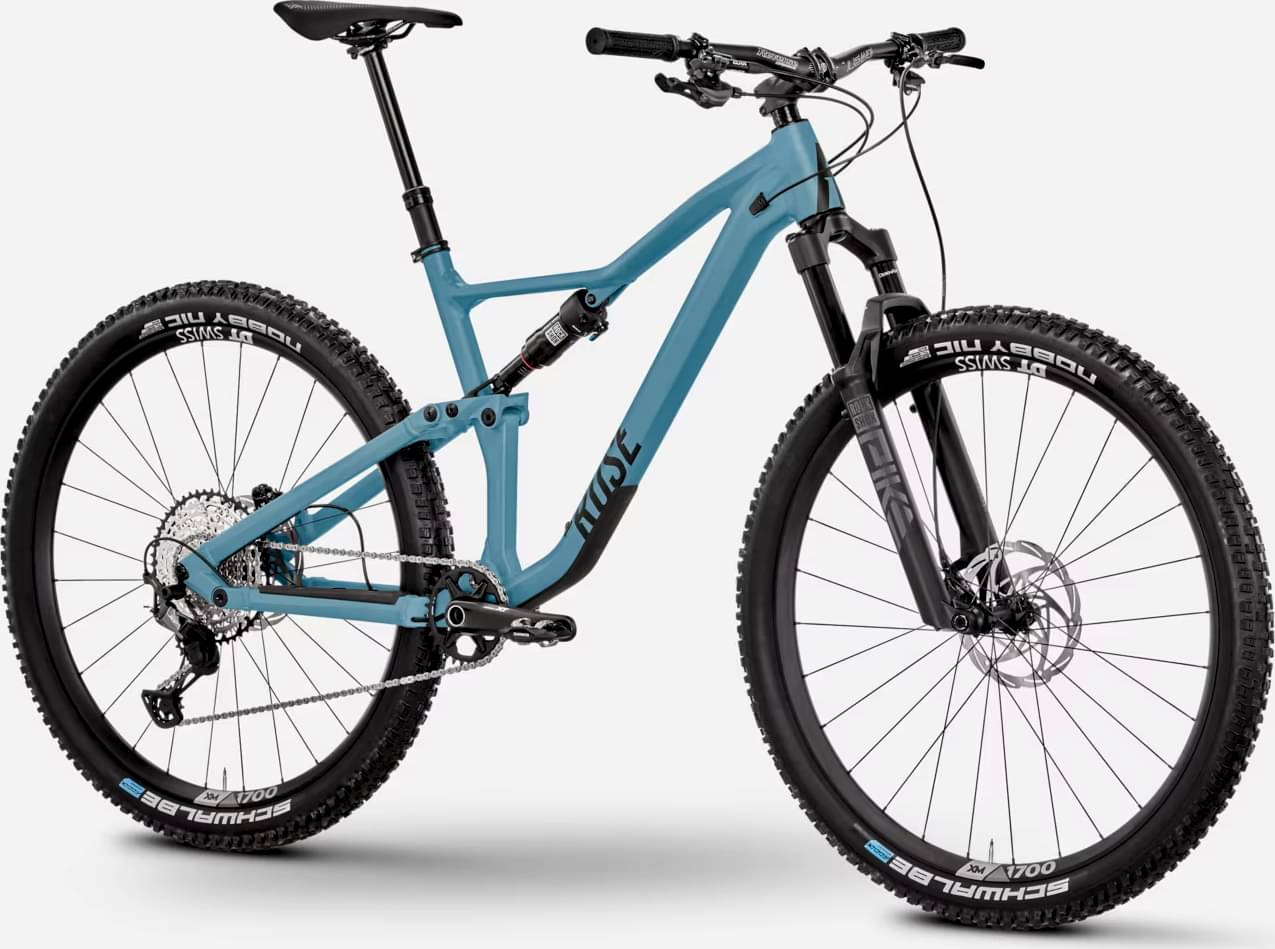

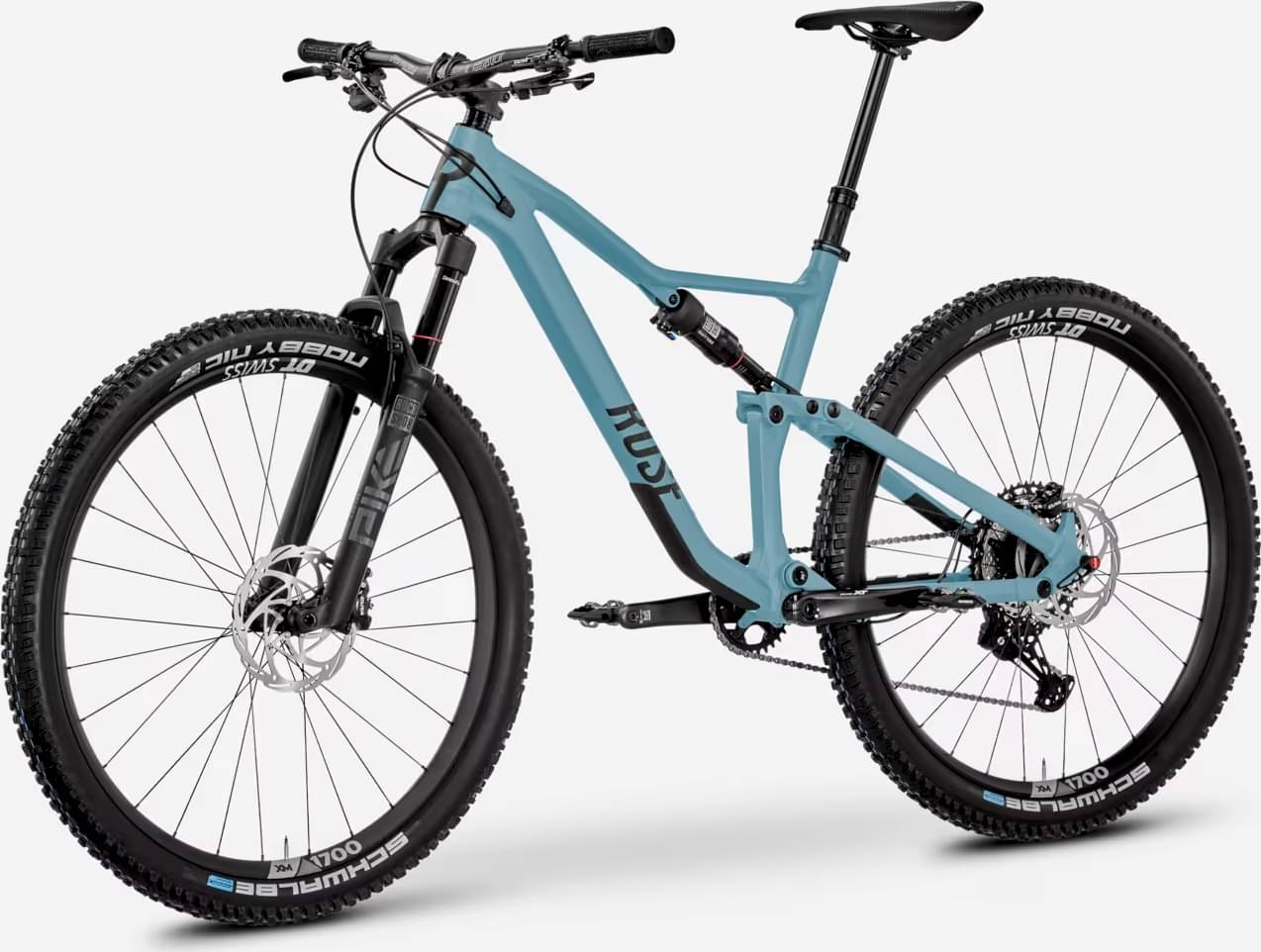

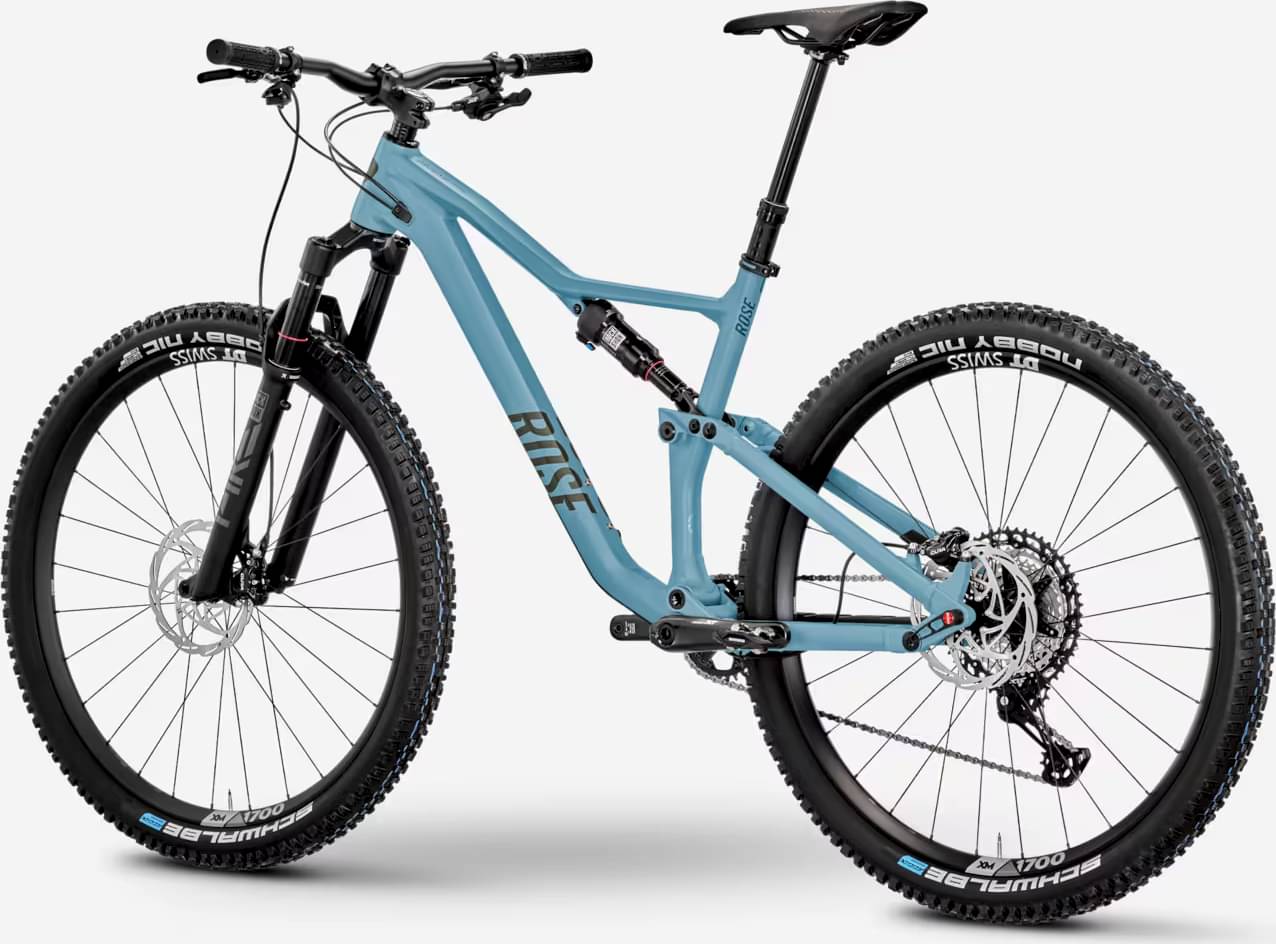

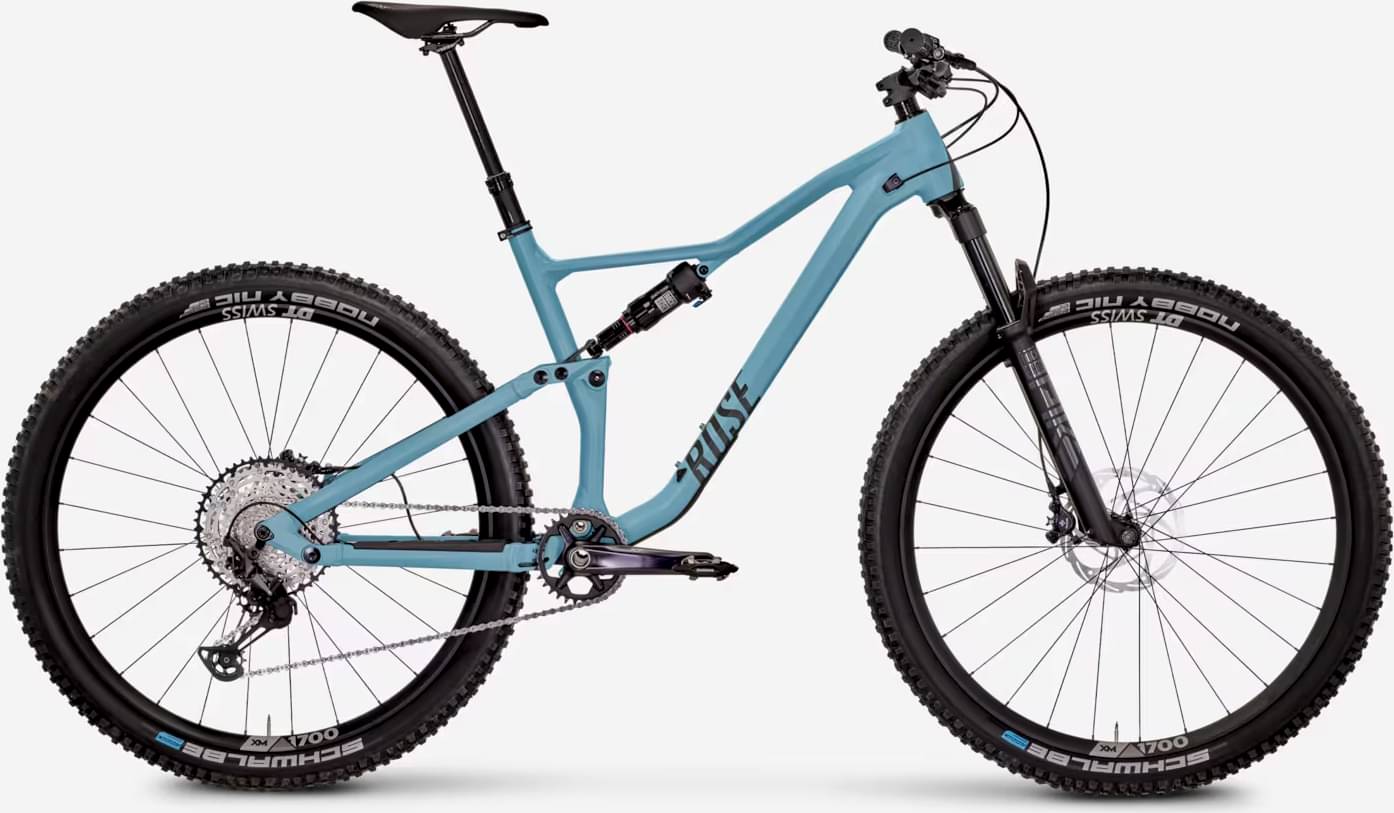

Rose Ground Control 3 2024
2024 Mountain
Estimate price |
2,907$
Weight | 13.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox Pike Select
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 174cm
MD
171cm - 184cm
LG
181cm - 193cm
XL
191cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ground Control, aluminium, Boost, BSA 73, 120mm travel, approx. 2792g, Matt lazy blue M-29
Suspension Fork
Rock Shox PIKE Select CHARGER RC BOOST, STEALTH DEBONAIR 120mm, black 29" Boost, 120mm, 44mm Offset
Rear Shock
Rock Shox Deluxe Select+ RT, Debonair, black 190mm
Drivetrain
Rear Derailleur
Shimano XT, RD-M8100, XT, SGS, 12-speed
Shift Levers
Shimano Deore XT, SL-M8100, 12-speed 12 Speed
Cassette
Shimano SLX, CS-M7100-12, 12-speed, 10-51
Crank
Shimano Deore XT, M8100, 12-speed, 32T, 175mm
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano SLX, CN-M7100, 12-speed with Quick-Link, 122gl.
Pedals
delivered without pedals
Wheels
Rims
Front wheel: DT Swiss XM 1700 Spline (622x30C), Boost, TLR, 29", rear: DT Swiss XM1700 Spline, 29"
Tires
Schwalbe Nobby Nic Evo, Super Ground, TLE, black 29x2.4
Brakes
Brakes
front: Formula Cura 2, 180mm, shiny black left, Rear wheel: Formula Cura 2, 2-piston, 180mm, shiny black right
Cockpit
Stem
Reverse LEAD, black 60mm
Handlebar
Reverse H-Bar, Ø31,8mm
Grips
Reverse STAMP black/black
Seat
Saddle
Rose Edition by Selle Italia, black
Seatpost
e*thirteen Vario Infinite Dropper Post, stealth black, aluminium 31,6mm/430-460mm/120-150mm Hub (150mm voreingestellt)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.395 mm | 1.393 mm | 1.337 mm | 1.289 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 687 mm | 724 mm | 753 mm | 782 mm |
| Rake | 38 mm | 43 mm | 43 mm | 43 mm |
| Trail | 110 mm | 112 mm | 112 mm | 112 mm |
| Stack | 572 mm | 606 mm | 615 mm | 625 mm |
| Reach | 410 mm | 435 mm | 460 mm | 485 mm |
| Top Tube Length | 558 mm | 586 mm | 614 mm | 641 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 424 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1111 mm | 1163 mm | 1192 mm | 1221 mm |
| Bottom Bracket Drop | 16 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 741 mm | 771 mm | 771 mm | 771 mm |
| Front Travel | 120 mm | 120 mm | 120 mm | 120 mm |
| Rear Travel | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 171 cm | 181 cm | 191 cm |
| Rider Max Height | 174 cm | 184 cm | 193 cm | 205 cm |
