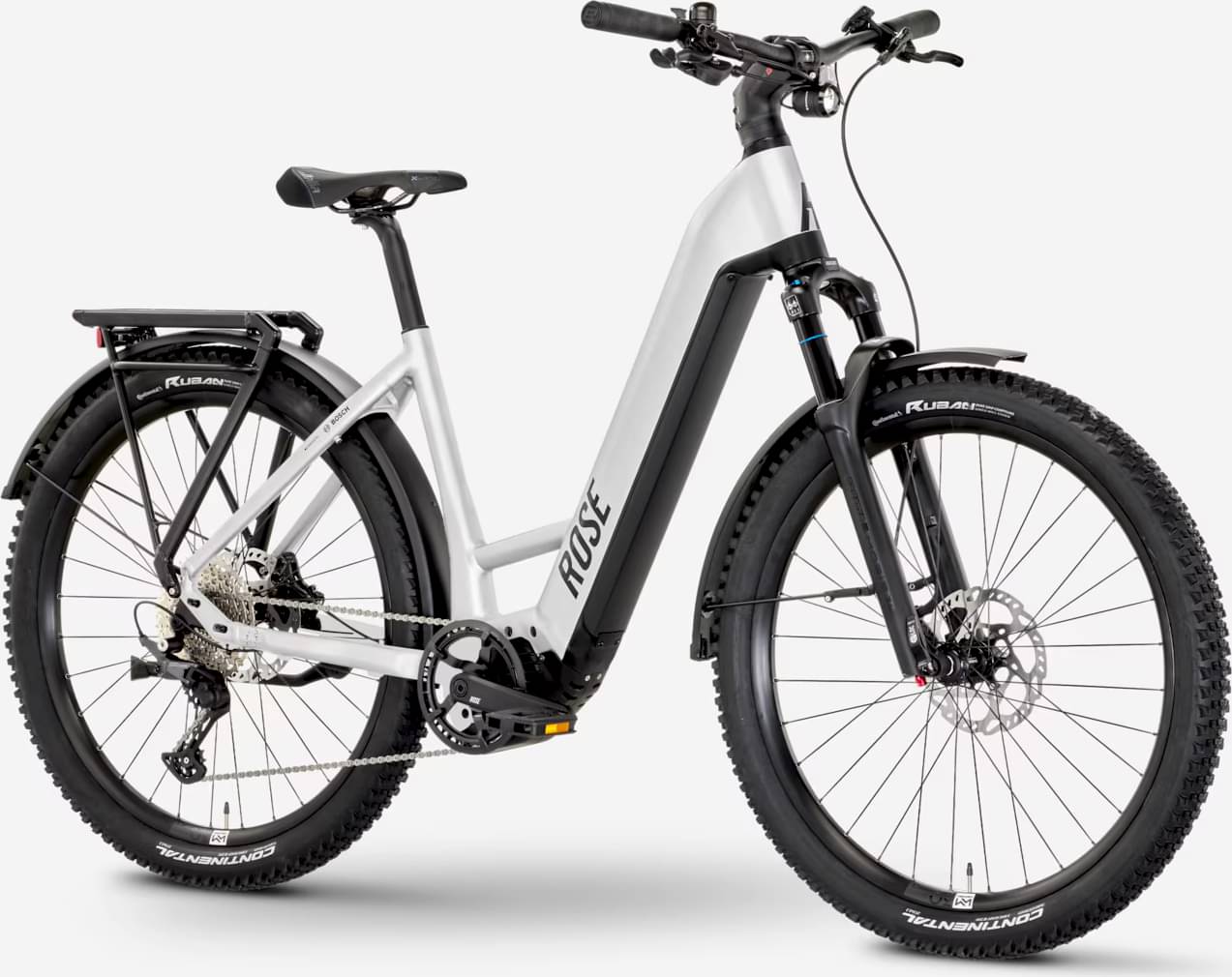

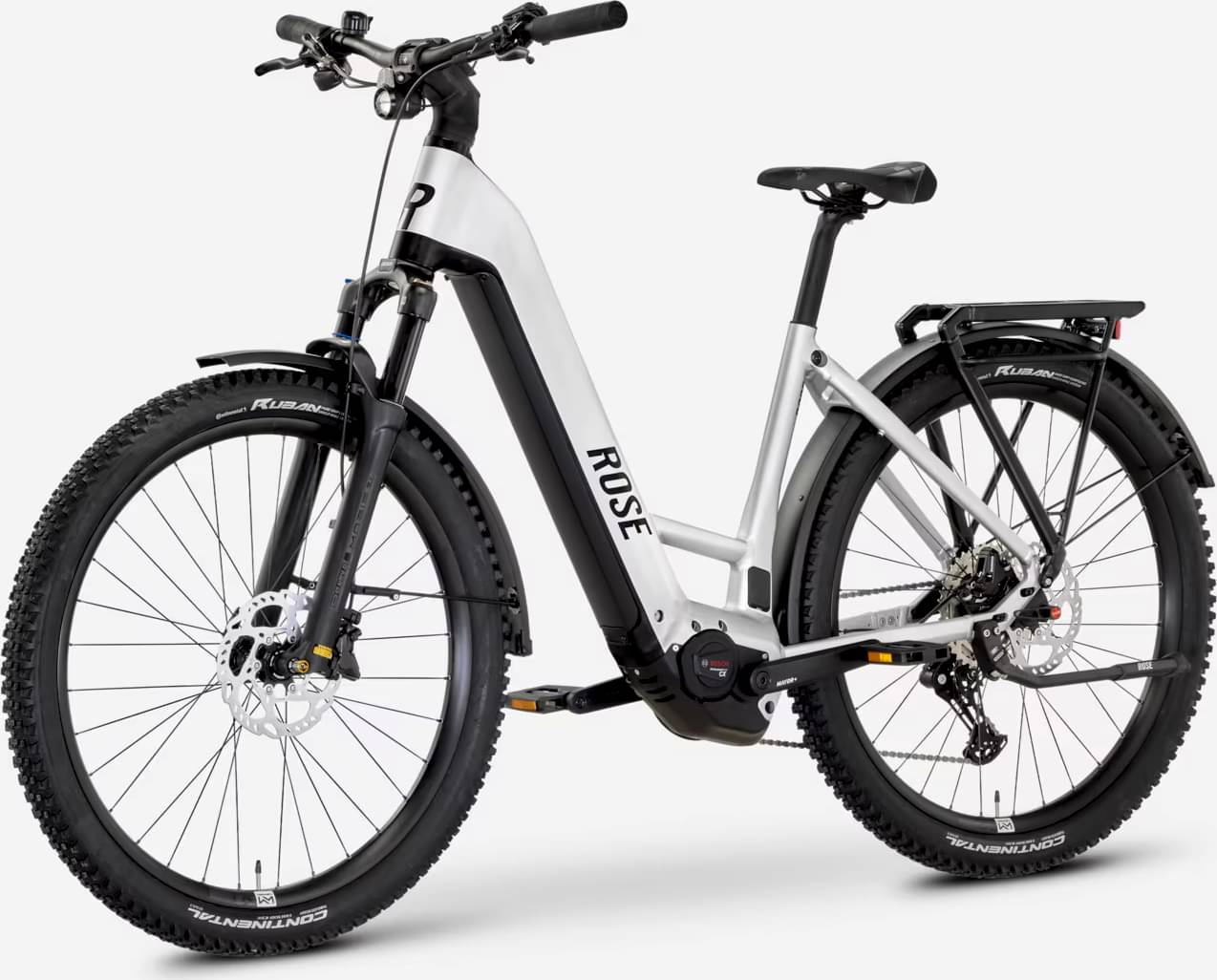

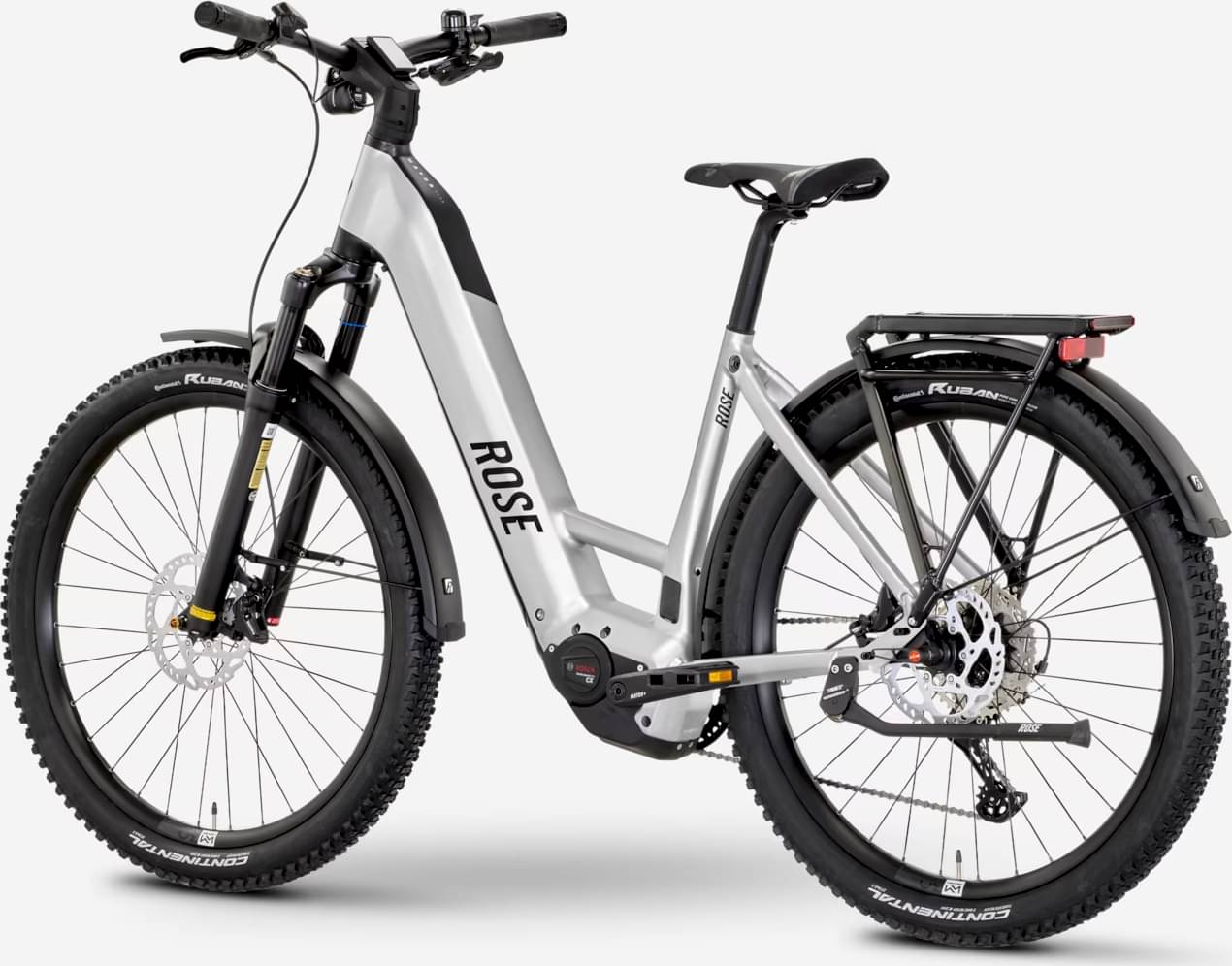

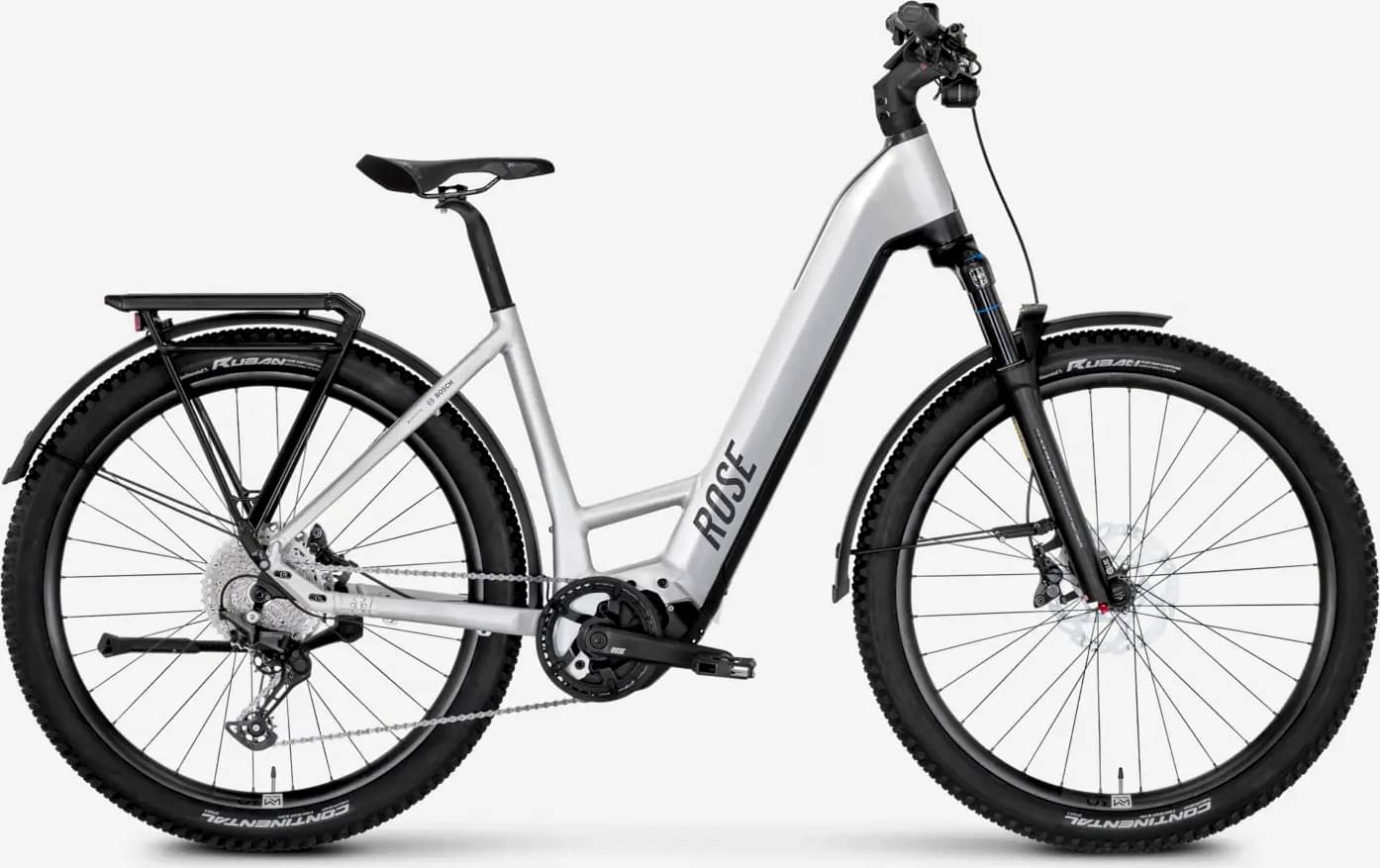

Rose Mayor Plus 1 SUV LowStep 2024
2024 E-bike
Estimate price |
5,831$
Weight | 26.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery 750 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
aluminum
Suspension Fork
SR Suntour Mobie 34 Air, 2CR, compression, rebound, 100mm, 15x100TA, black matt 28"
Drivetrain
Rear Derailleur
Shimano Deore RD-M5100 SGS, 11-speed,
Shift Levers
Shimano Deore SL-M5100-R, 11-speed, 11-speed
Crank
Miranda Delta, black matt 170mm, Miranda Chainflow 3D, black 38 T.
Chain
Shimano CN-HG601-11, 120gl.
Pedals
ROSE VP-836, black
Wheels
Tires
Continental Ruban, black/black 27.5x2.3
Brakes
Brakes
Front wheel: Shimano BL-MT401/BR-MT420, 4 pistons, 203mm 1000mm, Shimano Alivio, BL-MT401 / BR-MT420 4-pistons, 1700mm
Cockpit
Handlebar
ergotec, black sand 720mm
Seat
Saddle
Selle italia X-Land E-Bike, black/dark gray
Seatpost
ROSE Race Attack SP-63 XL 350mm, black/matt 31.6mm
Motor & Battery
Motor
BOSCH Performance Line CX
Battery
750 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.698 mm | 1.678 mm | 1.657 mm |
| Front Center | 691 mm | 691 mm | 697 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 83 mm | 76 mm | 73 mm |
| Stack | 677.5 mm | 685.5 mm | 692.5 mm |
| Reach | 399 mm | 408.5 mm | 418 mm |
| Top Tube Length | 600 mm | 615 mm | 630 mm |
| Seat Tube Angle | 73.5 ° | 73.25 ° | 73 ° |
| Seat Tube Length | 396.8 mm | 460.3 mm | 558.8 mm |
| Head Tube Angle | 68.5 ° | 69.5 ° | 70 ° |
| Head Tube Length | 155 mm | 158 mm | 163 mm |
| Chainstay Length | 459 mm | 459 mm | 459 mm |
| Wheelbase | 1142 mm | 1142 mm | 1148 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
