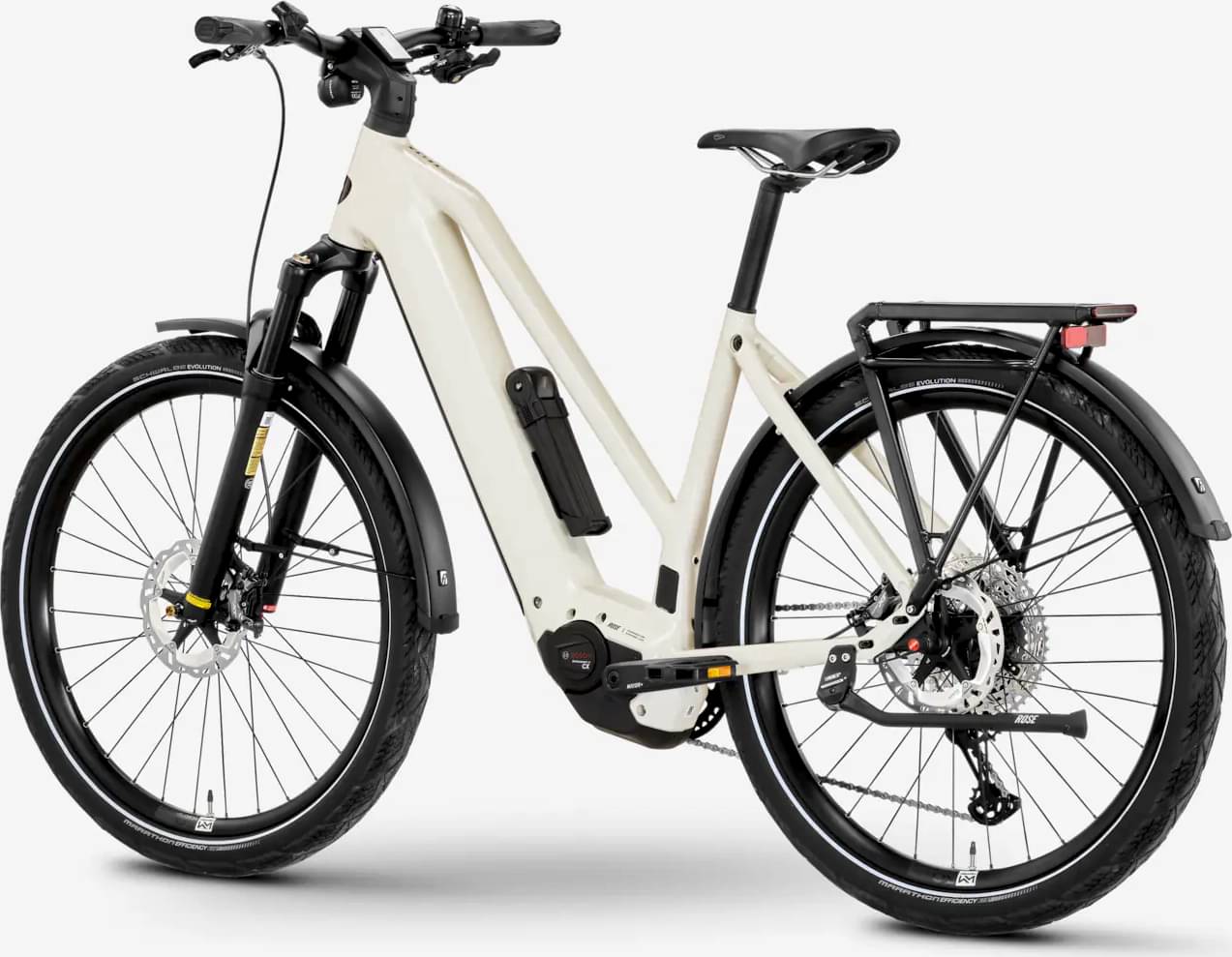

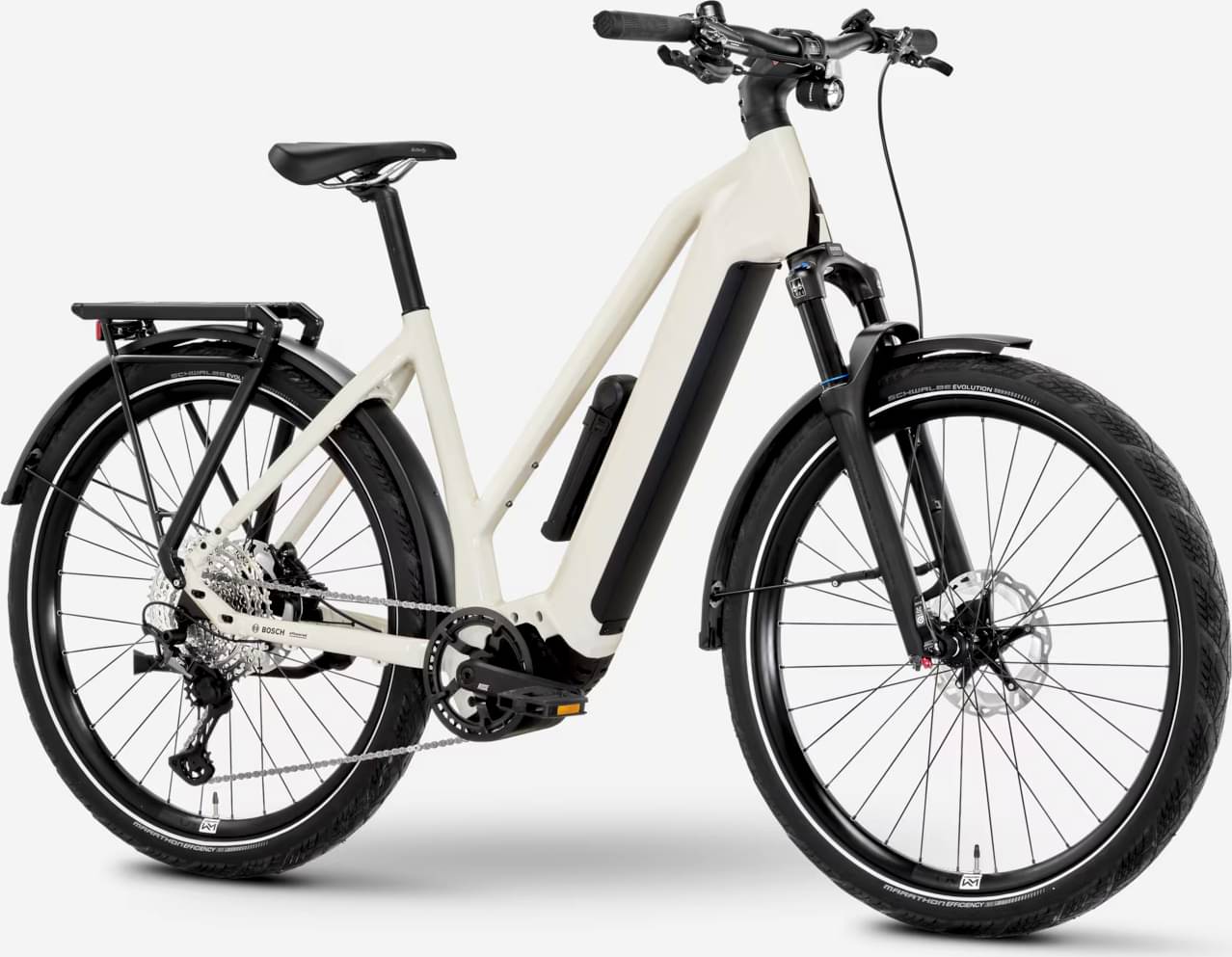

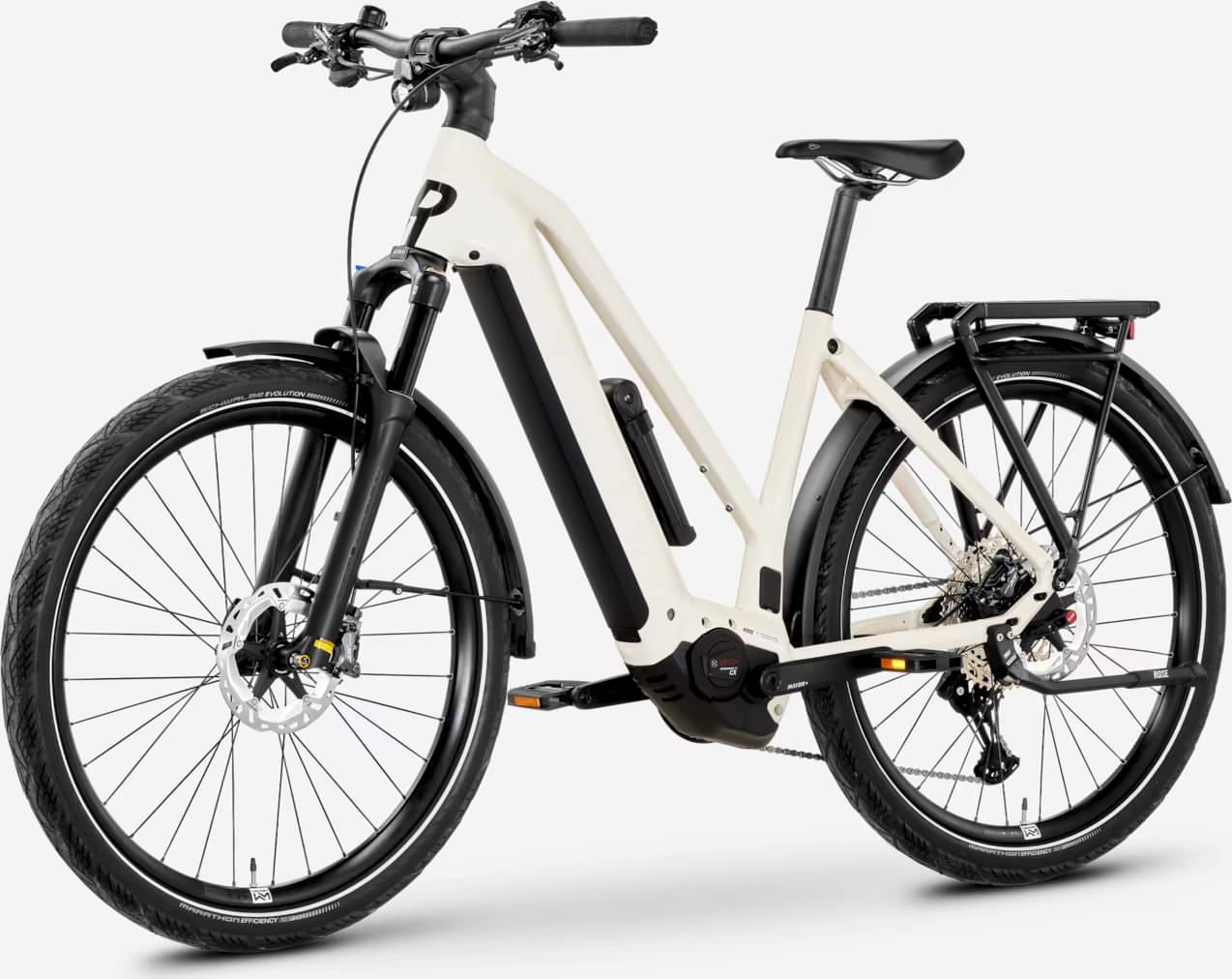

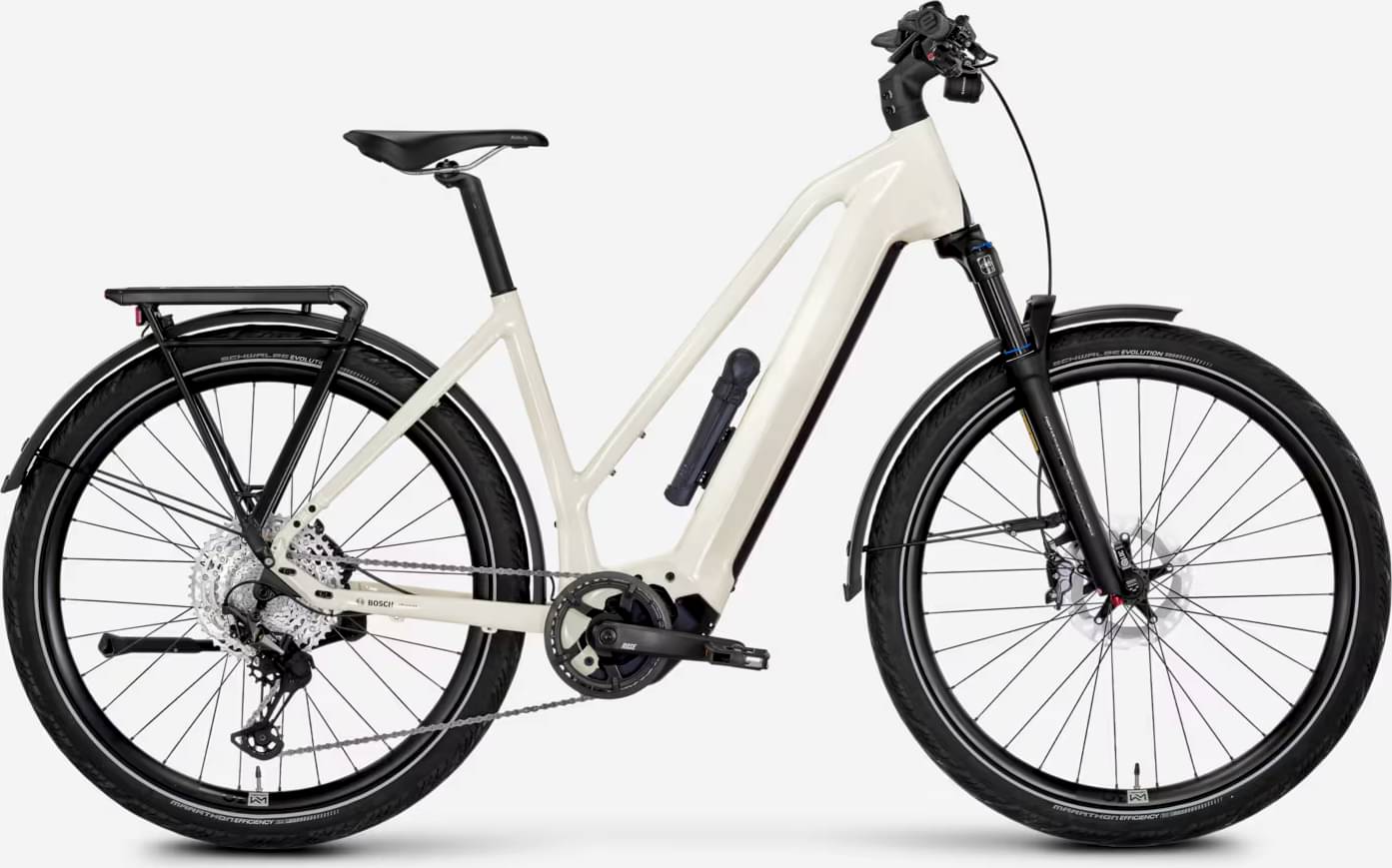

Rose Mayor Plus 2 SUV MidStep 2024
2024 E-bike
Estimate price |
6,359$
Weight | 26.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset XT -
Suspension Hardtail -
Battery 750 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
aluminum
Suspension Fork
SR Suntour Mobie 34 Air, 2CR, compression, rebound, 100mm, 15x100TA, black matt 28"
Drivetrain
Rear Derailleur
Shimano XT, RD-M8100, XT, SGS, 12-speed
Shift Levers
Shimano Deore XT, SL-M8100, 12-speed, 12-speed
Crank
Miranda Delta, black matt 170mm, Miranda Chainflow 3D, black 38 T.
Chain
SHIMANO Deore XT CN-M8100, 122gl.
Pedals
ROSE VP-836, black
Wheels
Tires
Schwalbe Marathon Efficiency Evo SuperRace, black 27.5x2.35
Brakes
Brakes
Shimano XT, BL-M8100(R) / BR-M8120(R) 1700mm, Shimano XT, BL-M8100 / BR-M8120, 4.8g
Cockpit
Handlebar
ergotec, black sand 720mm
Seat
Saddle
Terry Butterfly Exera
Seatpost
ergotec Hook 3, black sand Ø31.6/350mm
Motor & Battery
Battery
750 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.655 mm | 1.679 mm | 1.676 mm |
| Front Center | 695 mm | 693 mm | 693 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 87 mm | 83 mm | 76 mm |
| Stack | 662 mm | 675 mm | 687 mm |
| Reach | 400 mm | 402 mm | 410 mm |
| Top Tube Length | 593 mm | 605 mm | 620 mm |
| Seat Tube Angle | 73.75 ° | 73.25 ° | 73 ° |
| Seat Tube Length | 396.8 mm | 473 mm | 549.2 mm |
| Head Tube Angle | 67.75 ° | 68.5 ° | 69.5 ° |
| Head Tube Length | 142 mm | 152 mm | 160 mm |
| Chainstay Length | 459 mm | 459 mm | 459 mm |
| Wheelbase | 1146 mm | 1144 mm | 1144 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
