Rose Mayor Plus 3 MidStep 2024
2024 E-bike
Estimate price |
7,127$
Weight | 29.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset Gates -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery 750 Wh -
Drivetrain Belt Drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
aluminum
Suspension Fork
SR Suntour Mobie 34 Air, 2CR, compression, rebound, 100mm, 15x100TA, black matt 28"
Drivetrain
Crank
Miranda Delta, black matt 170mm, Miranda Gates 50Z, 50t
Pedals
ROSE VP-836, black
Wheels
Rims
Newmen Performance 30, 29"
Tires
Continental eCONTACT Plus, black/black reflex 50-622
Brakes
Brakes
Shimano XT, BL-M8100(R) / BR-M8120(R) 1700mm, Shimano XT, BL-M8100 / BR-M8120, 4.8g
Cockpit
Handlebar
ergotec Low Riser Bar, black sand Ø31,8mm
Seat
Saddle
Terry Figura GTC Gel
Seatpost
Cane Creek Thudbuster ST, black Ø31.6mm/375mm
Motor & Battery
Motor

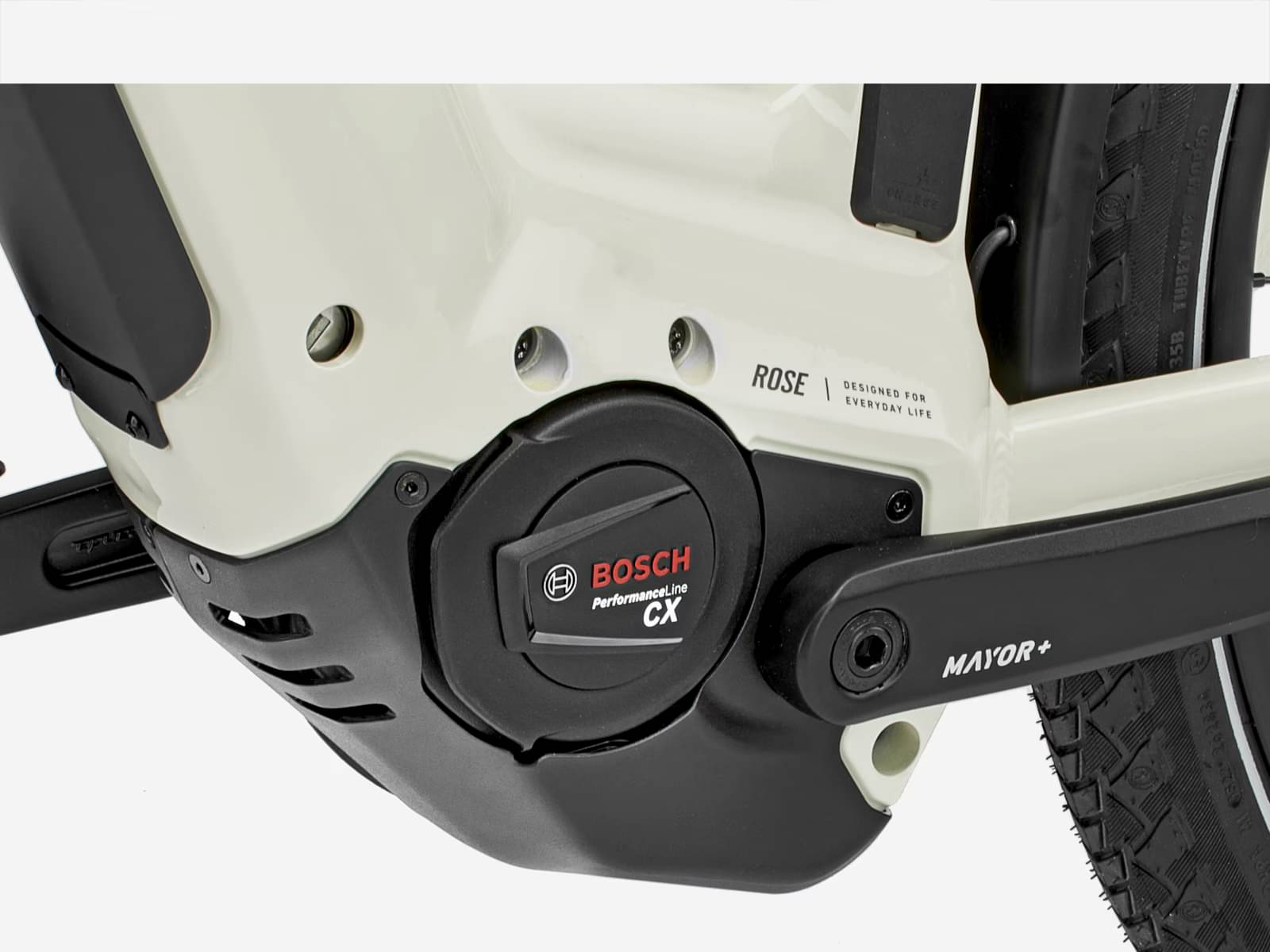

BOSCH Performance Line CX
Battery
750 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.655 mm | 1.679 mm | 1.676 mm |
| Front Center | 695 mm | 693 mm | 693 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 95 mm | 90 mm | 84 mm |
| Stack | 662 mm | 675 mm | 687 mm |
| Reach | 400 mm | 402 mm | 410 mm |
| Top Tube Length | 593 mm | 605 mm | 620 mm |
| Seat Tube Angle | 73.75 ° | 73.25 ° | 73 ° |
| Seat Tube Length | 396.8 mm | 473 mm | 549.2 mm |
| Head Tube Angle | 67.75 ° | 68.5 ° | 69.5 ° |
| Head Tube Length | 142 mm | 152 mm | 160 mm |
| Chainstay Length | 459 mm | 459 mm | 459 mm |
| Wheelbase | 1146 mm | 1144 mm | 1144 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
