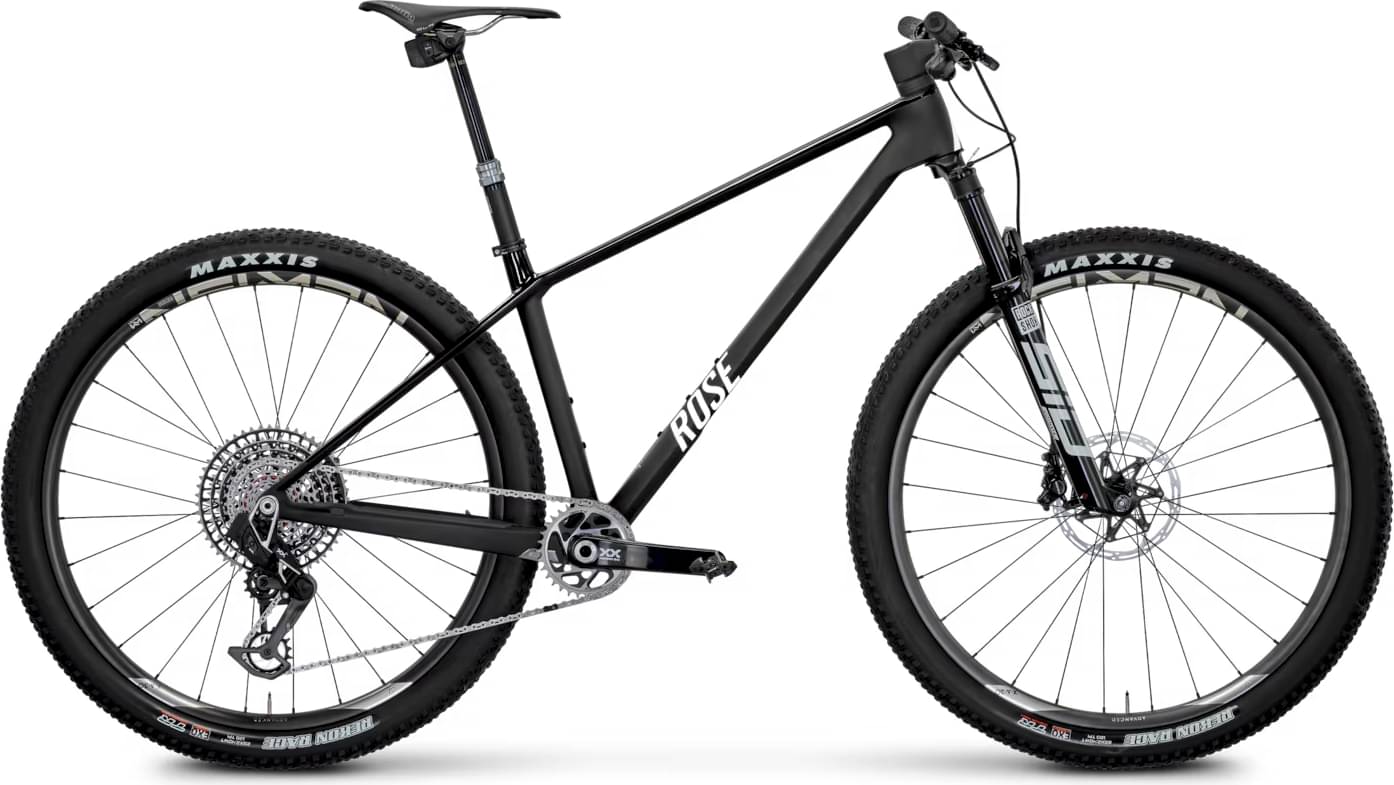

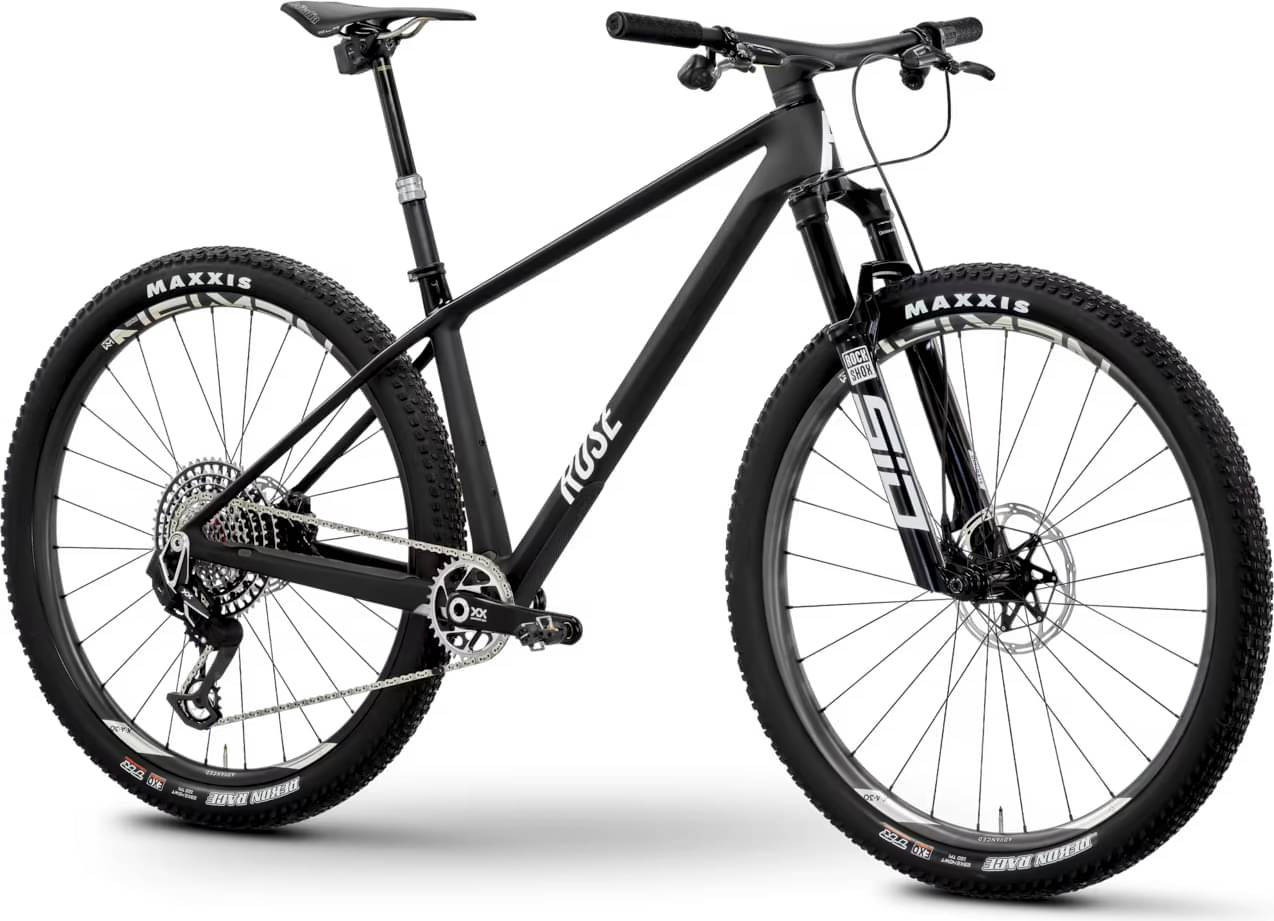

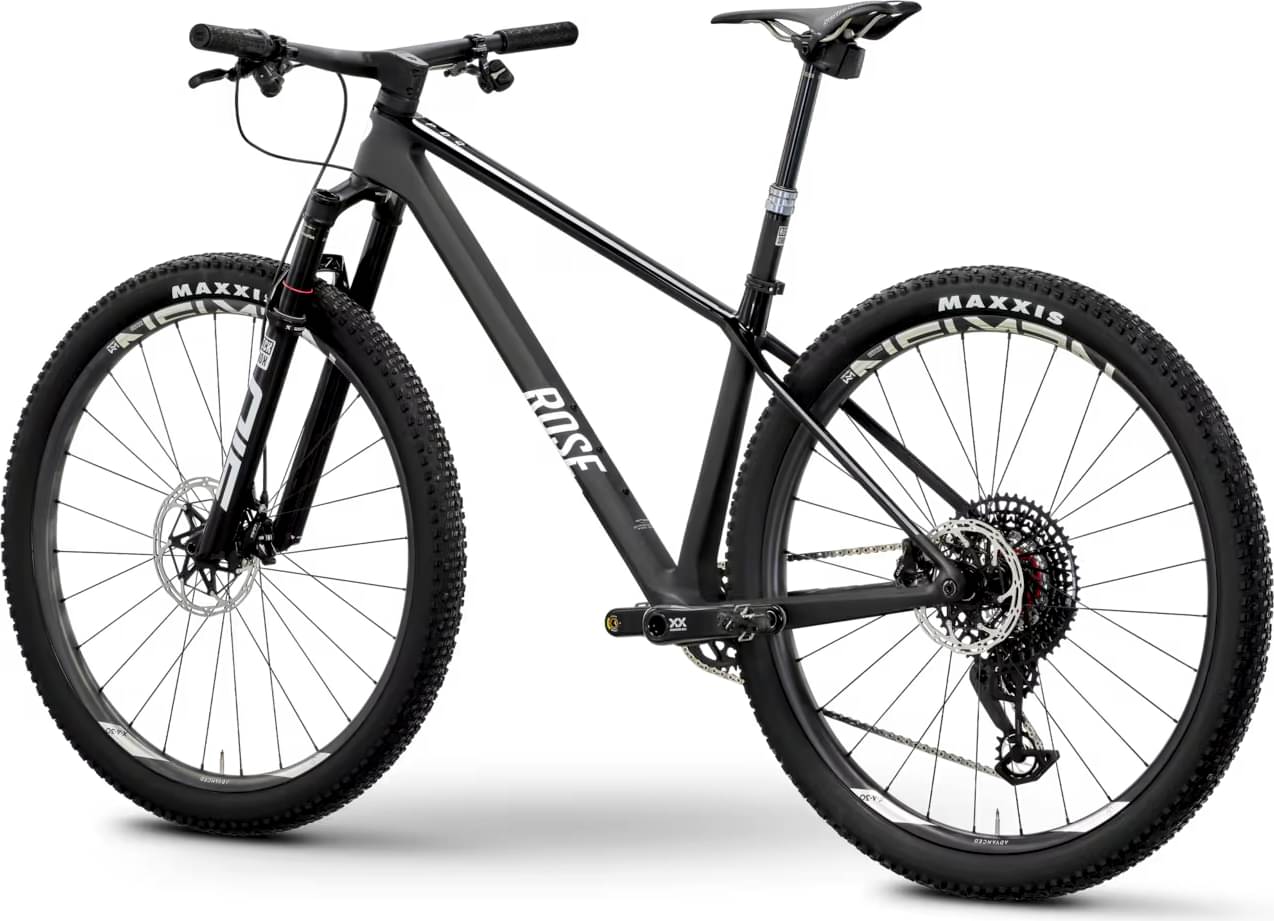

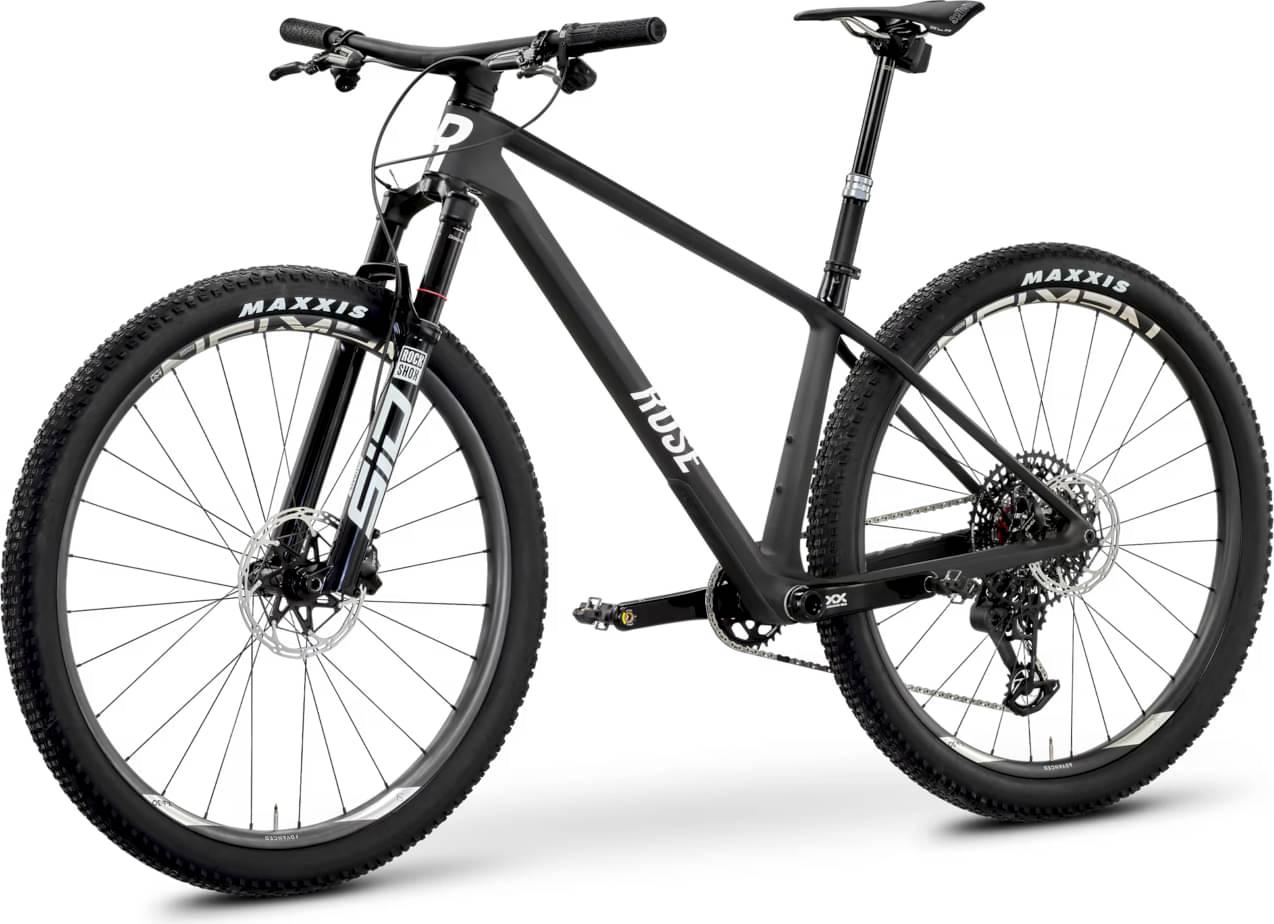

Rose PDQ 4 2025
2025 Mountain
Estimate price |
5,816$
Weight | 9.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Fork RockShox SID Ultimate
-
Groupset XX SL Eagle Transmission, Eagle AXS -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ROSE PDQ, Stealth Black M
Suspension Fork
Rock Shox SID Ultimate, 120mm, shiny black 29" Boost, 120mm, 44mm Offset
Drivetrain
Rear Derailleur
SRAM XX-SL Eagle AXS, Eagle Transmission
Shift Levers
SRAM AXS Ultimate POD, black
Cassette
SRAM XX-SL, XS 1299 T-Type, Eagle Transmission, 10-52 10-52
Chain
SRAM XX-SL Eagle, Flattop, Eagle Transmission, 116 L
Pedals
delivered without pedals
Wheels
Rims
Front wheel: Newmen Advanced SL X.A.30, black 29", Rear wheel: Newmen Advanced SL X.A.30, black 29"
Tires
Maxxis Rekon Race, EXO TR, Dual, black 29x2.4
Brakes
Brakes
SRAM Ultimate, anodized black, Front wheel: SRAM Centerline X Centerlock, Ø 180mm, shiny black
Cockpit
Handlebar
ROSE One-Piece XC-Cockpit, Carbon, schwarz matt 765x60mm
Grips
Rock Shox Remote TWISTLOC ULTIMATE 3 POSITION SPRINT, black
Seat
Saddle
Selle Italia SLR Lite Flow, black/black
Seatpost
Rock Shox Reverb AXS, black 30,9 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.495 mm | 1.389 mm | 1.335 mm | 1.286 mm |
| Bottom Bracket Height | 310 mm | 313 mm | 313 mm | 313 mm |
| Front Center | 708 mm | 737 mm | 766 mm | 795 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 103 mm | 103 mm | 103 mm | 103 mm |
| Stack | 628 mm | 625 mm | 634 mm | 643 mm |
| Reach | 420 mm | 450 mm | 475 mm | 500 mm |
| Top Tube Length | 588 mm | 617 mm | 645 mm | 672 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 400 mm | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 90 mm | 90 mm | 102 mm | 110 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1130 mm | 1160 mm | 1189 mm | 1218 mm |
| Bottom Bracket Drop | 66 mm | 63 mm | 63 mm | 63 mm |
| Standover Height | 753 mm | 767 mm | 794 mm | 821 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
