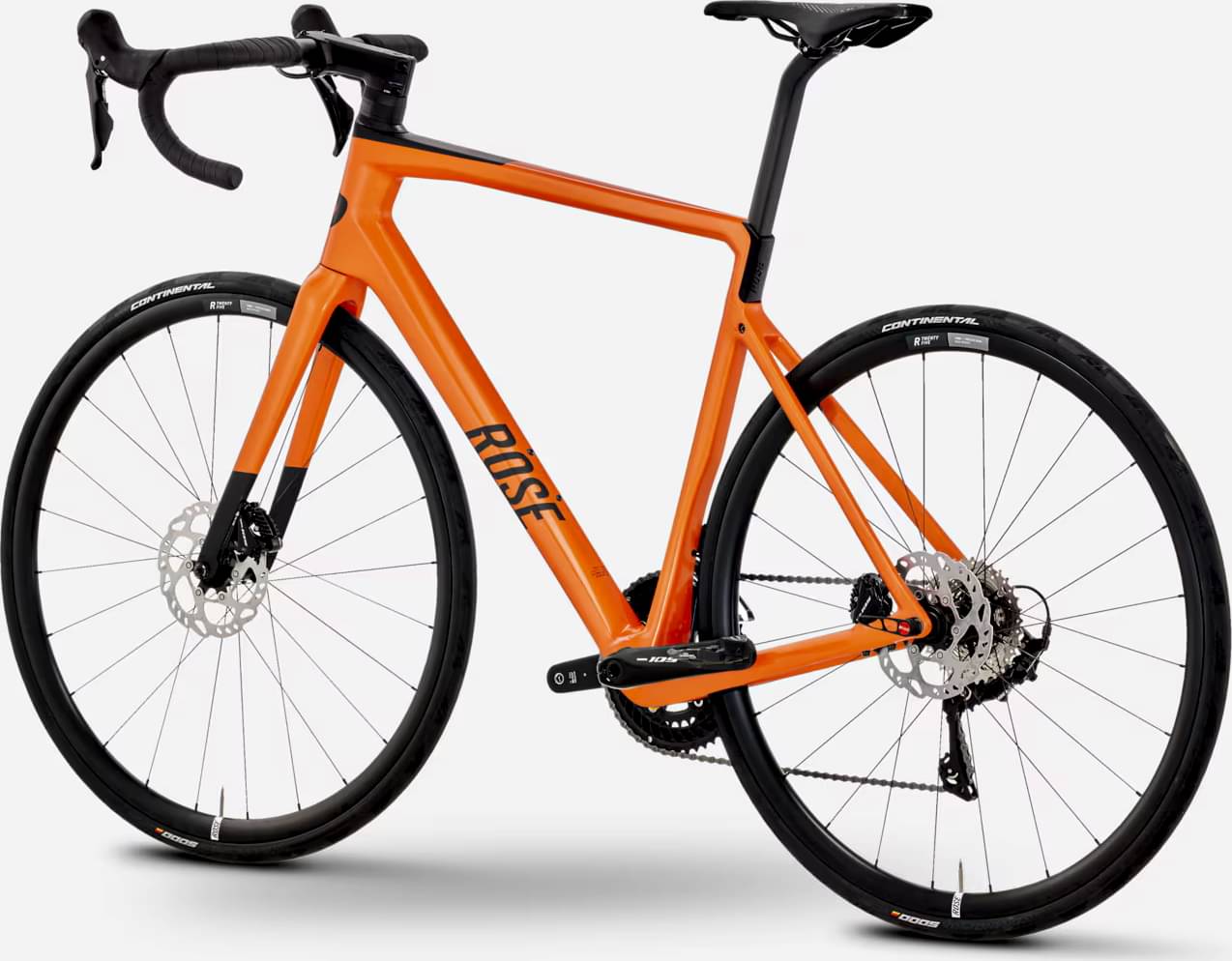

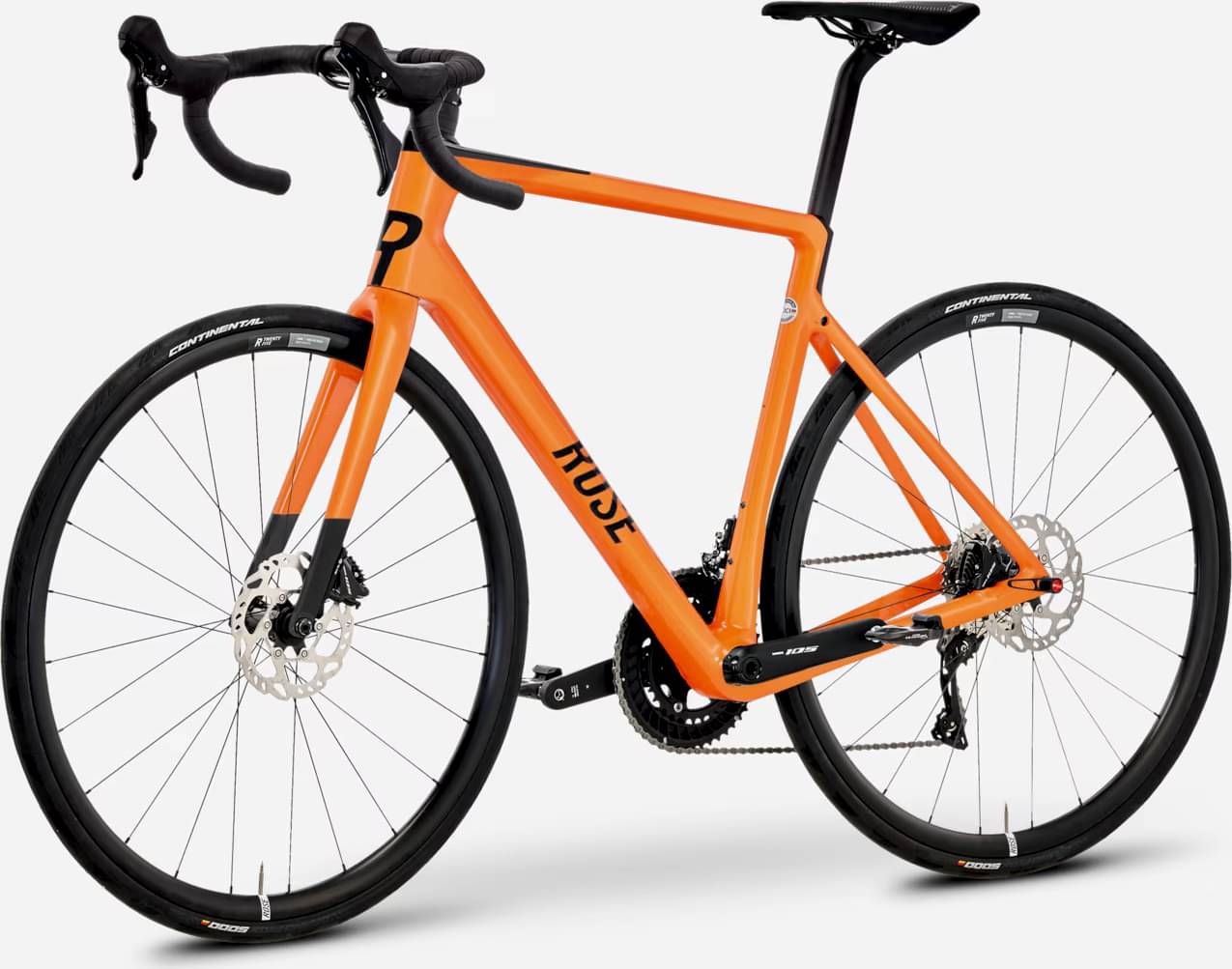

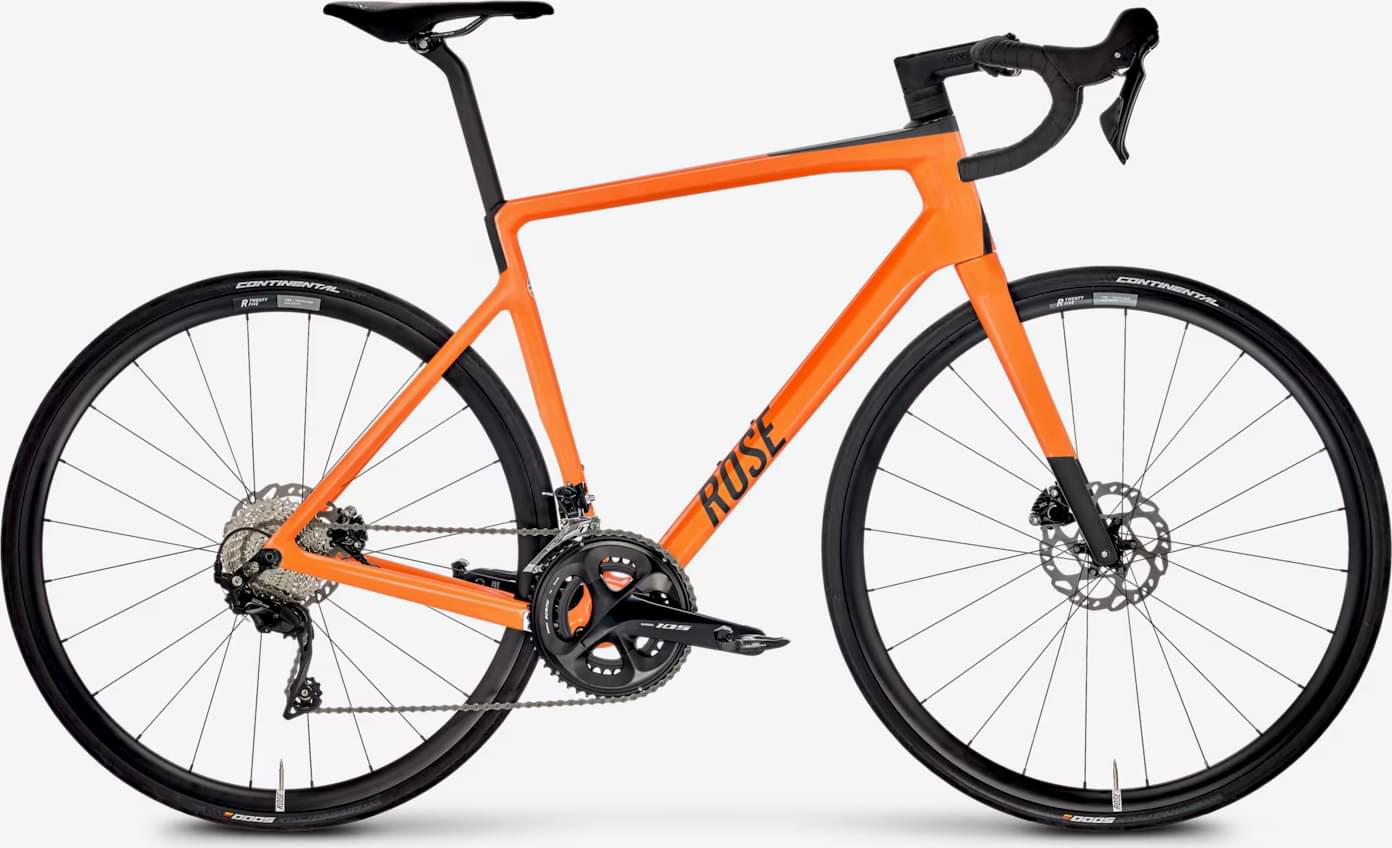

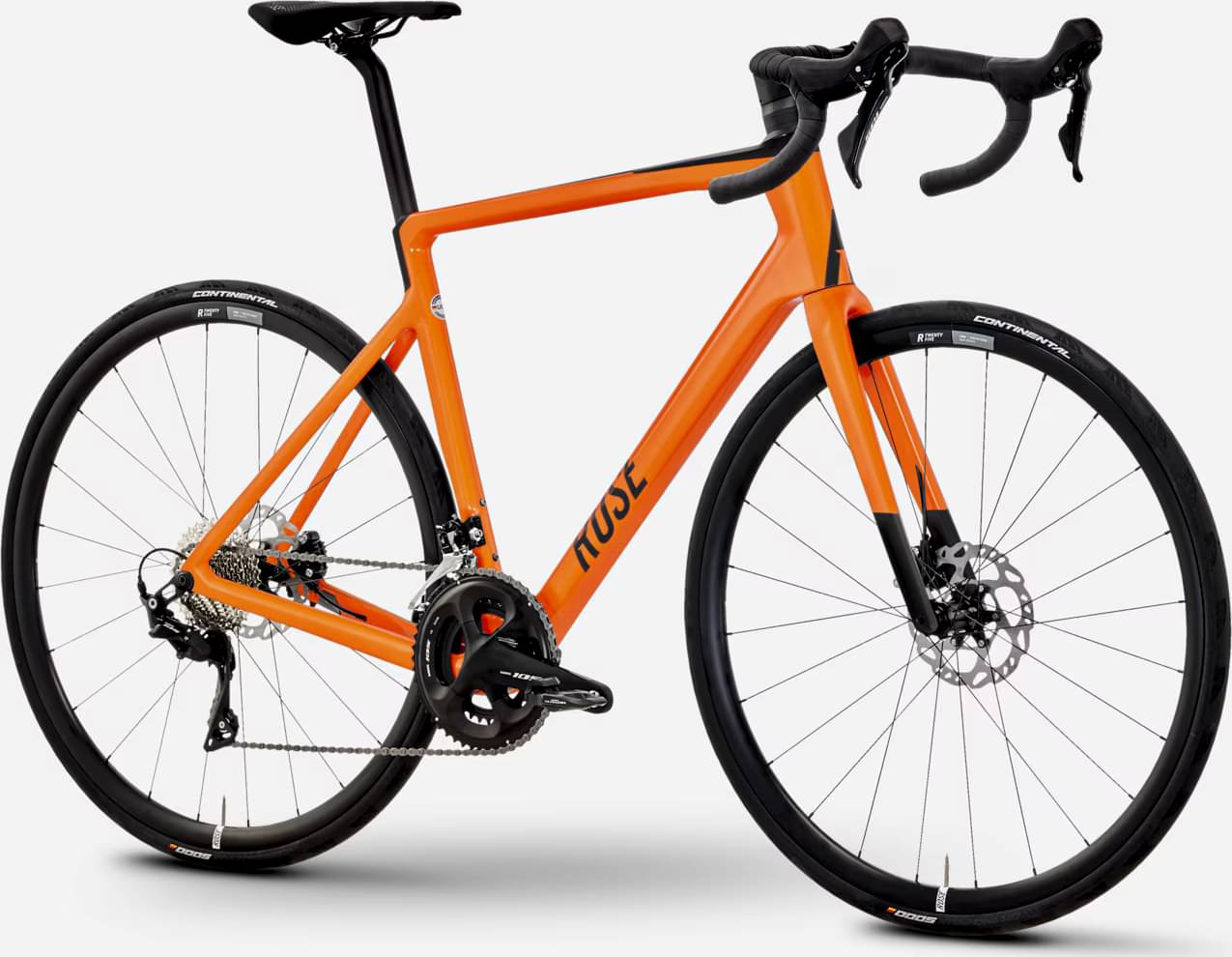

Rose Reveal 04 105 2024
2024 Road
Estimate price |
3,024$
Weight | 8.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
REVEAL FOUR DISC, frame weight starting at 1020g, orange utan 61cm
Suspension Fork
REVEAL FOUR DISC, fork weight starting at 380g orange utan
Drivetrain
Rear Derailleur
Shimano 105, RD7000GS, 11-speed, black
Front Derailleur
Shimano 105, FD-7000-F black
Cassette
Shimano CS-HG700, 11-speed, 11-34
Crank
Shimano 105, FC7000 50/34, black 175mm
Chain
Shimano CN-HG601 118 links
Pedals
Pedals are not included and must be ordered separately
Wheels
Rims
ROSE R25 | Newmen hubs | inner rim width 19mm | 24 spokes | approx. 1590g for 700c | TLR 29"
Tires
Continental Grand Prix 5000, black/black 700x30C
Brakes
Brakes
Front wheel: Shimano 105, ST-R7020 / BR-R7070, black, Rear wheel: Shimano 105, ST-R7020 / BR-R7070, black
Cockpit
Stem
ROSE Square anodized black 120mm
Handlebar
Ritchey Road Comp Streem II, black/matt 42cm
Seat
Saddle
Rose Edition by Selle Italia, black
Seatpost
ROSE D-Shape Carbon Seat Post I 25 mm Setback I 490 mm Length 490mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 53cm | 55cm | 57cm | 59cm | 61cm | 64cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.457 mm | 1.488 mm | 1.501 mm | 1.53 mm | 1.555 mm | 1.555 mm | 1.561 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm | 261 mm | 264 mm | 264 mm | 264 mm |
| Front Center | 578 mm | 585 mm | 590 mm | 595 mm | 604 mm | 620 mm | 639 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 63 mm | 61 mm | 59 mm | 56 mm | 57 mm | 56 mm | 54 mm |
| Stack | 536 mm | 558 mm | 572 mm | 589 mm | 605 mm | 622 mm | 643 mm |
| Reach | 368 mm | 375 mm | 381 mm | 385 mm | 389 mm | 400 mm | 412 mm |
| Top Tube Length | 512 mm | 530 mm | 542 mm | 554 mm | 568 mm | 590 mm | 615 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74.25 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 475 mm | 495 mm | 515 mm | 537 mm | 566 mm | 600 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 142 mm | 154 mm | 170 mm | 190 mm | 208 mm | 230 mm |
| Chainstay Length | 410 mm | 410 mm | 412 mm | 412 mm | 415 mm | 417 mm | 420 mm |
| Wheelbase | 976 mm | 984 mm | 991 mm | 995 mm | 1008 mm | 1027 mm | 1049 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 750 mm | 773 mm | 790 mm | 808 mm | 830 mm | 852 mm | 879 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
