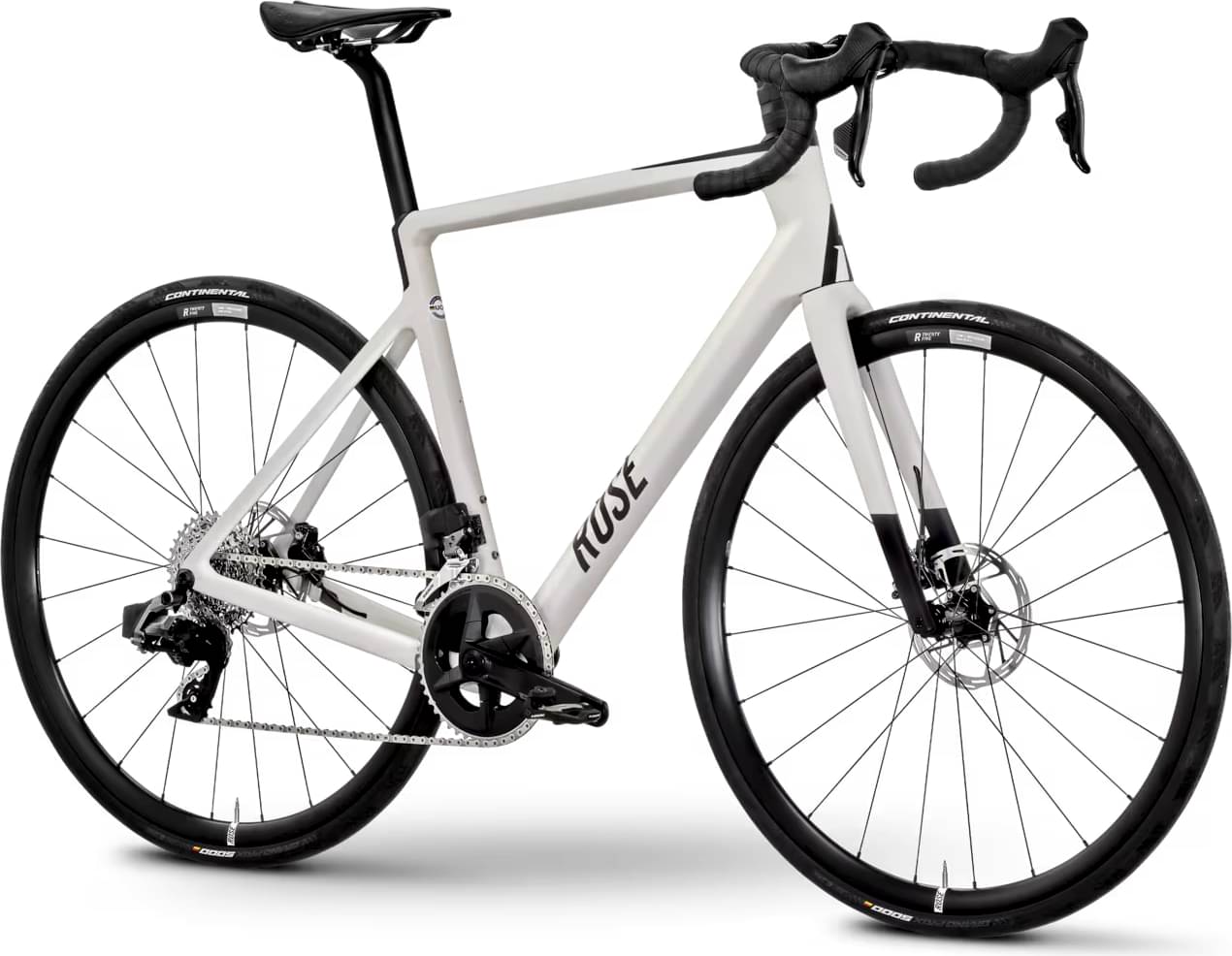

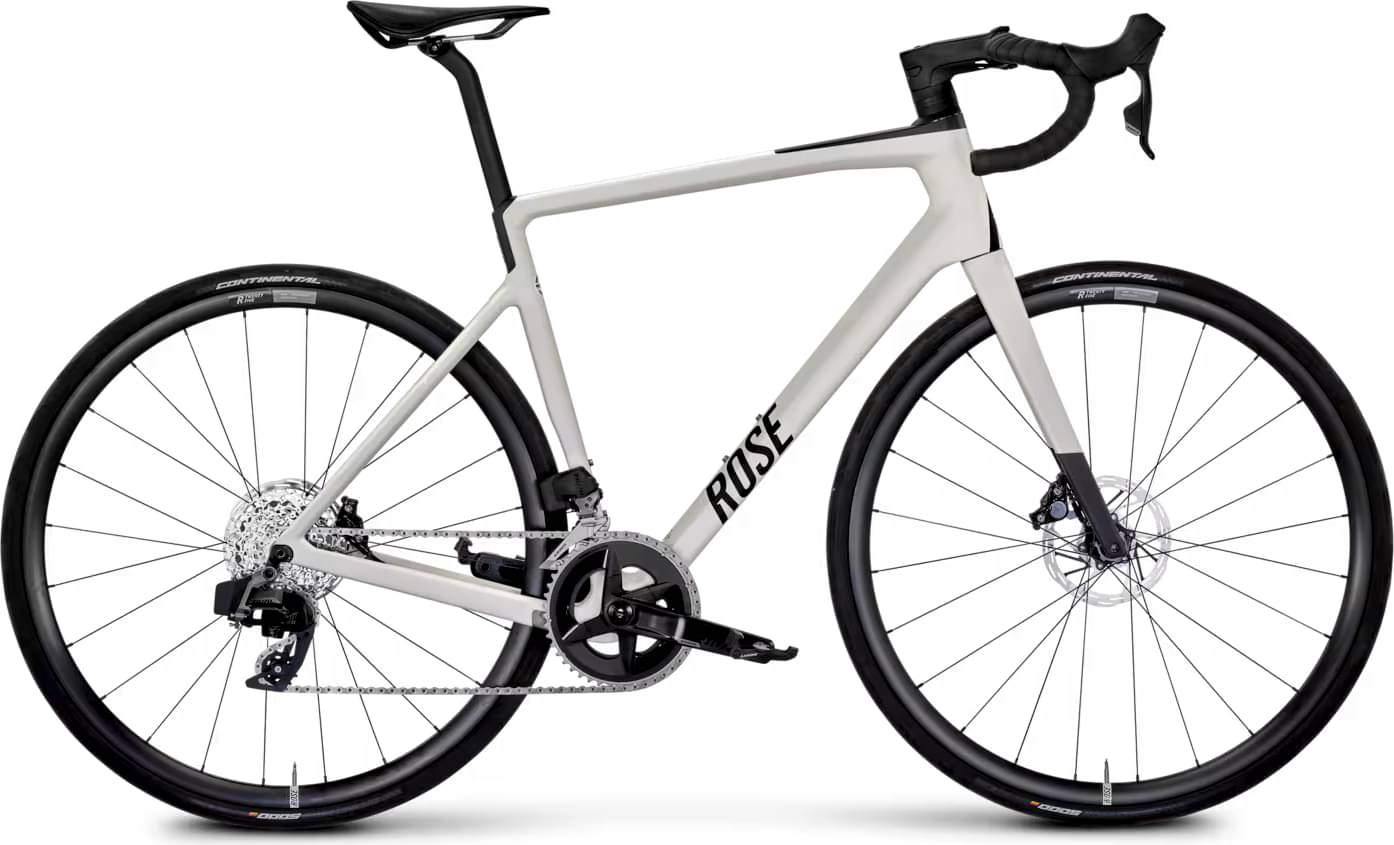

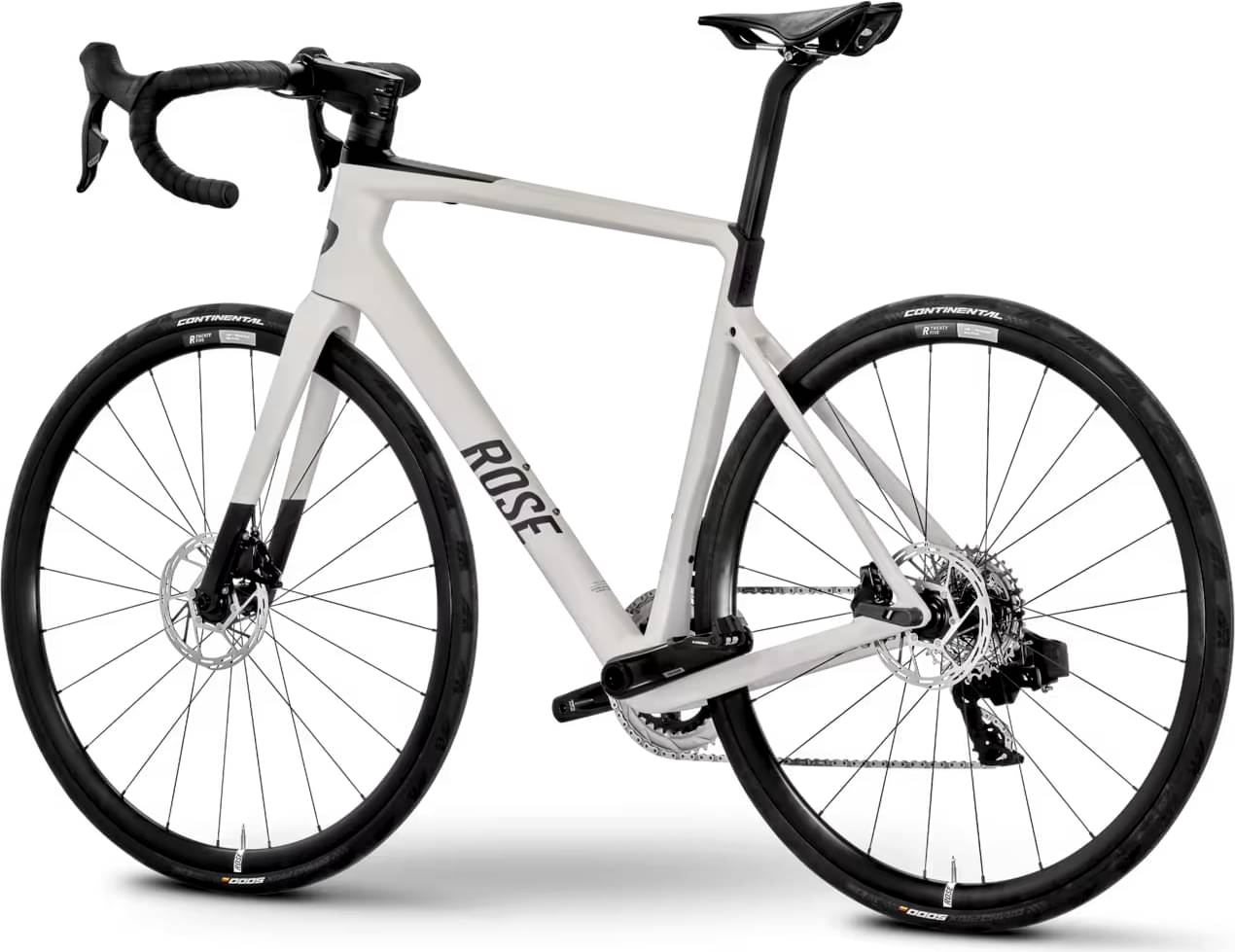

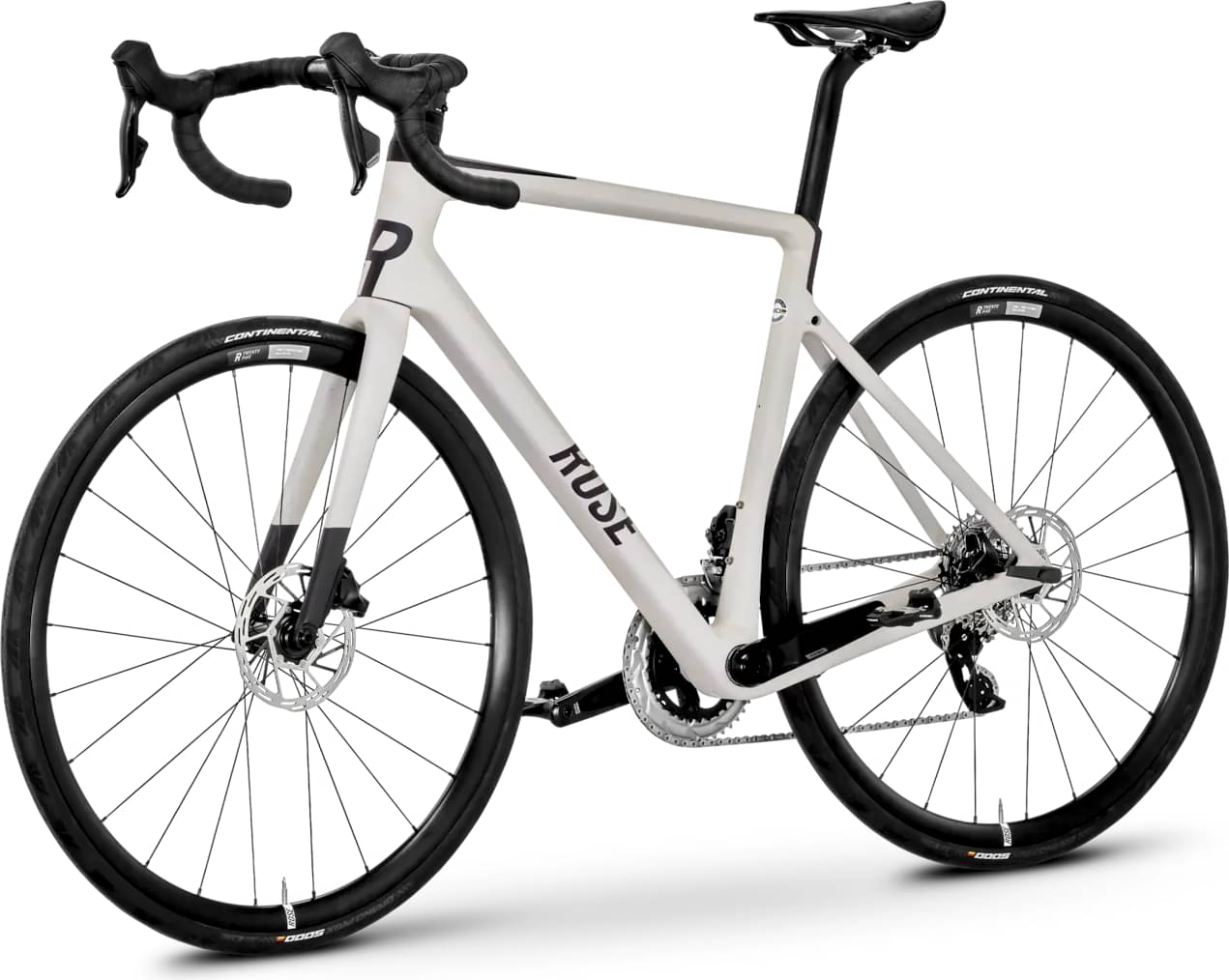

Rose Reveal 04 Rival AXS 2025
2025 Road
Estimate price |
4,071$
Weight | 8.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes SRAM Rival Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ROSE REVEAL FOUR DISC, frame weight for 57 cm approx. 1100 g, carbon, 12x142, Pressfit BB86 matt radiator grey 50cm
Suspension Fork
ROSE REVEAL FOUR DISC, fork weight starting at 370g, carbon, 12x100TA matt radiator grey
Drivetrain
Rear Derailleur
SRAM Rival eTap AXS, max. 36T, black
Front Derailleur
SRAM Rival eTap AXS, black
Cassette
SRAM Rival XG-1250, silver 10-36
Crank
SRAM Rival 46/33, black 170mm
Bottom Bracket
BB86/BB92, press-fit
Chain
SRAM Force, 12-speed 116 links
Pedals
Pedals are not included and must be ordered separately
Wheels
Rims
Front Wheel: ROSE R25, 29", Rear Wheel: ROSE R25 29"
Tires
Continental Grand Prix 5000, black/black 700x30C
Brakes
Brakes
SRAM Rival eTap AXS, SRAM Paceline, black Ø160mm
Cockpit
Stem
ROSE ALR, black sand 90mm
Handlebar
Ritchey Road Comp Streem II, black/matt 40cm
Seat
Saddle
Sella Italia Model X Superflow black
Seatpost
ROSE, 8 mm offset 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 53cm | 55cm | 57cm | 59cm | 61cm | 64cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.457 mm | 1.488 mm | 1.501 mm | 1.53 mm | 1.555 mm | 1.555 mm | 1.561 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm | 261 mm | 264 mm | 264 mm | 264 mm |
| Front Center | 578 mm | 585 mm | 590 mm | 595 mm | 604 mm | 620 mm | 639 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 63 mm | 61 mm | 59 mm | 56 mm | 57 mm | 56 mm | 54 mm |
| Stack | 536 mm | 558 mm | 572 mm | 589 mm | 605 mm | 622 mm | 643 mm |
| Reach | 368 mm | 375 mm | 381 mm | 385 mm | 389 mm | 400 mm | 412 mm |
| Top Tube Length | 512 mm | 530 mm | 542 mm | 554 mm | 568 mm | 590 mm | 615 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74.25 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 475 mm | 495 mm | 515 mm | 537 mm | 566 mm | 600 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 142 mm | 154 mm | 170 mm | 190 mm | 208 mm | 230 mm |
| Chainstay Length | 410 mm | 410 mm | 412 mm | 412 mm | 415 mm | 417 mm | 420 mm |
| Wheelbase | 976 mm | 984 mm | 991 mm | 995 mm | 1008 mm | 1027 mm | 1049 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 750 mm | 773 mm | 790 mm | 808 mm | 830 mm | 852 mm | 879 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
