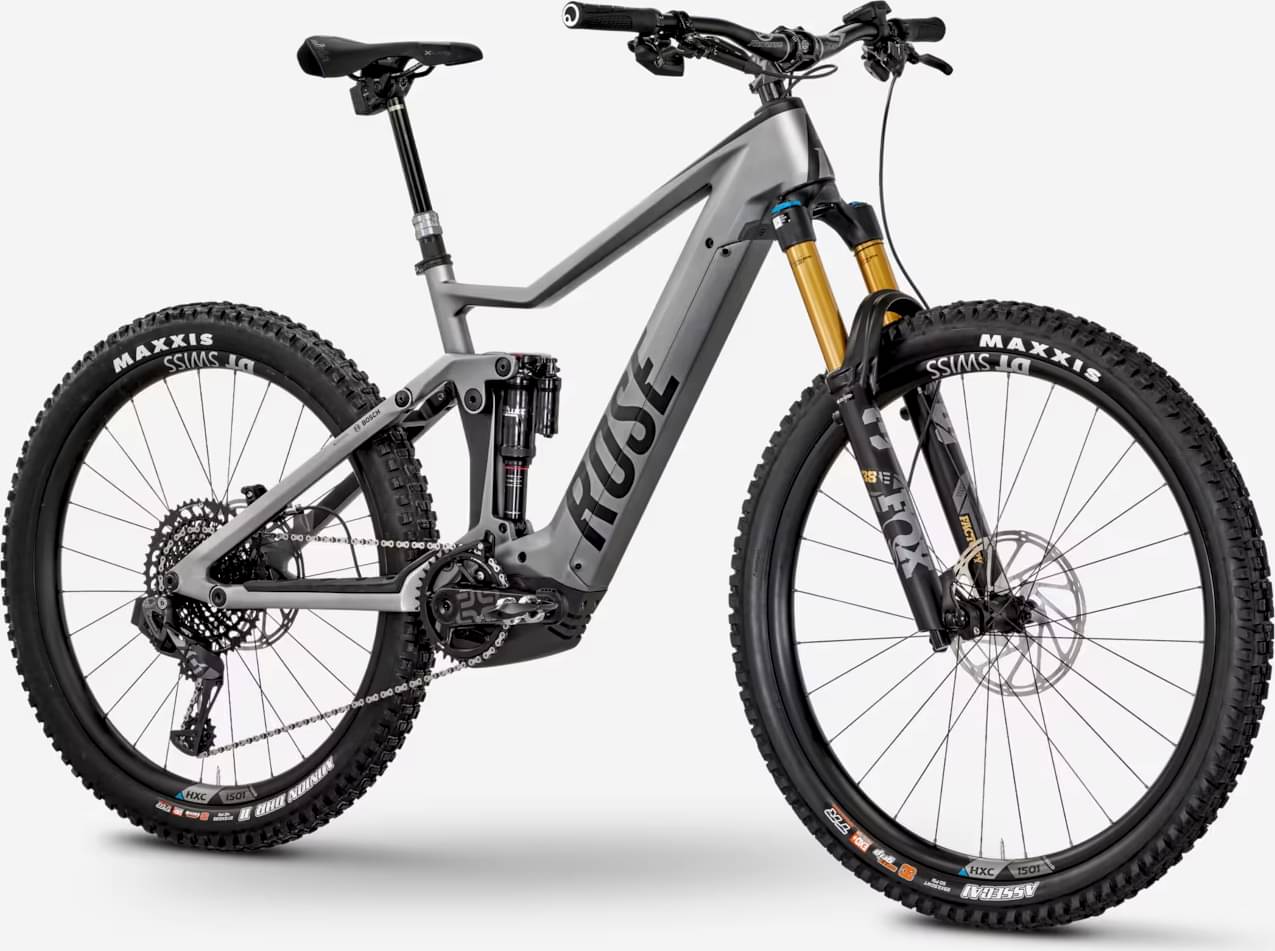

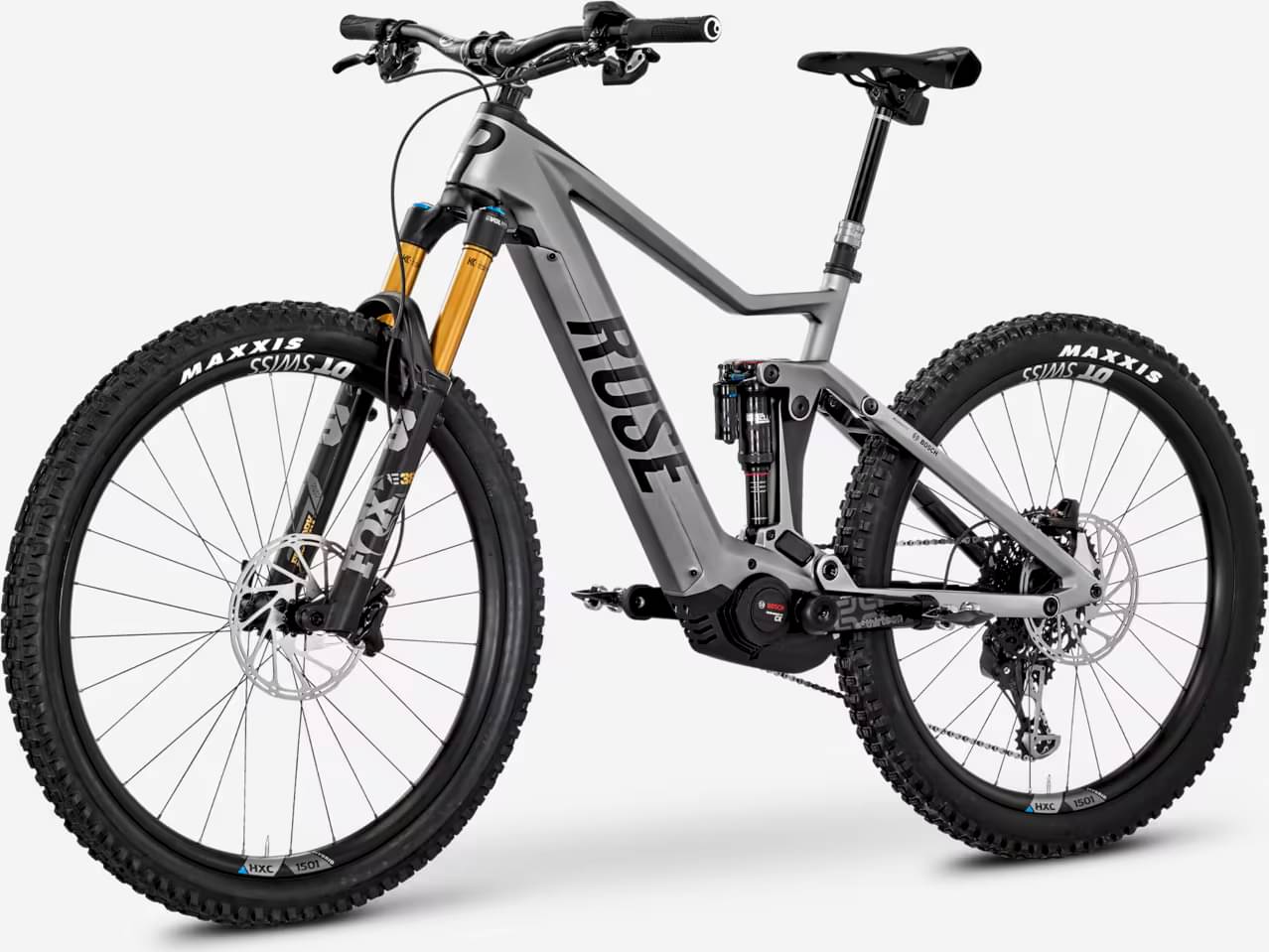

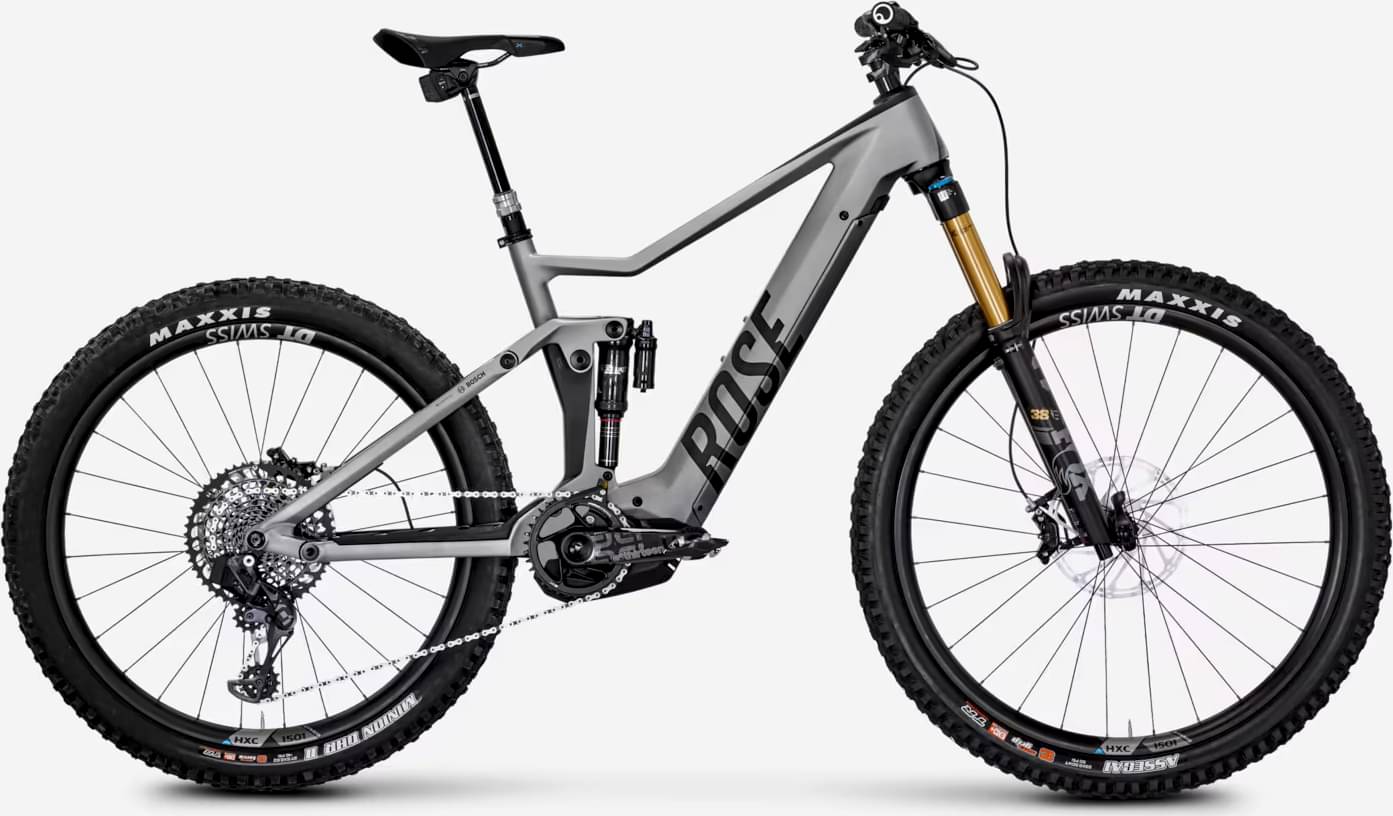

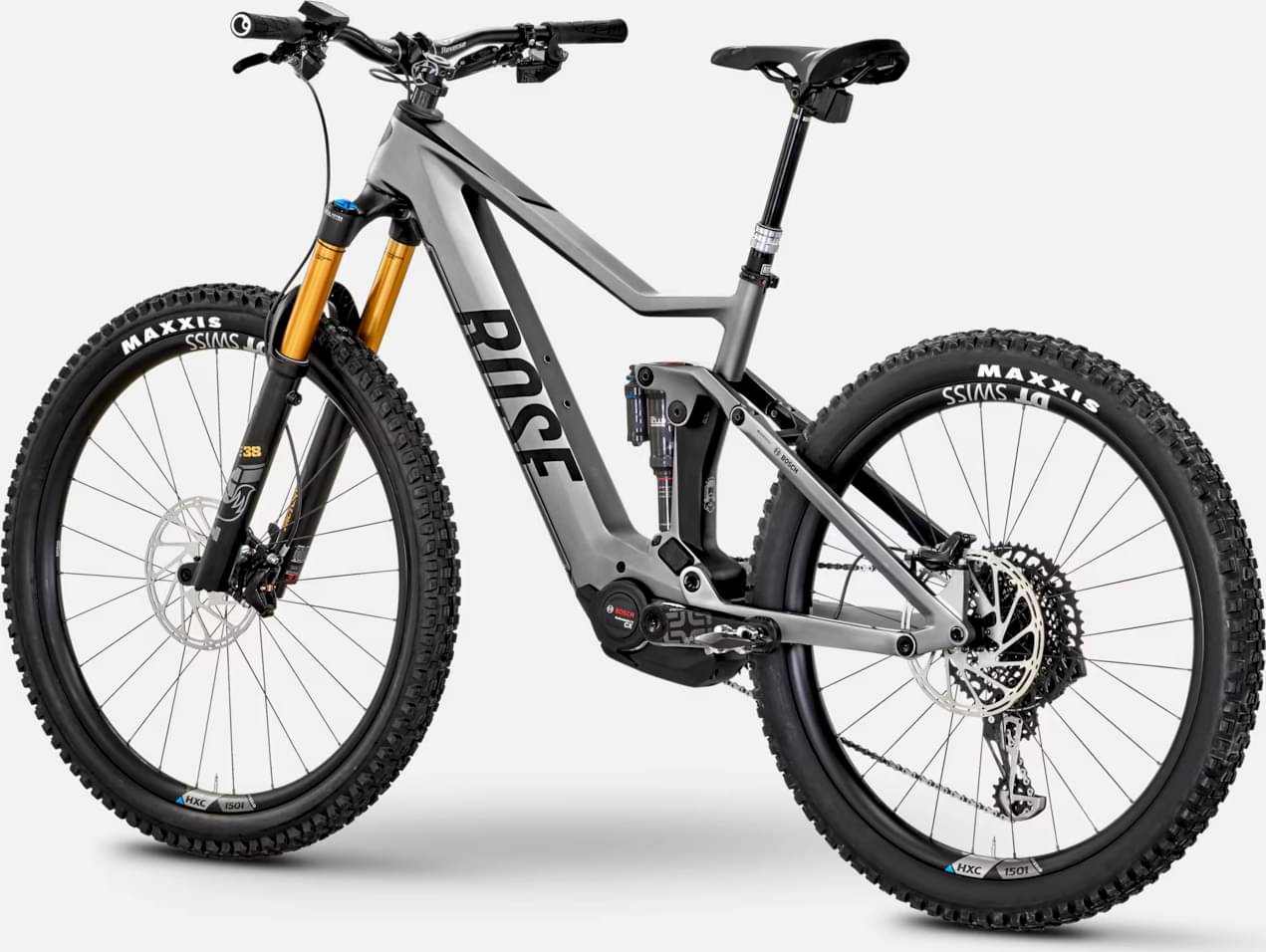

Rose Root Miller Plus 4 2024
2024 E-bike
Estimate price |
9,719$
Weight | 22.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 150mm -
Fork Fox Factory Float 38
-
Groupset X01 Eagle AXS -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery 625 Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon
Suspension Fork
Fox 38 Float Factory Kashima, Grip, 150mm
Drivetrain
Rear Derailleur
SRAM XO1 Eagle AXS, black
Crank
e*thirteen, e*spec Race Carbon Crank, 165mm, e*thirteen, e*spec plus DM Chainring, 36T. Aluminum 36 T.
Chain
SRAM GX Eagle, 12-speed, silver 124gl.
Wheels
Rims
DT Swiss HXC 1501 Spline, 35mm, 27.5", DT Swiss HXC 1501 Spline, 30mm, 29"
Tires
Maxxis Minion DHR II, WT, EXO+, TR, 3C Maxx Terra, schwarz 27,5x2,6, 650B, Maxxis Assegai, WT, EXO+ TR, Maxx-Grip, schwarz 29x2,5
Brakes
Brakes
Front wheel: SRAM Code RSC, black PM, Rear wheel: SRAM Code RSC, black
Cockpit
Stem
Reverse E-Black-ONE Enduro, 50mm, black/gray Ø35mm
Handlebar
Reverse E element, Ø35, rise 25mm, black/grey 770mm
Seat
Saddle
Selle italia X-Land E-Bike, black/dark gray
Seatpost
228563003 SERIAL ASSEMBLY Electronic seat post REVERB AXS, 31.6mm, without battery 150mm
Motor & Battery
Motor
Bosch Performance Line CX, Generation 4
Battery
625 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.484 mm | 1.418 mm | 1.353 mm | 1.289 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 727 mm | 754 mm | 781 mm | 815 mm |
| Rake | 40 mm | 39 mm | 38 mm | 38 mm |
| Trail | 114 mm | 116 mm | 117 mm | 117 mm |
| Stack | 616 mm | 624 mm | 629 mm | 638 mm |
| Reach | 415 mm | 440 mm | 465 mm | 495 mm |
| Top Tube Length | 564 mm | 590 mm | 616 mm | 648 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 415 mm | 440 mm | 465 mm | 490 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1171 mm | 1198 mm | 1225 mm | 1259 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm | 13 mm |
| Front Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Rear Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
