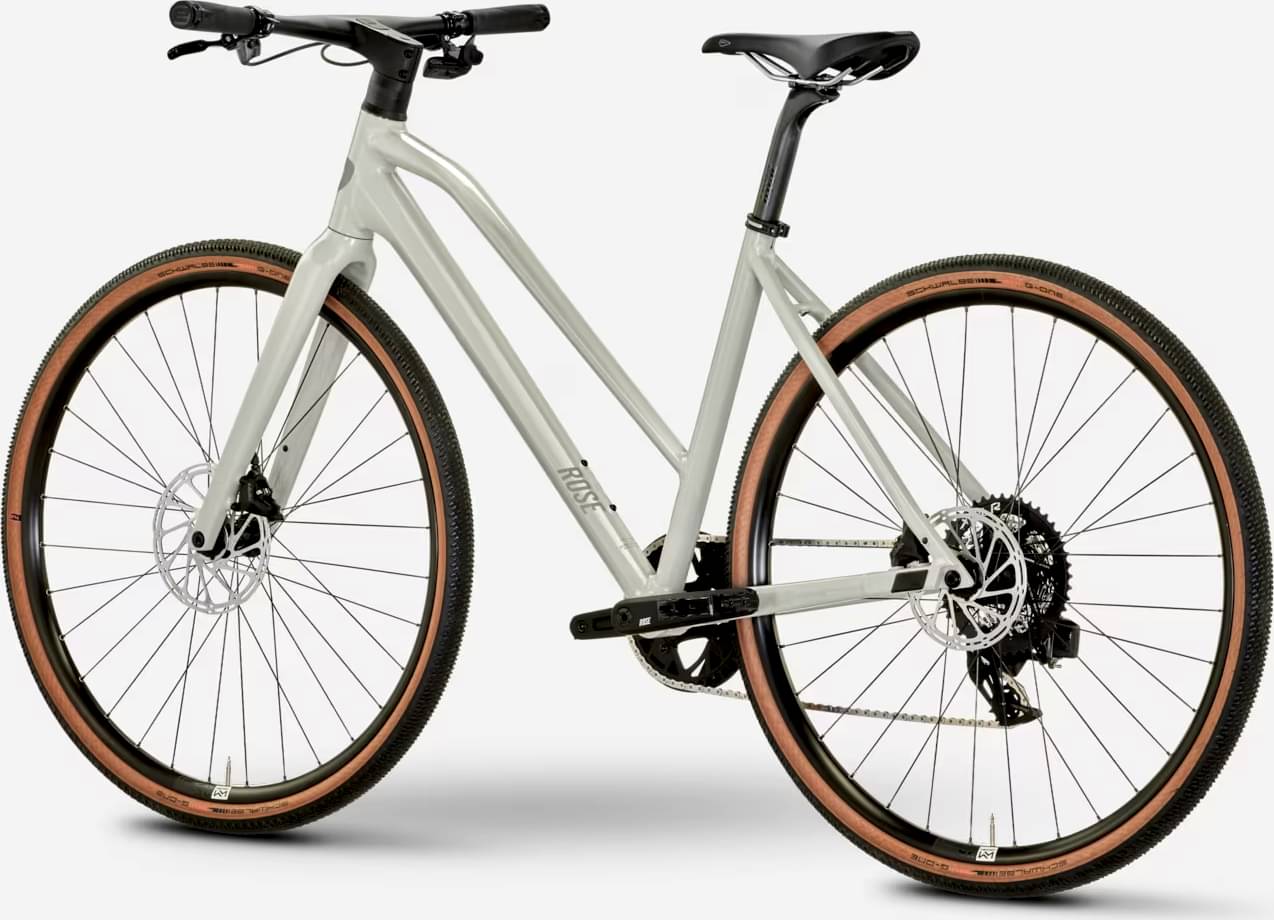

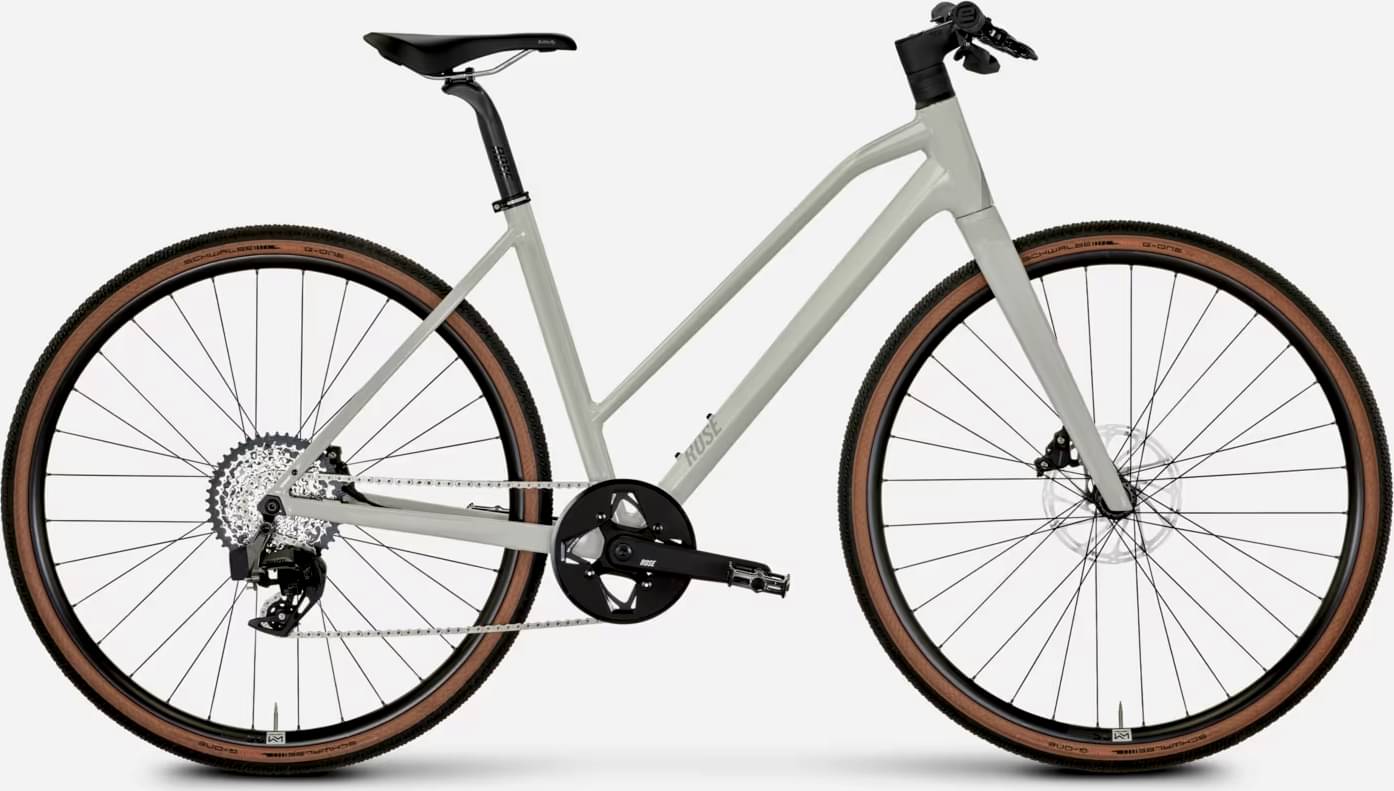

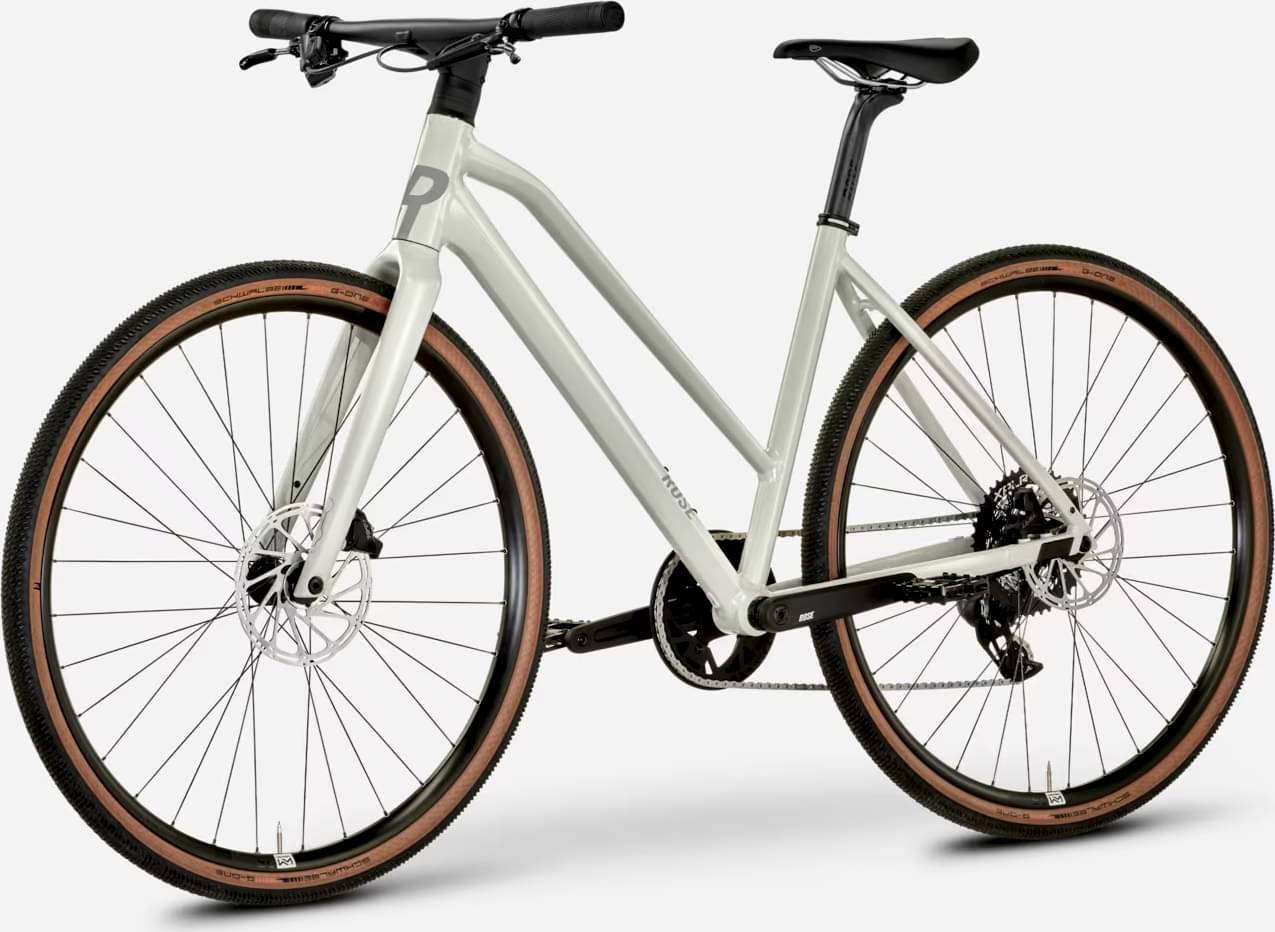

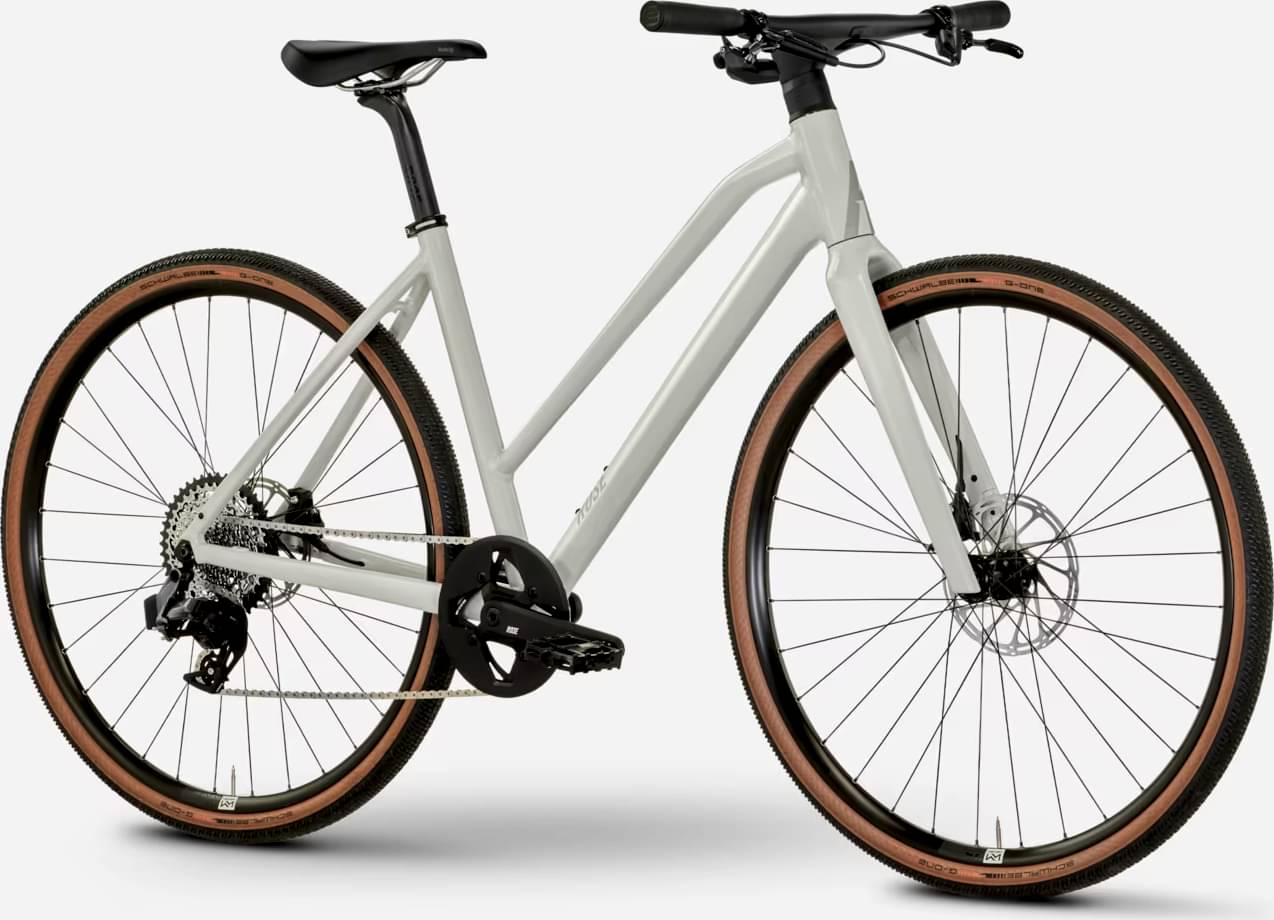

Rose Sneak 3 MidStep 2024
2024 Urban
Estimate price |
2,965$
Weight | 9.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset GX Eagle AXS, Rival XPLR AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
ROSE SNEAK, carbon, chalk
Drivetrain
Rear Derailleur
SRAM RIVAL XPLR ETAP AXS,
Shift Levers
SRAM GX AXS Eagle,
Cassette
SRAM CS XG, 1271 D1, XPLR, 10-44
Crank
Article: 2707967 black sand 172,5mm
Chain
SRAM Rival 12-speed, 116 links
Pedals
Pedals are not included and must be ordered separately
Wheels
Rims
Newmen Performance 25, 29"
Brakes
Brakes
SRAM Level TLM F20, black matt 950mm, SRAM Level TLM F20, black matt 1800mm
Cockpit
Grips
Ergotec Grips Performance black
Seat
Saddle
Terry Butterfly Exera
Seatpost
ROSE RC-170, 400 mm matt carbon 31,6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.363 mm | 1.393 mm | 1.435 mm |
| Front Center | 627.7 mm | 631.2 mm | 636.7 mm |
| Rake | 47 mm | 47 mm | 47 mm |
| Trail | 77 mm | 75 mm | 70 mm |
| Stack | 544 mm | 560 mm | 581 mm |
| Reach | 399 mm | 402 mm | 405 mm |
| Top Tube Length | 565 mm | 578 mm | 588 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 417 mm | 468 mm | 519 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° |
| Head Tube Length | 130 mm | 145 mm | 165 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1065 mm | 1069 mm | 1074 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
