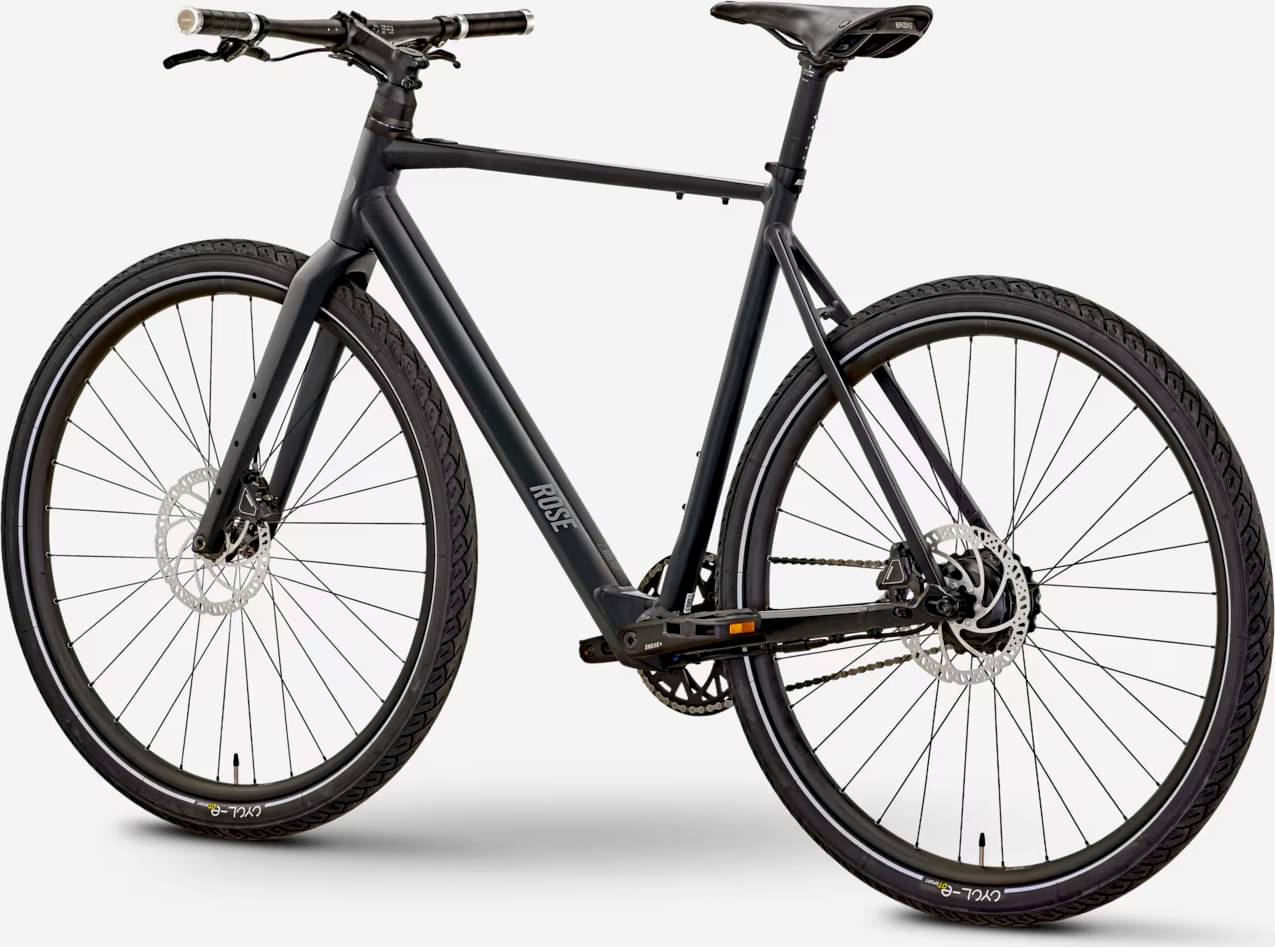

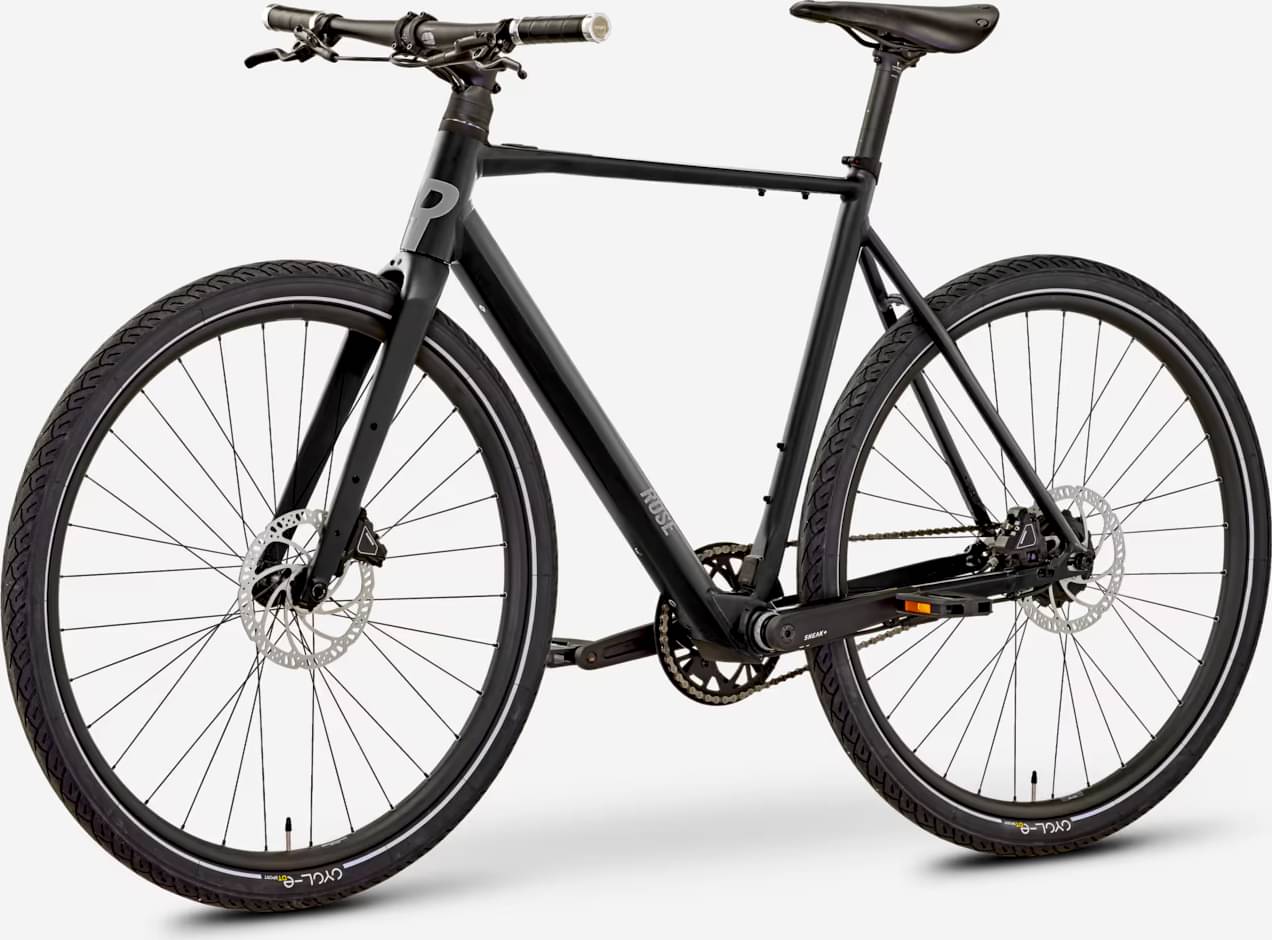

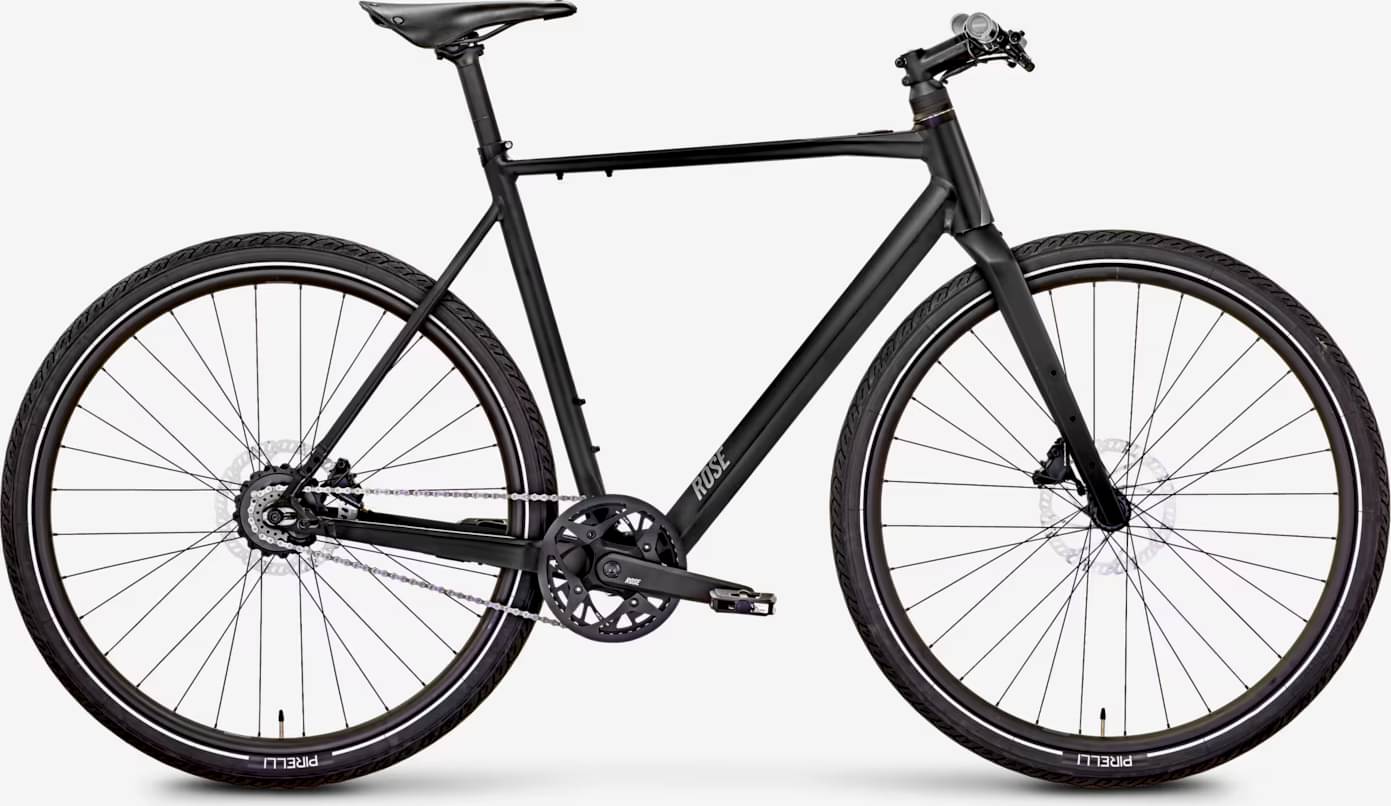

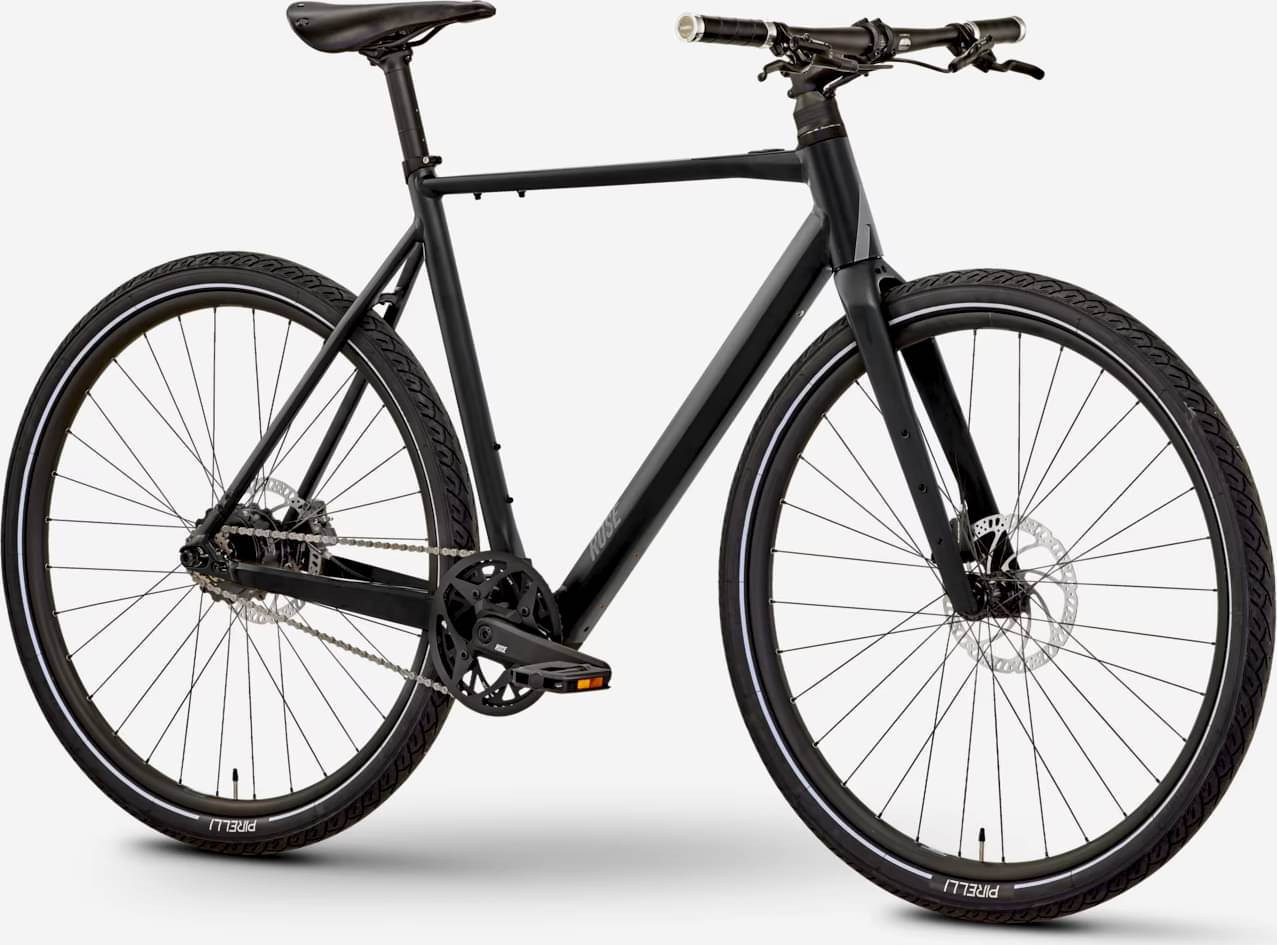

Rose SNEAK PLUS 2024
2024 E-bike
Estimate price |
3,109$
Weight | 14.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Suspension Rigid -
Motor MAHLE hub-drive -
Battery 250 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
aluminum
Suspension Fork
ROSE Gabel Black YS728, matt/Decal: NIL
Drivetrain
Crank
Miranda Delta 44Z. black matt 172.5mm
Chain
Shimano CN-HG54 10-speed, 120 L
Pedals
ROSE VP-836 black
Wheels
Rims
Ryde Rival 26, Disc, anodized black 28"
Tires
Pirelli Angel™ DT Urban, black 47-622
Brakes
Brakes
Rear: Shimano BL-MT200 / BR-UR300, black 1700mm
Cockpit
Stem
ergotec Piranha 2, black sand 100mm
Handlebar
LightSKIN (with LEDs), black (without logo) 640mm
Seat
Saddle
Brooks Cambium C17, all weather, black
Seatpost
LightSKIN (with LEDs), black (without logo) 30.9 mm
Motor & Battery
Motor
Mahle X35
Battery
250 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1 mm | 1 mm | 1 mm |
| Front Center | 627 mm | 648 mm | 674 mm |
| Rake | 97 mm | mm | mm |
| Stack | 405.5 mm | 417.7 mm | 435.9 mm |
| Reach | 405.5 mm | 417.7 mm | 435.9 mm |
| Top Tube Length | 566 mm | 585 mm | 610 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 520 mm | 570 mm | 620 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 130 mm | 155 mm | 180 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1052 mm | 1072 mm | 1099 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
