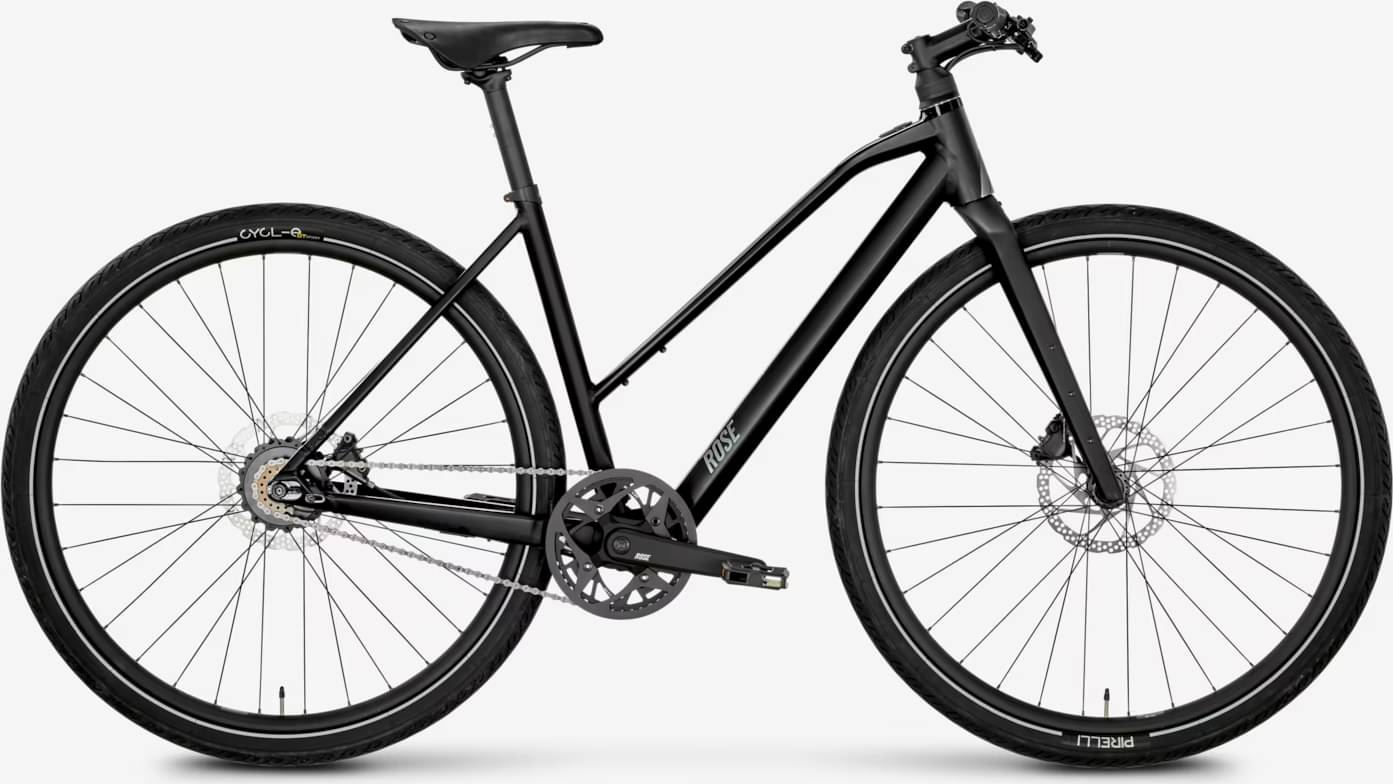

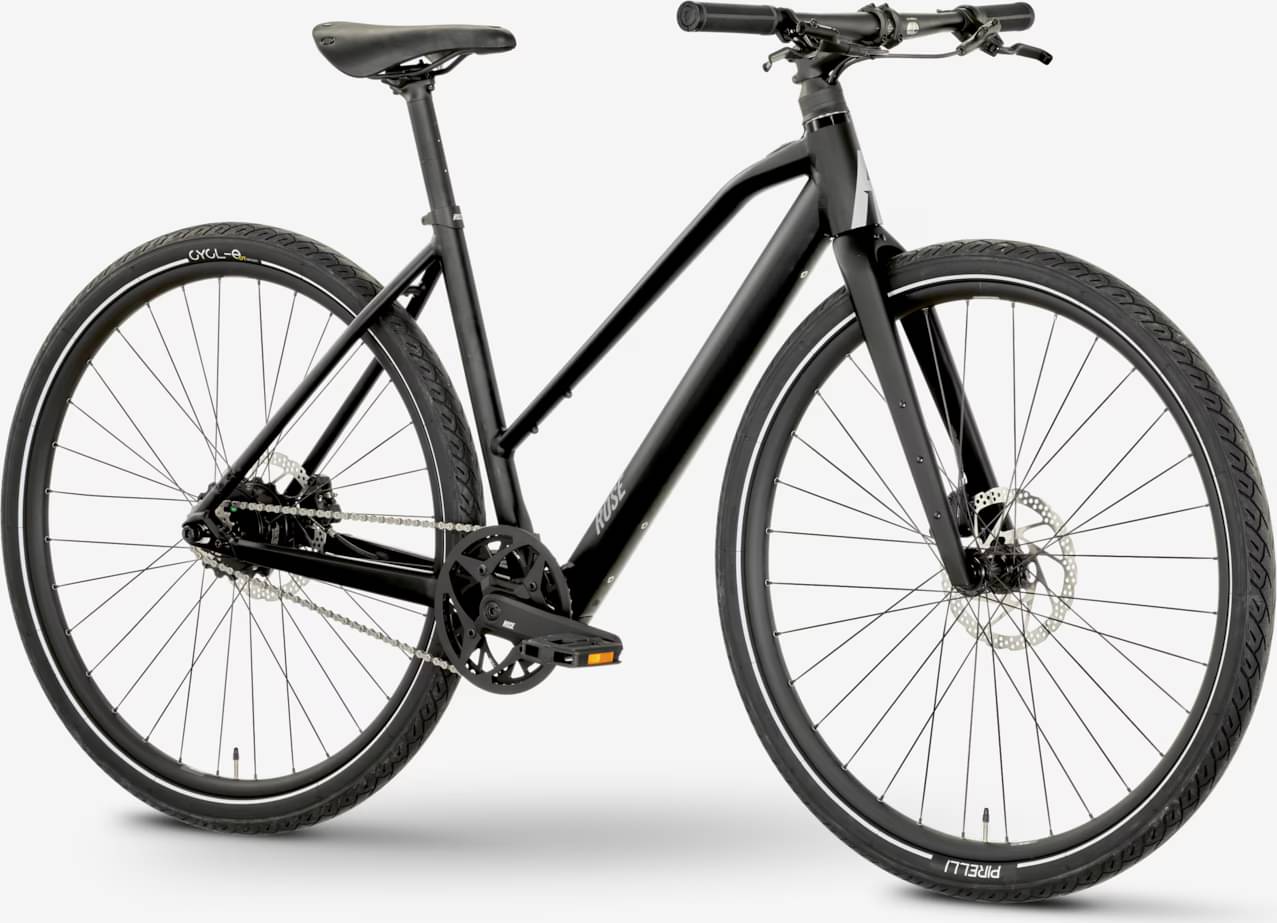

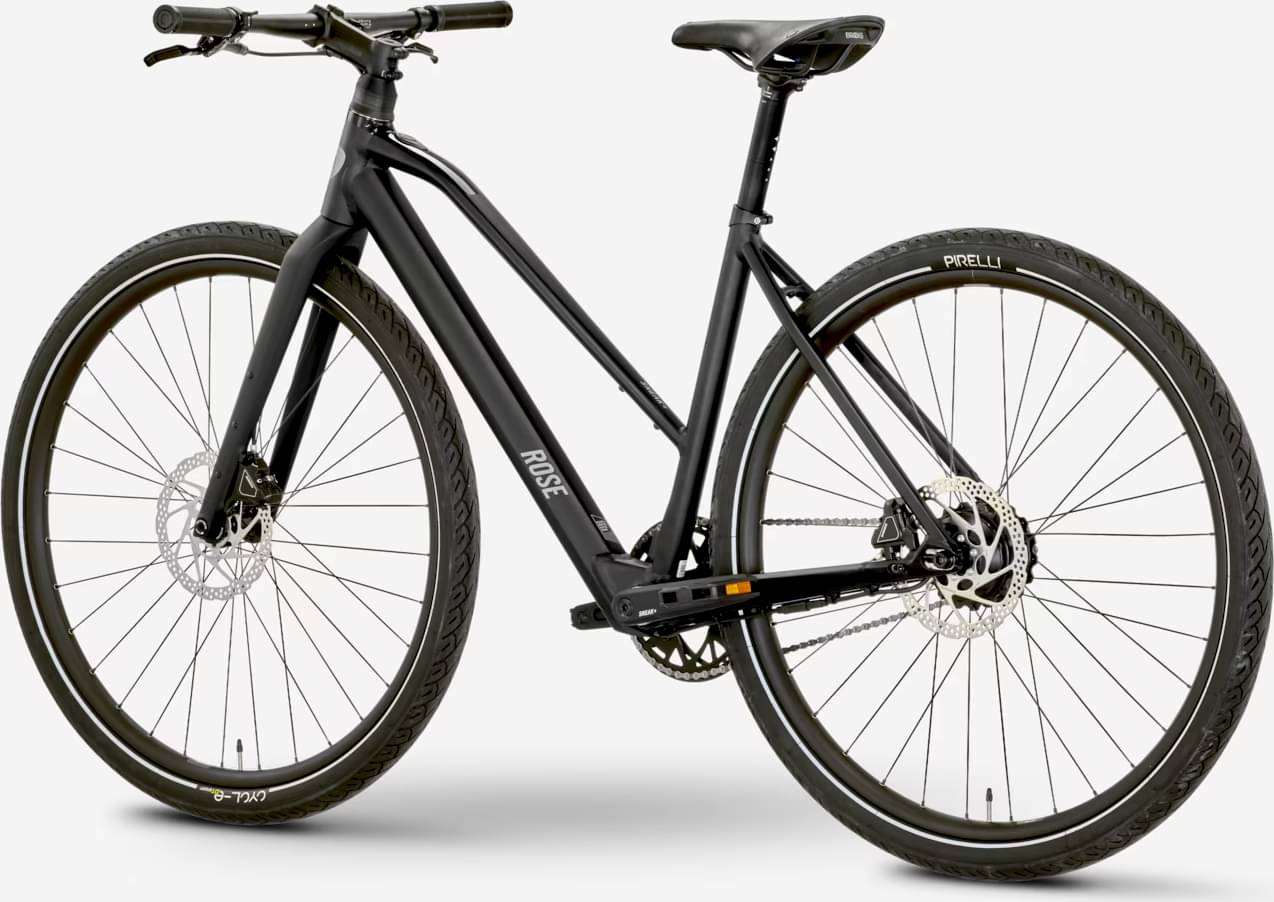

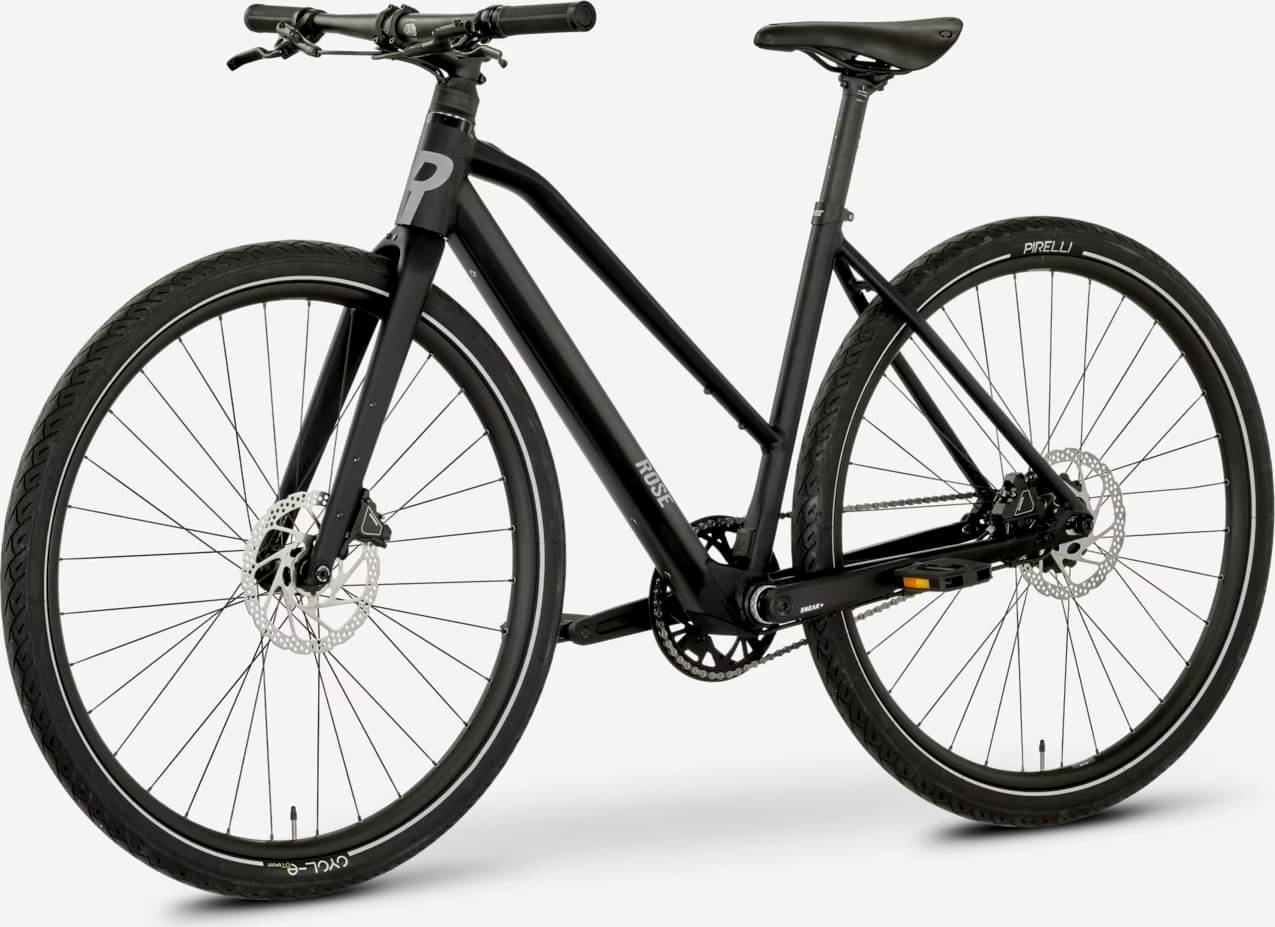

Rose SNEAK PLUS MidStep 2024
2024 E-bike
Estimate price |
3,109$
Weight | 14.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Suspension Rigid -
Motor MAHLE hub-drive -
Battery 250 Wh -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
aluminum
Suspension Fork
ROSE Gabel Black YS728, matt/Decal: NIL
Drivetrain
Crank
Miranda Delta 44Z. black matt 172.5mm
Chain
Shimano CN-HG54 10-speed 116 L
Pedals
ROSE VP-836 black
Wheels
Rims
Ryde Rival 26 Disc, anodized black 28"
Tires
Pirelli Angel™ DT Urban, black 47-622
Brakes
Brakes
Rear: Shimano BL-MT200 / BR-UR300, black 1700mm
Cockpit
Stem
ergotec Piranha 2, black sand 100mm
Handlebar
LightSKIN (with LEDs), black (without logo) 640mm
Seat
Saddle
Brooks Cambium C19, black
Seatpost
LightSKIN (with LEDs), black (without logo) 30.9 mm
Motor & Battery
Motor
Mahle X35
Battery
250 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.385 mm | 1.38 mm |
| Front Center | 614 mm | 627 mm |
| Rake | 47 mm | 47 mm |
| Trail | 80 mm | 70 mm |
| Stack | 535.4 mm | 559.7 mm |
| Reach | 386.5 mm | 405.5 mm |
| Top Tube Length | 540 mm | 566 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Seat Tube Length | 430 mm | 470 mm |
| Head Tube Angle | 69.5 ° | 71 ° |
| Head Tube Length | 110 mm | 130 mm |
| Chainstay Length | 435 mm | 435 mm |
| Wheelbase | 1039 mm | 1052 mm |
| Bottom Bracket Drop | 72 mm | 72 mm |
| Wheels | 700 | 700 |
