Rose The Bruce 1 2024
2024 Mountain
Estimate price |
1,046$
Weight | 11.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Manitou Circus Expert
-
Groupset Truvativ Descendant -
Suspension Hardtail -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

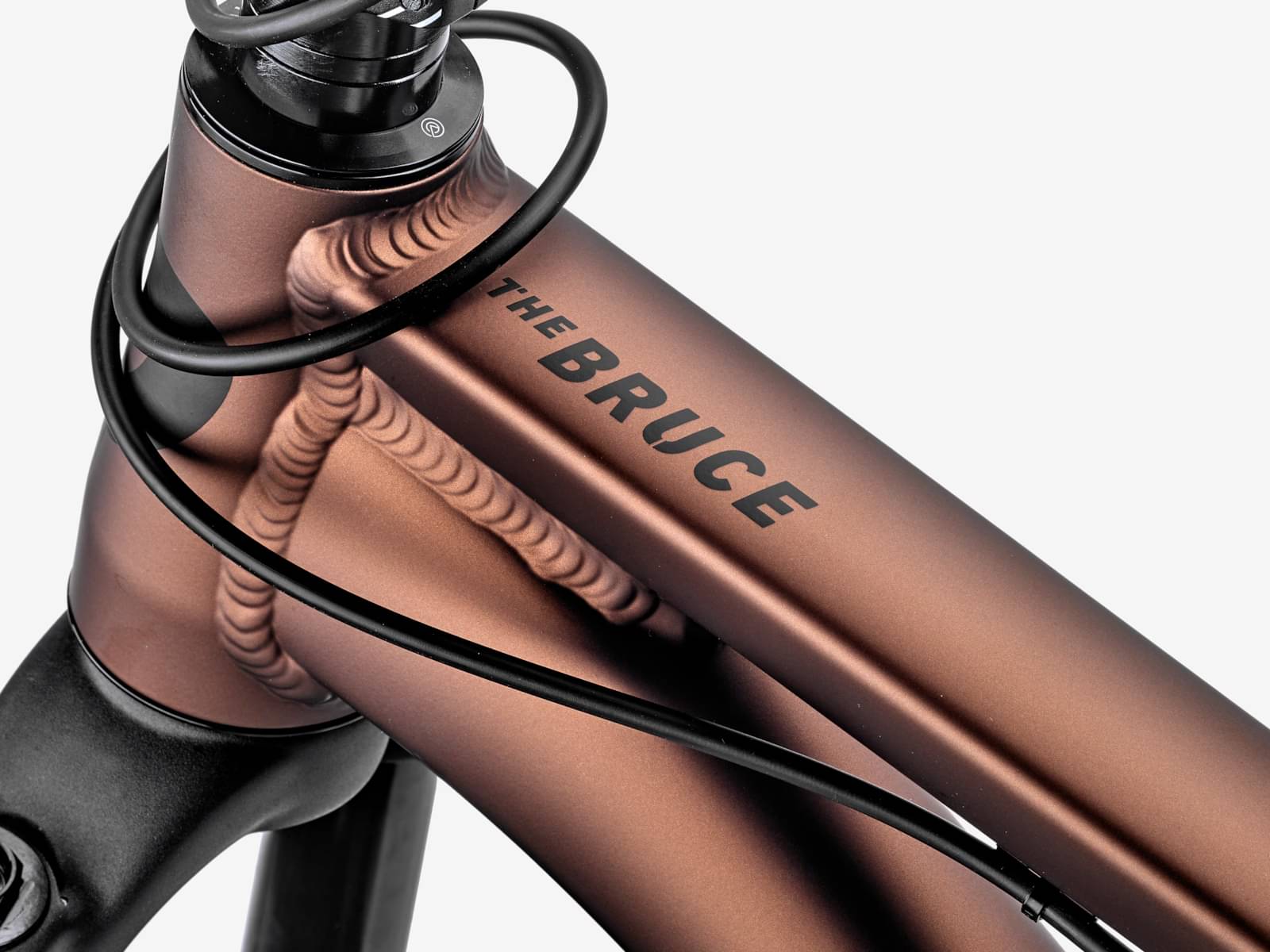

Frame
Frame
The Bruce, weight: approx. 2360 g (Mocha Brown Metallig, size M) mocha brown metallic M
Suspension Fork
Manitou Circus Expert 100, black matt 26", 100mm travel

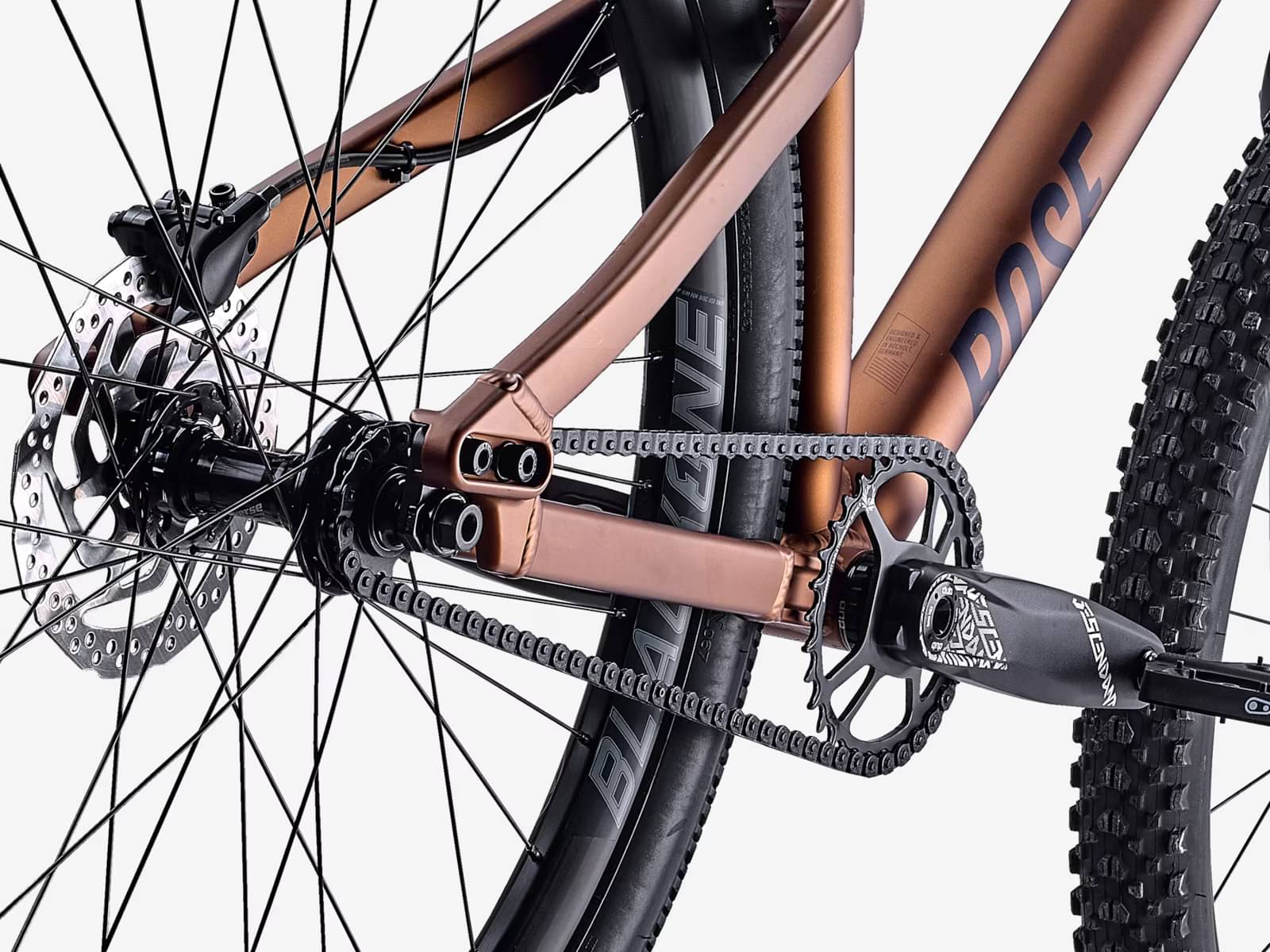

Drivetrain
Crank
Truvativ Descendant 6K Eagle DUB 32T, black 165mm
Chain
ROSE singlespeed black
Pedals
delivered without pedals Standard
Wheels
Rims
Reverse Black one, 26", 30 mm inner rim width, black, 13 teeth, 32 hole black 32 hole
Tires
Maxxis Ikon (front), 26x2.35, Maxxis DTH (rear), 26x2.3

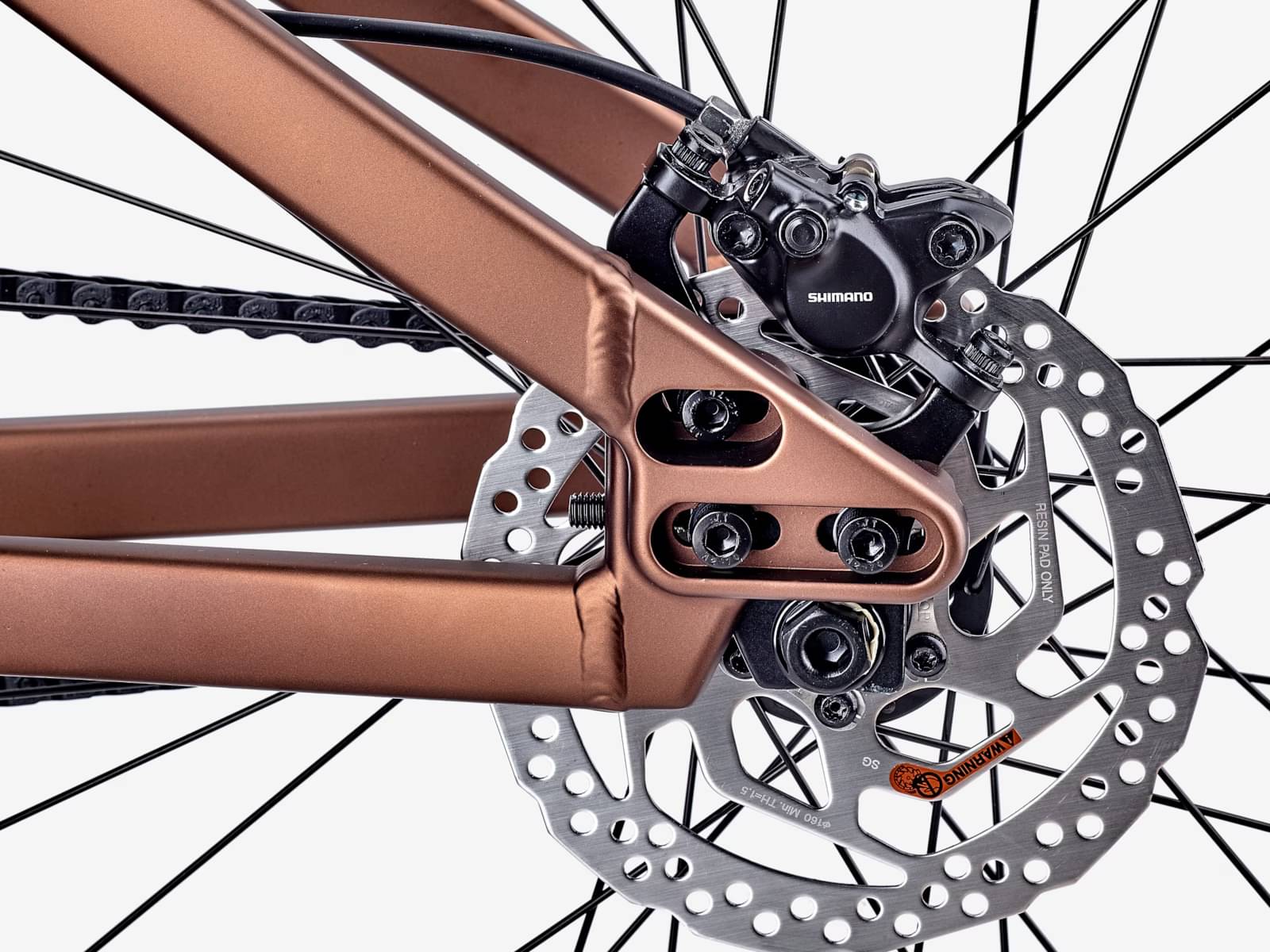

Brakes
Brakes
227431701 SERIENMONTAGE HR-Scheibenbremse DISC BRAKE ASSEMBLED SET, BL-MT200(R), BR-MT200(R), BLACK, W/O ADAPTER, RESIN PAD(W/O FIN), 1700MM HOSE(SM-BH59-SS BLACK), BULK 2303728 black 1700mm
Cockpit
Stem
Reverse Black-ONE, Ø35mm, black/white 35mm
Handlebar
Reverse Lead, 760 mm, 25 mm rise black/white Ø35mm
Grips
Reverse STAMP black/black

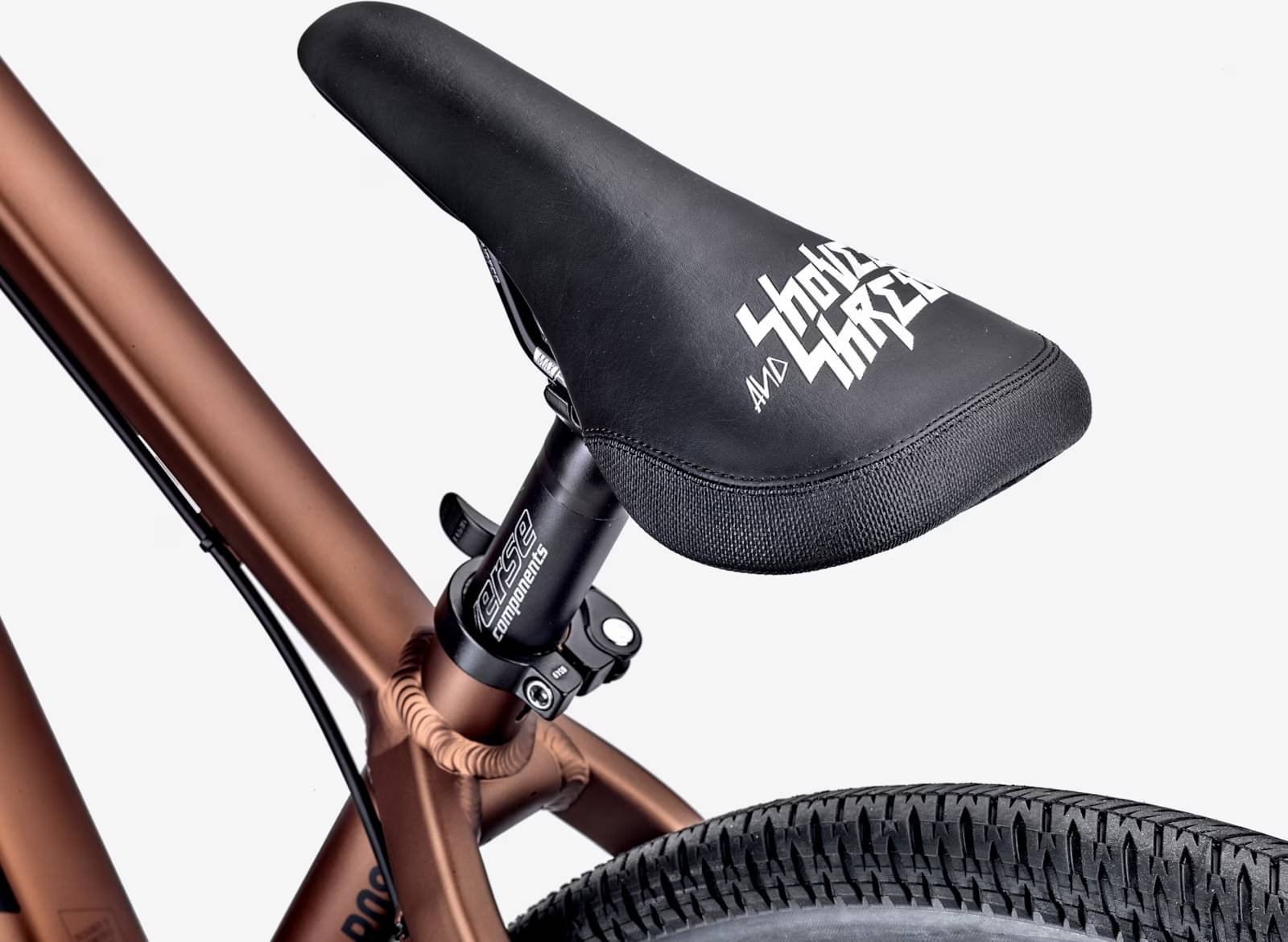

Seat
Saddle
Reverse Nico Vink Shovel & Shred black/white
Seatpost
Reverse, black Ø30,9/300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.287 mm |
| Bottom Bracket Height | 321 mm | 321 mm |
| Front Center | 671 mm | 694 mm |
| Rake | 43 mm | 43 mm |
| Trail | 86 mm | 86 mm |
| Stack | 552 mm | 552 mm |
| Reach | 406 mm | 429 mm |
| Top Tube Length | 575 mm | 598 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 320 mm | 320 mm |
| Head Tube Angle | 69 ° | 69 ° |
| Head Tube Length | 115 mm | 115 mm |
| Chainstay Length | 375 mm | 375 mm |
| Wheelbase | 1045 mm | 1068 mm |
| Bottom Bracket Drop | -18 mm | -18 mm |
| Standover Height | 692 mm | 688 mm |
| Front Travel | 100 mm | 100 mm |
| Wheels | 26" | 26" |
