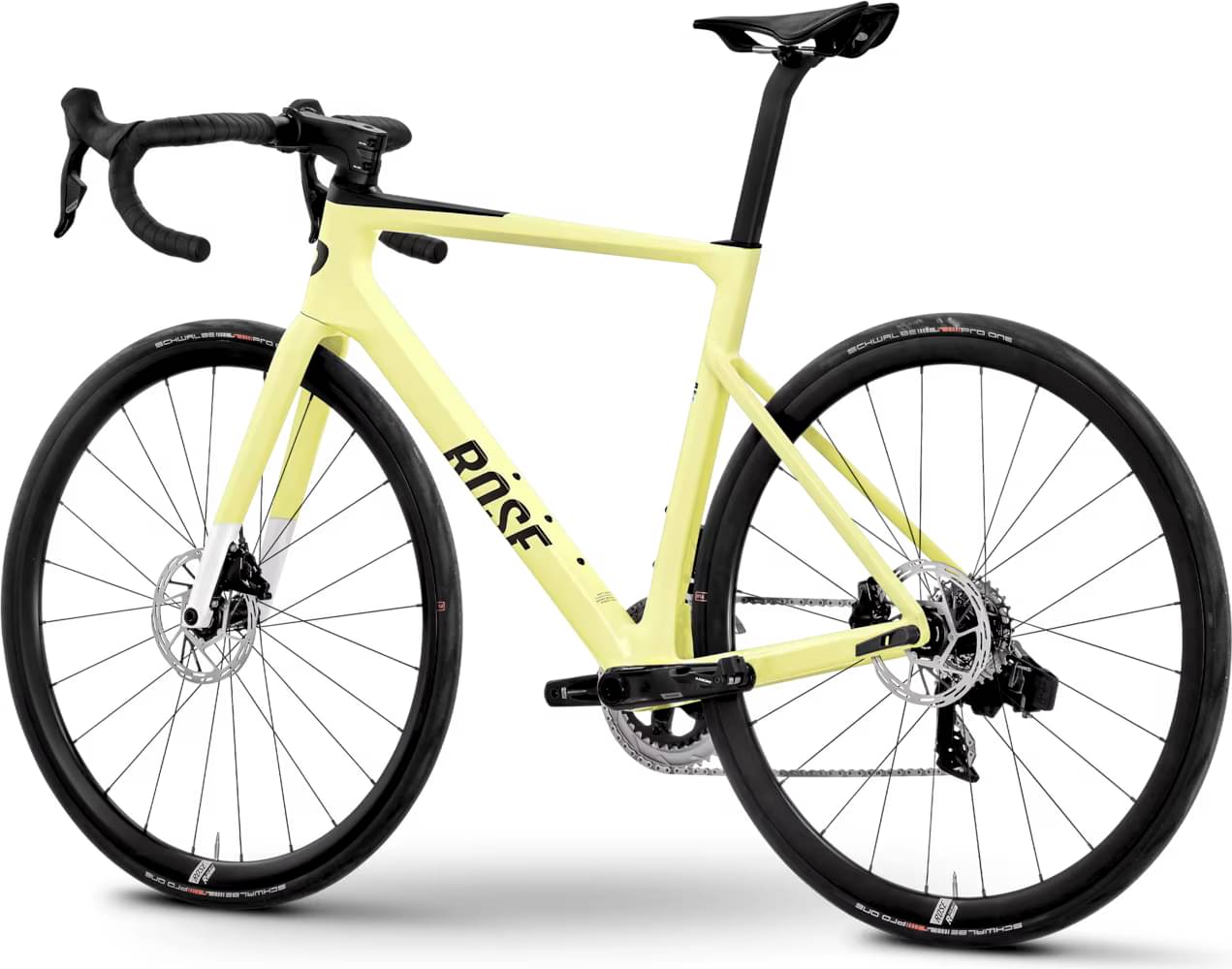

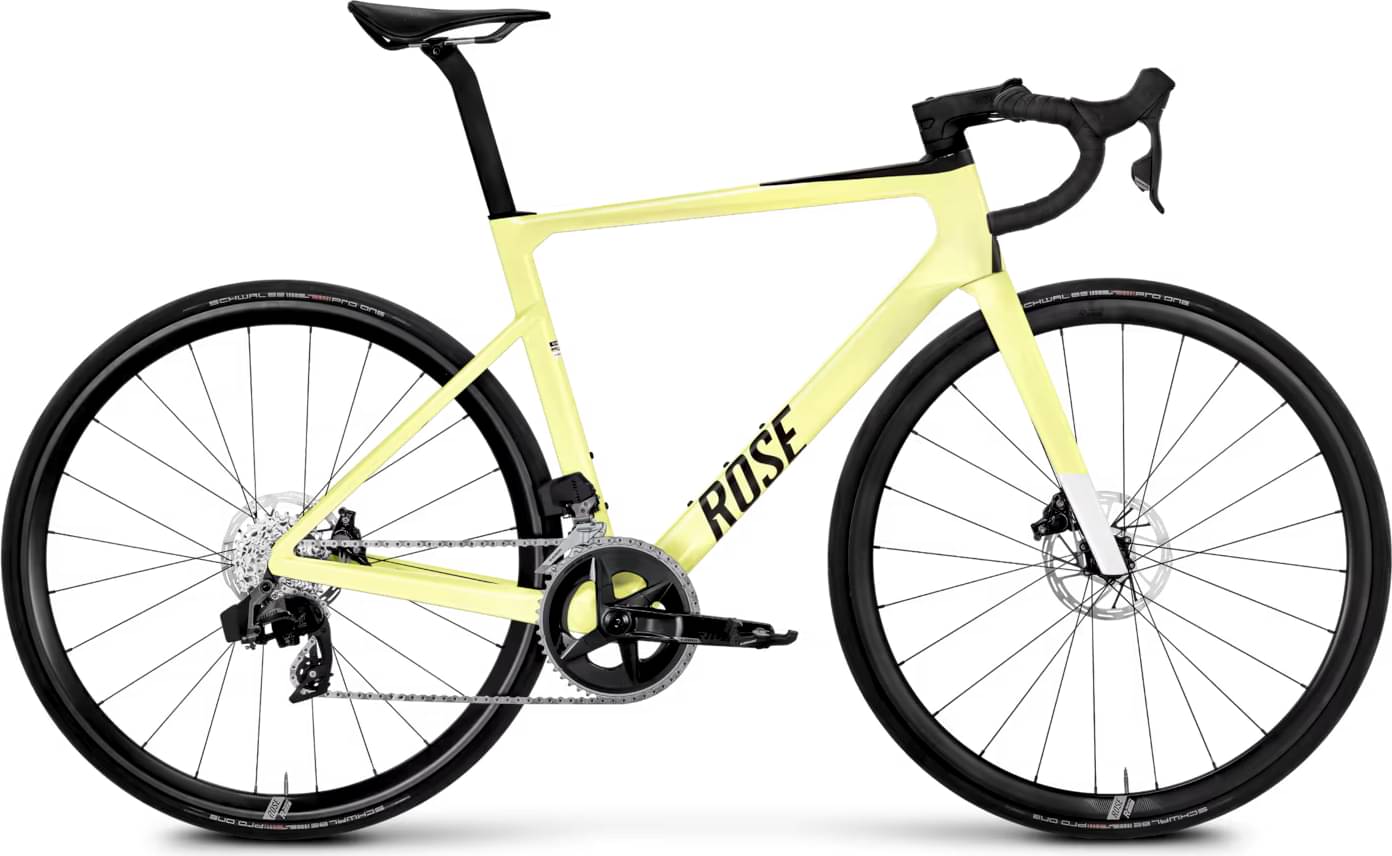

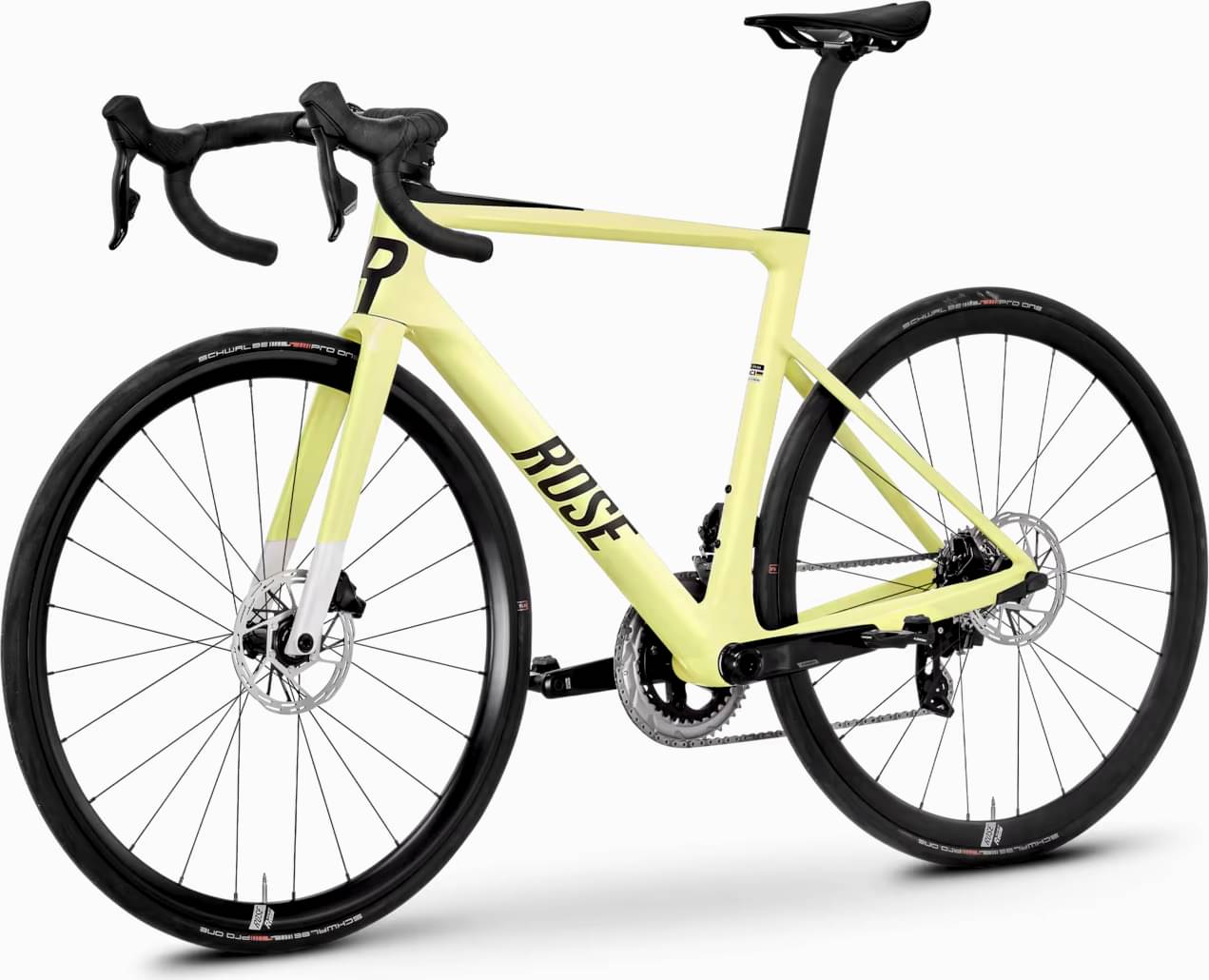

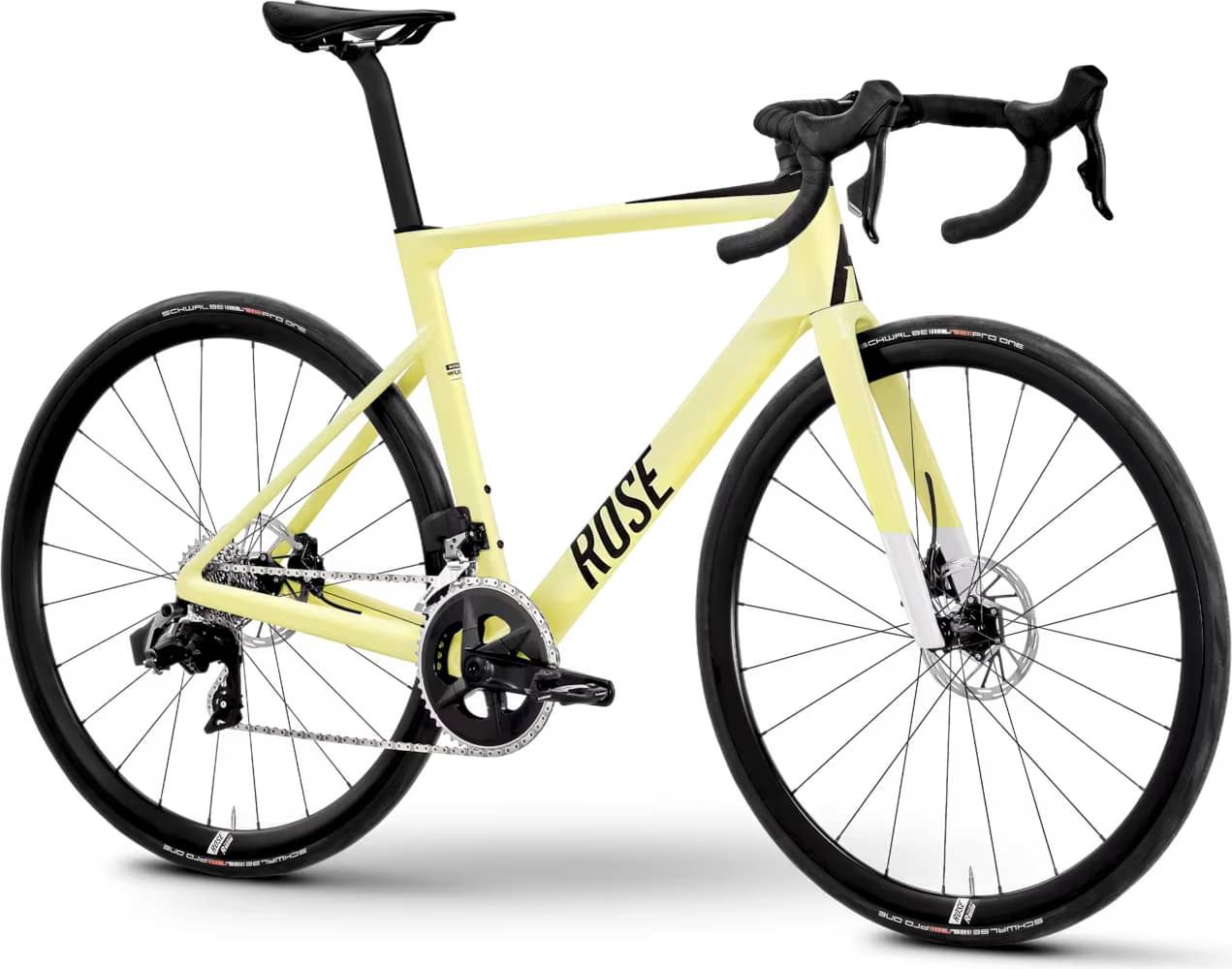

Rose Xlite 04 Rival AXS 2025
2025 Road
Estimate price |
4,128$
Weight | 8.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes SRAM Rival Hydraulic Disc
Sizing
Recommended size guide.
50cm
154cm - 166cm
53cm
163cm - 173cm
55cm
170cm - 179cm
57cm
176cm - 187cm
59cm
184cm - 195cm
62cm
192cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rose XLITE 04 DISC, carbon, 12x142TA, frame weight for 57 cm approx. 1030 g, Pressfit BB86 bottermelk fresh 62cm
Suspension Fork
Rose XLITE 04/06 DISC, carbon, 12x100TA, fork weight 370 g bottermelk fresh
Drivetrain
Rear Derailleur
SRAM Rival eTap AXS, max. 36T, black
Front Derailleur
SRAM Rival eTap AXS, black
Cassette
SRAM Rival XG-1250, silver 10-30
Crank
SRAM Rival 48/35, black 175mm
Bottom Bracket
BB86/BB92, press-fit
Chain
SRAM Rival 12-speed, 116 links
Pedals
Pedals are not included and must be ordered separately
Wheels
Rims
R30 Light anodized matt black 24 hole
Tires
Schwalbe Pro One Evo, 28-622, schwarz/schwarz 622x28
Brakes
Brakes
SRAM Rival eTap AXS, SRAM Paceline, black Ø160mm
Cockpit
Stem
ROSE ALR, black sand 120mm
Handlebar
Ritchey Road Comp Streem II, black/matt 42cm
Seat
Saddle
Sella Italia Model X Superflow black
Seatpost
ROSE d-shape, 14mm offset, 390mm, Ø27,2/390mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 53cm | 55cm | 57cm | 59cm | 62cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.366 mm | 1.38 mm | 1.386 mm | 1.399 mm | 1.398 mm | 1.415 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 576 mm | 581 mm | 591 mm | 598 mm | 613 mm | 627 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 66 mm | 63 mm | 59 mm | 56 mm | 54 mm | 55 mm |
| Stack | 508 mm | 527 mm | 542 mm | 557 mm | 573 mm | 597 mm |
| Reach | 372 mm | 382 mm | 391 mm | 398 mm | 410 mm | 422 mm |
| Top Tube Length | 504 mm | 523 mm | 541 mm | 558 mm | 575 mm | 593 mm |
| Seat Tube Angle | 75.5 ° | 75 ° | 74.5 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 430 mm | 460 mm | 480 mm | 500 mm | 525 mm | 565 mm |
| Head Tube Angle | 71 ° | 72 ° | 72.5 ° | 73 ° | 73.25 ° | 73.5 ° |
| Head Tube Length | 105 mm | 120 mm | 135 mm | 152 mm | 168 mm | 192 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 975 mm | 980 mm | 990 mm | 998 mm | 1013 mm | 1027 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 730 mm | 754 mm | 781 mm | 791 mm | 812 mm | 844 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 154 cm | 163 cm | 170 cm | 176 cm | 184 cm | 192 cm |
| Rider Max Height | 166 cm | 173 cm | 179 cm | 187 cm | 195 cm | 200 cm |
