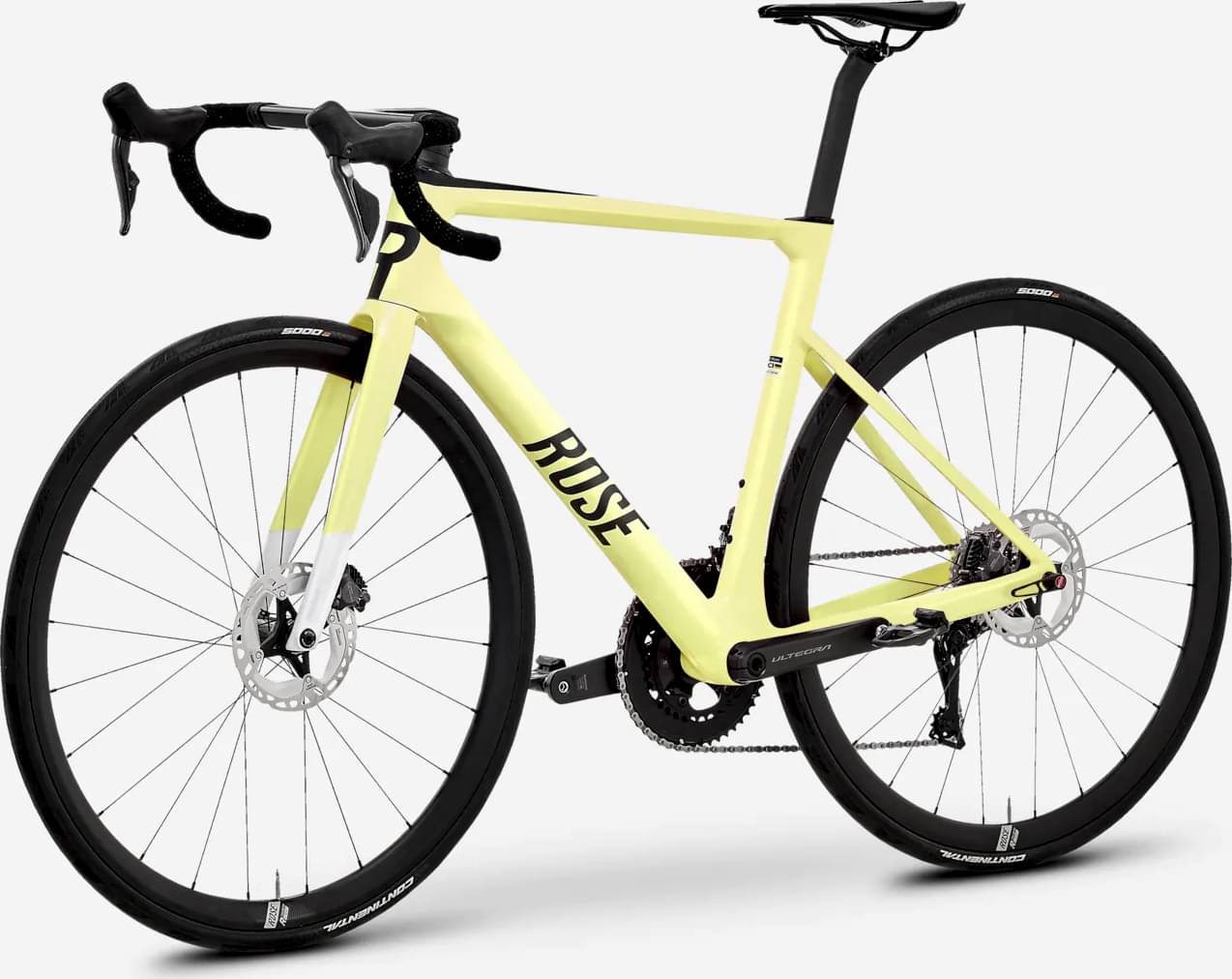

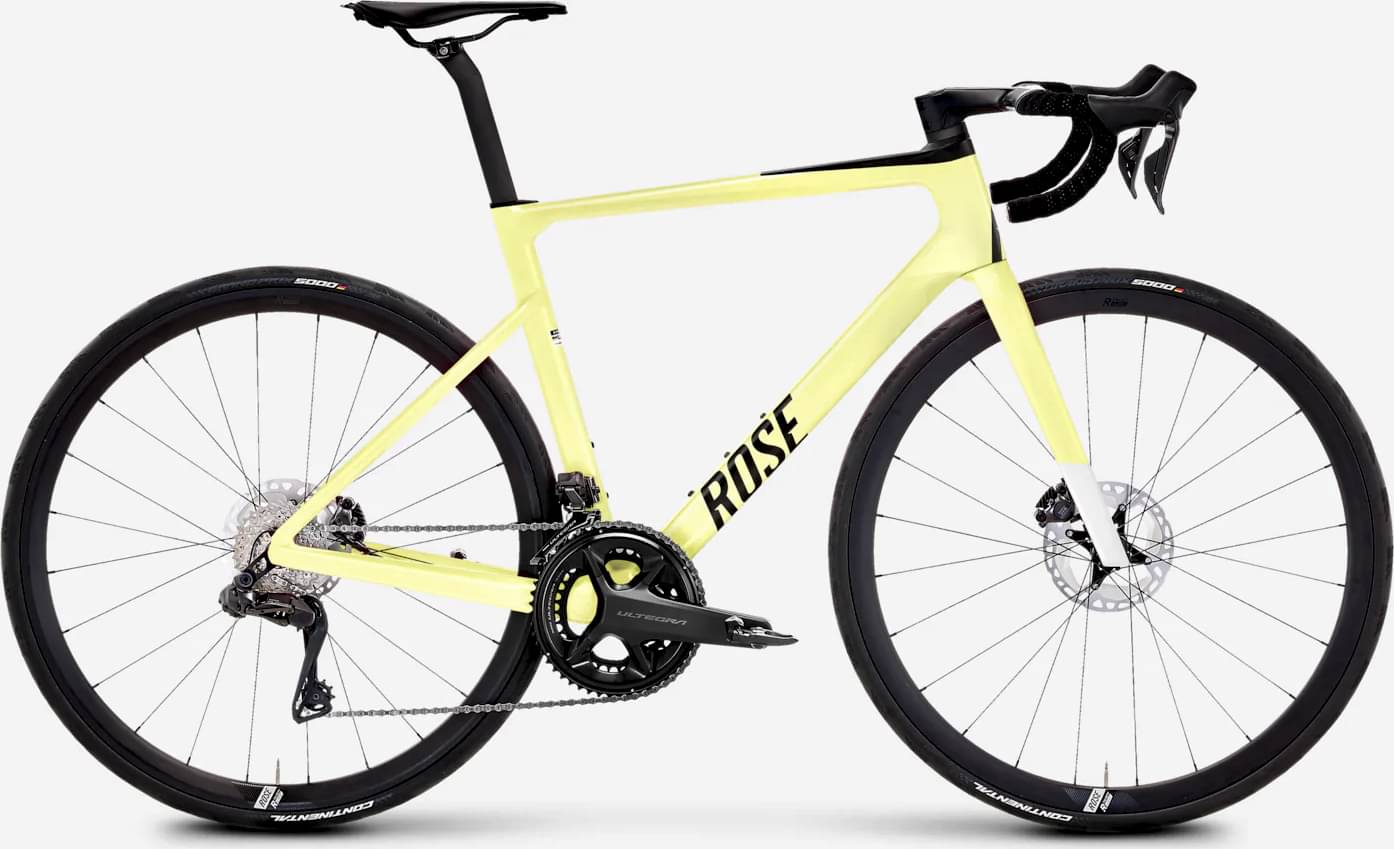

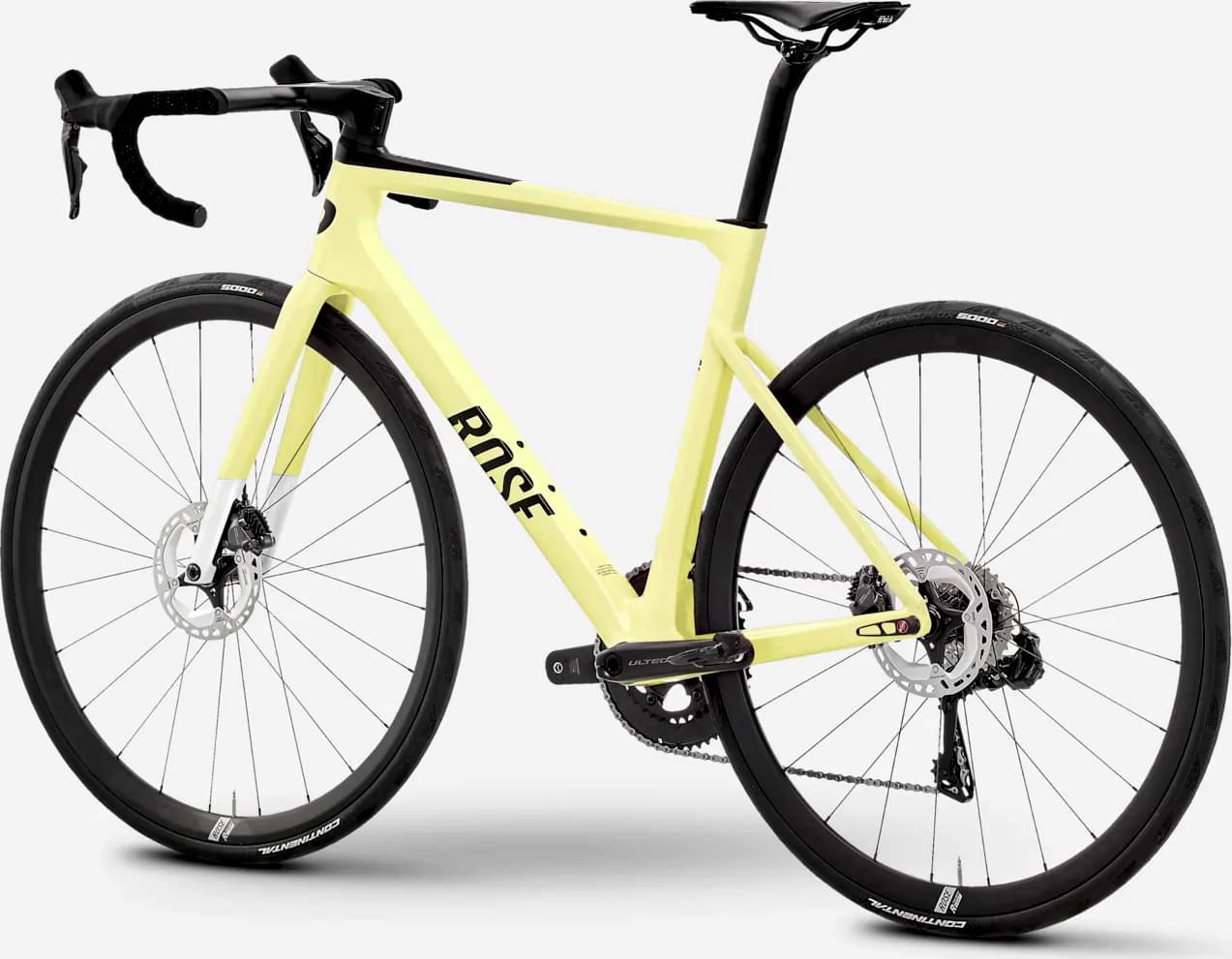

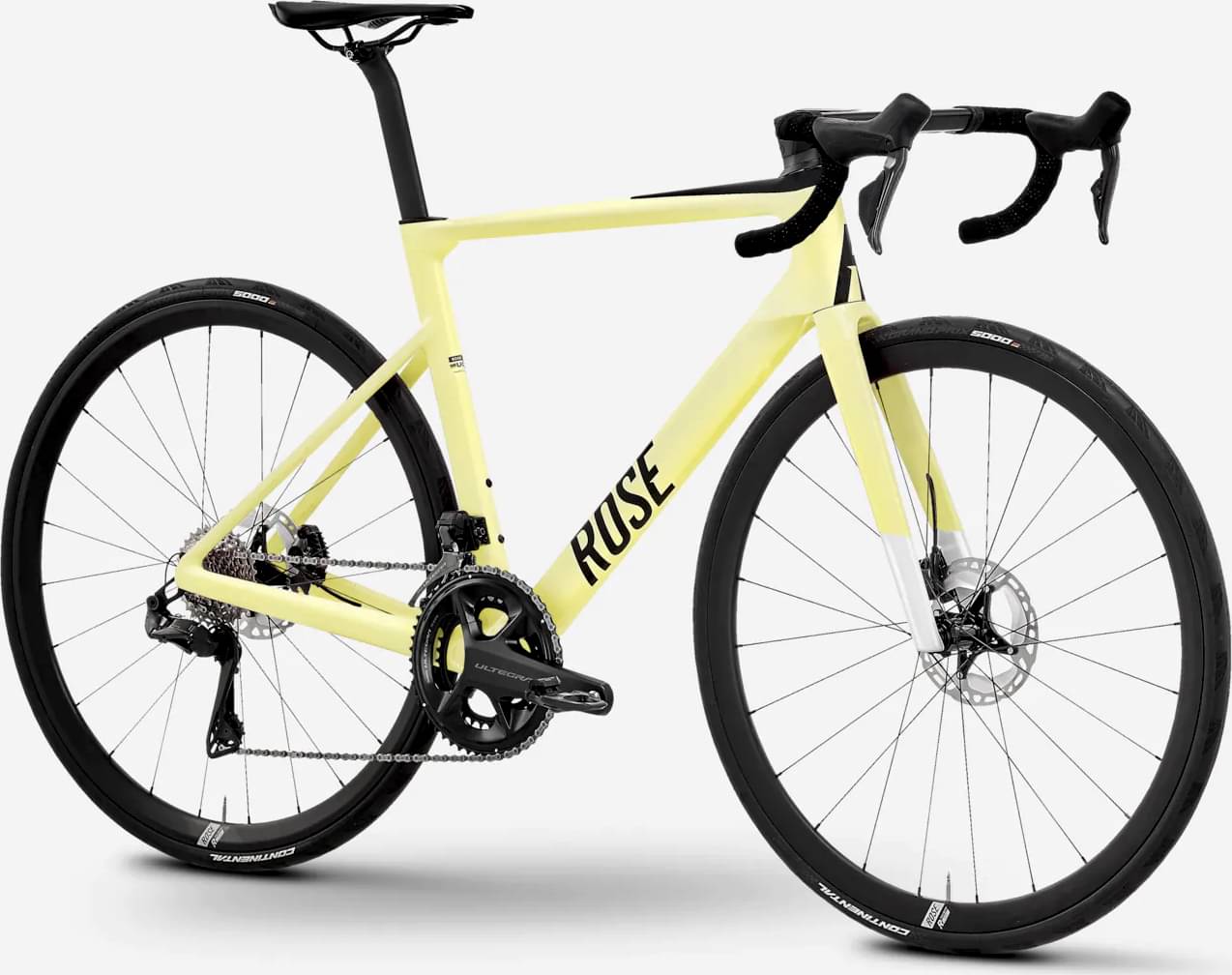

Rose Xlite 04 Ultegra Di2 2024
2024 Road
Estimate price |
5,275$
Weight | 7.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Ultegra, Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rose XLITE 04 DISC, carbon, 12x142TA, frame weight for 57 cm approx. 1030 g, Pressfit BB86 bottermelk fresh 57cm
Suspension Fork
Rose XLITE 04/06 DISC, carbon, 12x100TA, fork weight 370 g bottermelk fresh
Drivetrain
Rear Derailleur
Shimano Ultegra Di2, RD-R8150, 12-speed
Front Derailleur
Shimano Ultegra Di2, FD-R8150, 12-speed,
Cassette
Shimano Ultegra, CS-R8100, 12-speed, 11-30
Crank
Shimano Ultegra, FC-R8100, 172,5mm, 36-52
Bottom Bracket
BB86/BB92, press-fit
Chain
Shimano Deore XT, CN-M8100 118 links
Pedals
Pedals are not included and must be ordered separately
Wheels
Rims
R30 Light anodized matt black 24 hole
Tires
Continental Grand Prix 5000 foldable, black/black 700x28C
Brakes
Brakes
Shimano Ultegra Di2 ST-R8170 / BR-R8170, Shimano Ultegra Di2, ST-R8170 / BR-R8170
Seat
Saddle
fi´zi:k Antares, black
Seatpost
ROSE d-shape, 14mm offset, 390mm, Ø27,2/390mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 53cm | 55cm | 57cm | 59cm | 62cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.366 mm | 1.38 mm | 1.386 mm | 1.399 mm | 1.398 mm | 1.415 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 576 mm | 581 mm | 591 mm | 598 mm | 613 mm | 627 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 66 mm | 63 mm | 59 mm | 56 mm | 53 mm | 55 mm |
| Stack | 508 mm | 527 mm | 542 mm | 557 mm | 573 mm | 597 mm |
| Reach | 372 mm | 382 mm | 391 mm | 398 mm | 410 mm | 422 mm |
| Top Tube Length | 504 mm | 523 mm | 541 mm | 558 mm | 575 mm | 593 mm |
| Seat Tube Angle | 75.5 ° | 75 ° | 74.5 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 430 mm | 460 mm | 480 mm | 500 mm | 525 mm | 565 mm |
| Head Tube Angle | 71 ° | 72 ° | 72.5 ° | 73 ° | 73.3 ° | 73.5 ° |
| Head Tube Length | 105 mm | 120 mm | 135 mm | 152 mm | 168 mm | 192 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 975 mm | 980 mm | 990 mm | 998 mm | 1013 mm | 1027 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 730 mm | 754 mm | 781 mm | 791 mm | 812 mm | 844 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
