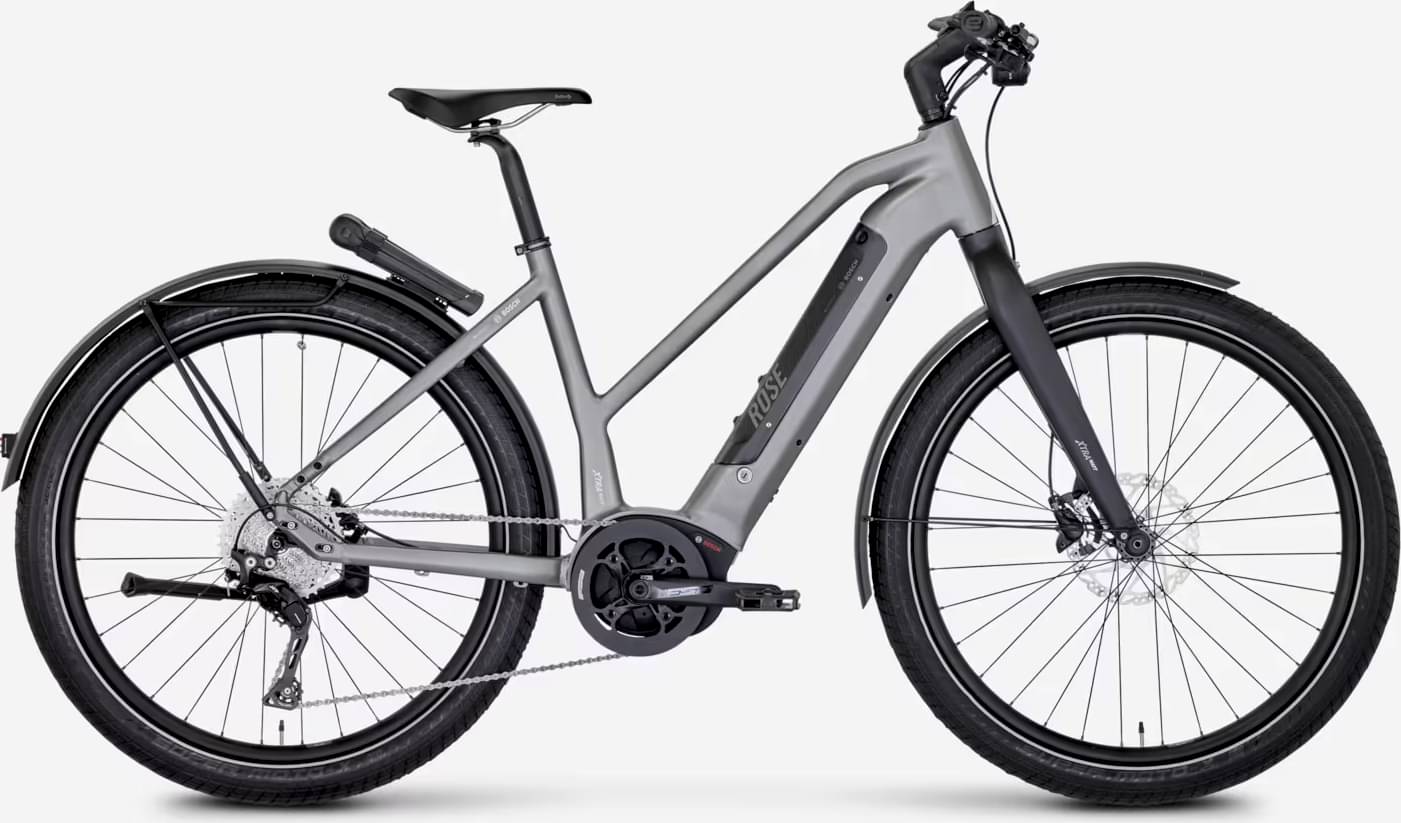

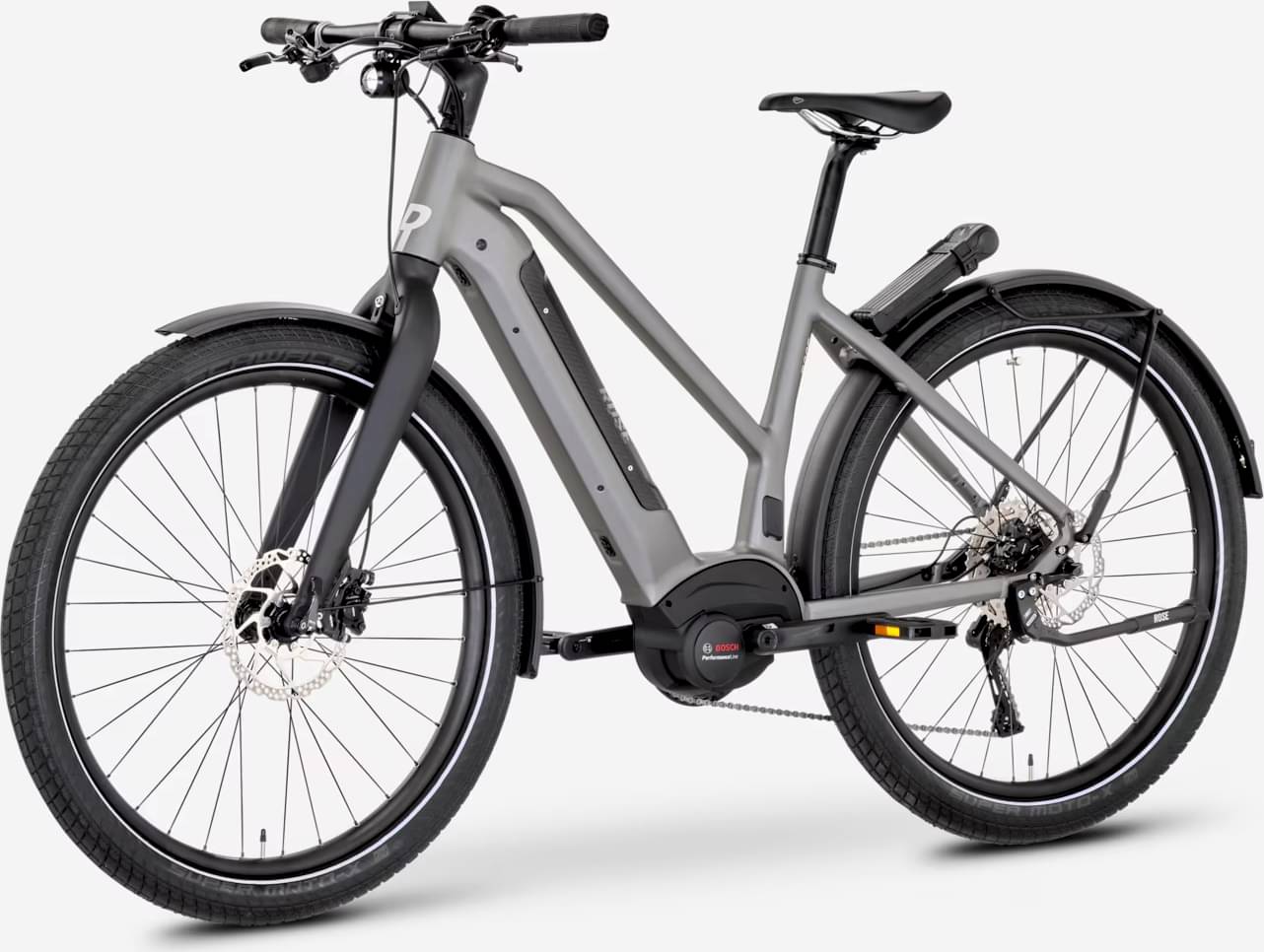

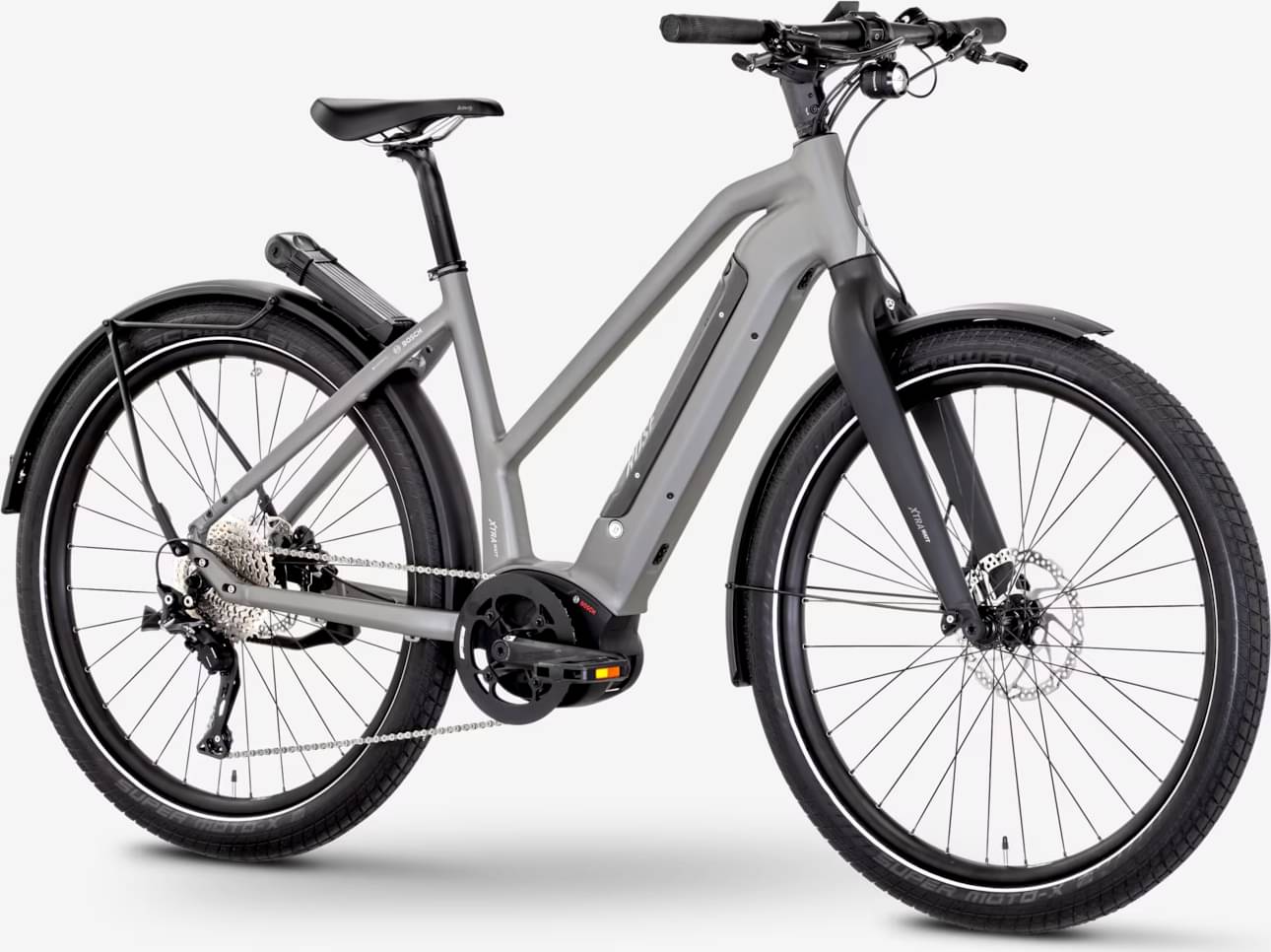

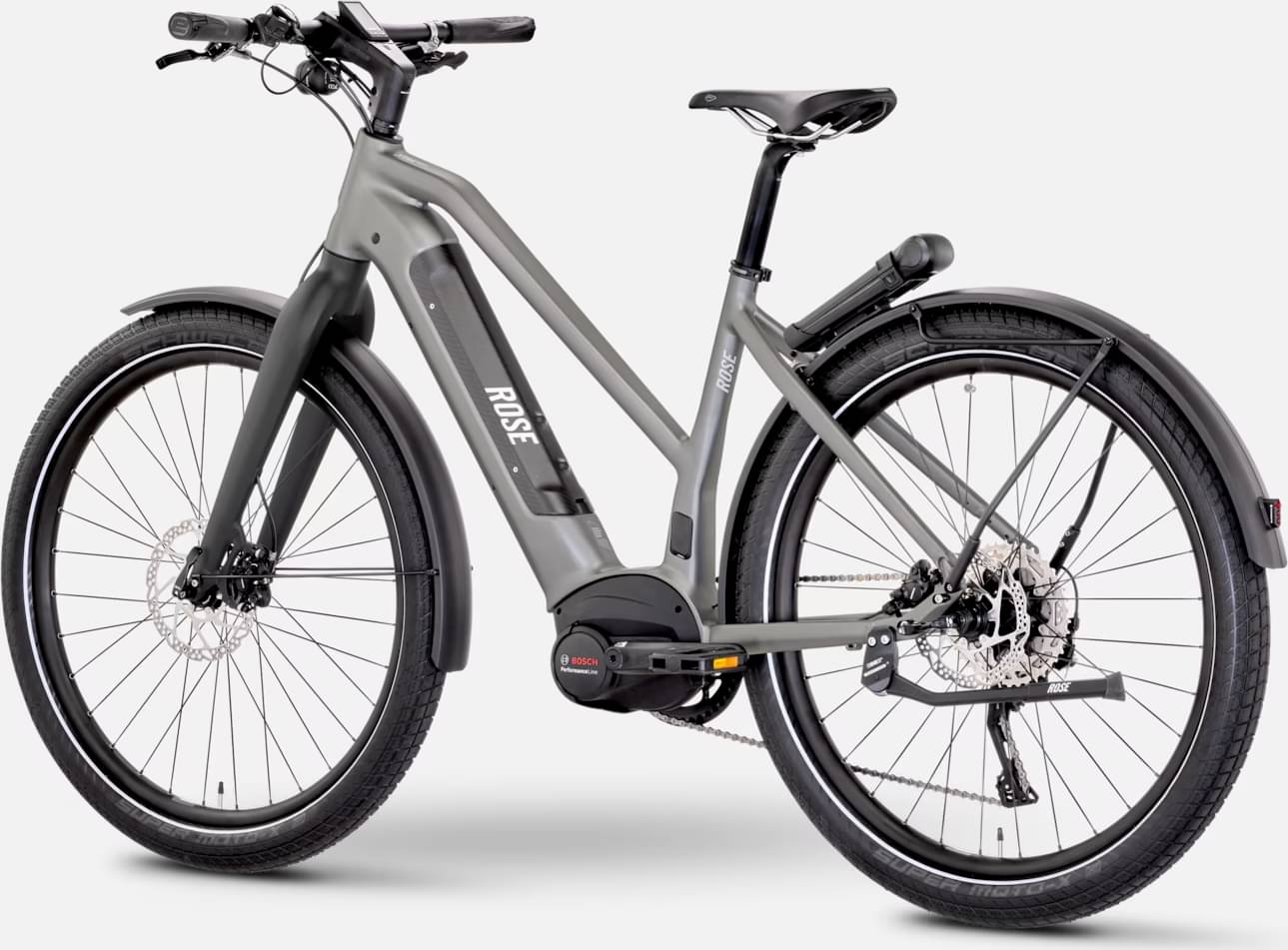

Rose Xtra Watt Evo Plus Allroad 1 MidStep 2024
2024 E-bike
Estimate price |
3,886$
Weight | 24.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset XT, SLX -
Suspension Rigid -
Motor Bosch 600W 63Nm mid-drive -
Battery BOSCH PowerTube (500 Wh) -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ROSE derailleur hanger
Suspension Fork
XTRA WATT EVO PLUS, black
Drivetrain
Rear Derailleur
Shimano Deore XT, SGS RD-M8000, 11-speed, black
Shift Levers
Shimano SLX, SL-M7000-R, 11-speed,
Crank
FSA 42 teeth incl. protective ring 42 teeth.
Chain
Shimano CN-E8000-11, 138 links, HG-X 11-speed 138gl.
Pedals
ROSE VP-836 black
Wheels
Rims
Ryde Rival 26 Disc 32 holes 25.8 x 584 anodized black 27.5"
Tires
Schwalbe SUPER MOTO-X Performance black 27.5x2.4
Brakes
Brakes
Front: Shimano BL-MT200, black, Rear: Shimano BL-MT200, black
Cockpit
Stem
Integra, black sand 110mm
Handlebar
Ergotec Flat Bar 650B, Ø31.8 black sand 680mm
Seat
Saddle
Terry Butterfly Exera
Seatpost
231186801 - SERIAL ASSEMBLY - Seat post Race Attack SP-63 XL 350mm AL-2014 black/matt 31.6mm
Motor & Battery
Motor
Bosch Performance Line Generation 3 black
Battery
BOSCH PowerTube (500 Wh)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" | 21" | 23" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.625 mm | 1.588 mm | 1.562 mm | 1.603 mm |
| Bottom Bracket Height | 302.5 mm | 302.5 mm | 302.5 mm | 302.5 mm |
| Front Center | 647 mm | 658 mm | 657 mm | 670 mm |
| Rake | 52 mm | 43 mm | 43 mm | 43 mm |
| Trail | 71 mm | 81 mm | 74 mm | 74 mm |
| Stack | 612.5 mm | 624 mm | 628 mm | 651.5 mm |
| Reach | 377 mm | 393 mm | 402 mm | 406.5 mm |
| Top Tube Length | 580 mm | 590 mm | 600 mm | 612 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 432 mm | 483 mm | 533 mm | 584 mm |
| Head Tube Angle | 69 ° | 69 ° | 70 ° | 70 ° |
| Head Tube Length | 138 mm | 150 mm | 150 mm | 175 mm |
| Chainstay Length | 487 mm | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1128 mm | 1139 mm | 1138 mm | 1151 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 |
