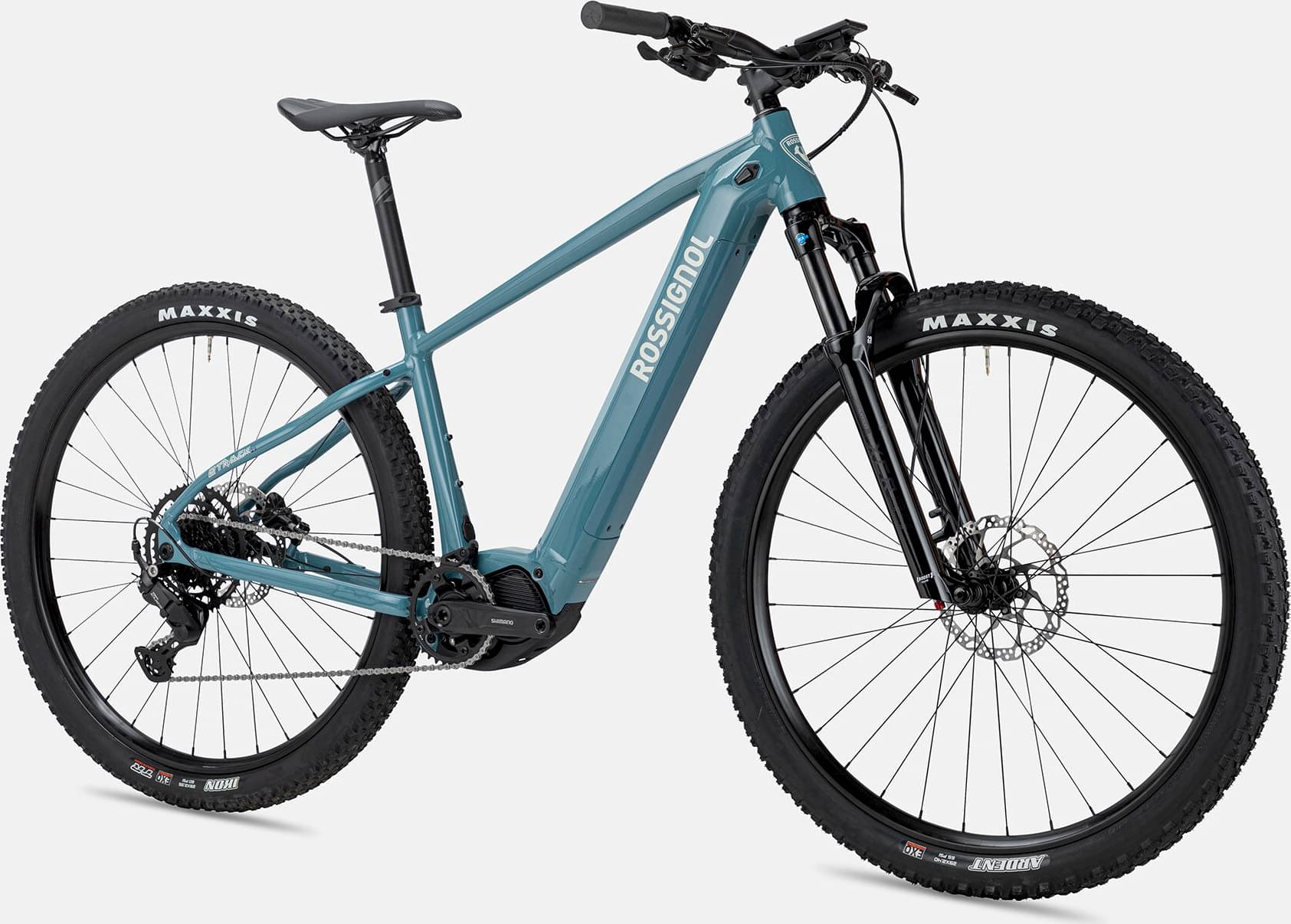

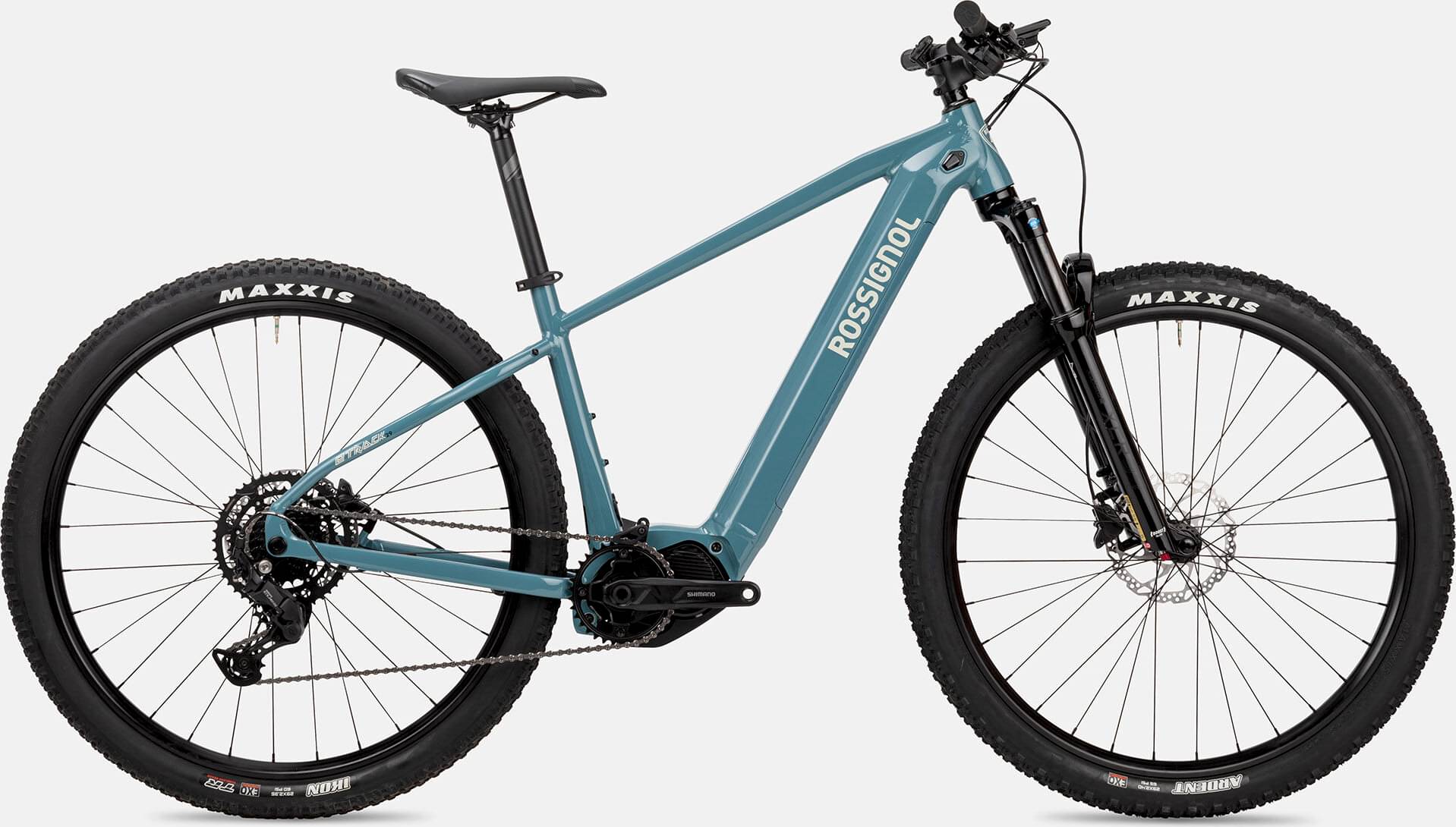

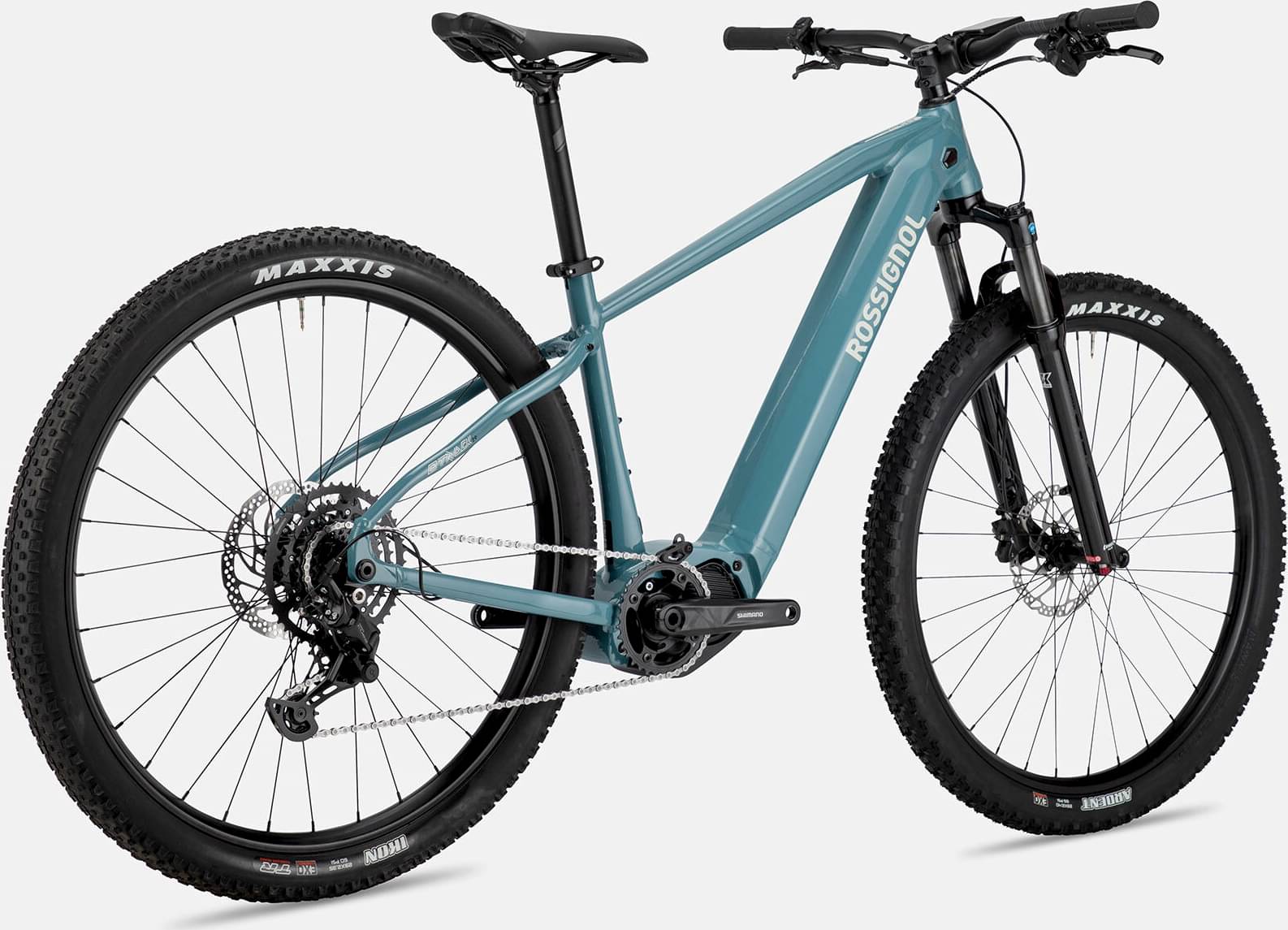

rossignol Ebike E-Track 29 CUES 2024
2024 E-bike
Estimate price |
3,299$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Fork Suntour XCR -
Groupset CUES -
Suspension Hardtail -
Motor Shimano 85Nm mid-drive -
Battery Shimano BT8036 or BT8035-L batteries are fully integrated into the bike frame. Offering 503Wh or 630Wh capacity enables you to ride enough distance for all-day adventures. Take a break and quickly recharge up to 50% capacity in only 2.5hrs. Battery can be easily removed from the frame with a 4mm Allen key. -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rossignol Hardtail Electric
Suspension Fork
SR SUNTOUR XCR34 100mm
Drivetrain
Rear Derailleur
Shimano CUES,9-SPEED
Shift Levers
Shimano Cues SL-U4000, 9speed
Cassette
Shimano Cues LG300, 11-46T
Crank
Shimano EM600, 34T
Chain
Shimano LG500
Chain Guide
GW 1x flip guide
Pedals
Flat Pedals
Wheels
Front Hub
SHIMANO TC500
Rear Hub
SHIMANO TC500
Rims
Alex DP30-F & Shimano hubs
Tires
MAXXIS 29 x2.4 Ardent EXO
Brakes
Brakes
Shimano MT-200, 2-piston
Brake Levers
Shimano MT-200, 2-piston

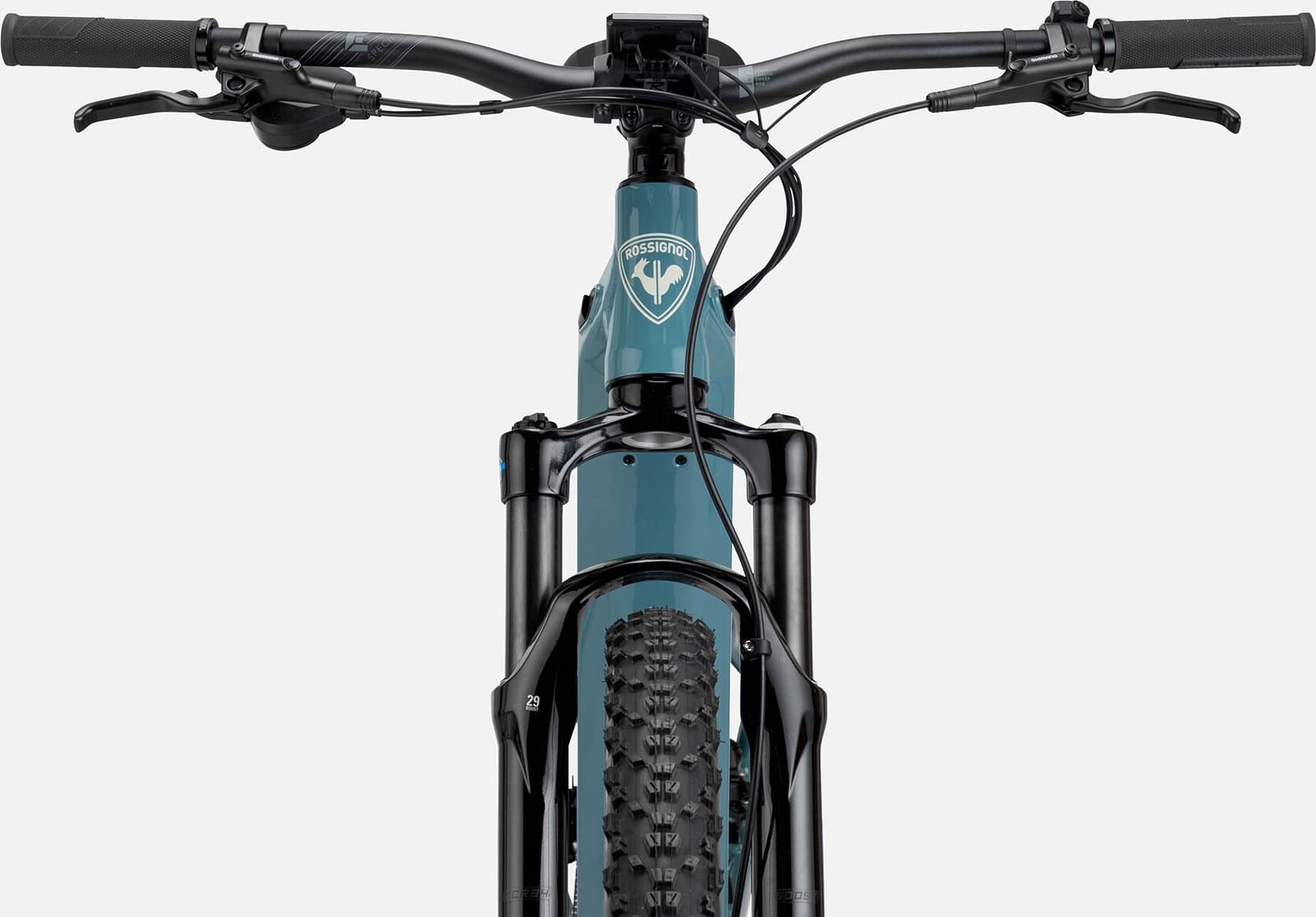

Cockpit
Stem
ROSSIGNOL MTB stem 31,8mm
Handlebar
ROSSIGNOL MTB handlebar 780mm
Grips
Rossignol diamond grip lock-on
Headset
FSA 1-1/8''
Seat
Saddle
VELO MTB SADDLE
Seatpost
Kalloy 30.9
Motor & Battery
Motor
Shimano STEPS MTB EP601; 85nm; 20mph
Battery
Shimano BT8036 or BT8035-L batteries are fully integrated into the bike frame. Offering 503Wh or 630Wh capacity enables you to ride enough distance for all-day adventures. Take a break and quickly recharge up to 50% capacity in only 2.5hrs. Battery can be easily removed from the frame with a 4mm Allen key.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.396 mm | 1.356 mm | 1.318 mm |
| Front Center | 753 mm | 765 mm | 791 mm |
| Rake | 47 mm | 43 mm | 46 mm |
| Trail | 105 mm | 109 mm | 106 mm |
| Stack | 613 mm | 617 mm | 626 mm |
| Reach | 439 mm | 455 mm | 475 mm |
| Top Tube Length | 572 mm | 585 mm | 610 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 375 mm | 425 mm | 445 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1214 mm | 1228 mm | 1255 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
