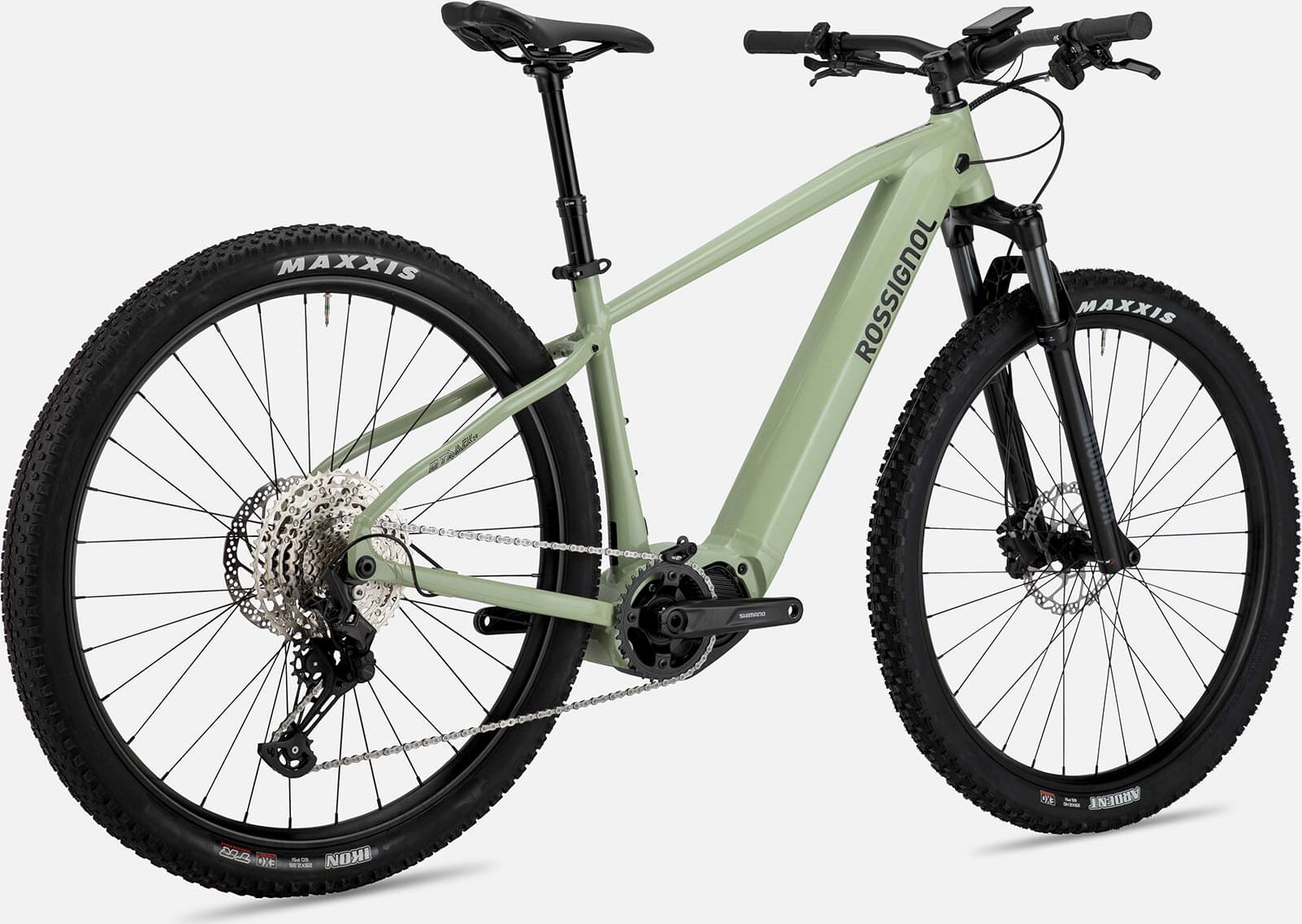

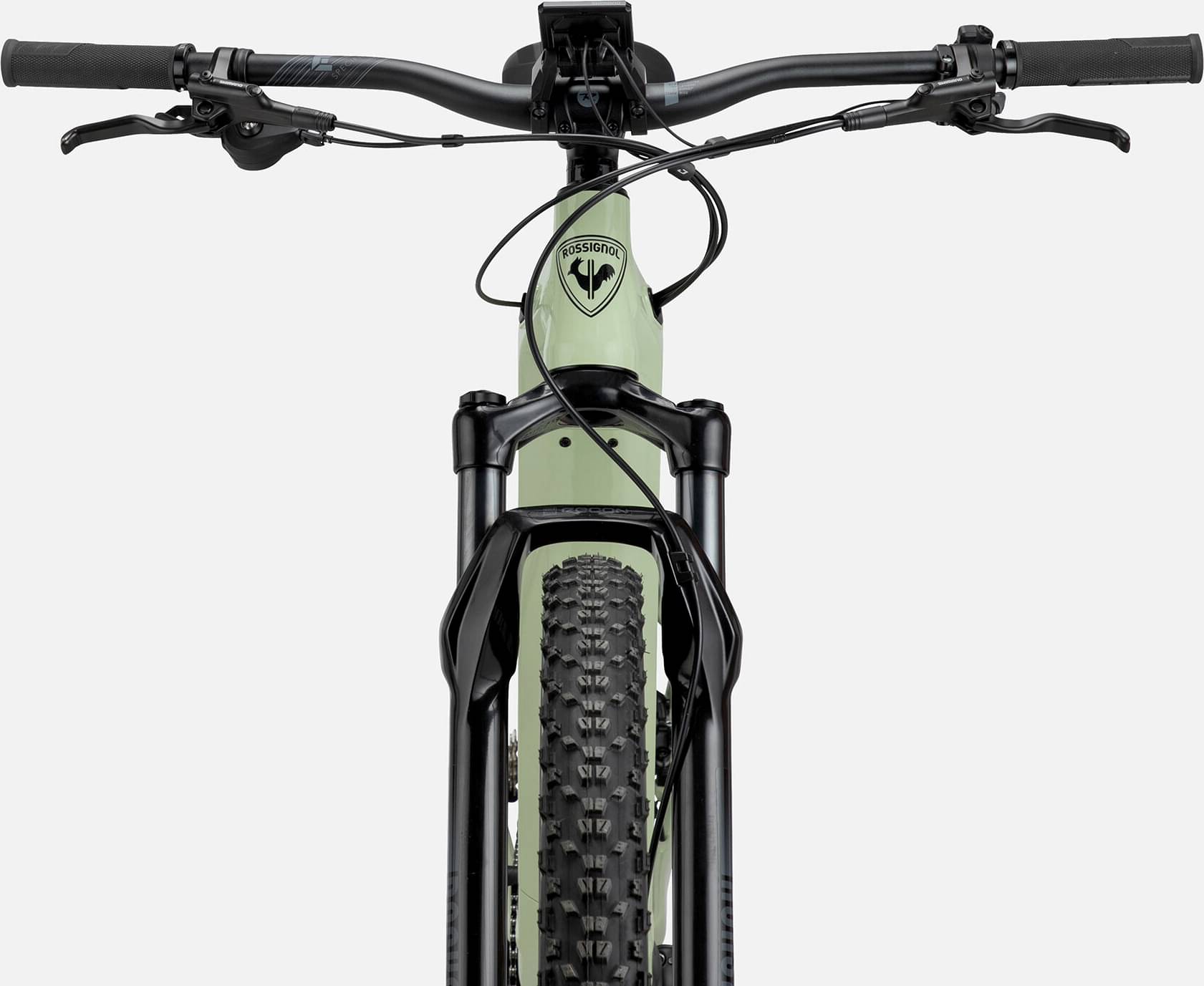

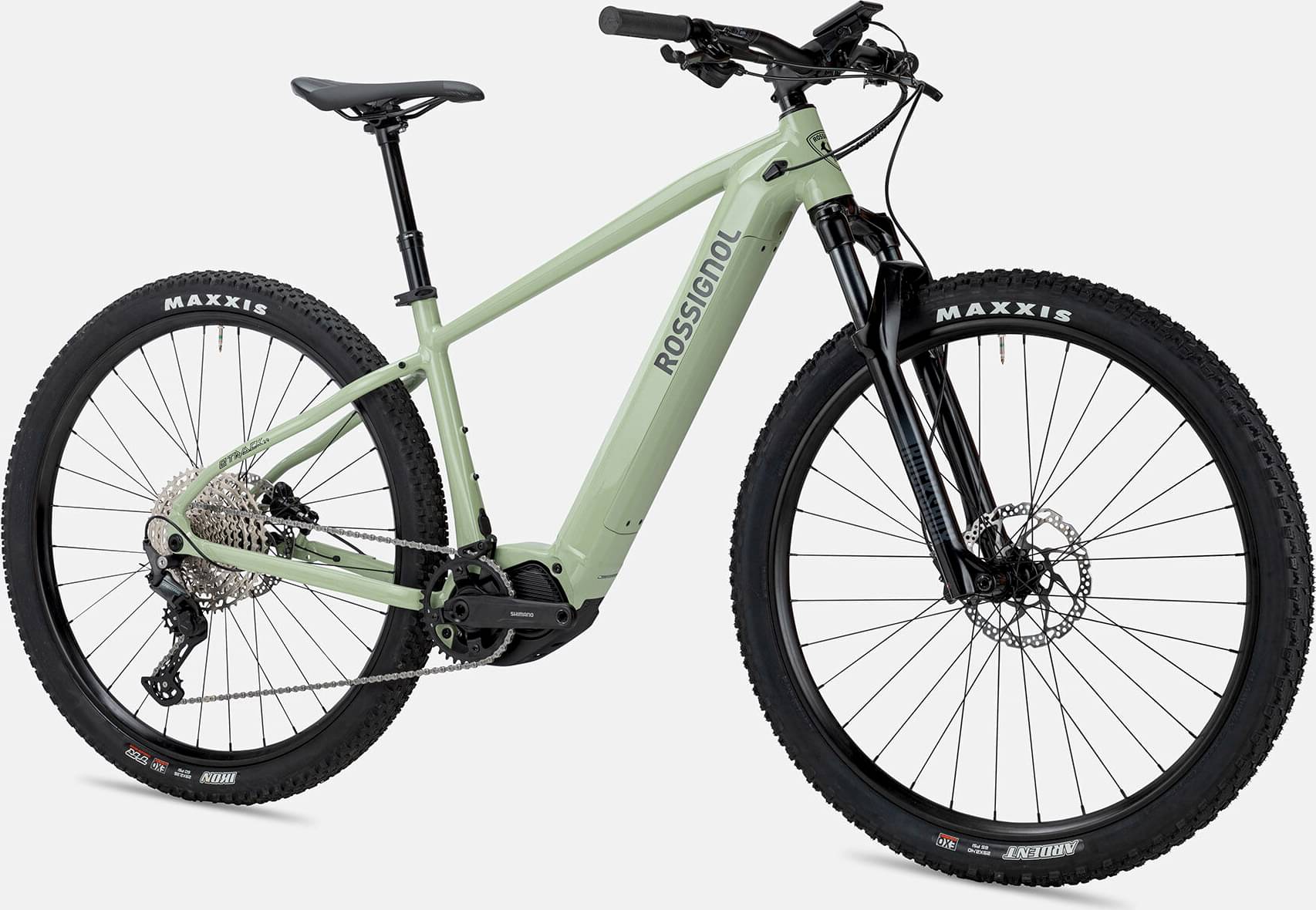

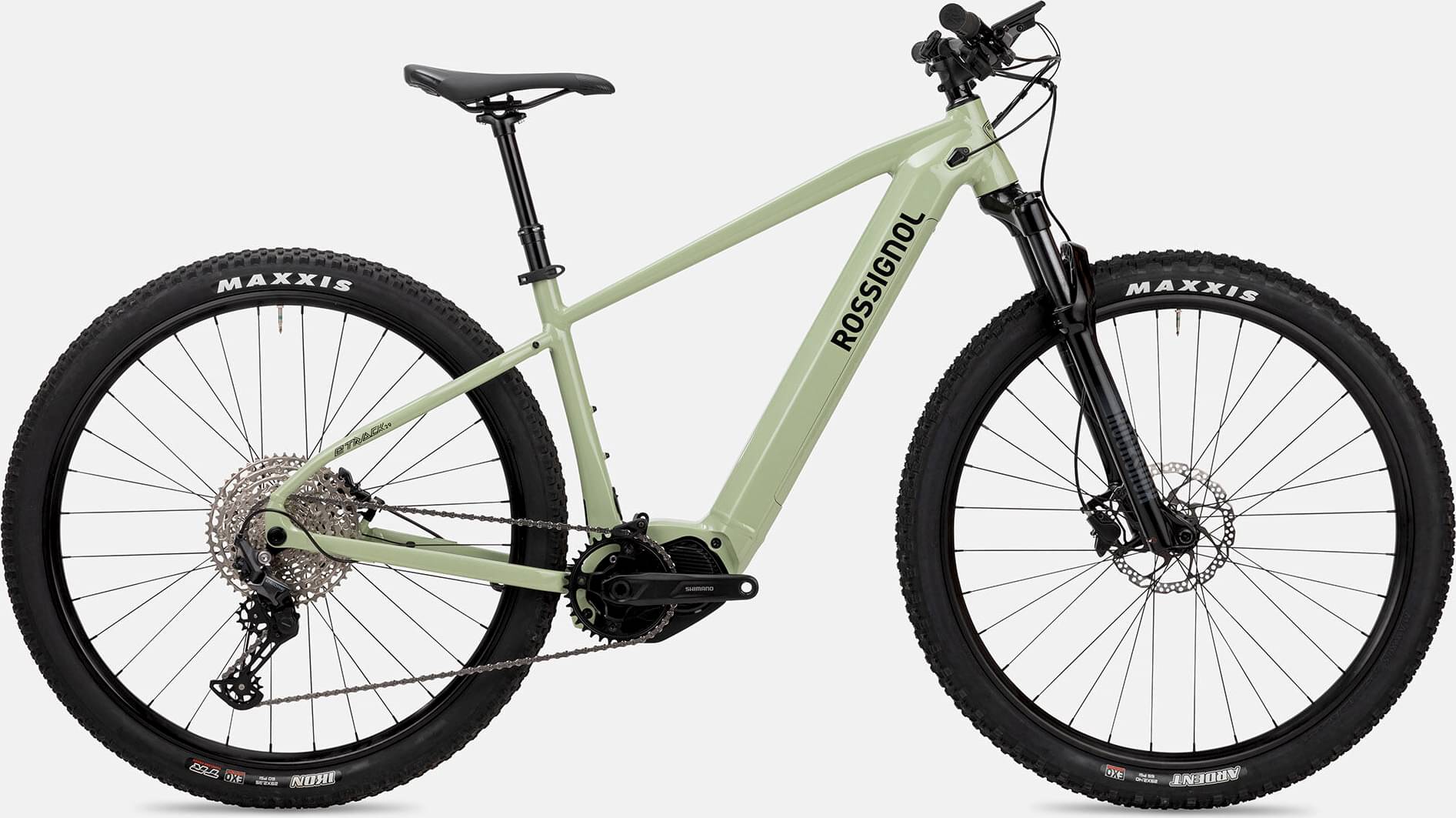

rossignol Ebike E-Track 29 Deore 12 2023
2023 E-bike
Estimate price |
3,499$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Fork RockShox Recon Silver RL -
Groupset Deore -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano BT8036 or BT8035-L batteries are fully integrated into the bike frame. Offering 503Wh or 630Wh capacity enables you to ride enough distance for all-day adventures. Take a break and quickly recharge up to 50% capacity in only 2.5hrs. Battery can be easily removed from the frame with a 4mm Allen key. -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rossignol Hardtail Electric
Suspension Fork
Rock Shox RECON SILVER RL 100MM
Drivetrain
Rear Derailleur
Shimano Deore M6100, SGS
Shift Levers
Shimano Deore M6100
Cassette
Shimano Deore M6100, 10-51T
Chain
Shimano Deore M6100
Chain Guide
GW 1x flip guide
Pedals
Flat Pedals
Wheels
Front Hub
SHIMANO TC500
Rear Hub
SHIMANO TC500
Rims
Alex rim DP30-F 29
Tires
MAXXIS 29 x2.4 Ardent EXO
Brakes
Brakes
Shimano MT-200, 2-piston
Brake Levers
Shimano MT-200, 2-piston
Cockpit
Stem
ROSSIGNOL MTB stem 31,8mm
Handlebar
ROSSIGNOL MTB handlebar 780mm
Grips
Rossignol diamond grip lock-on
Headset
ZS (ZS44/28.6-ZS56/40) / (NO.57)
Seat
Saddle
VELO MTB SADDLE
Seatpost
KS EDGE I
Motor & Battery
Motor
Take on steep climbs and tough trails with full confidence and increased maximum torque. Shimano’s newest STEPS MTB EP800 and E7000 motors deliver smooth and direct power to take you anywhere. Compact and lightweight, both motors are quiet and durable enough to hold up to any type of weather.
Battery
Shimano BT8036 or BT8035-L batteries are fully integrated into the bike frame. Offering 503Wh or 630Wh capacity enables you to ride enough distance for all-day adventures. Take a break and quickly recharge up to 50% capacity in only 2.5hrs. Battery can be easily removed from the frame with a 4mm Allen key.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.396 mm | 1.356 mm | 1.318 mm |
| Front Center | 753 mm | 765 mm | 791 mm |
| Rake | 47 mm | 43 mm | 46 mm |
| Trail | 105 mm | 109 mm | 106 mm |
| Stack | 613 mm | 617 mm | 626 mm |
| Reach | 439 mm | 455 mm | 475 mm |
| Top Tube Length | 572 mm | 585 mm | 610 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 375 mm | 425 mm | 445 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1214 mm | 1228 mm | 1255 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
