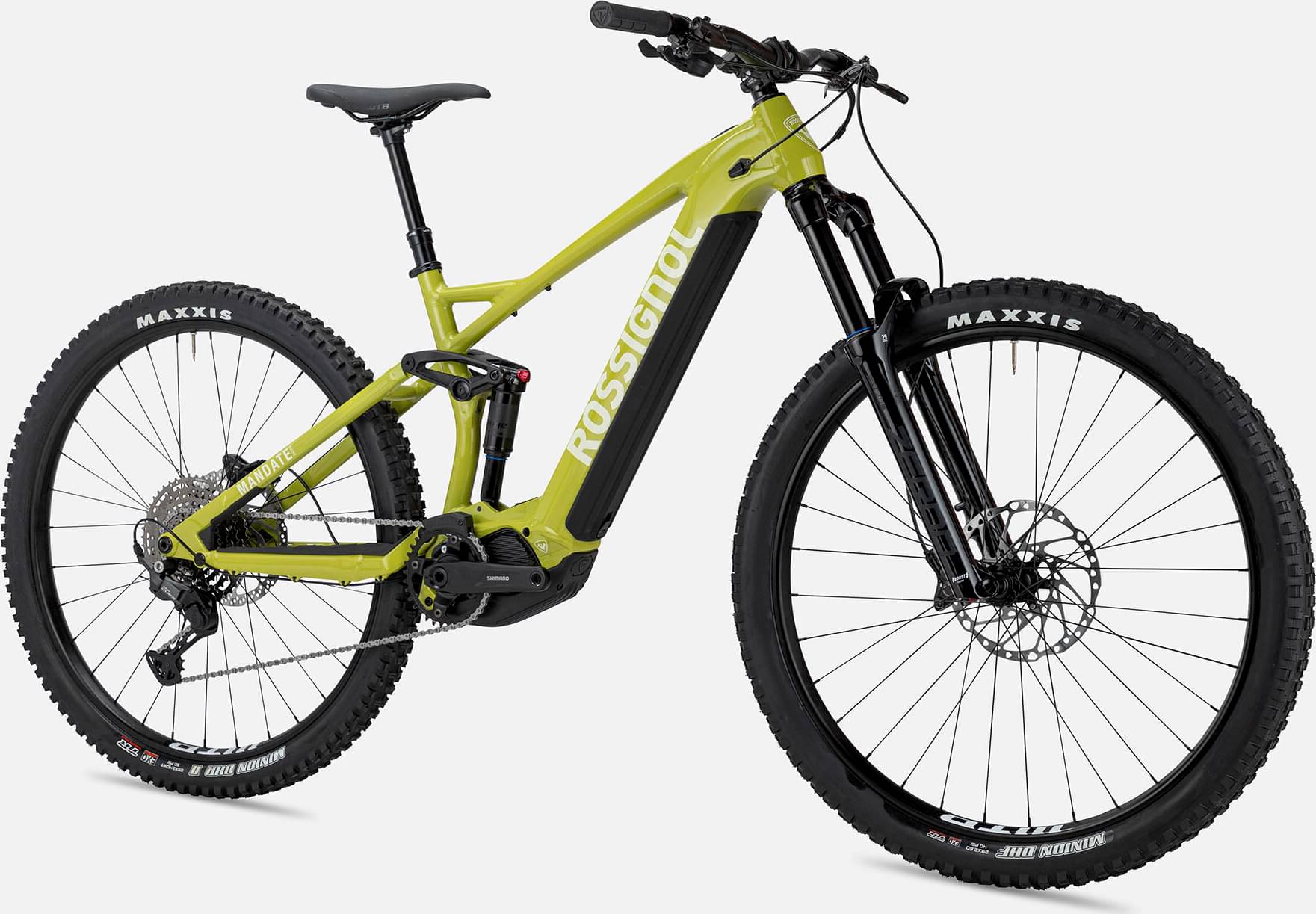

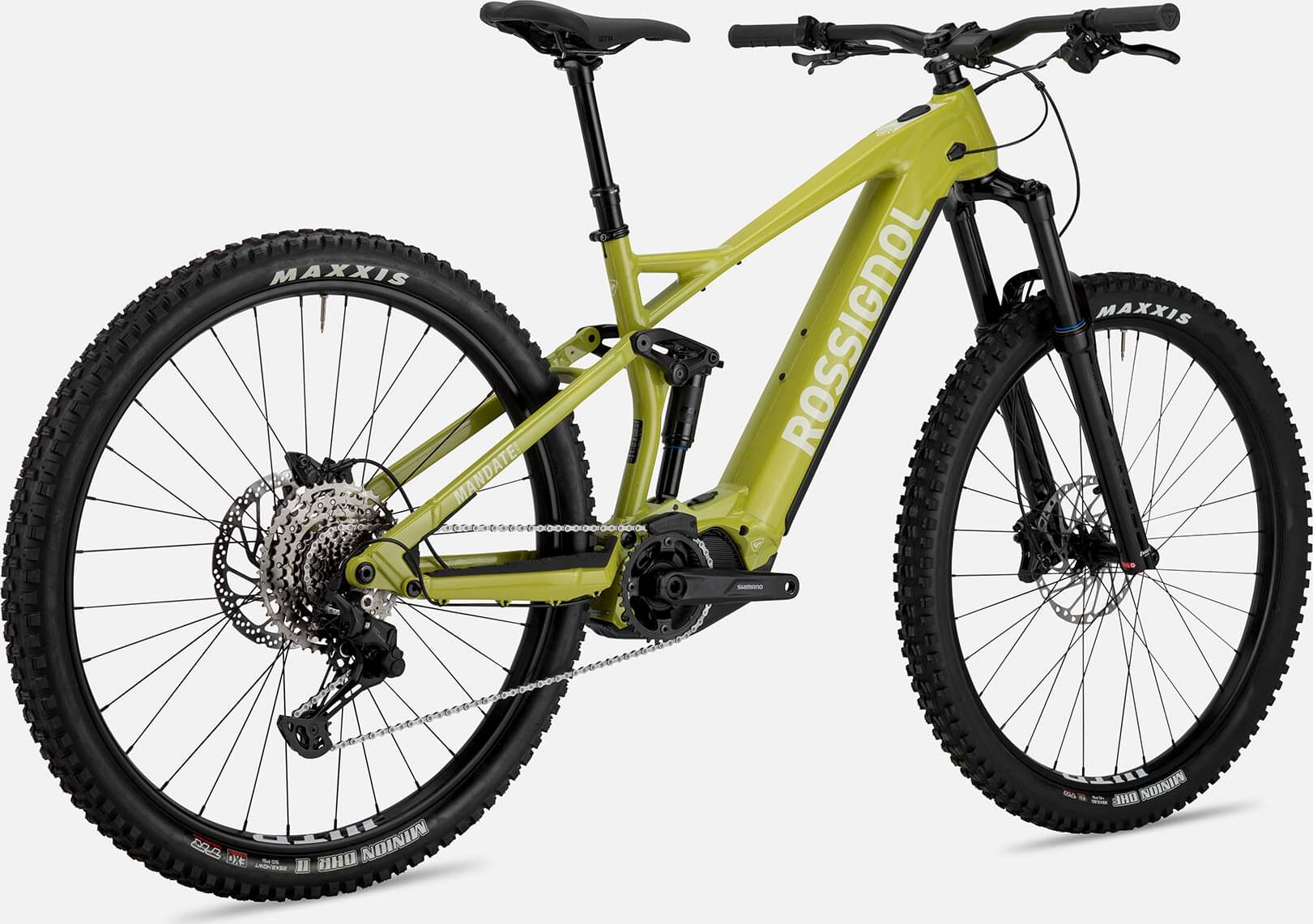

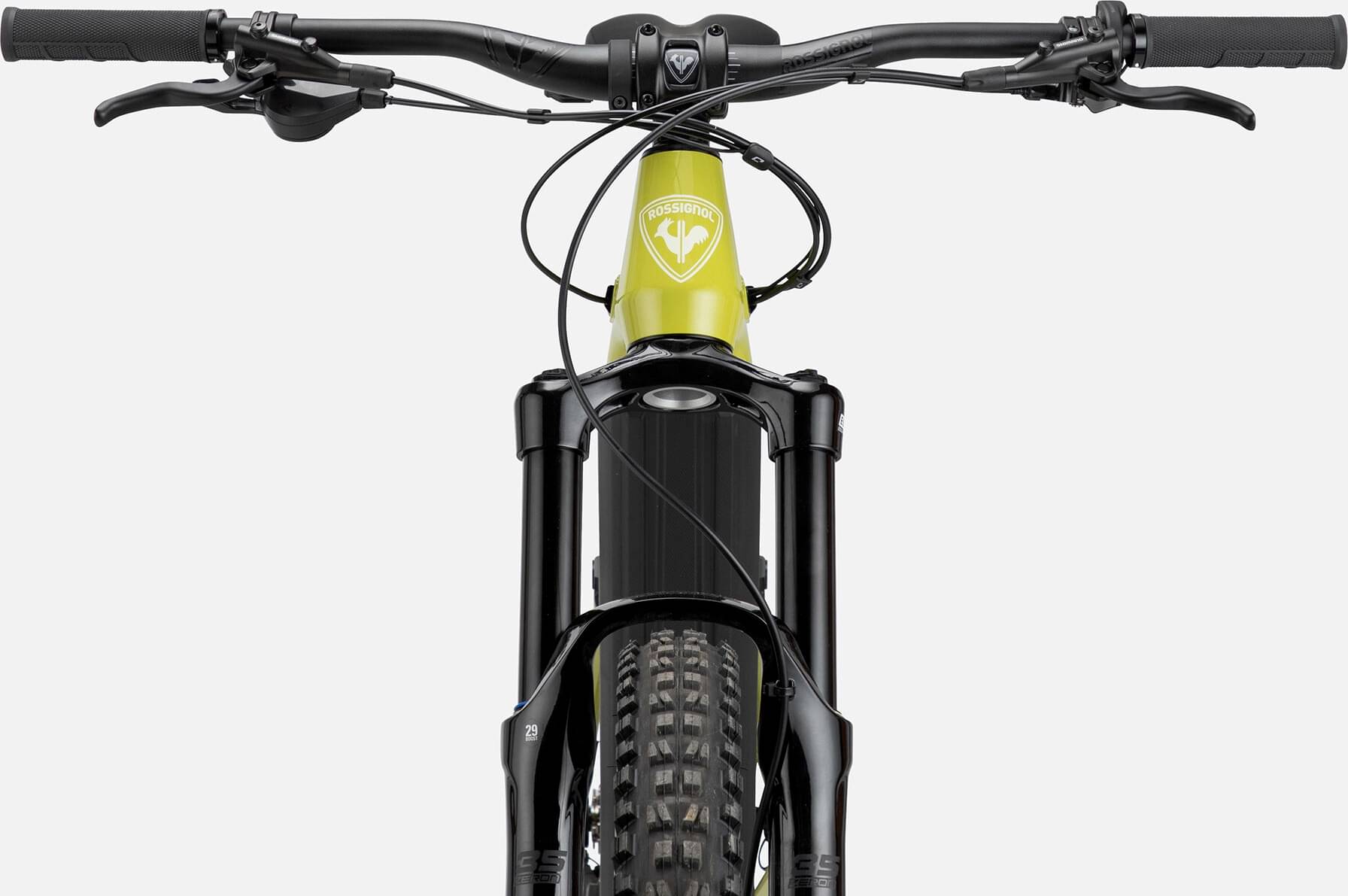

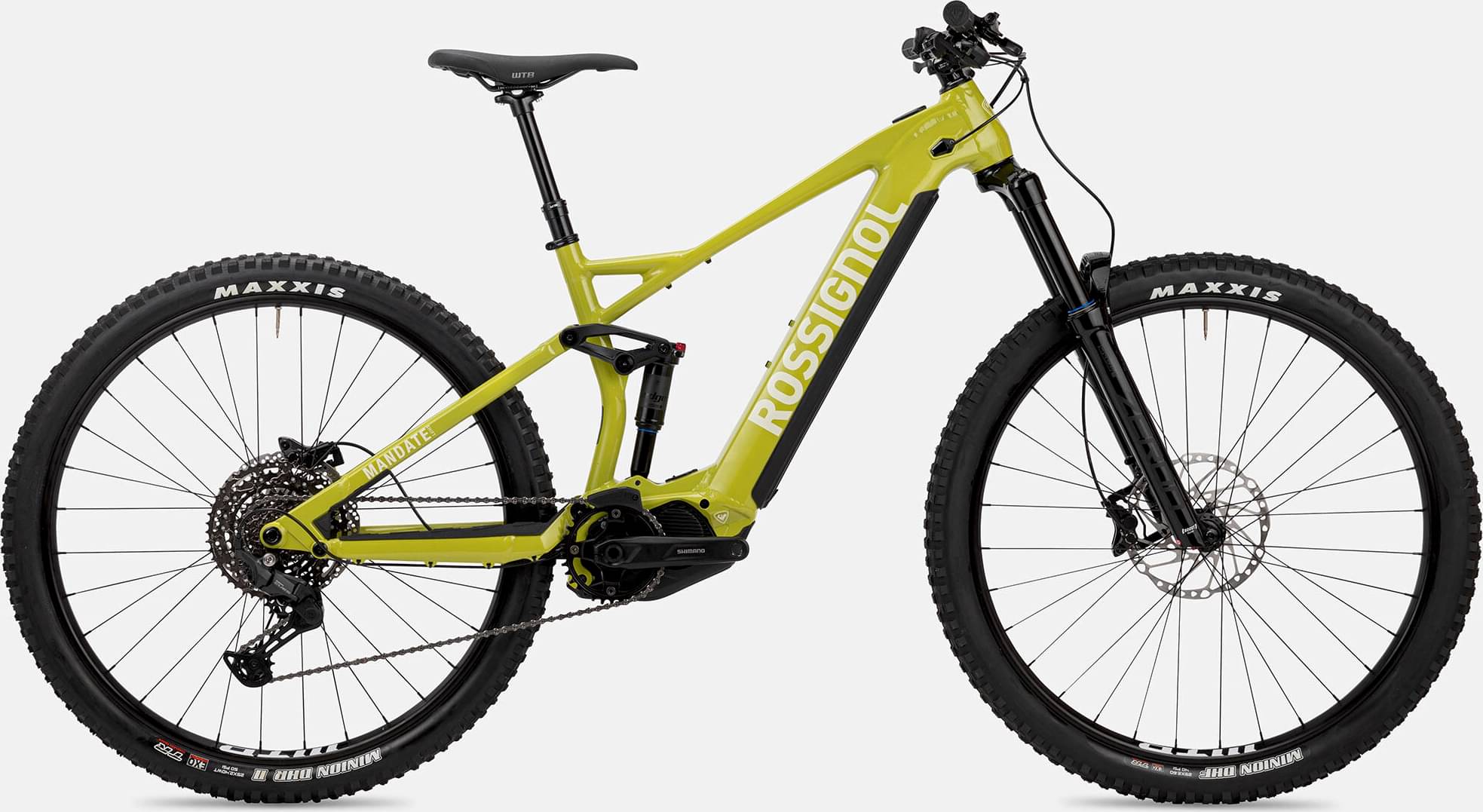

rossignol Ebike Mandate Shift Cues 10 2025
2025 E-bike
Estimate price |
4,300$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Travel Front 150mm -
Travel Rear 145mm -
Fork Suntour Zeron
-
Groupset CUES -
Suspension Full -
Motor Shimano 600W 85Nm mid-drive -
Battery Shimano BT8036 or BT8035-L batteries are fully integrated into the bike frame. Offering 503Wh or 630Wh capacity enables you to ride enough distance for all-day adventures. Take a break and quickly recharge up to 50% capacity in only 2.5hrs. Battery can be easily removed from the frame with a 4mm Allen key. -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rossignol Trail Electric 145mm travel
Suspension Fork
SR Suntour Zeron35,150mm
Rear Shock
SR Suntour Edge TR, 185X50
Drivetrain
Rear Derailleur
Shimano CUES, SGS 10-SPEED
Shift Levers
Shimano Cues SL-U6000, 10speed
Cassette
Shimano CS-LG400-10, CUES, 10-48T
Chain
Shimano LG500
Chain Guide
e*thirteen e*spec Vario
Pedals
Flat Pedals
Wheels
Front Hub
Shimano TC500 hubs
Rear Hub
Shimano TC500 hubs
Rims
WTB ST i30 TCS 2.0
Tires
Maxxis DHF, 29x2.6, EXO/TR
Brakes
Brakes
Shimano MT4120, 4-piston
Brake Levers
Shimano MT4120, 4-piston
Cockpit
Stem
Rossignol MTB Switch | for internal Di2 routing
Handlebar
Rossignol MTB Switch | Internal routing for di5
Grips
Rossignol diamond grip lock-on
Headset
FSA (ZS44 - ZS56)
Seat
Saddle
WTB Silverado steel
Seatpost
KS EDGE I
Motor & Battery
Motor
Shimano STEPS MTB EP6
Battery
Shimano BT8036 or BT8035-L batteries are fully integrated into the bike frame. Offering 503Wh or 630Wh capacity enables you to ride enough distance for all-day adventures. Take a break and quickly recharge up to 50% capacity in only 2.5hrs. Battery can be easily removed from the frame with a 4mm Allen key.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.396 mm | 1.356 mm | 1.318 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm |
| Front Center | 753 mm | 765 mm | 791 mm |
| Rake | 47 mm | 43 mm | 46 mm |
| Trail | 123 mm | 127 mm | 124 mm |
| Stack | 613 mm | 617 mm | 626 mm |
| Reach | 439 mm | 455 mm | 475 mm |
| Top Tube Length | 572 mm | 585 mm | 610 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 375 mm | 425 mm | 445 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1214 mm | 1228 mm | 1255 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
