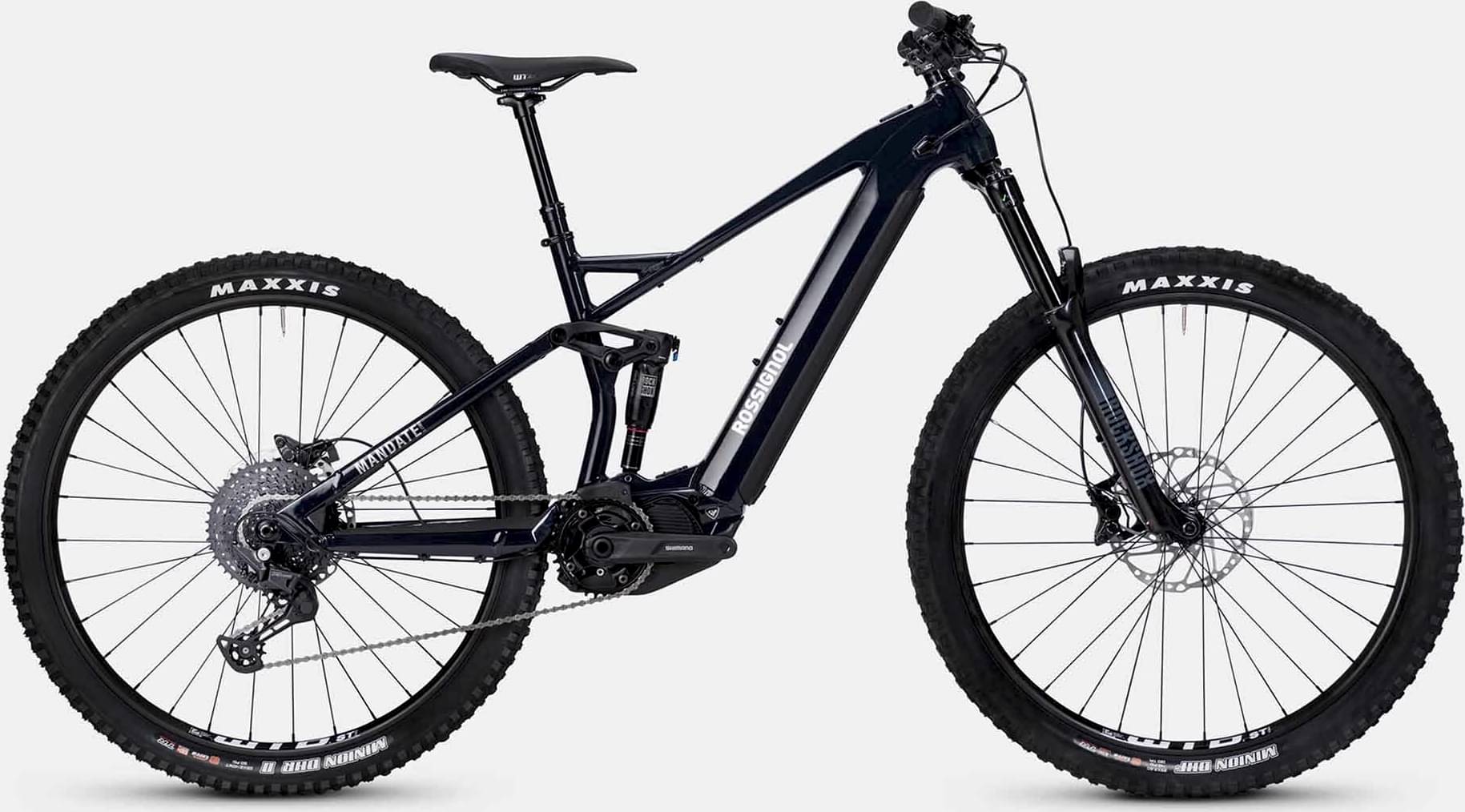

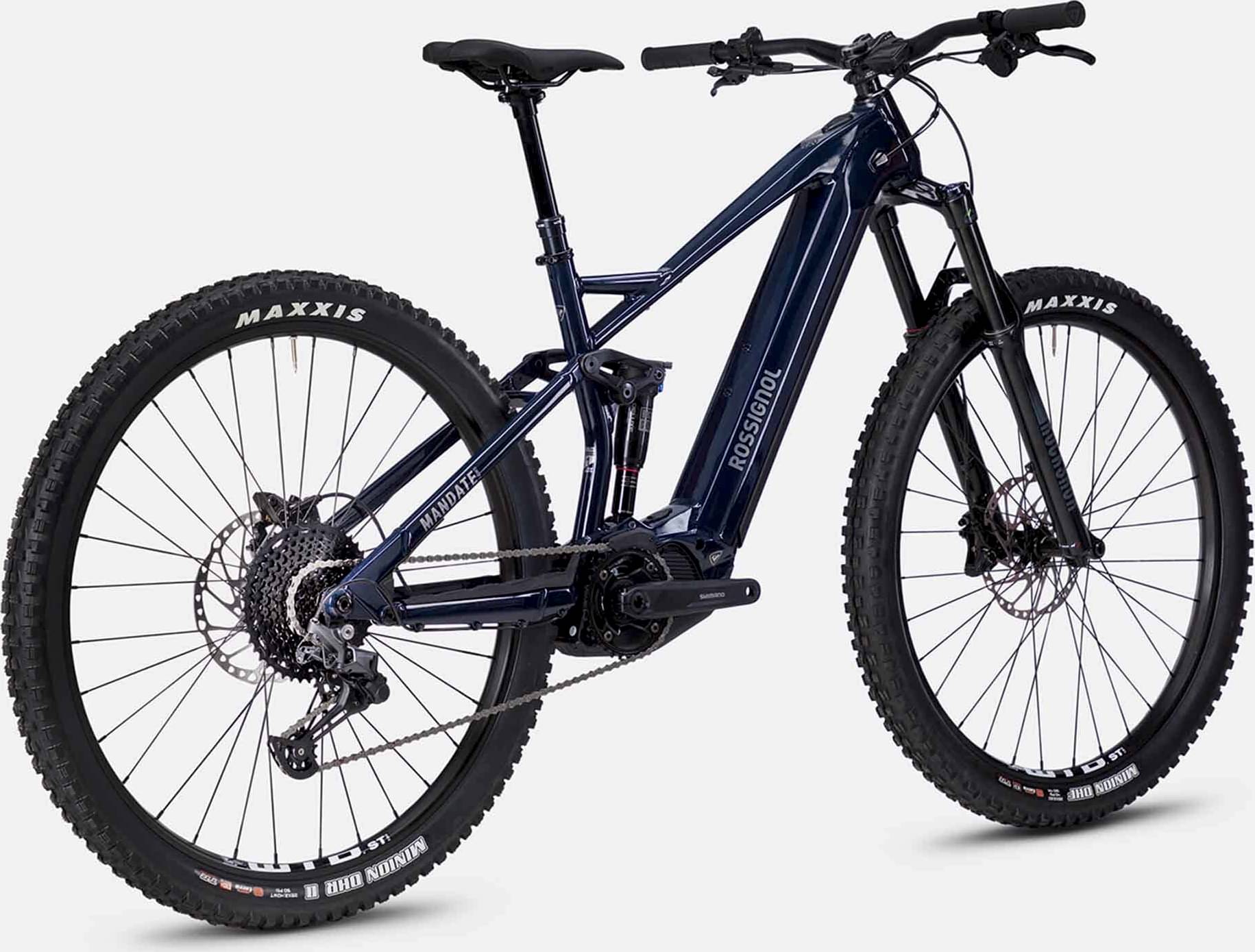

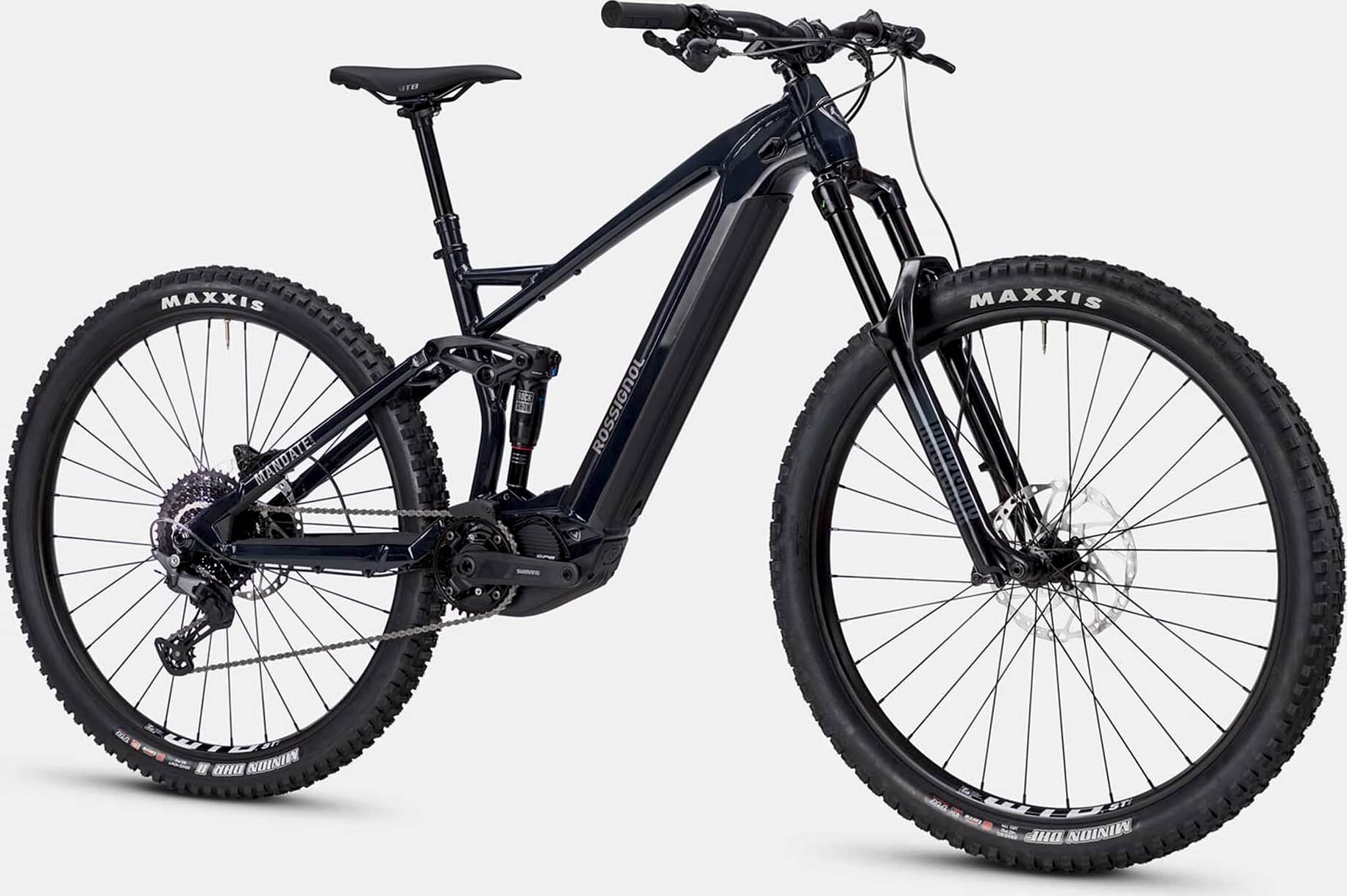

rossignol Ebike Mandate Shift Deore 11 2024
2024 E-bike
Estimate price |
5,699$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 145mm -
Fork RockShox 35 Gold RL
-
Groupset Deore -
Suspension Full -
Motor Shimano 600W 85Nm mid-drive -
Battery Shimano BT8036 or BT8035-L batteries are fully integrated into the bike frame. Offering 503Wh or 630Wh capacity enables you to ride enough distance for all-day adventures. Take a break and quickly recharge up to 50% capacity in only 2.5hrs. Battery can be easily removed from the frame with a 4mm Allen key. -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rossignol Trail Electric 145mm travel | 6061 Alloy
Suspension Fork
Rock shox 35 GOLD RL CROWN ADJUST 29" FENDER COMPATIBLE MXL STEALTH BOOST™ 15X110MM AXLE DEBONAIR 150MM E-MTB DECAL GLOSS BLACK FAST BLACK UPPERS 44 OFFSET TAPERED STEERER A2, PM180,
Rear Shock
NEW Rockshox Deluxe Select+ RT 185x52.5 Debonair 1 Token Mm Tune 320lb Threshold Trunnion Standard B 8x25mm Lower Mount
Drivetrain
Rear Derailleur
Shimano Deore M5100
Shift Levers
Shimano Deore M5100, ISPEC EV
Cassette
Microshift CS-G113 11S 11-46T
Crank
Shimano EM600, 34T
Chain
Shimano HG601
Chain Guide
e*thirteen e*spec Vario
Pedals
MTB platform pedal
Wheels
Front Hub
Shimano M410-B| J-Bend, Center Lock, 32h, TA 15x110
Rear Hub
ShimanoM400-B | J-Bend, Center Lock, 32h, TA 12x148, 11-speed
Rims
WTB ST i30 TCS 2.0 with Shimano hubs
Tires
Maxxis DHF, 29x2.6, EXO/TR
Brakes
Brakes
Shimano M4100, ISPEC EV
Brake Levers
Shimano M4100, ISPEC EV

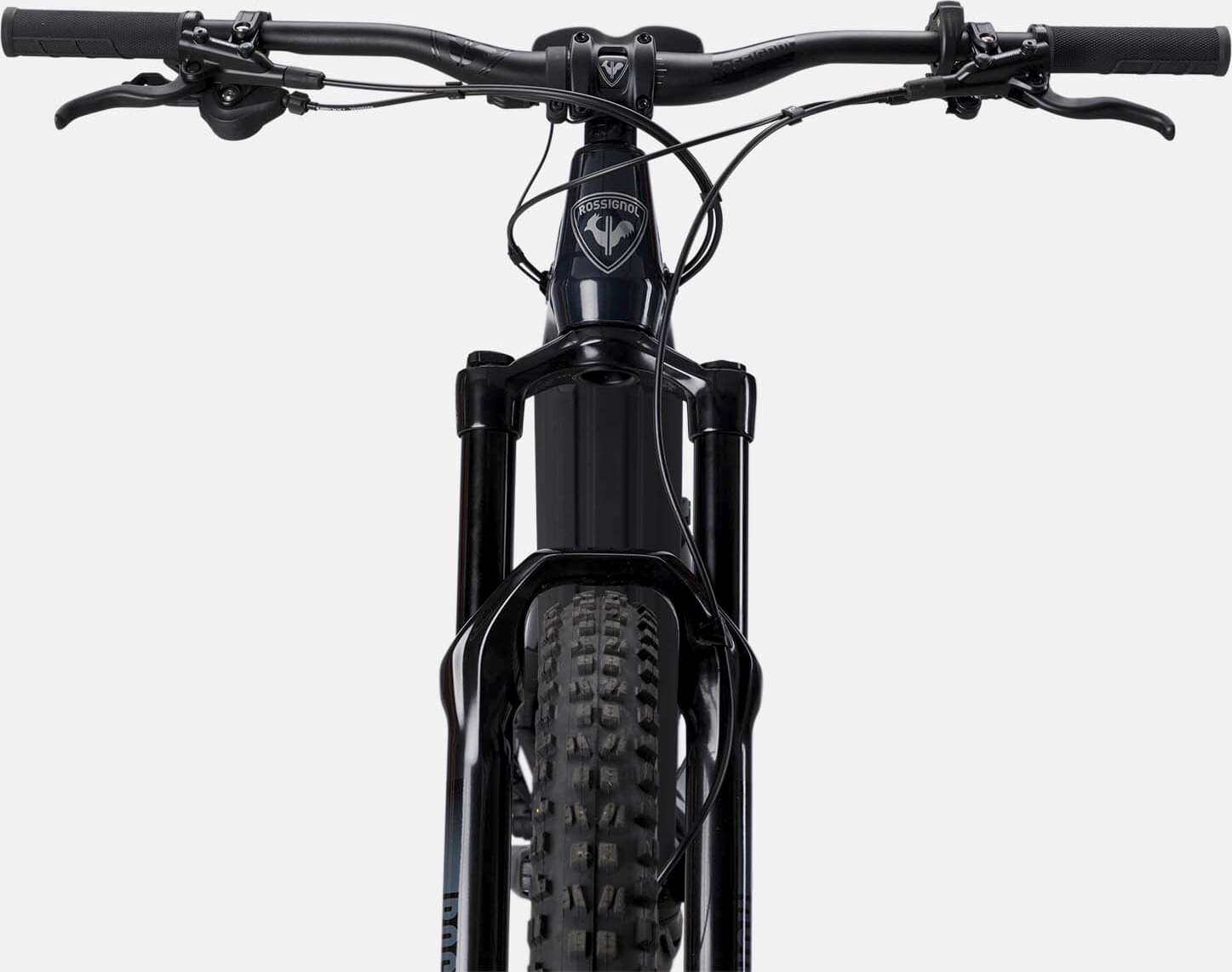

Cockpit
Stem
Rossignol MTB Switch | for internal Di2 routing
Handlebar
Rossignol MTB Switch | Internal routing for di2 | 7075 Aluminum, 20mm rise, Sweep: 9° back, 3° up
Grips
Rossignol lock on, diamond design with waffle grip
Headset
ZS (ZS44/28.6-ZS56/40) / (NO.57)
Seat
Saddle
WTB Silverado, medium, steel
Seatpost
KS Southpaw I SPEC EV remote
Motor & Battery
Motor
Shimano STEPS MTB EP600
Battery
Shimano BT8036 or BT8035-L batteries are fully integrated into the bike frame. Offering 503Wh or 630Wh capacity enables you to ride enough distance for all-day adventures. Take a break and quickly recharge up to 50% capacity in only 2.5hrs. Battery can be easily removed from the frame with a 4mm Allen key.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.396 mm | 1.356 mm | 1.318 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm |
| Front Center | 753 mm | 765 mm | 791 mm |
| Rake | 47 mm | 43 mm | 46 mm |
| Trail | 123 mm | 127 mm | 124 mm |
| Stack | 613 mm | 617 mm | 626 mm |
| Reach | 439 mm | 455 mm | 475 mm |
| Top Tube Length | 572 mm | 585 mm | 610 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 375 mm | 425 mm | 445 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1214 mm | 1228 mm | 1255 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
