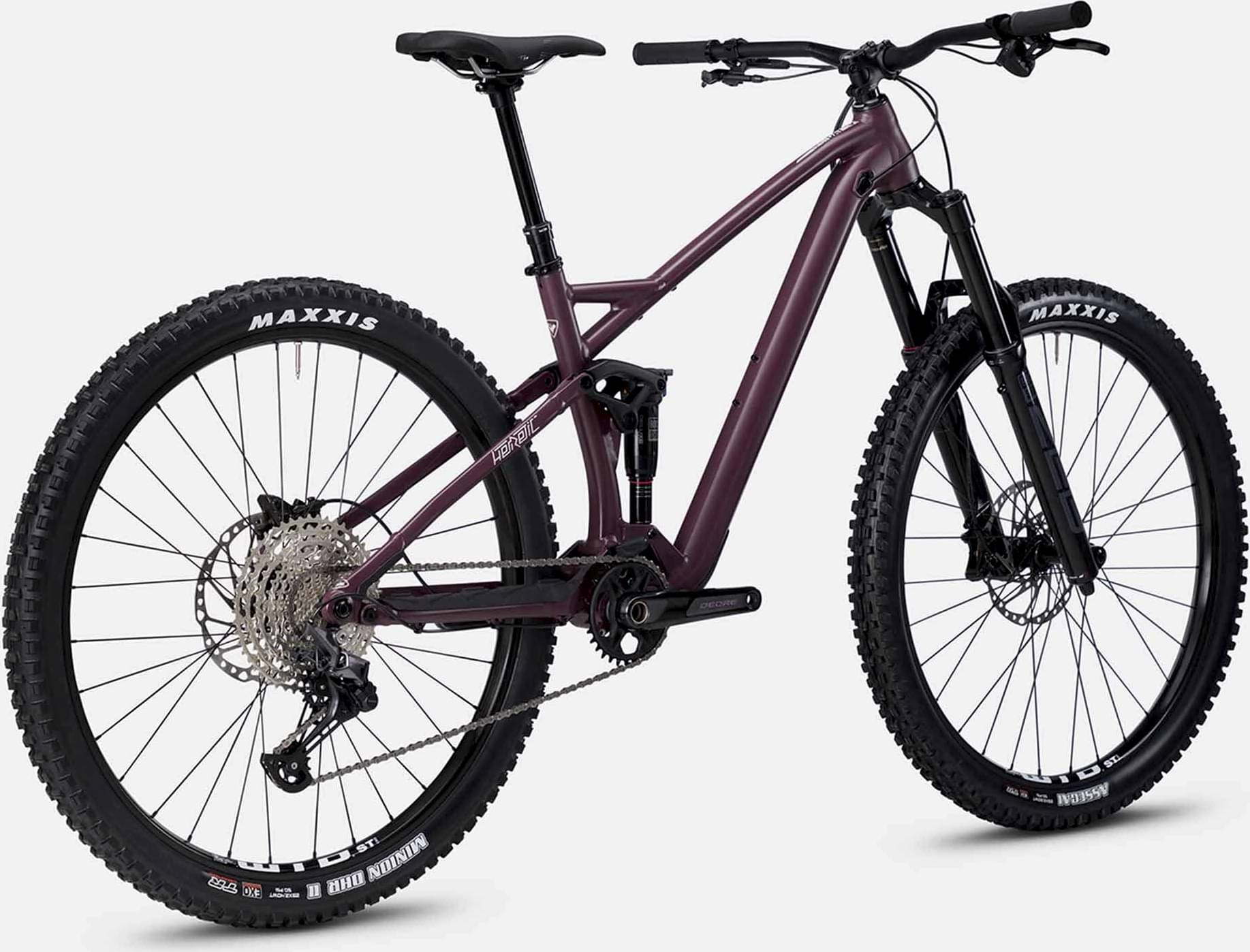

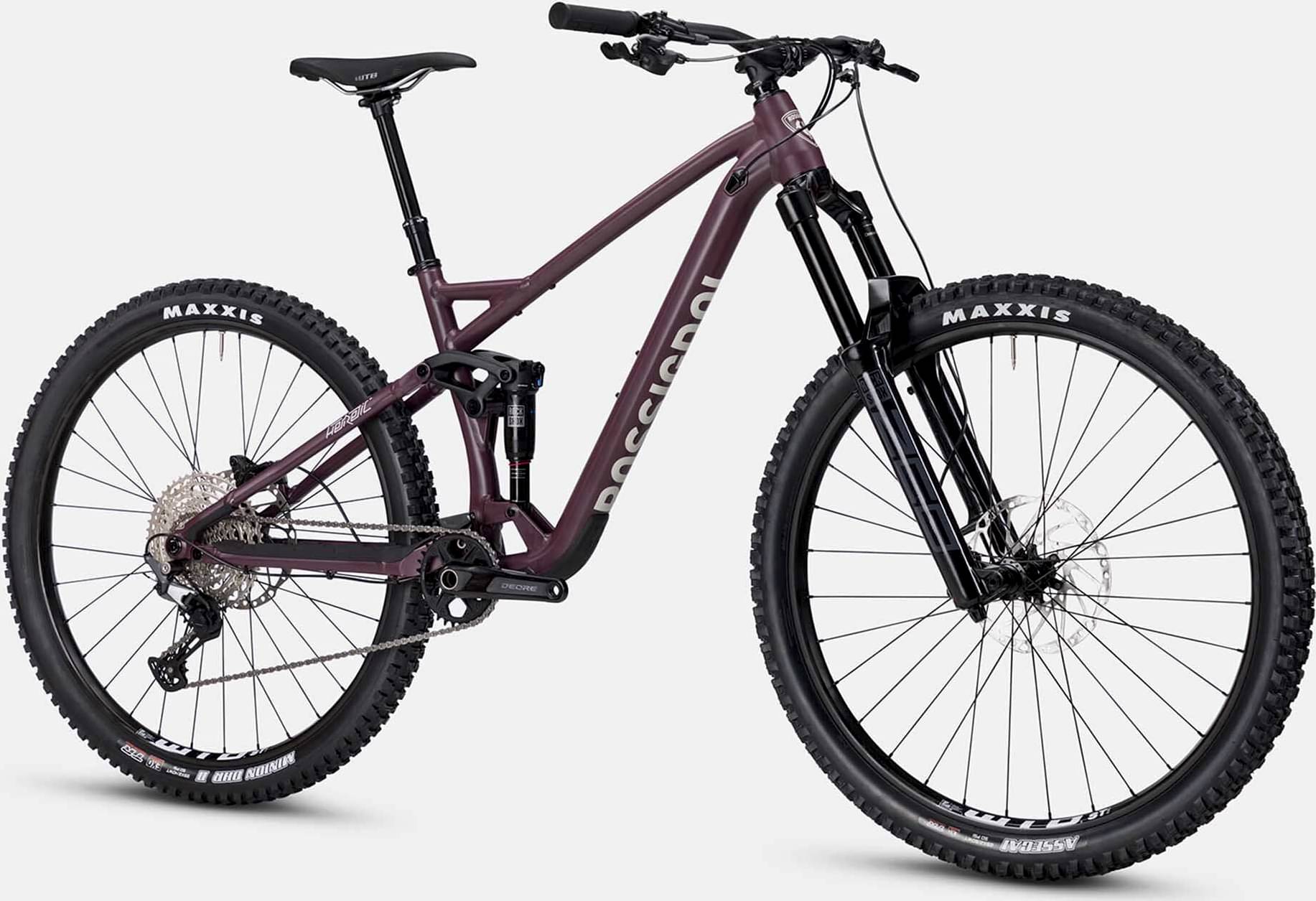

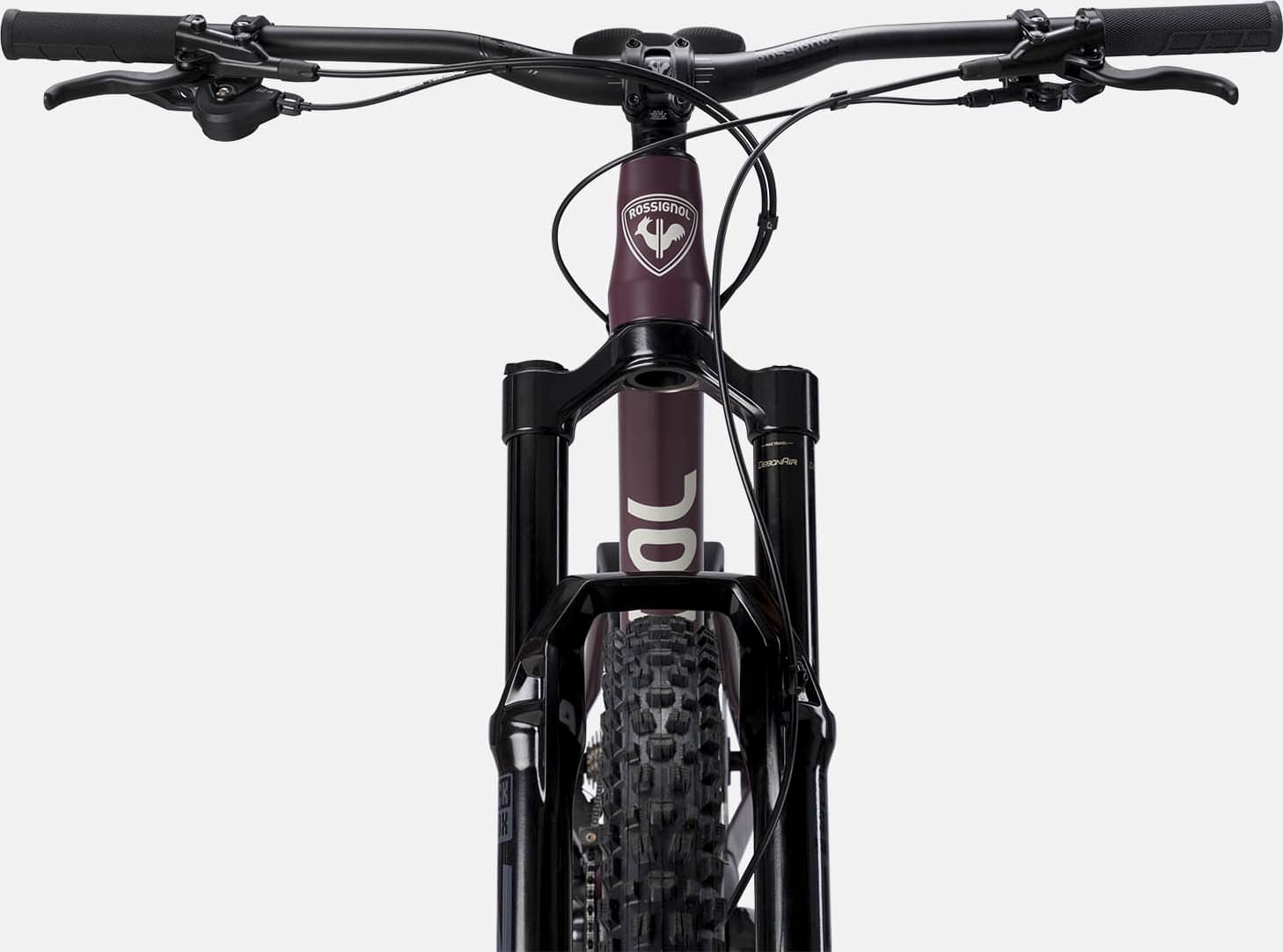

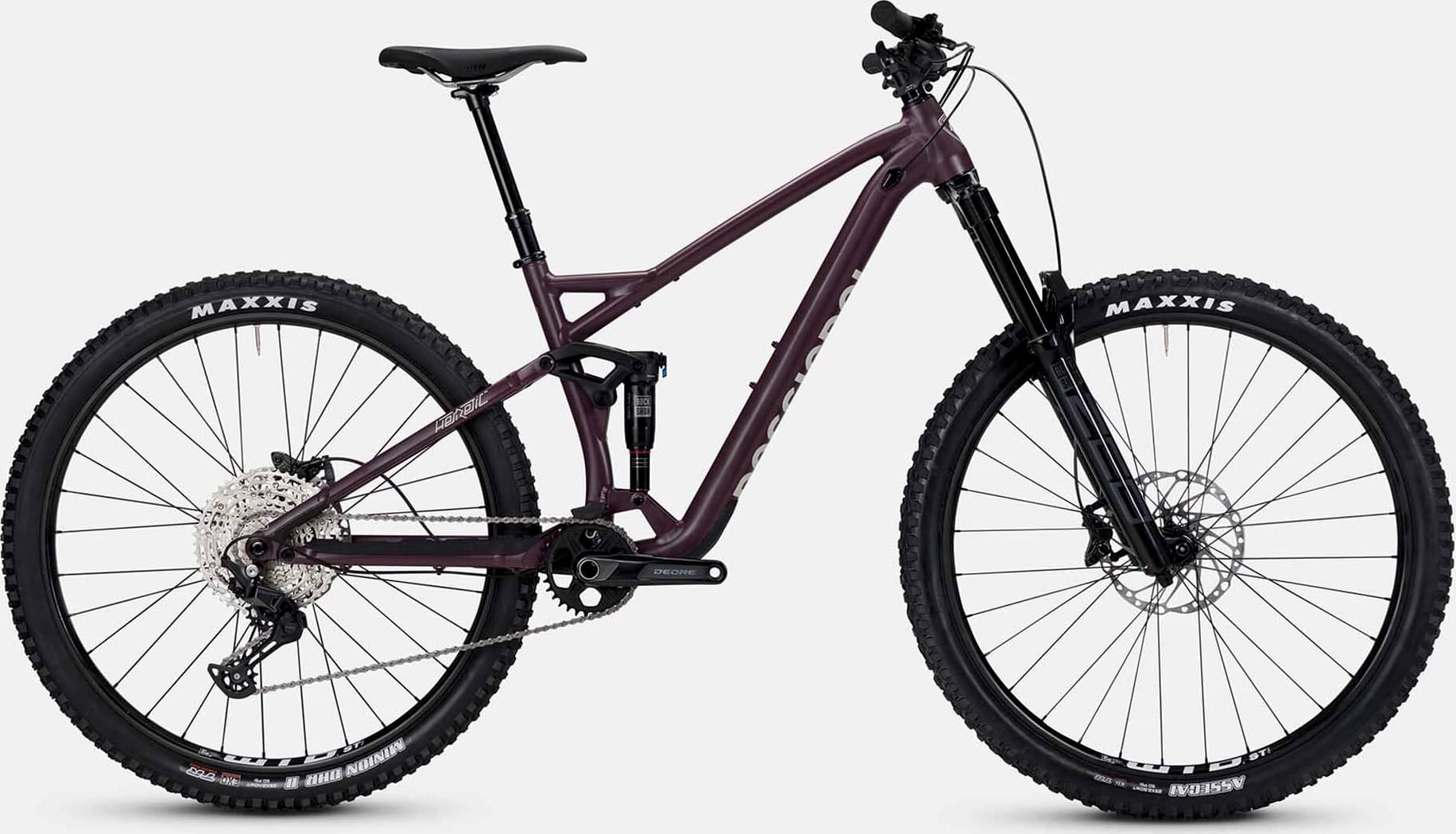

rossignol Enduro Heretic Deore 12 2024
2024 Mountain
Estimate price |
3,489$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox ZEB
-
Groupset Deore -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rossignol Trail 160mm travel | 6061 Alloy
Suspension Fork
RockShox ZEB BASE RUSH RC BOOST 15X110 MXL STEALTH DEBONAIR 160 GLOSS BLACK 44 OFFSET 1.5 TAPER A 28.6/39.8*265L, PM200
Rear Shock
Rockshox Deluxe Select + RT, 85x55 Debonair 2 Token Mm Tune 320lb Threshold Trunnion Standard B 8x30mm Lower Mount
Drivetrain
Rear Derailleur
Shimano Deore M6100, SGS
Shift Levers
Shimano Deore M6100, ISPEC EV
Cassette
Shimano Deore M6100, 10-51T
Crank
Shimano Deore M6100, 32T
Bottom Bracket
Shimano BB52
Chain
Shimano Deore M6100
Chain Guide
e*thirteen Vario
Pedals
MTB platform pedal
Wheels
Front Hub
Shimano MT400-B | J-Bend, Center Lock, 32h, TA 15x110
Rear Hub
Shimano MT410-B | J-Bend, Center Lock, 32h, TA 12x148, Micro Spline
Rims
WTB ST i30 TCS 2.0 with Shimano hubs
Tires
Maxxis Assegai, 2.5, EXO, TR
Brakes
Brakes
Shimano M4100, ISPEC EV
Brake Levers
Shimano M4100, ISPEC EV
Cockpit
Stem
Rossignol MTB | 6061 Aluminum/ diameter 31.8mm/lenght : XS,S,M:40mm, L,XL: 50mm
Handlebar
Rossignol MTB | 6061 Aluminum, 30mm rise, Sweep: 9° back, 5° up/DIAMETER : 31,8mm, ANGLE : 0°, LENGHT: XS,S,M : 40mm, M,L,XL : 780mm
Grips
Rossignol lock on, diamond design with waffle grip
Headset
ZS (ZS44/28.6-ZS56/40) / (NO.57)
Seat
Saddle
WTB Silverado, medium, steel
Seatpost
KS EDGE I
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.386 mm | 1.366 mm | 1.378 mm | 1.321 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 344 mm | 344 mm |
| Front Center | 746 mm | 756 mm | 782 mm | 813 mm |
| Rake | 49 mm | 47 mm | 45 mm | 45 mm |
| Trail | 115 mm | 117 mm | 129 mm | 129 mm |
| Stack | 585 mm | 590 mm | 620 mm | 630 mm |
| Reach | 422 mm | 432 mm | 450 mm | 477 mm |
| Top Tube Length | 570 mm | 580 mm | 606 mm | 635 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 380 mm | 390 mm | 430 mm | 460 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 445 mm | 445 mm |
| Wheelbase | 1180 mm | 1190 mm | 1225 mm | 1257 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 30 mm | 30 mm |
| Wheels | 27" | 27" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
