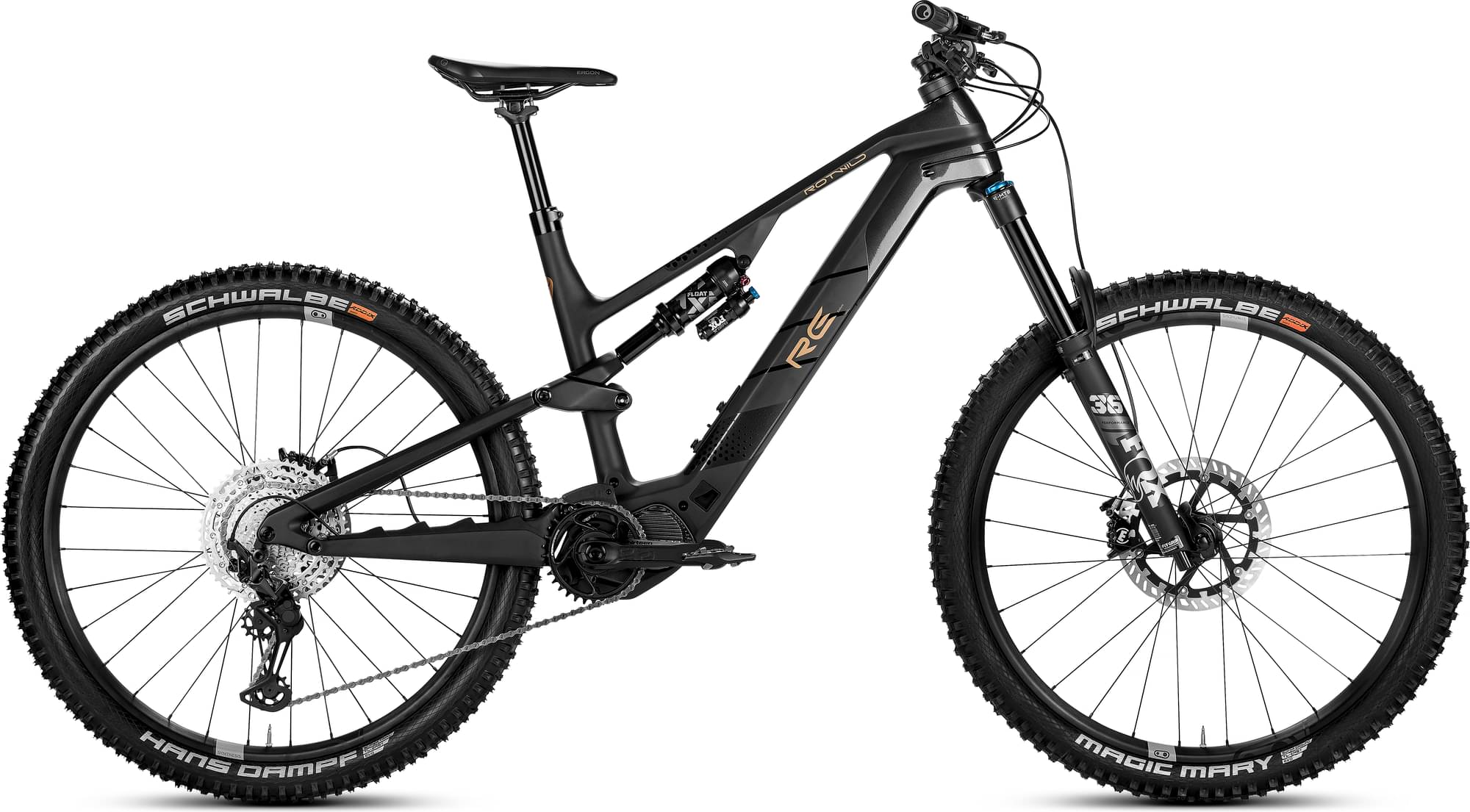

Rotwild R.E375 CORE 2024
2024 E-bike
Estimate price |
9,887$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Performance Float 36
-
Groupset XT -
Suspension Full -
Motor Shimano 85Nm mid-drive -
Battery IPU375 QR Carbon, IPU375 / 375 Wh / carbon / 1,9 kg / Quick Release / 4,5 A charger -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full carbon, hand made, from high modulus carbon fibres
Suspension Fork
FOX 36 Float Performance, 170 mm travel / 110x15 mm / 44 mm offset
Rear Shock
FOX Float X Performance, 160 mm travel / 230x60 mm / 21.84 mm (bushing f.) / 19.05 mm (bushing r.)
Drivetrain
Rear Derailleur
SHIMANO XT 8100
Cassette
SHIMANO CS 6100
Crank
e*thirteen Direct Mount Chainring
Chain
SHIMANO HG 7100
Chain Guide
e*thirteen TRS
Wheels
Tires
SCHWALBE Magic Mary / Hans Dampf
Brakes
Brakes
MAGURA MT5 HC-W
Cockpit
Stem
e*thirteen Plus
Handlebar
e*thirteen Plus
Headset
ACROS RW375 1.5 Headset
Seat
Saddle
ERGON SM
Seatpost
8PINS H01
Motor & Battery
Motor
SHIMANO EP8, Shimano EP8 / 2 riding profiles / up to 85 Nm torque
Battery
IPU375 QR Carbon, IPU375 / 375 Wh / carbon / 1,9 kg / Quick Release / 4,5 A charger
Charger
ROTWILD - 4.5 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.359 mm | 1.311 mm | 1.257 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm |
| Front Center | 809 mm | 840 mm | 867 mm |
| Rake | 44 mm | 45 mm | 44 mm |
| Trail | 138 mm | 136 mm | 138 mm |
| Stack | 625 mm | 636 mm | 641 mm |
| Reach | 460 mm | 485 mm | 510 mm |
| Top Tube Length | 604 mm | 632 mm | 655 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 440 mm | 470 mm | 506 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 110 mm | 125 mm | 130 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1253 mm | 1284 mm | 1311 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm |
| Standover Height | 730 mm | 730 mm | 730 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
