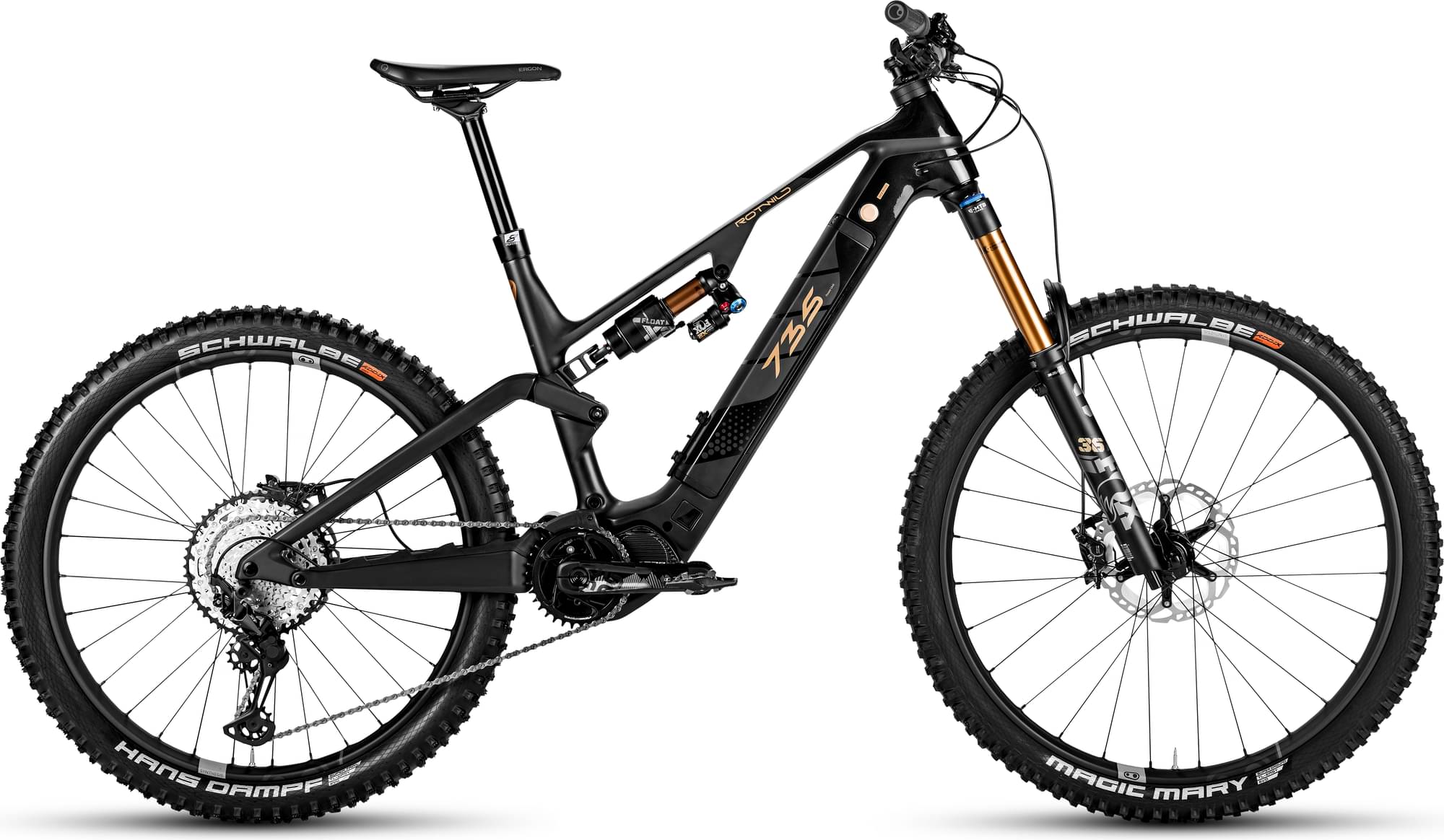

Rotwild R.E735 ULTRA 2024
2024 E-bike
Estimate price |
13,377$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Rear 148mm -
Fork Fox Factory Float 36 -
Groupset XT -
Suspension Full -
Motor Shimano 600W 85Nm mid-drive -
Battery IPU735 QR Carbon, IPU 735 / effective 720 watt hours / carbon / 4.5 A charger -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full carbon made from high modulus carbon fibers, handmade
Suspension Fork
FOX 36 Float Factory Kashima
Rear Shock
FOX Float X2 Factory Kashima, 148 mm travel / 210x55 mm / 21.84 mm (front bushing), 19.05 mm (rear bushing)
Drivetrain
Rear Derailleur
SHIMANO XT 8100
Cassette
SHIMANO CS 7100
Crank
e*thirteen Direct Mount Chainring
Chain
SHIMANO HG 7100
Chain Guide
e*thirteen TRS
Wheels
Rims
Full carbon made from high modulus carbon fibers, handmade
Brakes
Brakes
SHIMANO XT 8120
Cockpit
Stem
e*thirteen Plus
Handlebar
e*thirteen Race Carbon
Headset
ACROS RW735 1.5 Headset
Seat
Saddle
ERGON SM Enduro Comp
Seatpost
8PINS H01
Motor & Battery
Motor
SHIMANO EP801, Shimano EP801 / 2 riding profiles / 3 support levels / up to 85 Nm torque
Battery
IPU735 QR Carbon, IPU 735 / effective 720 watt hours / carbon / 4.5 A charger
Charger
ROTWILD - 4.5 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.507 mm | 1.439 mm | 1.4 mm | 1.349 mm |
| Bottom Bracket Height | 353 mm | 353 mm | 353 mm | 353 mm |
| Front Center | 759 mm | 779 mm | 813 mm | 842 mm |
| Rake | 39 mm | 39 mm | 40 mm | 39 mm |
| Trail | 135 mm | 135 mm | 134 mm | 135 mm |
| Stack | 633 mm | 633 mm | 651 mm | 661 mm |
| Reach | 420 mm | 440 mm | 465 mm | 490 mm |
| Top Tube Length | 600 mm | 621 mm | 650 | 678 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 506 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 140 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1199 mm | 1219 mm | 1253 mm | 1282 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm | 13 mm |
| Standover Height | 737 mm | 737 mm | 737 mm | 737 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
