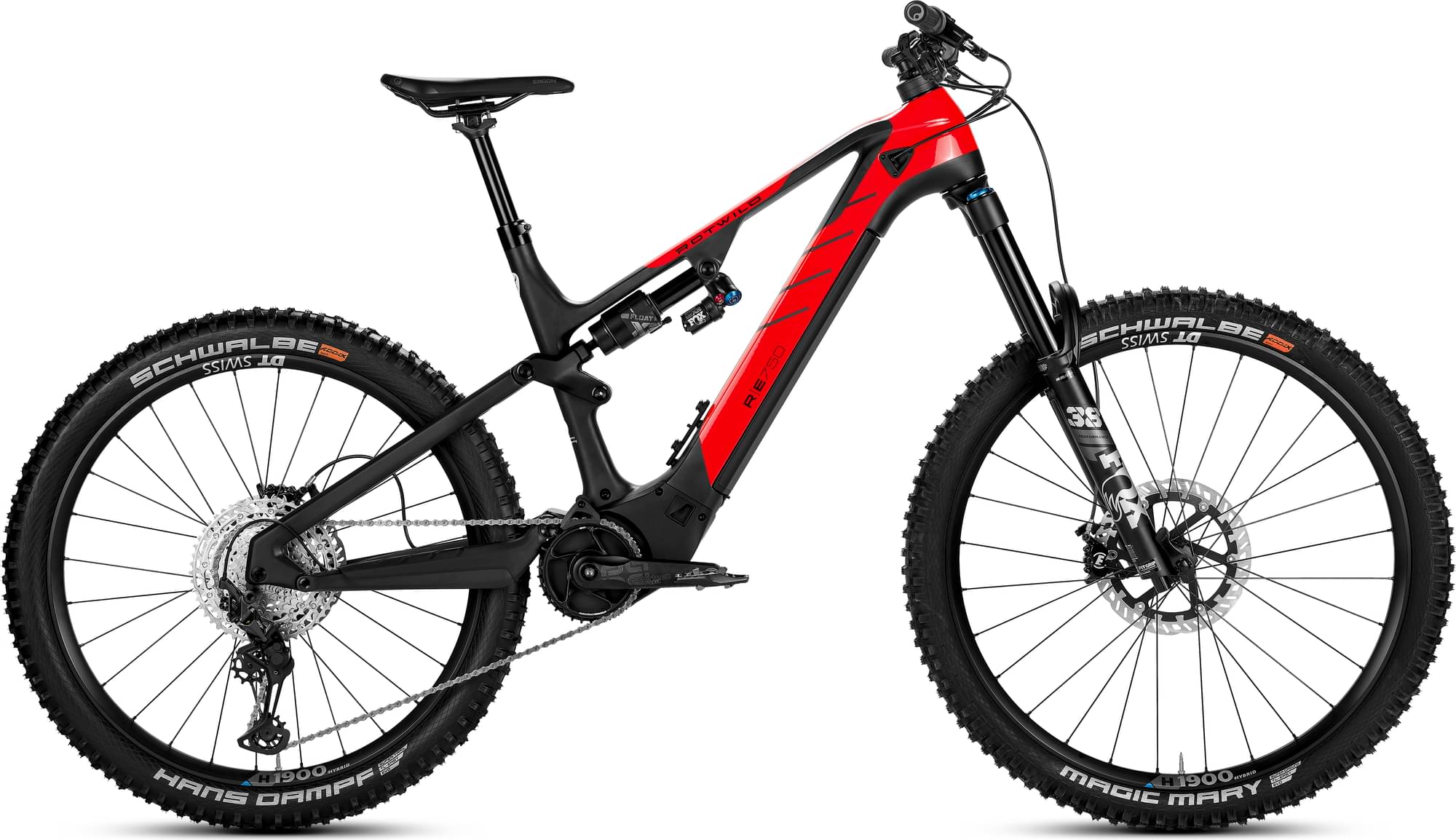

Rotwild R.E750 CORE 2024
2024 E-bike
Estimate price |
9,306$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 162mm -
Fork Fox Performance Float 38
-
Groupset XT -
Suspension Full -
Motor Brose 90Nm mid-drive -
Battery IPU750 Removable, IPU750 / 720 Wh / aluminium / 3,7 kg / Quick Release / 4,5 A charger -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
full carbon, hand made
Suspension Fork
Fox 38 Float Performance, 170 mm travel / 110x15 mm / 44 mm offset / OD Crown
Rear Shock
Fox Float X2 Performance, 162.5 mm travel / 205x65 mm / Trunnion (bushing f.) / 19.05 mm (bushing r.)
Drivetrain
Rear Derailleur
Shimano XT 8100
Cassette
SHIMANO CS 6100
Crank
e*thirteen Direct Mount Chainring
Chain
Shimano HG 7100
Chain Guide
ROTWILD SL750 2.0
Wheels
Rims
full carbon, hand made
Tires
SCHWALBE Magic Mary / Hans Dampf
Brakes
Brakes
MAGURA MT5 HC-W
Cockpit
Stem
e*thirteen Plus
Handlebar
e*thirteen Plus
Headset
ACROS RW750 1.5 Headset
Seat
Saddle
ERGON SM
Seatpost
e*thirteen Vario Covert Infinite
Motor & Battery
Motor
brose Drive S Mag, Brose Drive S Mag / Air Cooler / up to 90 Nm torque
Battery
IPU750 Removable, IPU750 / 720 Wh / aluminium / 3,7 kg / Quick Release / 4,5 A charger
Charger
4,5 A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.559 mm | 1.458 mm | 1.403 mm | 1.337 mm |
| Bottom Bracket Height | 355 mm | 355 mm | 355 mm | 355 mm |
| Front Center | 735 mm | 761 mm | 799 mm | 833 mm |
| Rake | 52 mm | 42 mm | 40 mm | 38 mm |
| Trail | 117 mm | 128 mm | 130 mm | 133 mm |
| Stack | 616 mm | 624 mm | 644 mm | 655 mm |
| Reach | 395 mm | 428 mm | 459 mm | 490 mm |
| Top Tube Length | 590 mm | 620 mm | 657 mm | 691 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 413 mm | 444 mm | 473 mm | 509 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 140 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1180 mm | 1206 mm | 1244 mm | 1278 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm | 10 mm |
| Standover Height | 765 mm | 765 mm | 765 mm | 765 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
