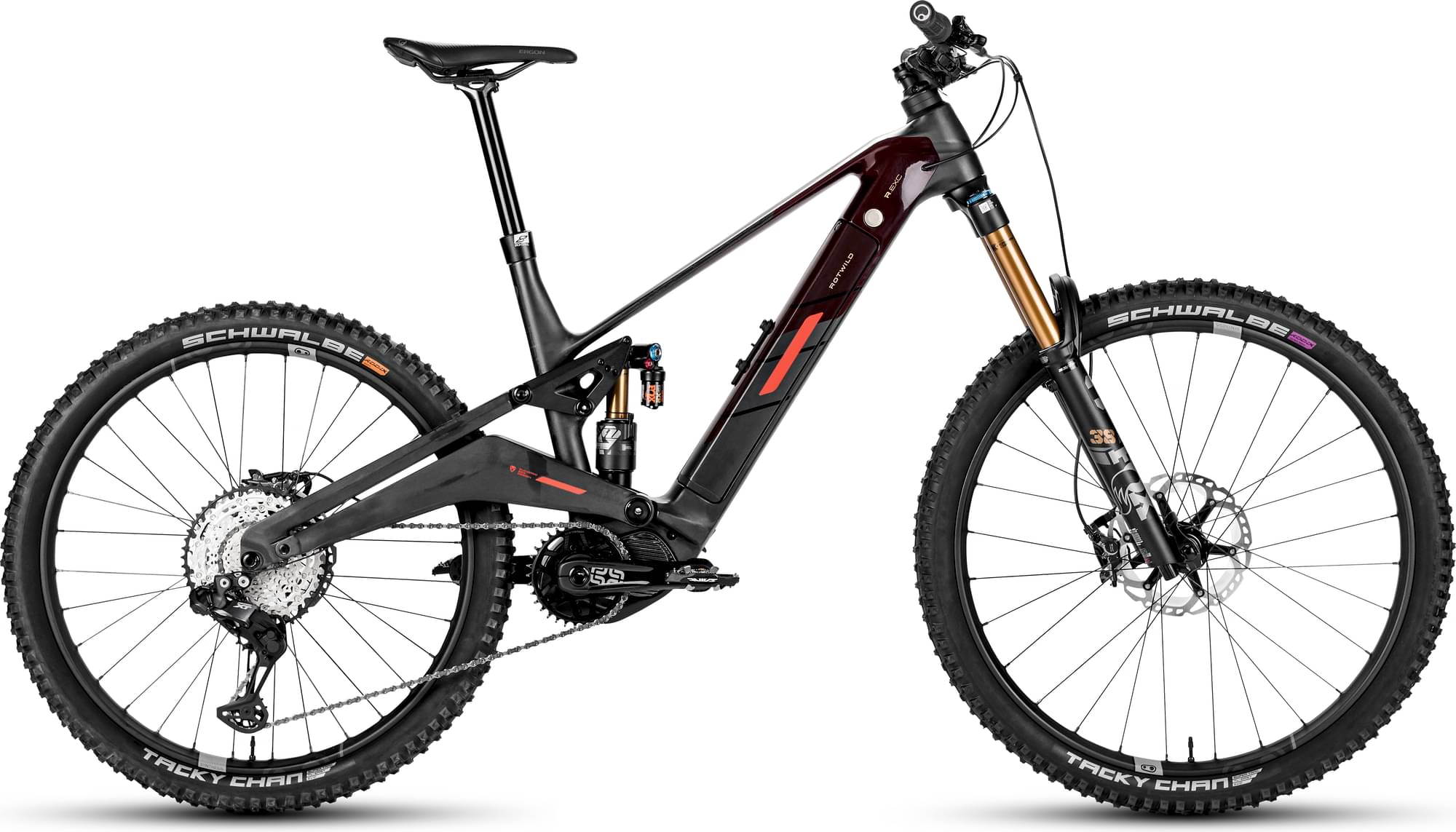

Rotwild R.EXC ULTRA 2024
2024 E-bike
Estimate price |
13,949$
Weight | 22.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 145mm -
Fork Fox Factory Float 38
-
Groupset XT Di2 -
Suspension Full -
Motor Shimano 600W 85Nm mid-drive -
Battery IPU820 Carbon, IPU Carbon / 820 watthours / 4,5 A charger -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full carbon made from high modulus carbon fibres, handmade
Suspension Fork
FOX 38 Float Factory Kashima, 170 mm of travel / Fox Float 38 Factory Kashima
Rear Shock
FOX Float X2 Factory Kashima, adjustable travel 160/150/145 mm / Fox Float X 2-Pos Adjust EVOL LV Factory Kashima
Drivetrain
Rear Derailleur
SHIMANO XT Di2 8150 SGS Hyperglide+
Cassette
SHIMANO CS 7100
Crank
e*thirteen Direct Mount Chainring
Chain
SHIMANO HG 7100
Chain Guide
ROTWILD EXC Chainguide
Wheels
Rims
Full carbon made from high modulus carbon fibres, handmade
Tires
max. 29x2.4
Brakes
Brakes
SHIMANO XT 8120
Cockpit
Stem
e*thirteen Plus 35
Handlebar
e*thirteen Race Carbon
Headset
ACROS RW EXC 1.5 Headset
Seat
Saddle
ERGON SM Enduro Comp
Seatpost
8PINS NGS2.0
Motor & Battery
Motor
SHIMANO EP801, Shimano EP801 / up to 85 Nm torque
Battery
IPU820 Carbon, IPU Carbon / 820 watthours / 4,5 A charger
Charger
ROTWILD - 4.5 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.456 mm | 1.385 mm | 1.323 mm | 1.265 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 780 mm | 807 mm | 834 mm | 861 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 144 mm | 144 mm | 144 mm | 144 mm |
| Stack | 626 mm | 630 mm | 635 mm | 639 mm |
| Reach | 430 mm | 455 mm | 480 mm | 505 mm |
| Top Tube Length | 563 mm | 589 mm | 615 mm | 641 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 405 mm | 435 mm | 465 mm | 501 mm |
| Head Tube Angle | 63.3 ° | 63.3 ° | 63.3 ° | 63.3 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm | 115 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1215 mm | 1242 mm | 1269 mm | 1296 mm |
| Bottom Bracket Drop | 21 mm | 21 mm | 21 mm | 21 mm |
| Standover Height | 753 mm | 745 mm | 741 mm | 740 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
