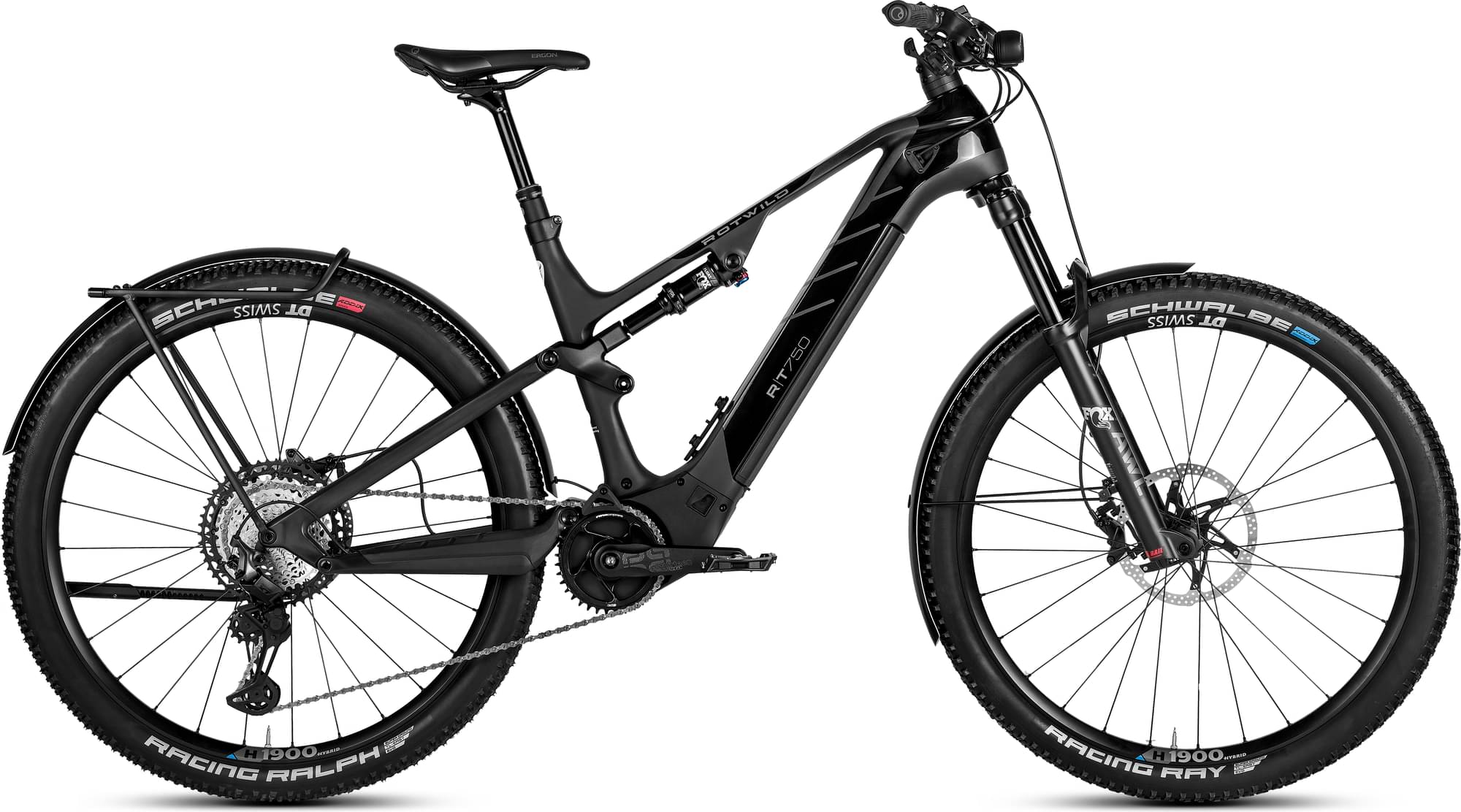

Rotwild R.T750 TOUR 2023
2023 E-bike
Estimate price |
9,887$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox AWL
-
Groupset XT, e*thirteen -
Suspension Full -
Motor Brose 90Nm mid-drive -
Battery IPU750 Removable, IPU750 / 720 Wh / aluminium / 3,7 kg / Quick Release / 4,5 A charger -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
full carbon, hand made
Suspension Fork
Fox 34 AWL Performance, 140 mm travel / 110x15 mm / 51 mm offset
Rear Shock
Fox Float DPS Performance, 130 mm travel / 185x50 mm / Trunnion (bushing f.) / 19.05 mm (bushing r.)
Drivetrain
Rear Derailleur
SHIMANO XT 8130
Cassette
SHIMANO LG 700
Crank
e*thirteen Direct Mount Chainring
Chain
SHIMANO LG 500
Chain Guide
ROTWILD SL750 2.0
Wheels
Rims
full carbon, hand made
Tires
SCHWALBE Racing Ray / Racing Ralph
Brakes
Brakes
TRP C2.3
Cockpit
Stem
ROTWILD S240
Handlebar
ROTWILD B280 AL7075
Headset
ACROS RW750 1.5 Headset
Seat
Saddle
ERGON SMC Core
Seatpost
CrankBrothers Highline 3
Motor & Battery
Motor
brose Drive S Mag, Brose Drive S Mag / Air Cooler / up to 90 Nm torque
Battery
IPU750 Removable, IPU750 / 720 Wh / aluminium / 3,7 kg / Quick Release / 4,5 A charger
Charger
4,5 A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.41 mm | 1.36 mm | 1.31 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 733 mm | 757 mm | 795 mm | 831 mm |
| Rake | 66 mm | 54 mm | 52 mm | 54 mm |
| Trail | 94 mm | 108 mm | 110 mm | 108 mm |
| Stack | 607 mm | 613 mm | 633 mm | 645 mm |
| Reach | 400 mm | 434 mm | 465 mm | 494 mm |
| Top Tube Length | 584 mm | 613 mm | 649 mm | 684 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 413 mm | 444 mm | 473 mm | 509 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 140 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1187 mm | 1211 mm | 1249 mm | 1285 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 746 mm | 746 mm | 746 mm | 746 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
R.T750 TOUR belongs to the Rotwild E Rt750 model. There are 3 e-bikes that carry this model name.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Rotwild released this model in 2023, its price was 9024$. Comparing the average cost of a Trail e-bike to this one, you will see that R.T750 TOUR price is 168.17% higher.
R.T750 TOUR components
Fork
The fork installed on this bike is the Fox AWL model. The travel on this model is 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this e-bike is Fox Float DPS Performance, with a travel distance of 130mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
As for the wheels, Rotwild R.T750 TOUR 2023, has a 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The R.T750 TOUR has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Rotwild R.T750 TOUR includes a dropper post. Therefore, climbing or descending will be a breeze.
