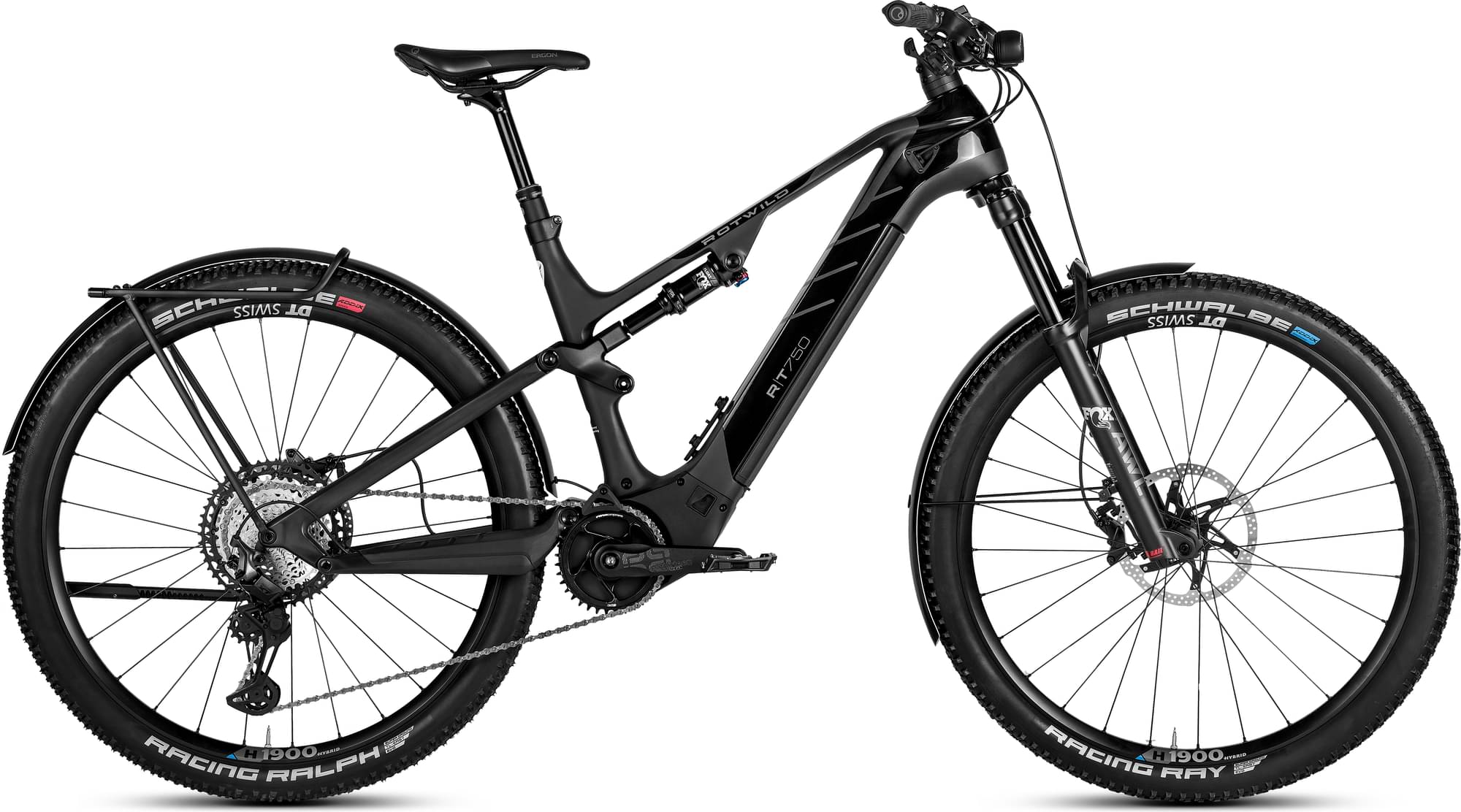

Rotwild R.T750 TOUR 2024
2024 E-bike
Estimate price |
9,887$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox AWL
-
Groupset XT -
Suspension Full -
Motor Brose 90Nm mid-drive -
Battery IPU750, IPU750 / 720 Wh / aluminium / 3,7 kg / Quick Release / 4,5 A charger -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
full carbon, hand made
Suspension Fork
FOX 34 AWL Performance, 140 mm travel / 110x15 mm / 51 mm offset
Rear Shock
FOX Float DPS Performance, 130 mm travel / 185x50 mm / Trunnion (bushing f.) / 19.05 mm (bushing r.)
Drivetrain
Rear Derailleur
SHIMANO XT 8130
Cassette
SHIMANO LG 700
Crank
e*thirteen Direct Mount Chainring
Chain
SHIMANO LG 500
Chain Guide
ROTWILD SL750 2.0
Wheels
Rims
full carbon, hand made
Tires
SCHWALBE Racing Ray / Racing Ralph
Brakes
Brakes
TRP C2.3
Cockpit
Stem
ROTWILD S240
Handlebar
ROTWILD B280 AL7075
Headset
ACROS RW750 1.5 Headset
Seat
Saddle
ERGON SMC Core
Seatpost
CrankBrothers Highline 3
Motor & Battery
Motor
brose Drive S Mag, Brose Drive S Mag / Air Cooler / up to 90 Nm torque
Battery
IPU750, IPU750 / 720 Wh / aluminium / 3,7 kg / Quick Release / 4,5 A charger
Charger
ROTWILD - 4.5 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.512 mm | 1.409 mm | 1.358 mm | 1.303 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 733 mm | 757 mm | 795 mm | 831 mm |
| Rake | 66 mm | 54 mm | 52 mm | 54 mm |
| Trail | 94 mm | 108 mm | 110 mm | 108 mm |
| Stack | 611 mm | 617 mm | 637 mm | 649 mm |
| Reach | 404 mm | 438 mm | 469 mm | 498 mm |
| Top Tube Length | 588 mm | 617 mm | 653 mm | 688 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 413 mm | 444 mm | 473 mm | 509 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 140 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1191 mm | 1215 mm | 1253 mm | 1289 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 750 mm | 750 mm | 750 mm | 750 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
