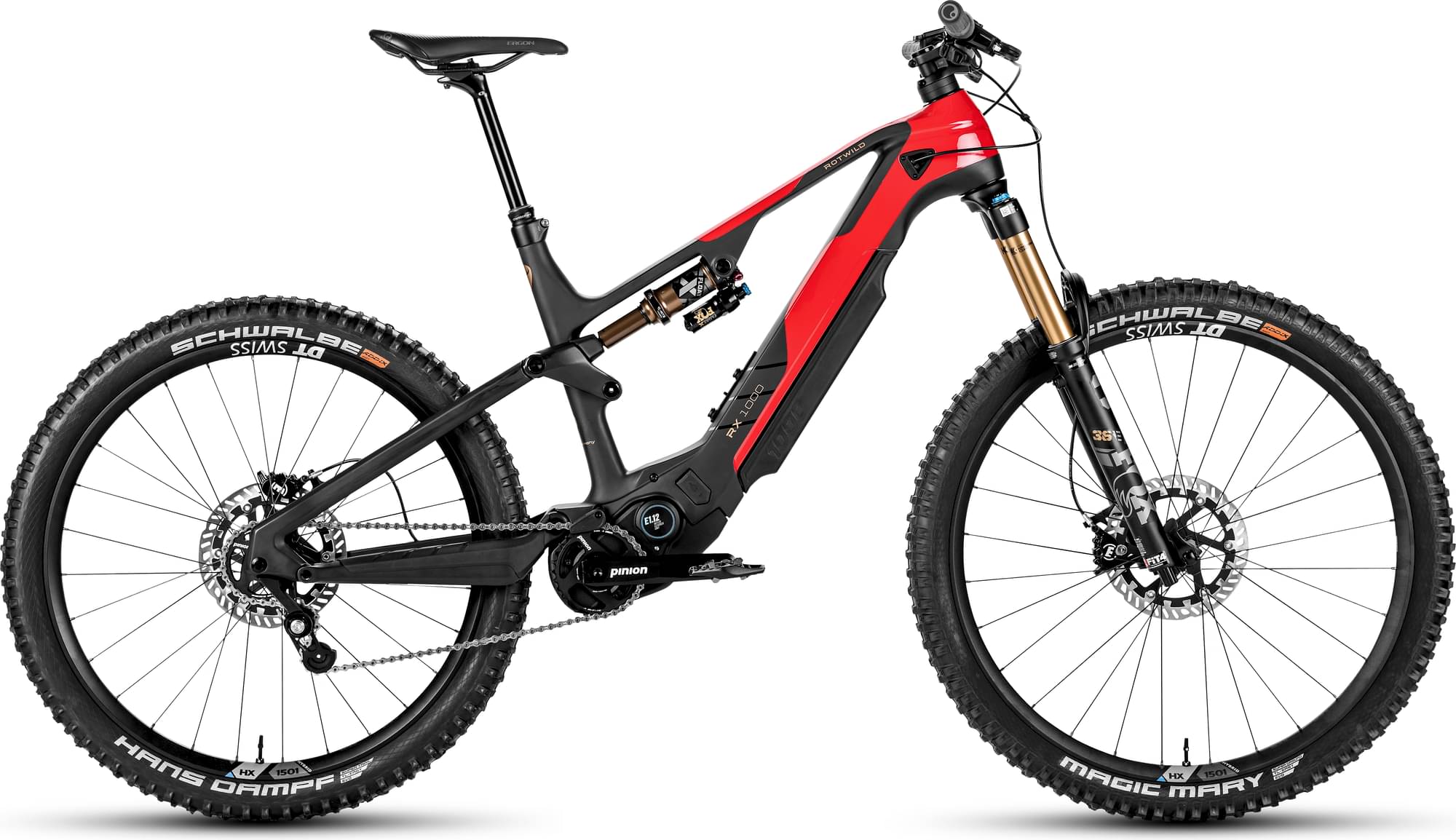

Rotwild R.X1000 ULTRA 2024
2024 E-bike
Estimate price |
13,959$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Suspension Full -
Motor 85Nm mid-drive -
Battery IPU1000 Ultracore, IPU 1000 Ultracore - Lock / 960 watthours / 4,8A charger -
Drivetrain Single Speed -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full carbon made from high modulus carbon fibres, handmade
Suspension Fork
FOX 36 Float Factory Kashima, 150 mm travel / Fox Float Factory Kashima
Rear Shock
FOX Float X Factory Kashima, 150 mm travel / Fox Float X 2-Pos Adjust EVOL LV Factory Kashima
Drivetrain
Cassette
PINION 24T.
Crank
Direct Mount Chainring 30T.
Chain
PINION X1 Longlife
Chain Guide
ROTWILD R.1000 Chainguide
Wheels
Rims
Full carbon made from high modulus carbon fibres, handmade
Brakes
Brakes
MAGURA MT5 HC-W
Cockpit
Stem
ROTWILD S140 AL7075
Handlebar
ROTWILD B220 Carbon
Headset
ACROS RW750 1.5 Headset
Seat
Saddle
ERGON SM Pro
Seatpost
Crankbrothers Highline
Motor & Battery
Motor
PINION E1.12 MGU, Pinion E.1.12 MGU / 12 speed gear / 4 support levels / up to 85 Nm torque
Battery
IPU1000 Ultracore, IPU 1000 Ultracore - Lock / 960 watthours / 4,8A charger
Charger
ROTWILD - 4.8 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.506 mm | 1.412 mm | 1.361 mm | 1.296 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 727 mm | 753 mm | 791 mm | 825 mm |
| Rake | 52 mm | 44 mm | 42 mm | 40 mm |
| Trail | 110 mm | 119 mm | 121 mm | 123 mm |
| Stack | 610 mm | 617 mm | 637 mm | 648 mm |
| Reach | 405 mm | 437 mm | 468 mm | 500 mm |
| Top Tube Length | 588 mm | 617 mm | 654 mm | 688 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 413 mm | 444 mm | 473 mm | 509 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 140 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1172 mm | 1198 mm | 1236 mm | 1270 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 750 mm | 750 mm | 750 mm | 750 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
