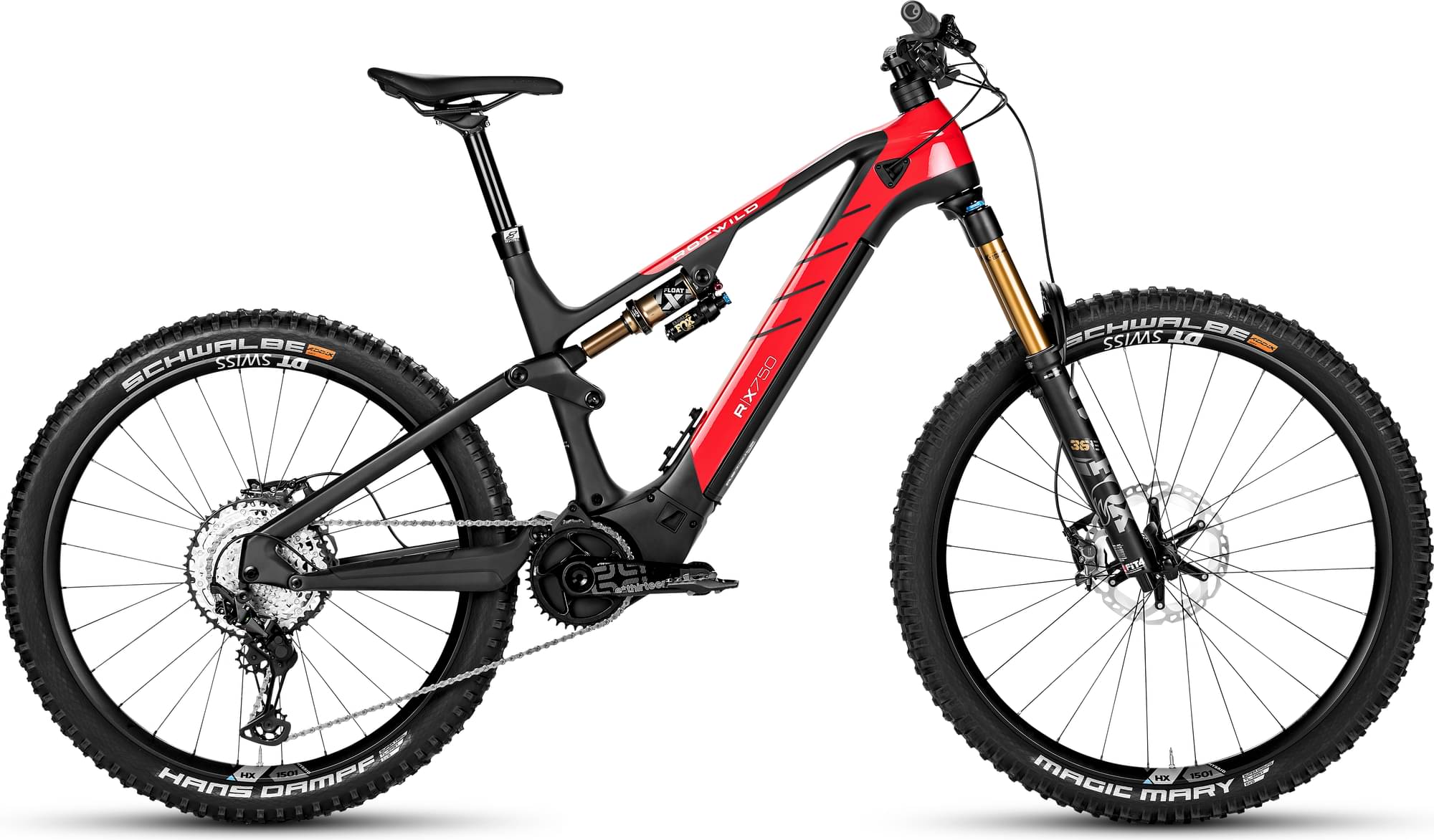

Rotwild R.X750 PRO 2024
2024 E-bike
Estimate price |
11,632$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 152mm -
Fork Fox Factory Float 36
-
Groupset XT -
Suspension Full -
Motor Brose 90Nm mid-drive -
Battery IPU750 Carbon, IPU750 / 720 Wh / aluminium/ 3,5 kg / Quick Release / 4,5 A charger -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
full carbon, hand made
Suspension Fork
FOX 36 Float Factory Kashima, 150 mm travel / 110x15 mm / 44 mm offset / OD Crown
Rear Shock
FOX Float X Factory Kashima, 152 mm travel / 205x60 mm / Trunnion (bushing f.) / 19.05 mm (bushing r.)
Drivetrain
Rear Derailleur
SHIMANO XT 8100
Cassette
SHIMANO CS 7100
Crank
e*thirteen Direct Mount Chainring
Chain
SHIMANO HG 7100
Chain Guide
ROTWILD SL750 2.0
Wheels
Tires
SCHWALBE Magic Mary / Hans Dampf
Brakes
Brakes
SHIMANO XT 8120
Cockpit
Stem
ROTWILD S140 AL7075
Handlebar
ROTWILD B220 Carbon
Headset
ACROS RW750 1.5 Headset
Seat
Saddle
ERGON SM Pro
Seatpost
8PINS H01
Motor & Battery
Motor
brose Drive S Mag, Brose Drive S Mag / Air Cooler / up to 90 Nm torque
Battery
IPU750 Carbon, IPU750 / 720 Wh / aluminium/ 3,5 kg / Quick Release / 4,5 A charger
Charger
ROTWILD - 4.5 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.506 mm | 1.412 mm | 1.361 mm | 1.296 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 727 mm | 753 mm | 791 mm | 825 mm |
| Rake | 52 mm | 44 mm | 42 mm | 40 mm |
| Trail | 110 mm | 119 mm | 121 mm | 123 mm |
| Stack | 610 mm | 617 mm | 637 mm | 648 mm |
| Reach | 405 mm | 437 mm | 468 mm | 500 mm |
| Top Tube Length | 588 mm | 617 mm | 654 mm | 688 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 413 mm | 444 mm | 473 mm | 509 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 140 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1172 mm | 1198 mm | 1236 mm | 1270 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 750 mm | 750 mm | 750 mm | 750 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
