rraymon R RAYMON GravelRay E 6.5 2024

2024 E-bike
Estimate price | 4,420$
E-bike
Open compare Use advisor

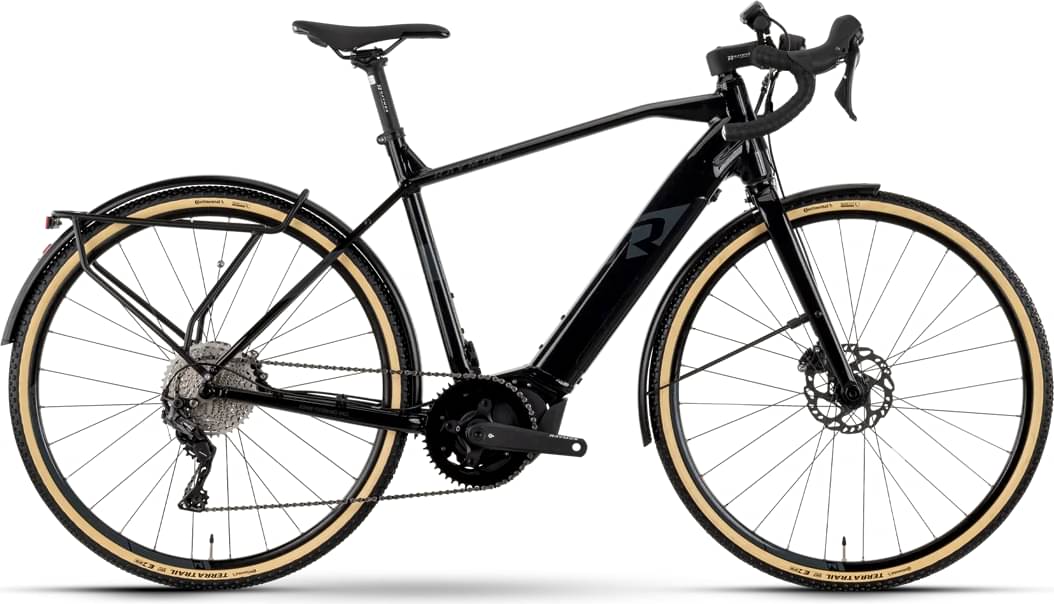

Rraymon Gravelray E 6.5 2024

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Groupset GRX 800, GRX 600
  • Suspension Rigid
  • Motor Yamaha 250W 50Nm mid-drive
  • Battery Yamaha ML400, 410 Wh, 36 V
  • Drivetrain 1 × 11
  • Brakes Shimano GRX 400 Hydraulic Disc

Parts list

Components

Main components, grouped by system.

Bike components

Drivetrain

Rear Derailleur

Shimano GRX, RD-RX812, Shadow Plus, 11-S

Shift Levers

Shimano GRX, ST-RX600

Crank

R Raymon, Narrow Wide, 48 T

Wheels

Rims

28"

Tires

Continental Terra Trail, 40-622, 28x1.5, Tubeless Ready

Brakes

Brakes

Front: Shimano BR-RX400, 2-Kolben, Hydraulische Scheibenbremse, Rear: Shimano BR-RX400, 2-Kolben, Hydraulische Scheibenbremse

Cockpit

Stem

R Raymon 31.8, 6 °, Ahead

Handlebar

R Raymon Drop 31,8 mm, 440 mm, Drop: 116 mm

Seat

Saddle

R Raymon

Seatpost

R Raymon, 31,6 mm, 350 mm, Patent

Motor & Battery

Motor

Yamaha PW-CE, 250 W, 50 Nm

Battery

Yamaha ML400, 410 Wh, 36 V

Fit data

Geometry

Numbers for sizing and ride feel.

Size52cm54cm57cm60cm
Wheels700700700700
