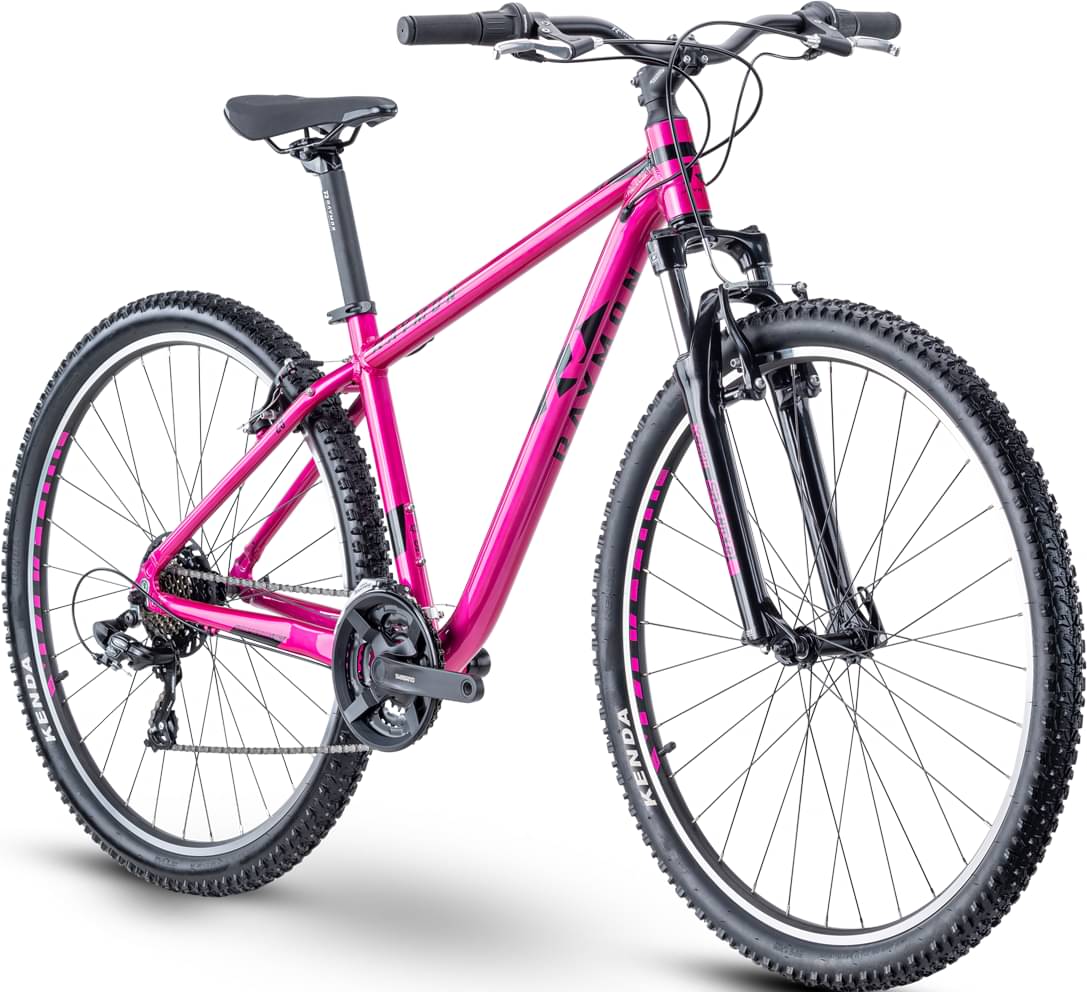

rraymon R RAYMON NineRay 1.0 2021
2021 Mountain
Estimate price |
607$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 29" -
Fork Suntour -
Groupset Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", Alloy 6061
Suspension Fork
SR SUNTOUR XCE28
Drivetrain
Rear Derailleur
Shimano Tourney, RD-TY300, 7-S
Shift Levers
Shimano Tourney, SL-RV200, Revoshift
Cassette
Shimano MF-TZ500, 14-34 T
Crank
Shimano Tourney, FC-TY301, 42/34/24 T
Chain
KMC HV500
Pedals
R Raymon, plastic
Wheels
Rims
, No
Tires
Kenda K922, 52-622, 29x2.1
Brakes
Brakes
V-Brake
Cockpit
Stem
R Raymon 25.4, 20 °
Handlebar
R Raymon Riser 25.4 mm, 680 mm, Sweep: 9 °, Rise: 30 mm
Grips
R Raymon Kids
Seat
Seatpost
R Raymon, 27.2 mm, Patent
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Bottom Bracket Height | 318 mm | 318 mm |
| Front Center | 659 mm | 684 mm |
| Stack | 608 mm | 608 mm |
| Top Tube Length | 591 mm | 616 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm |
| Head Tube Angle | 70.25 ° | 70.25 ° |
| Head Tube Length | 100 mm | 110 mm |
| Chainstay Length | 433 mm | 433 mm |
| Wheelbase | 1086 mm | 1111 mm |
| Bottom Bracket Drop | 56 mm | 56 mm |
| Wheels | 29" | 29" |
Model Overview
NineRay 1.0 is a Rraymon Nineray model. There are 3 bikes that carry this model name.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When R RAYMON released this model in 2021, its price was 562$. Comparing the average cost of a Crosscountry bike to this one, you will see that NineRay 1.0 price is 238.97% lower.
Overview of components
Fork
The Suntour is included from the factory. It has a travel distance of mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on NineRay 1.0 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The NineRay 1.0 comes with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
