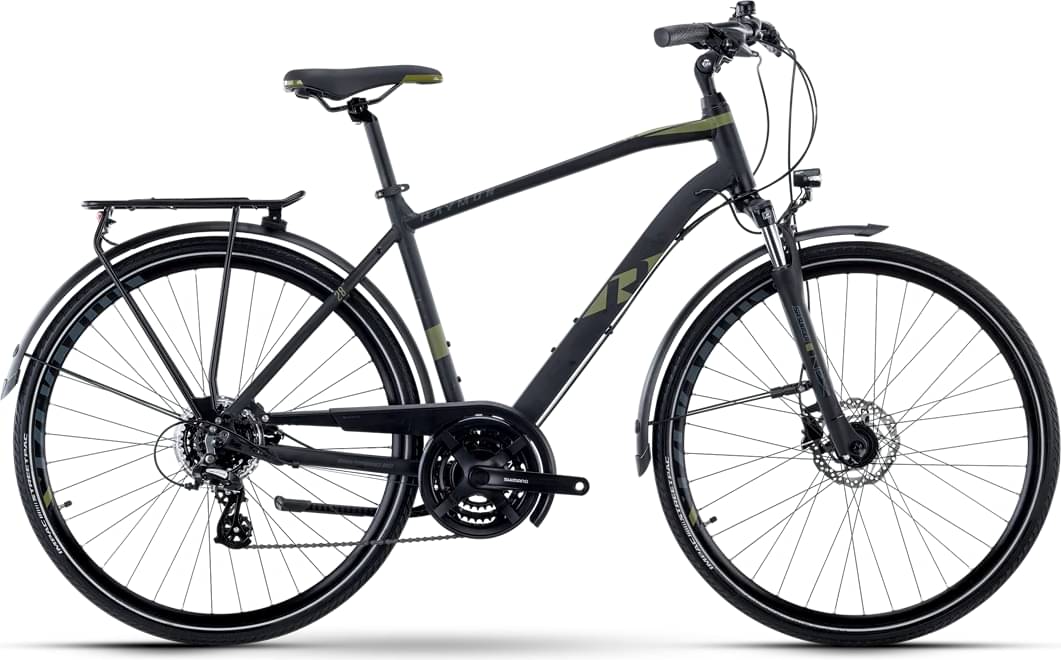

rraymon R RAYMON TourRay 2.0 Gent 2024
2024 Road
Estimate price |
906$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Fork Suntour NEX -
Groupset Tourney, Altus -
Suspension Hardtail -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
SR SUNTOUR NEX-E25
Drivetrain
Rear Derailleur
Shimano Altus, RD-M310, 21-S
Shift Levers
Shimano ST-EF505, Rapidfire Plus
Crank
Shimano Tourney, FC-TY301, 48/38/28 T
Wheels
Rims
Front: Rim: Mach 1 MC40E, geöst, Tubeless Ready / Hub: Shimano DH-T4050, Center Lock, 9x100 mm, Schnellspannachse, Rear: Rim: Mach 1 MC40E, geöst, Tubeless Ready / Hub: Shimano TY505, Center Lock, 9x135 mm, Schnellspannachse, HG
Tires
Impac StreetPac, Reflex, 42-622, 28x1.6
Brakes
Brakes
Front: Shimano BR-MT200, 2-Kolben, Hydraulische Scheibenbremse, Rear: Shimano BR-MT200, 2-Kolben, Hydraulische Scheibenbremse
Cockpit
Stem
R Raymon 25.4, einstellbar
Handlebar
R Raymon Riser 25,4 mm, 640 mm, Sweep: 15 °, Rise: 16 mm
Seat
Saddle
R Raymon Ergo
Seatpost
R Raymon, 27,2 mm, 350 mm, Patent
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 45cm | 48cm | 50cm | 52cm | 55cm | 56cm | 60cm | SM | MD | LG | XL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
