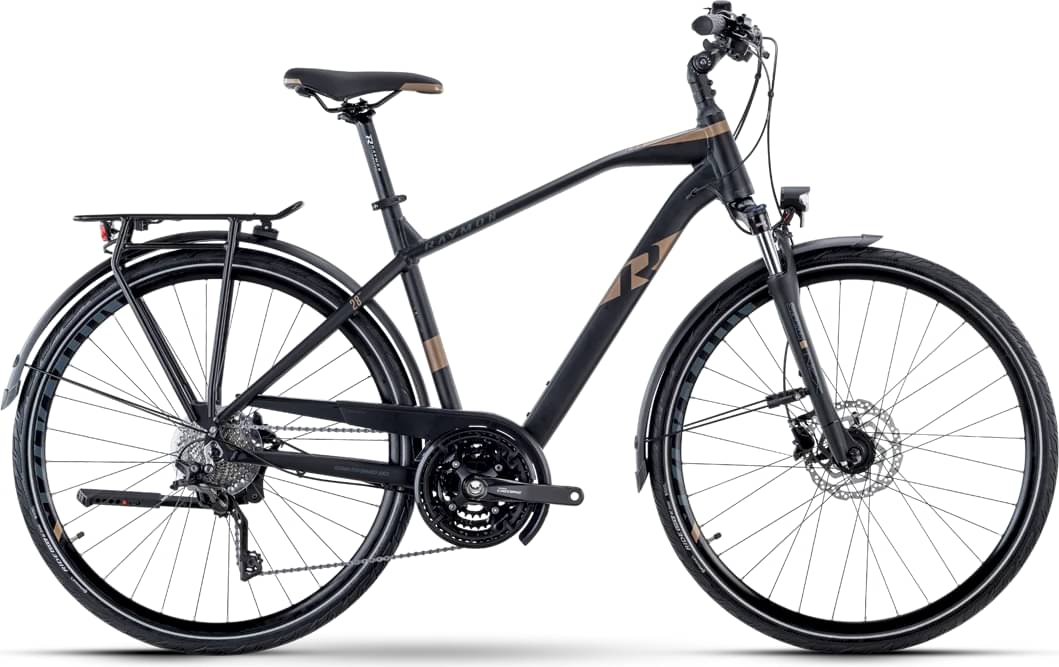

rraymon R RAYMON TourRay 5.0 Gent 2024
2024 Road
Estimate price |
1,453$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Fork Suntour NEX -
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
SR SUNTOUR NEX-E25, Feder, 63 mm
Drivetrain
Rear Derailleur
Shimano Deore XT, RD-T8000, Shadow, 10-S
Shift Levers
Shimano Deore XT, SL-T8000, Rapidfire Plus
Crank
Shimano Deore, FC-T6010, 48/36/26 T
Wheels
Rims
Front: Rim: Mach 1 MC40E, geöst, Tubeless Ready / Hub: Shimano DH-T4050, Center Lock, 9x100 mm, Rear: Rim: Mach 1 MC40E, geöst, Tubeless Ready / Hub: Shimano TX505, Center Lock
Tires
Continental Ride City, Reflex, 42-622, 28x1.6
Brakes
Brakes
Front: Shimano BR-MT200, 2-Kolben, Hydraulische Scheibenbremse, Rear: Shimano BR-MT200, 2-Kolben, Hydraulische Scheibenbremse
Cockpit
Stem
R Raymon 31.8, einstellbar
Handlebar
R Raymon Riser 31,8 mm, 640 mm, Sweep: 6 °, Rise: 18 mm
Seat
Saddle
R Raymon Ergo
Seatpost
R Raymon, 30,9 mm, 350 mm, Patent
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 45cm | 48cm | 50cm | 52cm | 55cm | 56cm | 60cm | SM | MD | LG | XL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
