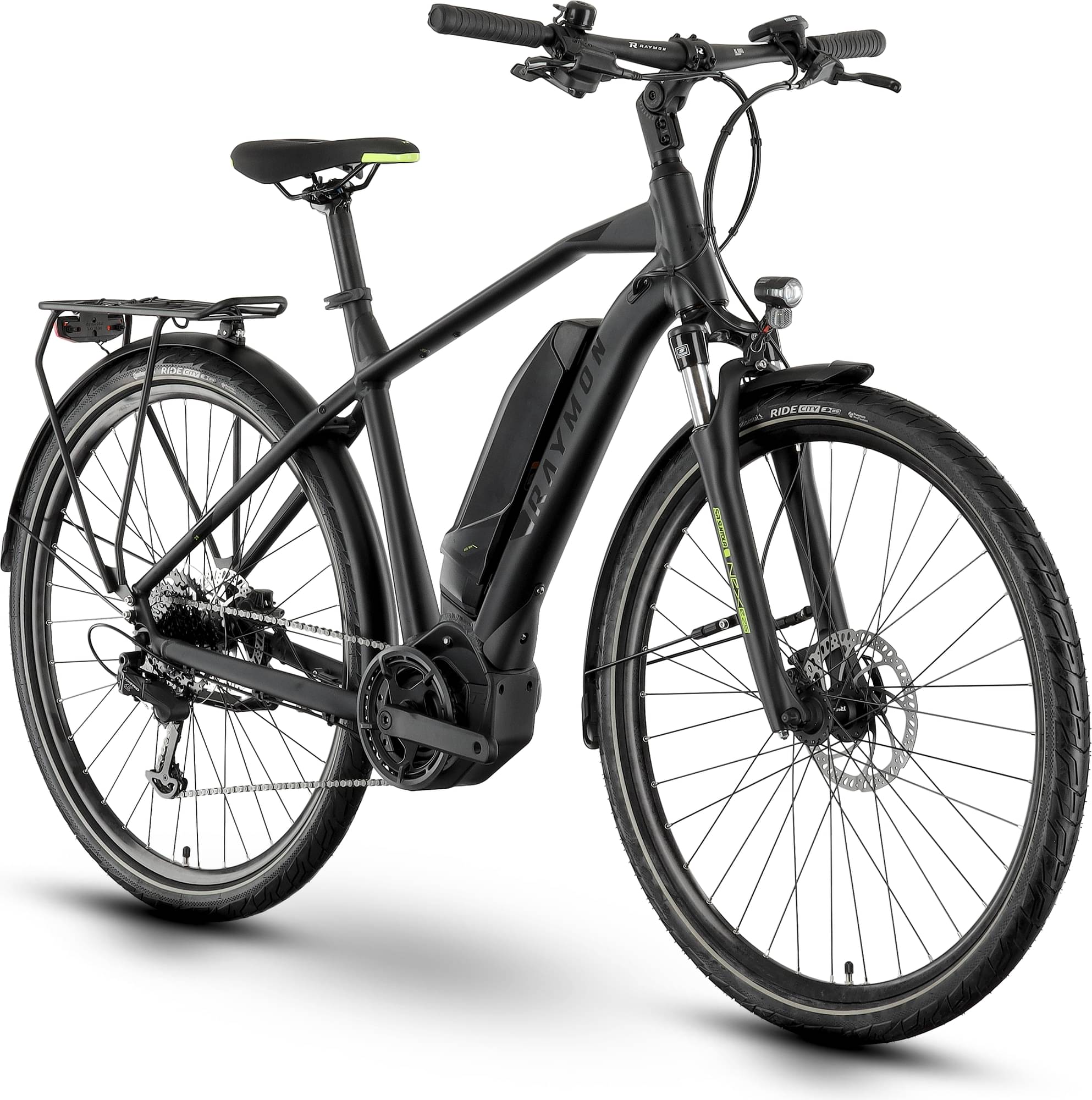

rraymon R RAYMON TourRay E 1.0 SE 2024
2024 E-bike
Estimate price |
2,981$
Weight | 24 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour NEX -
Groupset Tektro EDRIVE 9 -
Suspension Hardtail -
Motor Yamaha 250W 50Nm mid-drive -
Battery Yamaha DT400, 400 Wh, 36 V -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", Alloy 6061, External battery
Suspension Fork
SR SUNTOUR NEX-E25, Coil, 63 mm
Drivetrain
Rear Derailleur
Tektro RD-T350, 8-S
Shift Levers
Tektro SL-M330R
Cassette
Tektro CS-M330, 12-42 T
Crank
R Raymon, 38 T
Chain
KMC Z8
Pedals
R Raymon, aluminum
Wheels
Rims
Front: Rim: Mach 1 MC40E, With eyelets, Tubeless ready / Hub: R Raymon DB600F, 6-hole, 9x100 mm, Quick-release axle, Rear: Rim: Mach 1 MC40E, With eyelets, Tubeless ready / Hub: R Raymon DB602R, 6-hole, 9x135 mm, Quick-release axle
Tires
Continental Ride City, Reflex, 47-622, 28, 1.75
Brakes
Brakes
Front: Tektro HD-T275, 2-piston, Hydraulic disc brake, Rear: Tektro HD-T275, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, adjustable
Handlebar
R Raymon 31.8 mm, 700 mm, Sweep: 9 °, Rise: 15 mm
Grips
R Raymon Ergo, Lock-on grips
Headset
R Raymon ZS44/ZS56
Seat
Saddle
R Raymon Ergo
Seatpost
R Raymon, 31.6 mm, 350 mm, Patent
Motor & Battery
Motor
Yamaha PW-CE, 250 W, 50 Nm
Battery
Yamaha DT400, 400 Wh, 36 V
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.643 mm | 1.621 mm | 1.612 mm | 1.607 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm |
| Front Center | 628 mm | 650 | 671 mm | 691 mm |
| Rake | 45 mm | 44 mm | 44 mm | 42 mm |
| Trail | 74 mm | 75 mm | 75 mm | 78 mm |
| Stack | 616 mm | 634 mm | 653 mm | 675 mm |
| Reach | 375 mm | 391 mm | 405 mm | 420 mm |
| Top Tube Length | 565 mm | 585 mm | 605 mm | 625 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1091 mm | 1113 mm | 1134 mm | 1155 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
