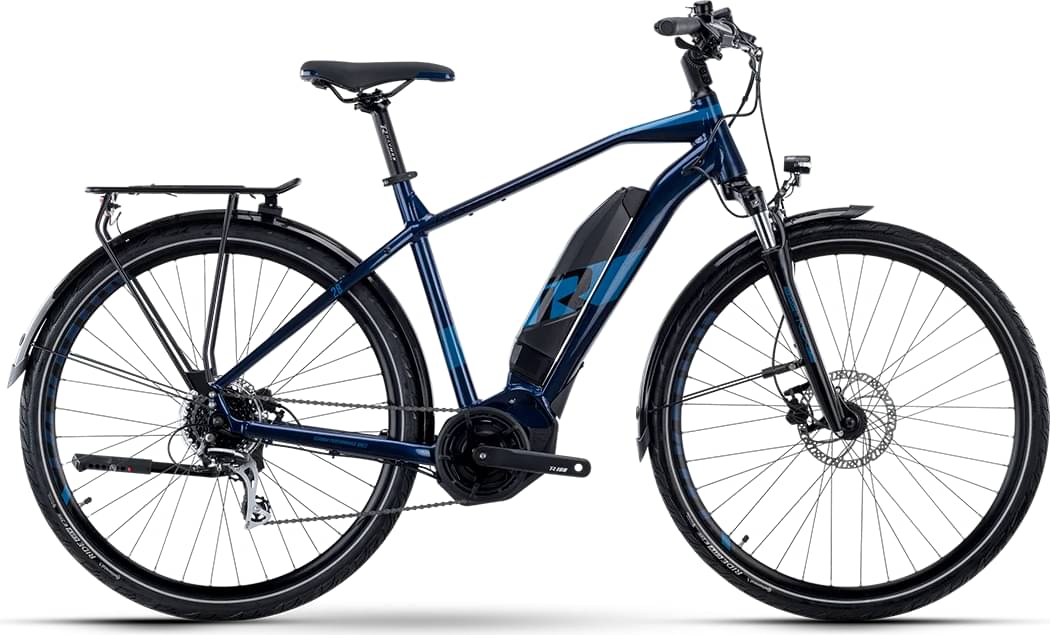

rraymon R RAYMON TourRay E 2.0 Gent 2024
2024 E-bike
Estimate price |
3,096$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Groupset Acera, Altus -
Motor Yamaha 250W 60Nm mid-drive -
Battery Yamaha DT500, 500 Wh, 36 V -
Drivetrain 1 × 8 -
Brakes Tektro Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
Shimano Acera, RD-M360, 8-S
Shift Levers
Shimano Altus, SL-M315, Rapidfire Plus
Crank
R Raymon, 38 T
Wheels
Tires
Continental Ride City, Reflex, 47-622, 28x1.75
Brakes
Brakes
Rear: Tektro HD-T275, 2-Kolben, Hydraulische Scheibenbremse
Cockpit
Stem
R Raymon 31.8, einstellbar
Handlebar
R Raymon 31,8 mm, 700 mm, Sweep: 9 °, Rise: 15 mm
Seat
Saddle
R Raymon Ergo
Seatpost
R Raymon, 30,9 mm, 350 mm, Patent
Motor & Battery
Motor
Yamaha PW-TE, 250 W, 60 Nm
Battery
Yamaha DT500, 500 Wh, 36 V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 52cm | 56cm | 60cm |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
