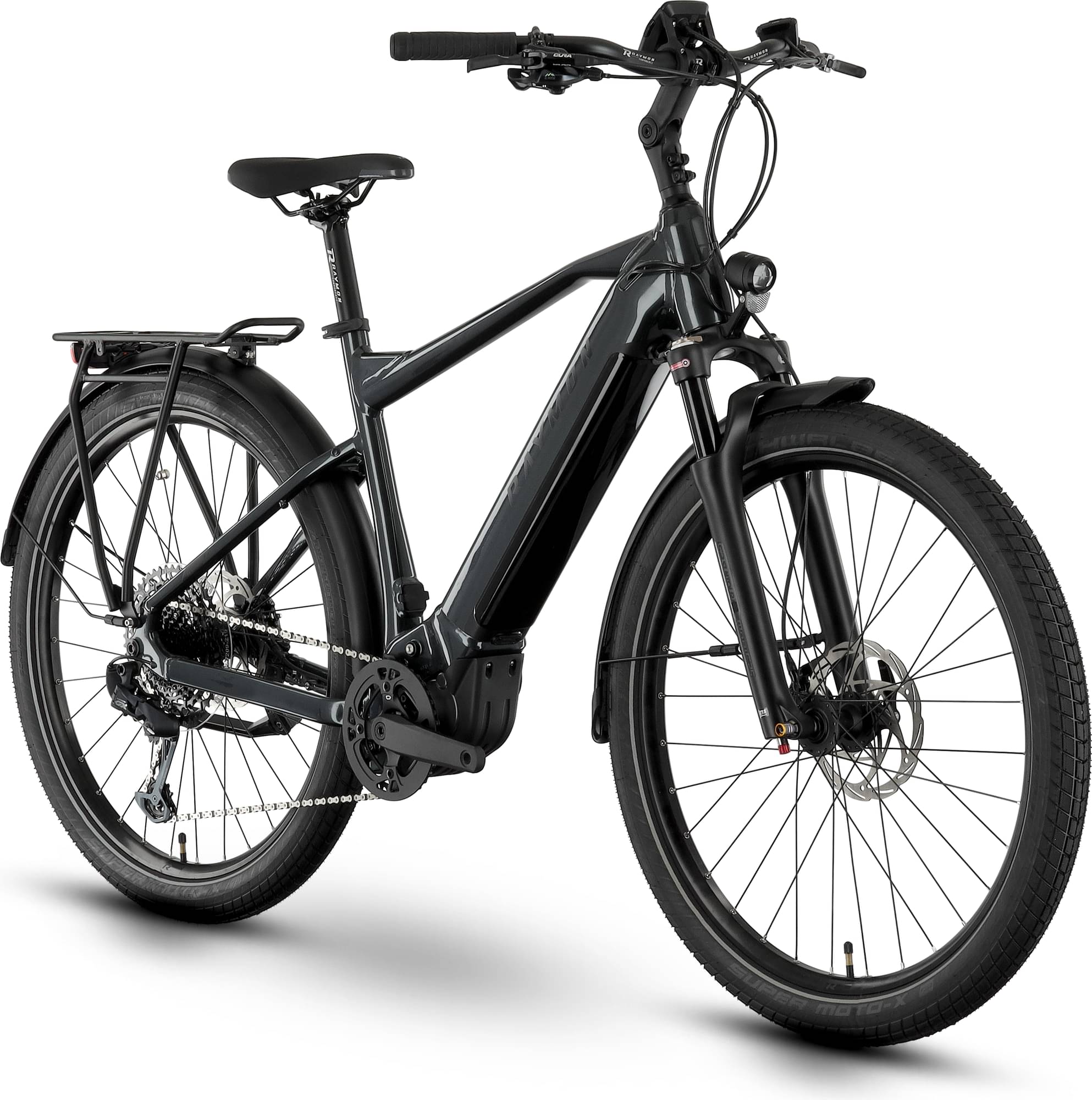

rraymon R RAYMON TourRay E 8.0 SE 2024
2024 E-bike
Estimate price |
5,390$
Weight | 25.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour MOBIE -
Groupset GX Eagle -
Suspension Hardtail -
Motor Yamaha 250W 85Nm mid-drive -
Battery Simplo, 630 Wh, 36 V -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5", Alloy 6061, Integrated battery, Boost
Suspension Fork
SR SUNTOUR Mobie25 LOR, Air, 63 mm, tapered
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-S
Shift Levers
SRAM GX Eagle, Single Click
Cassette
SRAM PG-1230, 11-50 T
Crank
SRAM X-Sync Eagle, 38 T
Chain
SRAM GX Eagle
Pedals
R Raymon, aluminum
Wheels
Rims
Front: Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: R Raymon DA210F, 6-hole, 15x110 mm, thru axle, Rear: Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: R Raymon DA210R, 6-hole, 12x148 mm, thru axle
Tires
Schwalbe Super Moto-X, Performance, Reflex, 62-584, 27.5, 2.4
Brakes
Brakes
Front: Formula Cura, 2-piston, Hydraulic disc brake, Rear: Formula Cura, 2-piston, Hydraulic disc brake
Cockpit
Stem
Husqvarna 31.8, Ahead, adjustable
Handlebar
R Raymon Ergo 31.8 mm, 640 mm, Sweep: 35 °, Rise: 20 mm
Grips
R Raymon Ergo, Lock-on grips
Headset
R Raymon ZS44/ZS56
Seat
Saddle
R Raymon Ergo
Seatpost
R Raymon, 31.6 mm, 350 mm, Patent
Motor & Battery
Motor
Yamaha PW-X3, 250 W, 85 Nm
Battery
Simplo, 630 Wh, 36 V
Charger
Simplo rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.496 mm | 1.508 mm | 1.505 mm |
| Front Center | 675 mm | 680 mm | 691 mm |
| Rake | 44 mm | 44 mm | 45 mm |
| Trail | 69 mm | 69 mm | 67 mm |
| Stack | 627 mm | 635 mm | 644 mm |
| Reach | 419 mm | 421 mm | 428 mm |
| Top Tube Length | 610 mm | 615 mm | 625 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 140 mm | 150 mm | 160 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1128 mm | 1133 mm | 1144 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
