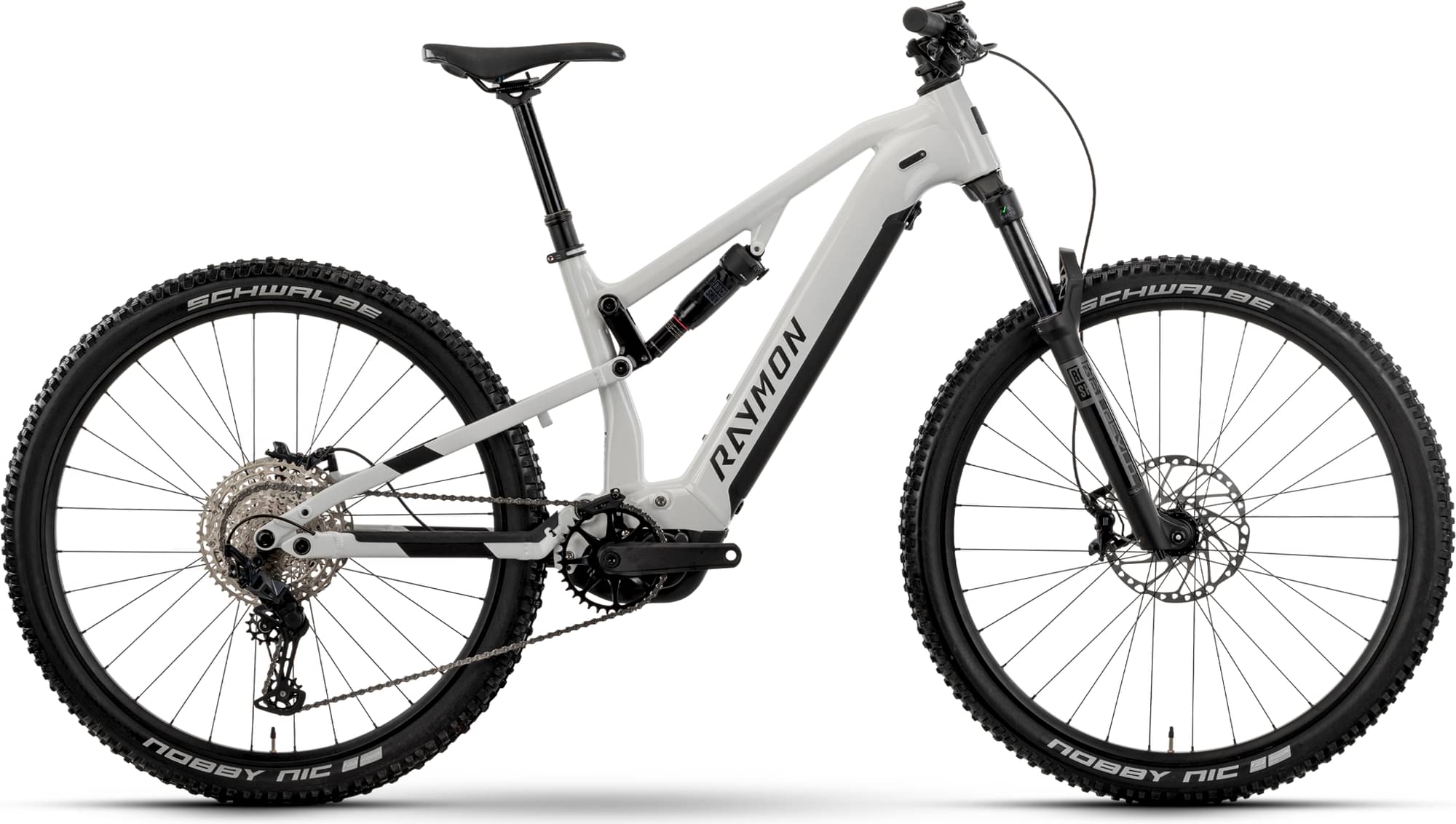

rraymon R RAYMON Trailray 120 Ultra 2025
2025 E-bike
Estimate price |
5,816$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Groupset SLX, Deore -
Motor Yamaha 600W 85Nm mid-drive -
Battery 800 Wh, 36 V -
Drivetrain 1 × 12 -
Brakes Shimano SLX Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
Shimano SLX, RD-M7100, Shadow Plus, 12-S
Shift Levers
Shimano Deore, SL-M6100, Rapidfire Plus
Crank
Raymon, Narrow Wide, 36T
Wheels
Rims
29"
Tires
Schwalbe Nobby Nic Perf, Addix, 62-622, 29x2.40
Brakes
Brakes
Front: Shimano SLX, BR-M7120, 4-piston, hydr. disc brake, Rear: Shimano SLX, BR-M7120, 4-piston, hydr. disc brake
Cockpit
Stem
Raymon 31,8, Ahead
Handlebar
Raymon Riser 31,8 mm, Sweep: 9 °, Rise: 20 mm
Seat
Saddle
Raymon
Seatpost
Raymon, 34,9 mm, Dropper Post
Motor & Battery
Motor
Yamaha PW-X3, 250/600 W, 85 Nm
Battery
800 Wh, 36 V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
