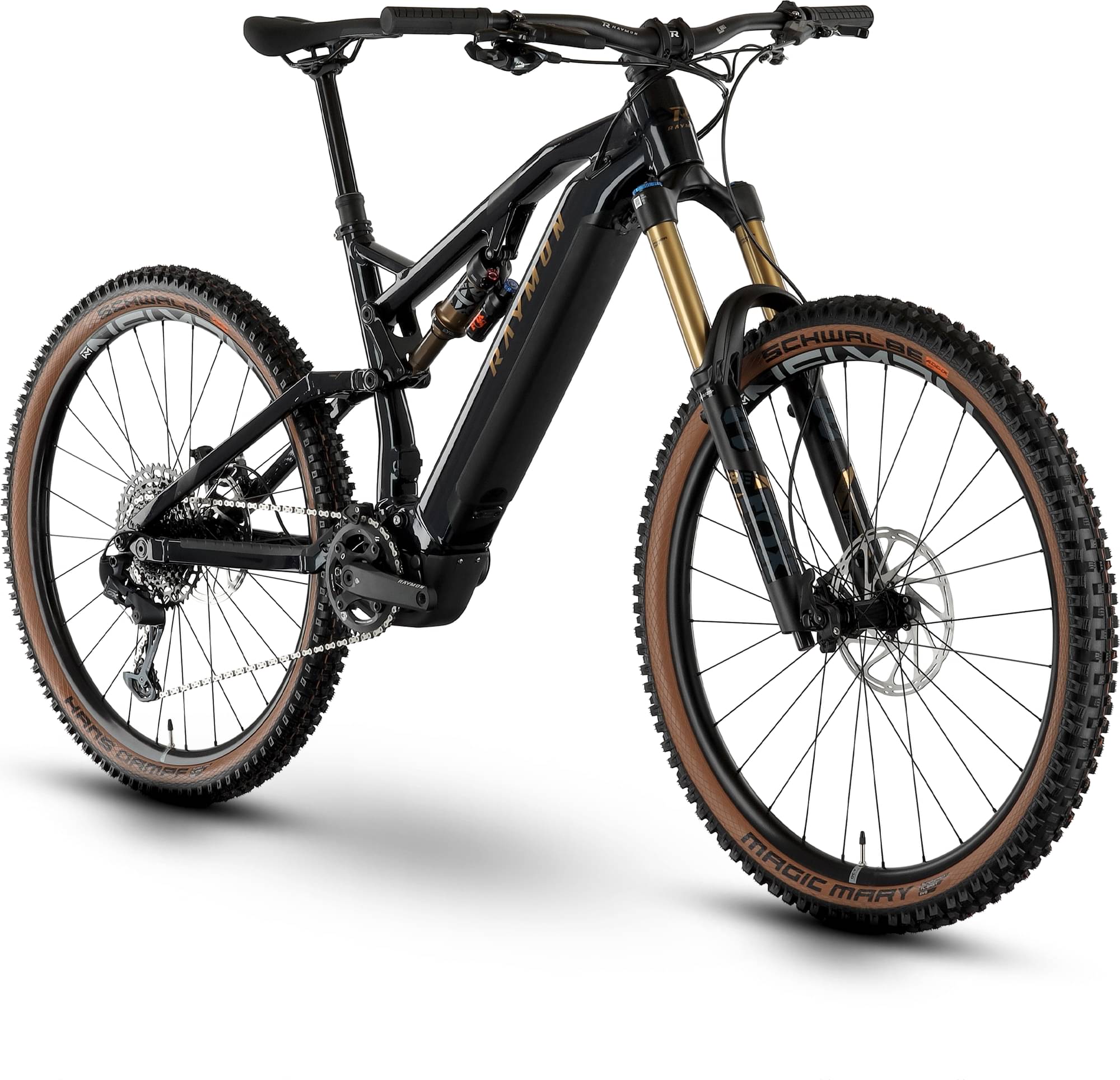

rraymon R RAYMON TrailRay 160E 11.0 SE 2024
2024 E-bike
Estimate price |
6,979$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Factory Float 38
-
Groupset GX Eagle -
Suspension Full -
Motor Yamaha 250W 85Nm mid-drive -
Battery Simplo, 720 Wh, 36 V -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", Alloy 6061, Integrated battery, Boost, 160 mm
Suspension Fork
FOX Float 38 Factory, Grip 2, E-Optimized, Air, 170 mm, tapered
Rear Shock
FOX Float X Factory, Air, 230x65 mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-S
Shift Levers
SRAM GX Eagle, Single Click
Cassette
SRAM PG-1230, 11-50 T
Crank
SRAM X-Sync Eagle, 38 T
Chain
SRAM GX Eagle
Chain Guide
ISCG-05
Pedals
R Raymon, aluminum
Wheels
Rims
NEWMEN Evolution A.30, Tubeless ready, Center lock, 15x110/12x148 mm, thru axle
Tires
Rear: Schwalbe Hans Dampf, Evolution, 60-622, 29 x 2.35, Tubeless ready
Brakes
Brakes
Front: SRAM Code R, 4-piston, Hydraulic disc brake, Rear: SRAM Code R, 4-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 35, 0 °, Ahead
Handlebar
R Raymon Riser 35 mm, 780 mm, Sweep: 9 °, Rise: 20 mm
Grips
R Raymon MTB, Lock-on grips
Headset
FSA Orbit ZS56/ZS56
Seat
Saddle
R Raymon MTB
Seatpost
R Raymon, 34.9 mm, Dropper post
Motor & Battery
Motor
Yamaha PW-X3, 250 W, 85 Nm
Battery
Simplo, 720 Wh, 36 V
Charger
Simplo rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.393 mm | 1.297 mm | 1.243 mm |
| Bottom Bracket Height | 354 mm | 354 mm | 354 mm |
| Front Center | 782 mm | 826 mm | 854 mm |
| Rake | 39 mm | 39 mm | 40 mm |
| Trail | 139 mm | 139 mm | 138 mm |
| Stack | 620 mm | 629 mm | 634 mm |
| Reach | 445 mm | 485 mm | 510 mm |
| Top Tube Length | 506 mm | 561 mm | 645 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 410 mm | 460 mm | 490 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 110 mm | 115 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1241 mm | 1285 mm | 1313 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm |
| Wheels | 29" | 29" | 29" |
