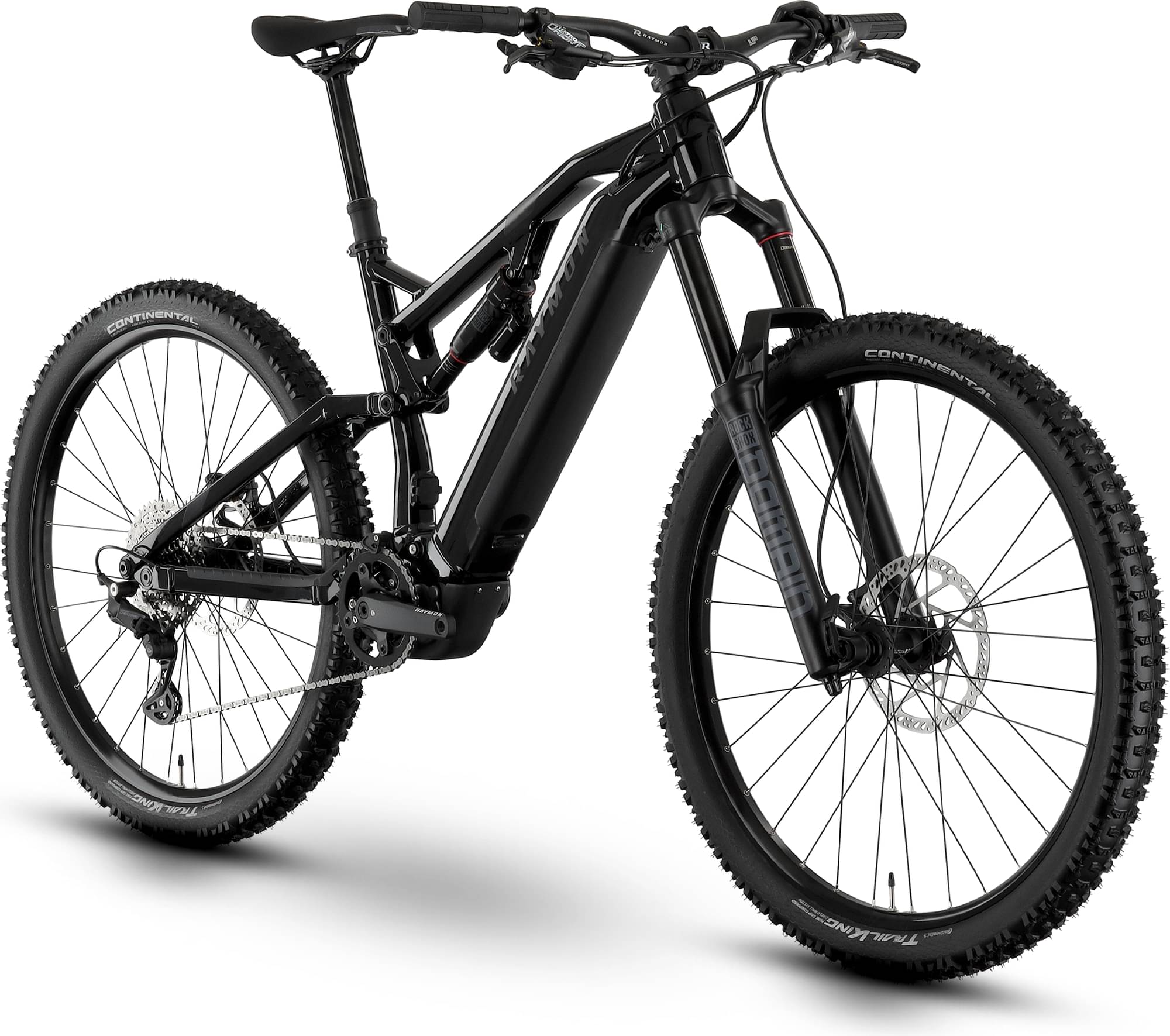

rraymon R RAYMON TrailRay 160E 9.0 SE 2024
2024 E-bike
Estimate price |
5,390$
Weight | 25.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Travel Rear 160mm -
Fork RockShox Domain
-
Groupset Deore -
Suspension Full -
Motor Yamaha 250W 85Nm mid-drive -
Battery Simplo, 720 Wh, 36 V -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", Alloy 6061, Integrated battery, Boost, 160 mm
Suspension Fork
RockShox Domain R, DebonAir, Air, 170 mm, tapered
Rear Shock
RockShox Deluxe Select, Air, 230x65 mm
Drivetrain
Rear Derailleur
Shimano Deore LG, RD-M5130, Shadow Plus, 10-S
Shift Levers
Shimano Deore, SL-M5130, Rapidfire Plus
Cassette
Shimano CS-LG400, 11-43 T
Crank
R Raymon, Narrow Wide, 38 T
Chain
Shimano CN-LG500
Chain Guide
ISCG-05
Pedals
R Raymon, aluminum
Wheels
Rims
Front: Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: R Raymon DA210F, 6-hole, 15x110 mm, thru axle, Rear: Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: R Raymon DA210R, 6-hole, 12x148 mm, thru axle
Tires
Continental Trail King, 60-622, 29, 2.4
Brakes
Brakes
Front: Tektro HD-M745, 4-piston, Hydraulic disc brake, Rear: Tektro HD-M745, 4-piston, Hydraulic disc brake
Brake Levers
Aluminium, Brake lever, adjustable, 2-finger
Cockpit
Stem
R Raymon 35, 0 °, Ahead
Handlebar
R Raymon Riser 35 mm, 780 mm, Sweep: 9 °, Rise: 20 mm
Grips
R Raymon MTB, Lock-on grips
Headset
FSA Orbit ZS56/ZS56
Seat
Saddle
R Raymon MTB
Seatpost
R Raymon, 34.9 mm, Dropper post
Motor & Battery
Motor
Yamaha PW-X3, 250 W, 85 Nm
Battery
Simplo, 720 Wh, 36 V
Charger
Simplo rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | LG | XL |
|---|---|---|
| Stack Reach Ratio | 1.297 mm | 1.243 mm |
| Bottom Bracket Height | 354 mm | 354 mm |
| Front Center | 826 mm | 854 mm |
| Rake | 39 mm | 40 mm |
| Trail | 139 mm | 138 mm |
| Stack | 629 mm | 634 mm |
| Reach | 485 mm | 510 mm |
| Top Tube Length | 561 mm | 634 mm |
| Seat Tube Angle | 72 ° | 72 ° |
| Seat Tube Length | 460 mm | 490 mm |
| Head Tube Angle | 64 ° | 64 ° |
| Head Tube Length | 110 mm | 115 mm |
| Chainstay Length | 460 mm | 460 mm |
| Wheelbase | 1285 mm | 1313 mm |
| Bottom Bracket Drop | 20 mm | 20 mm |
| Wheels | 29" | 29" |
