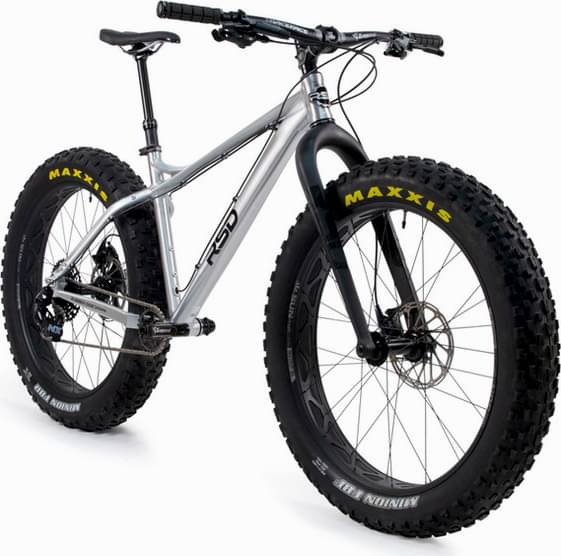

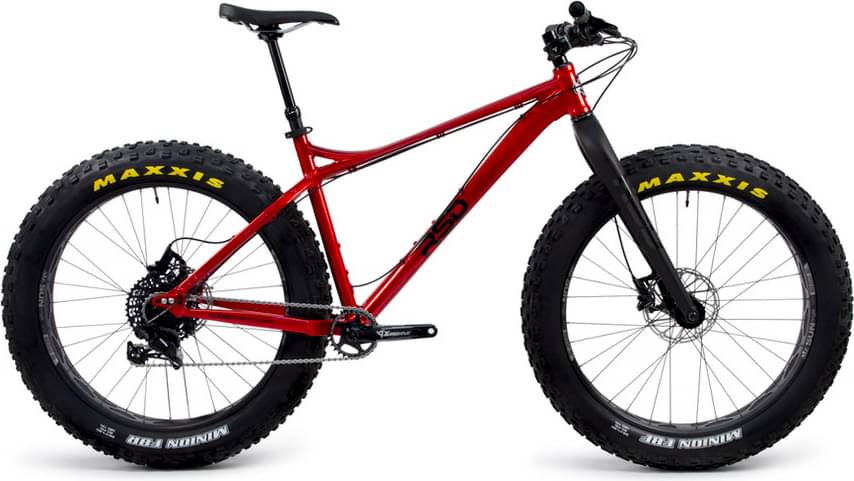

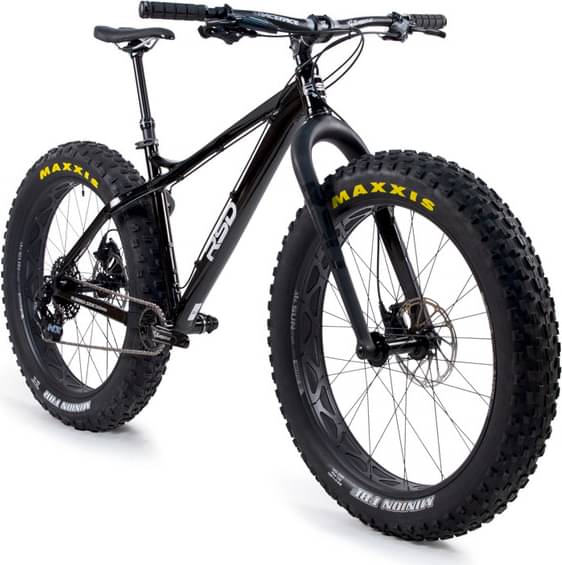

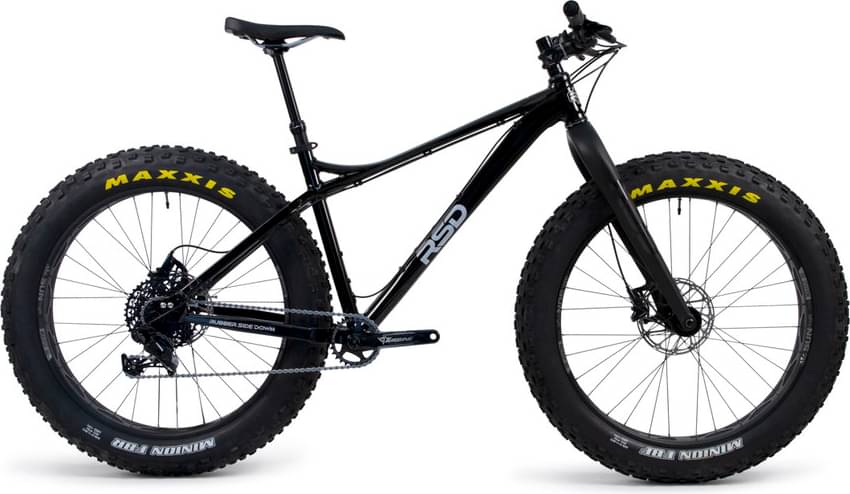

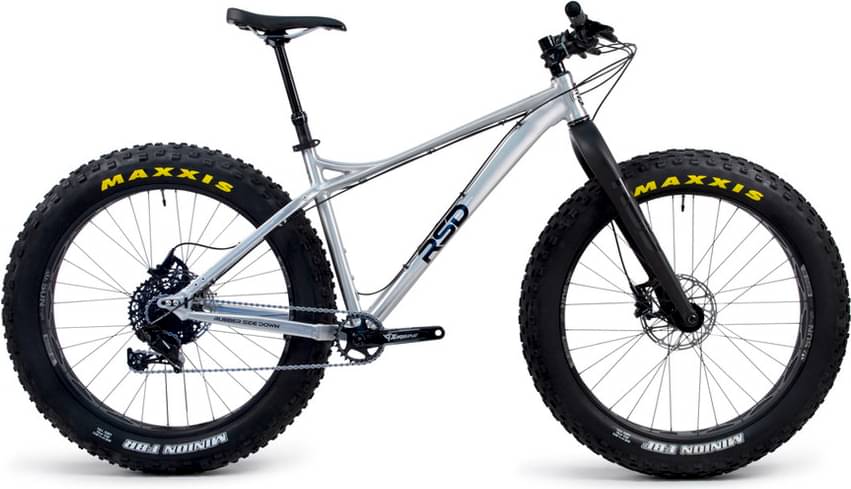

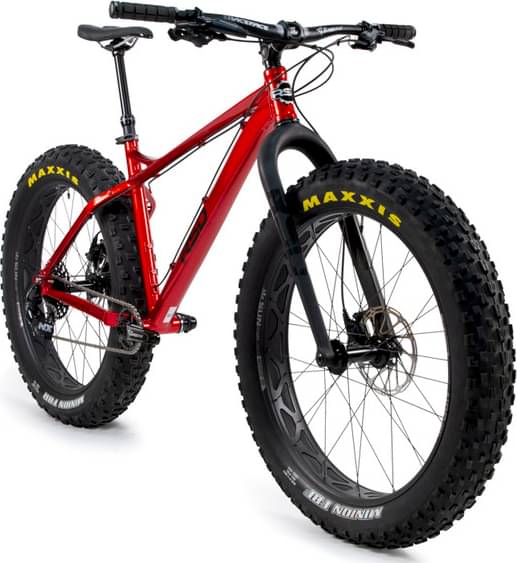

RSD MAYOR V5 Aluminum Build Kit 1×11 NX CF 2024
2024 Mountain
Estimate price |
2,399$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset NX -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Version 5 FAT Bike Custom Hydroform AL6061
Suspension Fork
RSD Custom 490mm Carbon w/15x150mm Axle 51mm Offset with Black Decals
Drivetrain
Rear Derailleur
SRAM NX Type 2 11spd
Shift Levers
SRAM NX 11spd
Cassette
MicroShift 11/42T 11spd
Crank
Race Face 175mm CINCH DM
Bottom Bracket
Race Face 100mm BSA
Chain
KMC 11SL
Wheels
Rims
Sun Ringle Mulefüt V2 Fat 26x80mm Front 15x150mm
Tires
Maxxis Minion FBF and FBR 4.8
Brakes
Brakes
Avid Level T Hydraulic
Cockpit
Stem
Race Face Ride 50mm
Handlebar
Race Face Chester 35 780mm
Grips
Ergon GE10 Black
Headset
Cane Creek ZS44/28.6 Top & EC44/40 Bottom
Seat
Saddle
WTB Volt Comp
Seatpost
30.9mm Race Face Ride or KS Dropper (S & M 125mm, L & XL 150mm, XXL 175mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.343 mm | 1.299 mm | 1.268 mm | 1.258 mm | 1.256 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 689 mm | 715 mm | 737 mm | 763 mm | 786 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 151 mm | 151 mm | 151 mm | 151 mm | 151 mm |
| Stack | 572 mm | 582 mm | 591 mm | 610 mm | 628 mm |
| Reach | 426 mm | 448 mm | 466 mm | 485 mm | 500 mm |
| Top Tube Length | 590 mm | 615 mm | 635 mm | 660 mm | 680 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 450 mm | 470 mm | 490 mm | 520 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 130 mm | 150 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1118 mm | 1144 mm | 1166 mm | 1193 mm | 1216 mm |
| Bottom Bracket Drop | -55 mm | -55 mm | -55 mm | -55 mm | -55 mm |
| Standover Height | 685 mm | 715 mm | 730 mm | 747 mm | 770 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
