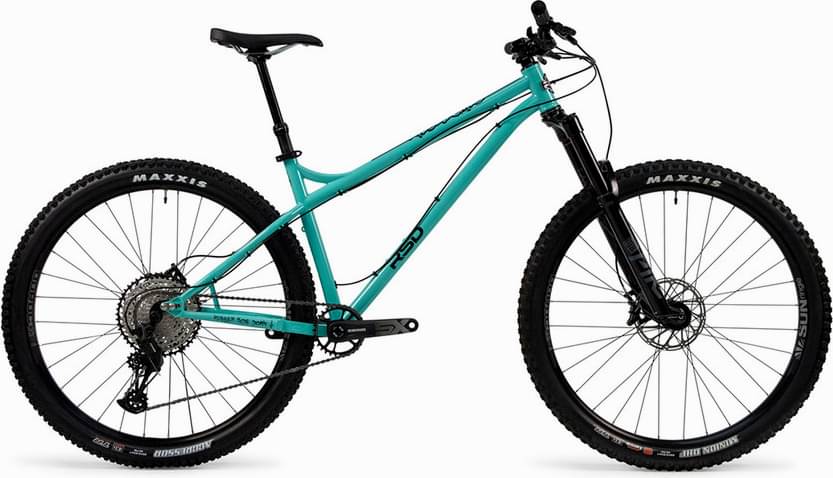

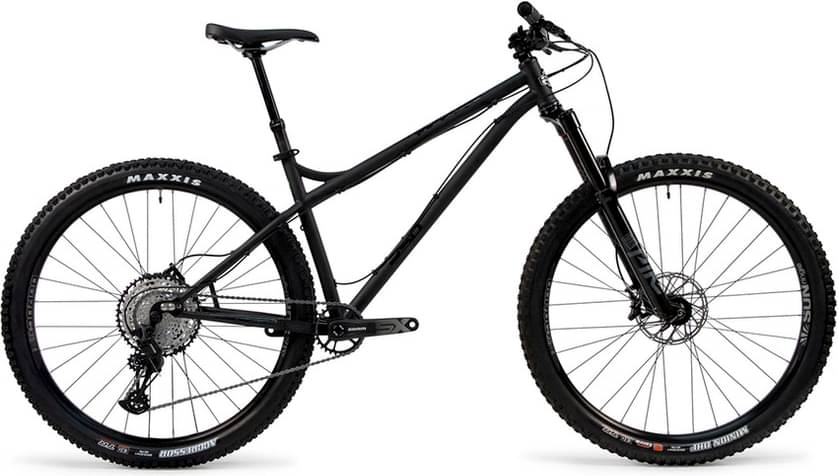

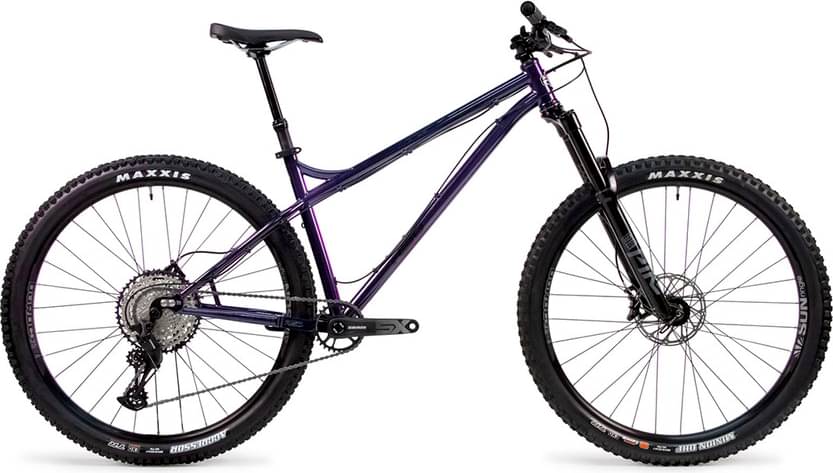

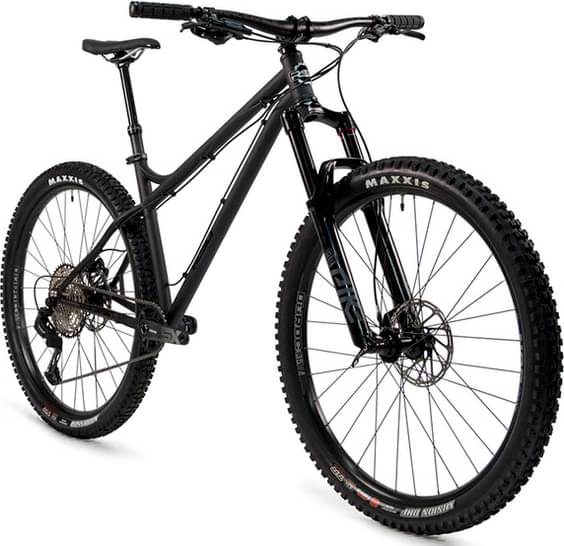

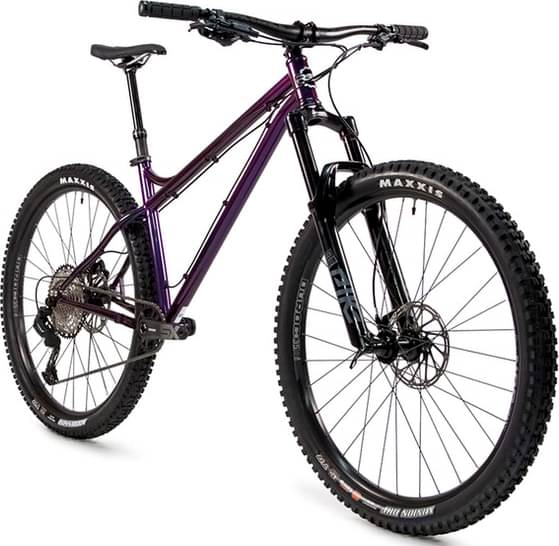

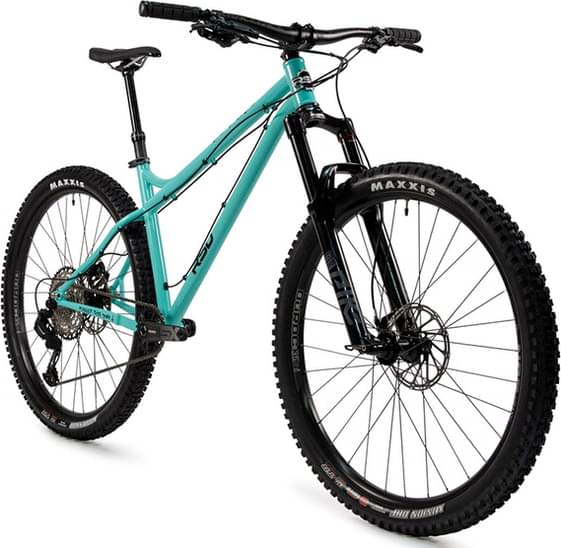

RSD MIDDLECHILD V2 Chromoly GX/D2 2024
2024 Mountain
Estimate price |
2,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Travel Front 140mm -
Fork DVO Diamond
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5+/29 Cr-Mo 4130 Double Butted and Heat Treated
Suspension Fork
DVO Diamond D2 27.5+/29 140mm 51mm
Drivetrain
Rear Derailleur
SRAM GX Eagle Long Cage 12spd
Shift Levers
SRAM GX Eagle Trigger 12spd
Cassette
SRAM Eagle PG-1210 11-50T 12spd
Crank
SRAM GX Eagle 175mm DM
Bottom Bracket
SRAM DUB 73mm BSA
Chain
SRAM Eagle 12spd
Wheels
Rims
Sun Ringle Duroc 27.5x40mm 15x110mm & 12x148mm Boost
Tires
MAXXIS Minion DHF 29×2.5WT 3C/Max Terra/EXO Front and Aggressor 29×2.5WT 3C?Max Terra/EXO Rear, (Minimum Sliding Drop-Out Position – 425mm)
Brakes
Brakes
SRAM Guide RS
Cockpit
Stem
FSA Comet 35 50mm
Handlebar
Race Face 35mm Aeffect 780mm
Grips
Lizard Skin Northshore
Headset
Cane Creek ZS44/28.6 Top & EC44/40 Bottom
Seat
Saddle
Cionlli 142mm
Seatpost
30.9mm Race Face Ride or KS LEV Dropper (S 125mm, M 150mm, L 175mm & XL 200mm) with SouthPaw Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.488 mm | 1.382 mm | 1.331 mm | 1.286 mm |
| Bottom Bracket Height | 325 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 740 mm | 781 mm | 798 mm | 826 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 159 mm | 152 mm | 152 mm | 153 mm |
| Stack | 610 mm | 619 mm | 619 mm | 629 mm |
| Reach | 410 mm | 448 mm | 465 mm | 489 mm |
| Top Tube Length | 586 mm | 625 mm | 642 mm | 669 mm |
| Seat Tube Angle | 73.6 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 395 mm | 410 mm | 440 mm | 470 mm |
| Head Tube Angle | 64.1 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 1152 mm | 1193 mm | 1210 mm | 1238 mm |
| Bottom Bracket Drop | -40 mm | -40 mm | -40 mm | -40 mm |
| Standover Height | 695 mm | 710 mm | 714 mm | 717 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
