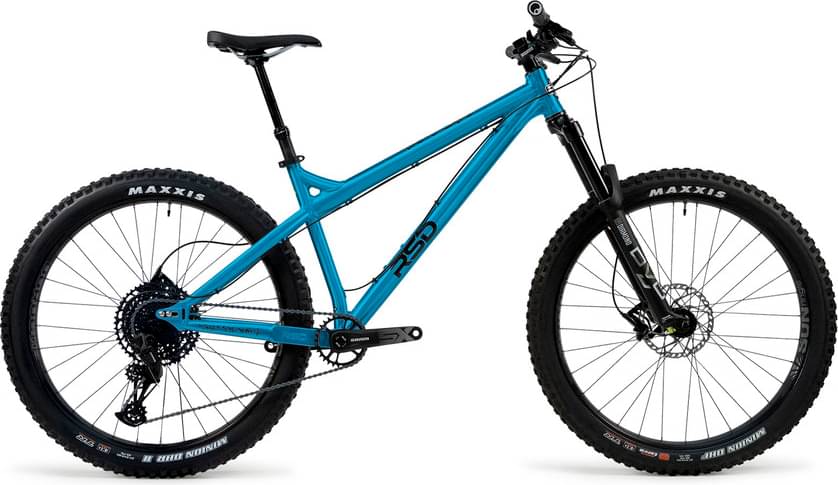

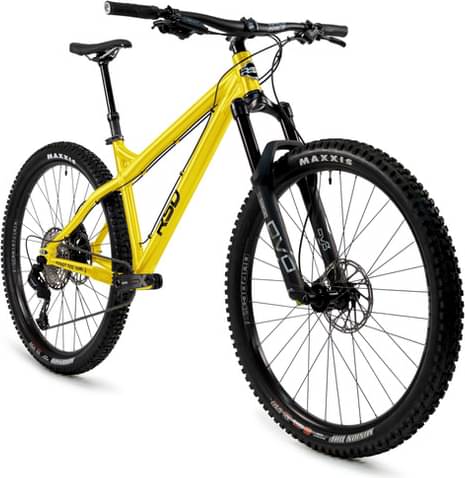

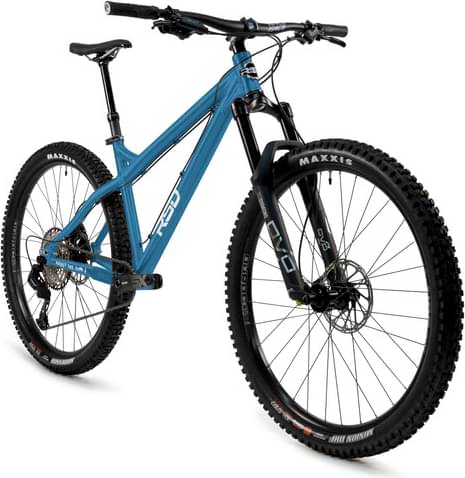

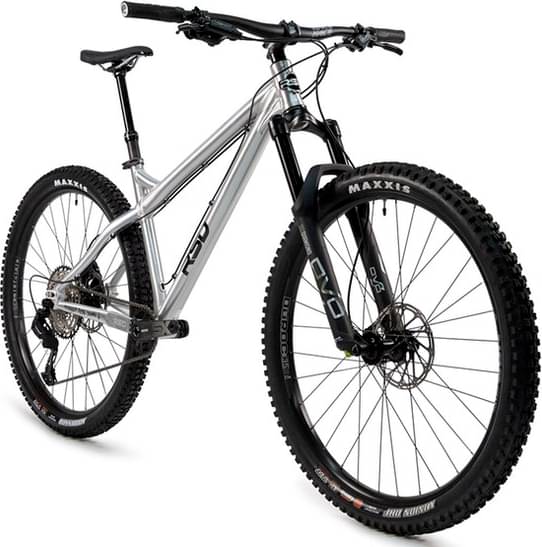

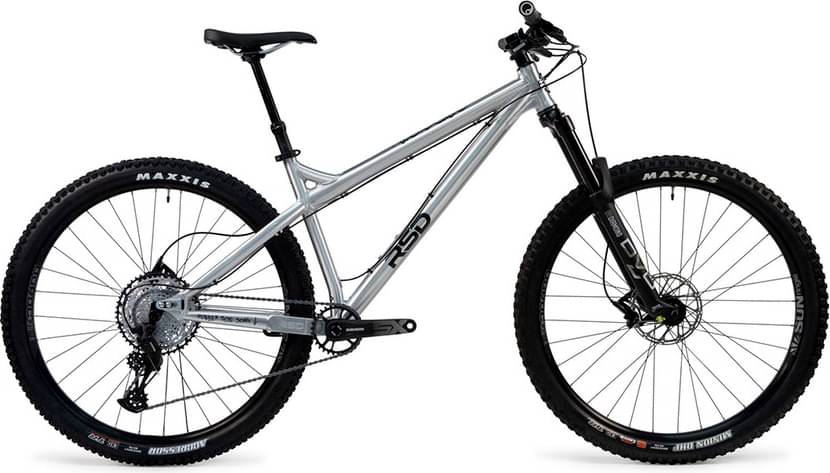

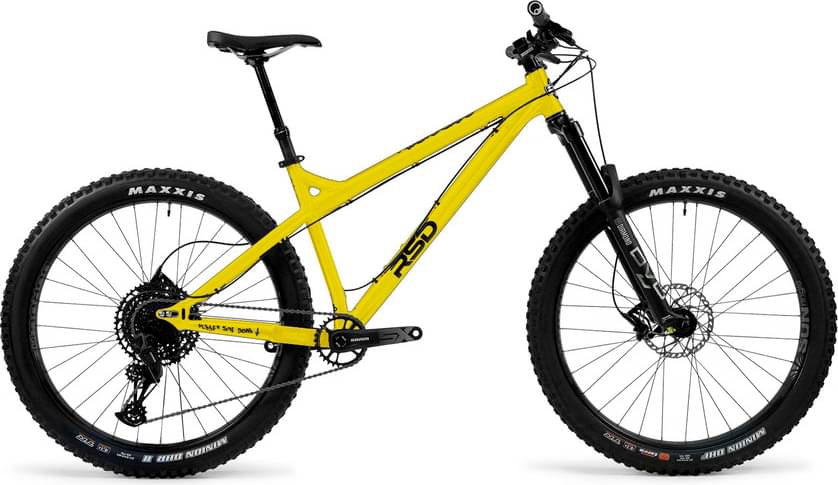

RSD MIDDLECHILD V3 Aluminum SX/D3 2024
2024 Mountain
Estimate price |
2,399$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Fork DVO Diamond
-
Groupset SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5+/29 Aluminum 6061
Suspension Fork
DVO Diamond D3 Black 27.5+/29 140mm 44mm
Drivetrain
Rear Derailleur
SRAM SX Eagle Long Cage 12spd
Shift Levers
SRAM SX Eagle Trigger 12spd
Cassette
SRAM Eagle PG-1210 11-50T 12spd
Crank
SRAM SX Eagle 175mm DM
Bottom Bracket
SRAM DUB 73mm BSA
Chain
SRAM Eagle 12spd
Wheels
Rims
Sun Ringle Duroc 27.5x40mm 15x110mm & 12x148mm Boost
Tires
MAXXIS Minion DHF 29×2.5WT 3C/Max Terra/EXO Front and Aggressor 29×2.5WT 3C?Max Terra/EXO Rear, (Minimum Sliding Drop-Out Position – 425mm)
Brakes
Brakes
SRAM Level T
Cockpit
Stem
Race Face Aeffect R 35 50mm
Handlebar
Race Face 35mm Chester 780mm
Grips
Ergon GE10 Black
Headset
Cane Creek 40 Series ZS44/28.6 Top & EC44/40 Bottom
Seat
Saddle
Cionlli 142mm
Seatpost
30.9mm Race Face Ride or KS LEV Dropper (S 125mm, M 150mm, L 175mm & XL 200mm) with SouthPaw Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.462 mm | 1.358 mm | 1.342 mm | 1.297 mm |
| Bottom Bracket Height | 330 mm | 325 mm | 325 mm | 325 mm |
| Front Center | 751 mm | 793 mm | 811 mm | 838 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 160 mm | 152 mm | 151 mm | 153 mm |
| Stack | 614 mm | 622 mm | 632 mm | 642 mm |
| Reach | 420 mm | 458 mm | 471 mm | 495 mm |
| Top Tube Length | 585 mm | 625 mm | 640 mm | 667 mm |
| Seat Tube Angle | 74.5 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 395 mm | 410 mm | 440 mm | 470 mm |
| Head Tube Angle | 64.1 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 1163 mm | 1205 mm | 1223 mm | 1250 mm |
| Bottom Bracket Drop | -40 mm | -40 mm | -40 mm | -40 mm |
| Standover Height | 690 mm | 691 mm | 702 mm | 711 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
