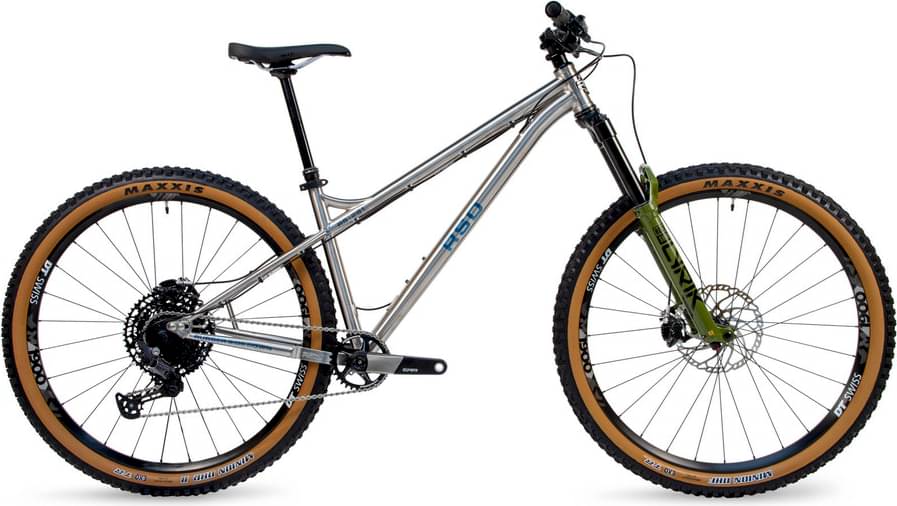

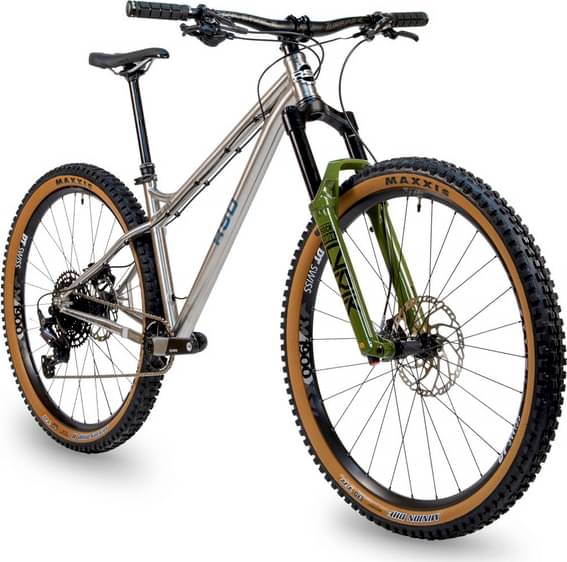

RSD RS-291 V2 Titanium XT/RSL-ULT 2024
2024 Mountain
Estimate price |
5,749$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Travel Front 150mm -
Fork RockShox Lyrik Ultimate
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29in Titanium Butted and Heat Treated
Suspension Fork
Rockshox 29in Lyrik Ultimate 150mm 44mm
Drivetrain
Rear Derailleur
Shimano XT 12spd
Shift Levers
Shimano XT Trigger 12spd
Cassette
Shimano XT 10-51T 12spd
Crank
Race Face Carbon Era 175mm DM
Bottom Bracket
Race Face 73mm BSA
Chain
Shimano XT 12spd
Wheels
Tires
MAXXIS Minion DHF 29×2.5WT 3C/Max Terra/EXO Tan Wall Front and Minion DHR 29×2.4WT 3C/Max Terra/EXO Tan Wall Rear
Brakes
Brakes
Shimano XT 4 Pistons
Cockpit
Stem
Race Face Turbine R 35 50mm
Handlebar
Race Face 35mm Carbon Next R 780mm
Grips
Lizard Skin Northshore
Headset
Cane Creek ZS44/28.6 Top & EC44/40 Bottom
Seat
Saddle
WTB Volt 142mm
Seatpost
31.6mm Race Face Ride / KS LEV Dropper (S 125mm, M 150mm, L 175mm, XL 200mm) with SouthPaw Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.517 mm | 1.405 mm | 1.354 mm | 1.315 mm |
| Bottom Bracket Height | 322 mm | 325 mm | 325 mm | 325 mm |
| Front Center | 764 mm | 805 mm | 831 mm | 859 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 180 mm | 172 mm | 172 mm | 171 mm |
| Stack | 631 mm | 638 mm | 646 mm | 656 mm |
| Reach | 416 mm | 454 mm | 477 mm | 499 mm |
| Top Tube Length | 585 mm | 625 mm | 650 | 675 mm |
| Seat Tube Angle | 74.9 ° | 75.3 ° | 75.3 ° | 75.3 ° |
| Seat Tube Length | 390 mm | 410 mm | 440 mm | 470 mm |
| Head Tube Angle | 63.1 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1179 mm | 1220 mm | 1247 mm | 1275 mm |
| Bottom Bracket Drop | -50 mm | -50 mm | -50 mm | -50 mm |
| Standover Height | 674 mm | 680 mm | 686 mm | 696 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
