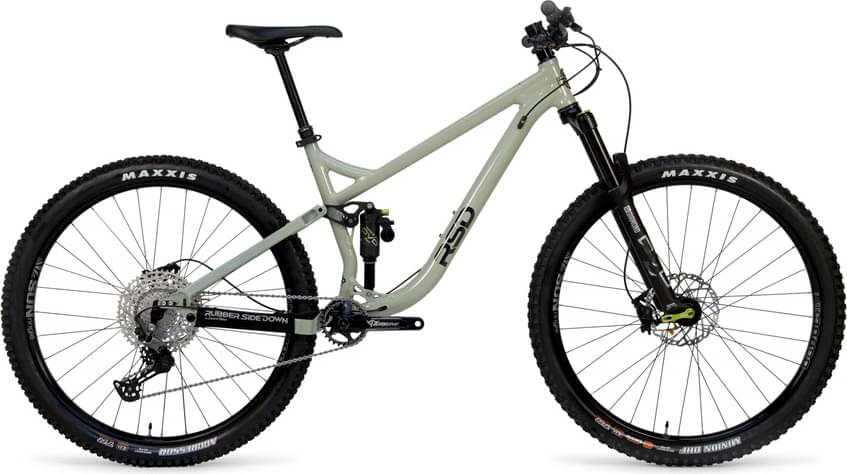

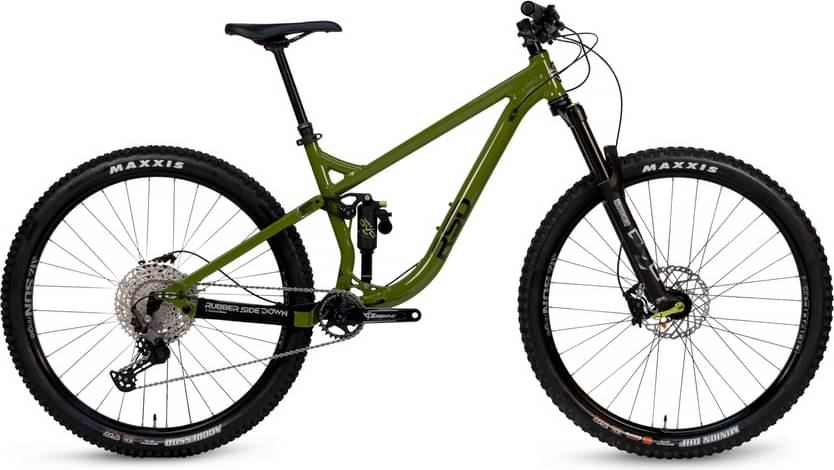

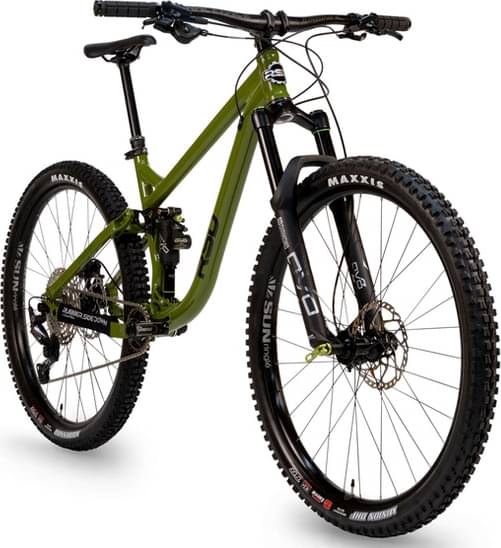

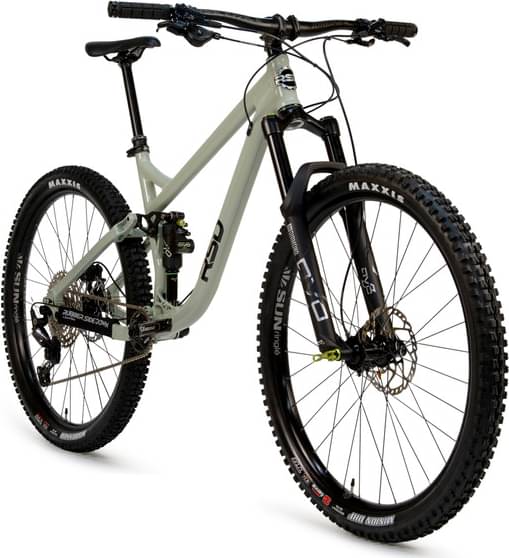

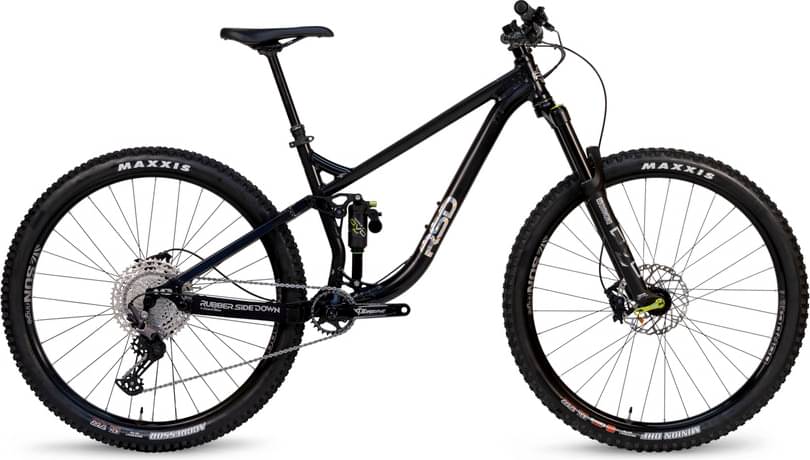

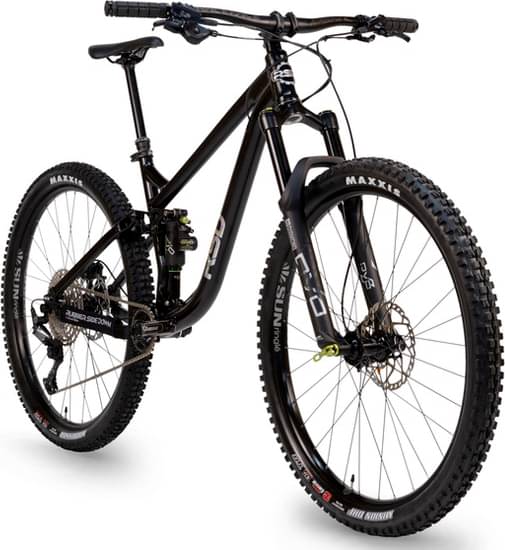

RSD WILDCAT 125 (V3) Aluminum Deore/D2 2024
2024 Mountain
Estimate price |
3,749$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Travel Rear 125mm -
Fork DVO Diamond
-
Groupset Deore -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5+/29 Aluminum 6000 Series
Suspension Fork
DVO Diamond D2 27.5+/29 140mm 51mm
Rear Shock
DVO Topaz T2 210×52.5 (RC 425 – 125mm, RC 440 – 128mm)
Drivetrain
Rear Derailleur
Shimano Deore Trigger M6100 Long Cage 12spd
Shift Levers
Shimano Deore Trigger M6100 12spd
Cassette
Shimano Deore M6100 10-51T 12spd
Crank
Race Face Turbine 73mm 175mm
Bottom Bracket
Race Face 73mm BSA
Chain
Shimano Deore M6100 126L 12spd
Wheels
Rims
Sun Ringle Duroc 27.5x40mm 15x110mm & 12x148mm Boost
Tires
MAXXIS Minion DHF 29×2.5WT 3C/Max Terra/EXO Front and Aggressor 29×2.5WT 3C?Max Terra/EXO Rear, (Minimum Sliding Drop-Out Position – 435mm)
Brakes
Brakes
Shimano SLX M7120 4 Pistons
Cockpit
Stem
FSA Comet 35 50mm
Handlebar
Race Face 35mm Turbine R 20mm 780mm
Grips
Lizard Skin Northshore
Headset
Cane Creek 40 Series ZS44/28.6 Top & EC44/40 Bottom
Seat
Saddle
Cionlli 142mm
Seatpost
30.9mm Race Face Ride or KS LEV Dropper (S 125mm, M 150mm, L 175mm & XL 200mm) with SouthPaw Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.394 mm | 1.329 mm | 1.287 mm | 1.259 mm |
| Bottom Bracket Height | 345 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 754 mm | 786 mm | 807 mm | 834 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 148 mm | 140 mm | 140 mm | 140 mm |
| Stack | 605 mm | 614 mm | 619 mm | 632 mm |
| Reach | 434 mm | 462 mm | 481 mm | 502 mm |
| Top Tube Length | 585 mm | 615 mm | 635 mm | 660 mm |
| Seat Tube Angle | 75.6 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 430 mm | 450 mm | 470 mm |
| Head Tube Angle | 64.6 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 115 mm | 130 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1178 mm | 1210 mm | 1231 mm | 1258 mm |
| Bottom Bracket Drop | -25 mm | -25 mm | -25 mm | -25 mm |
| Standover Height | 700 | 705 mm | 708 mm | 716 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
